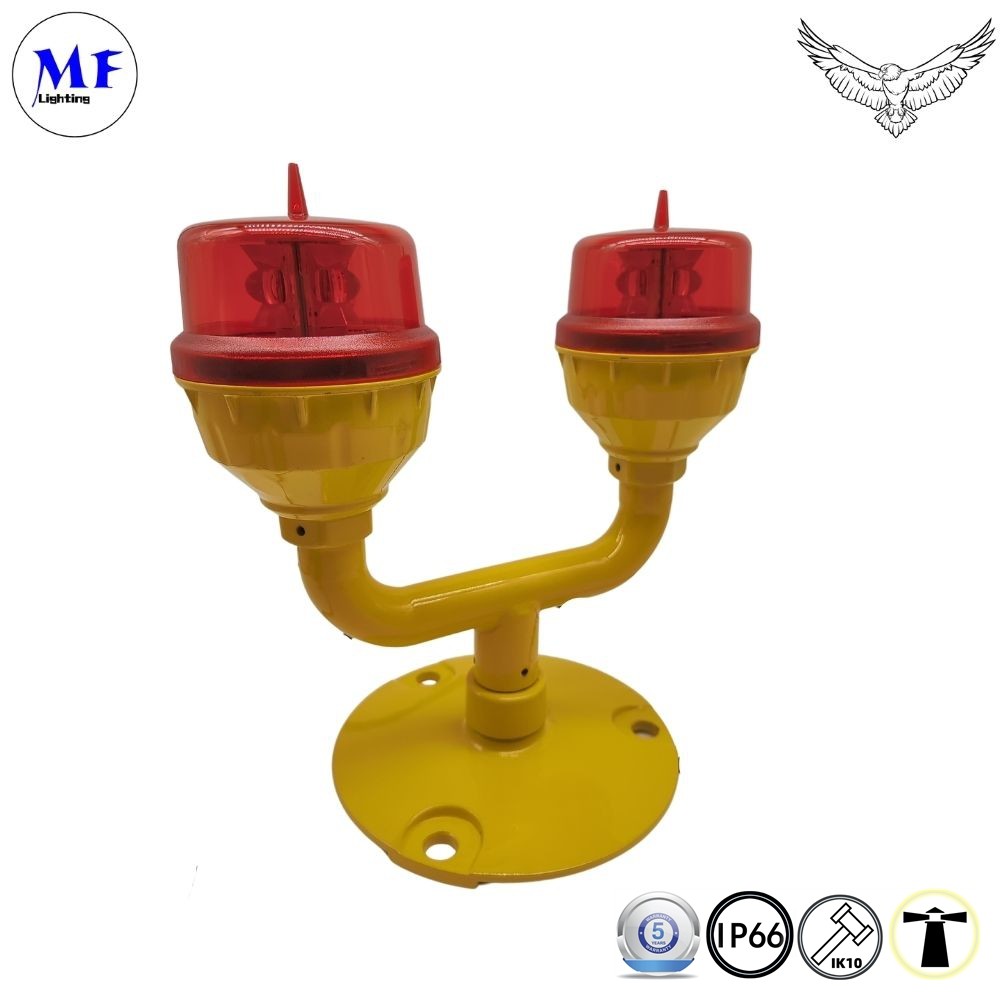

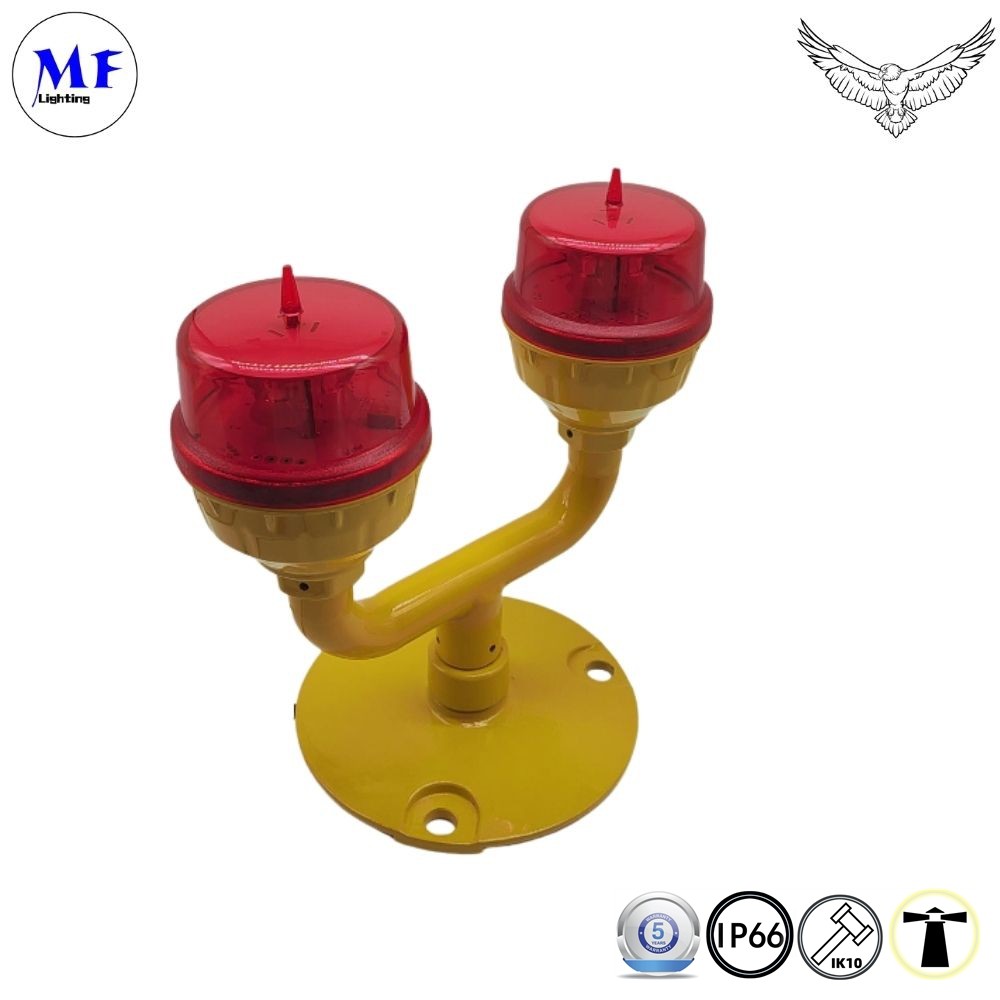

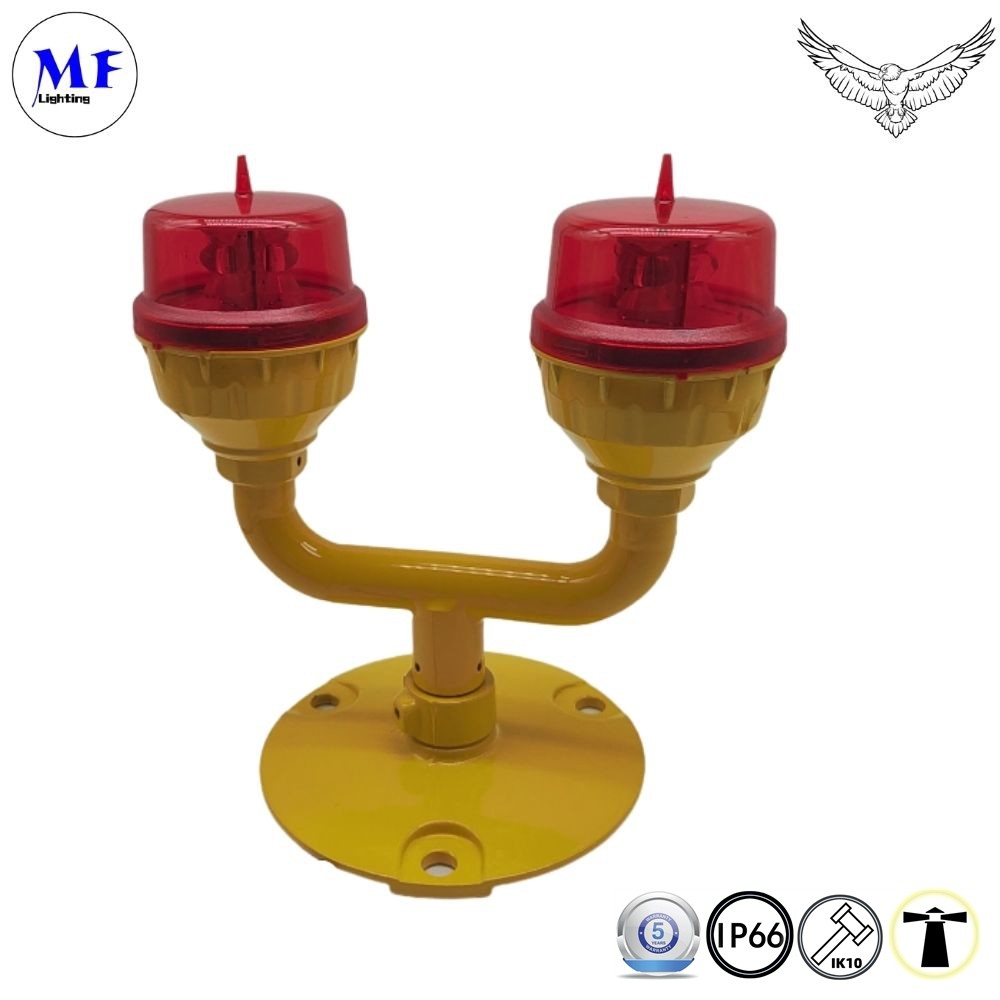

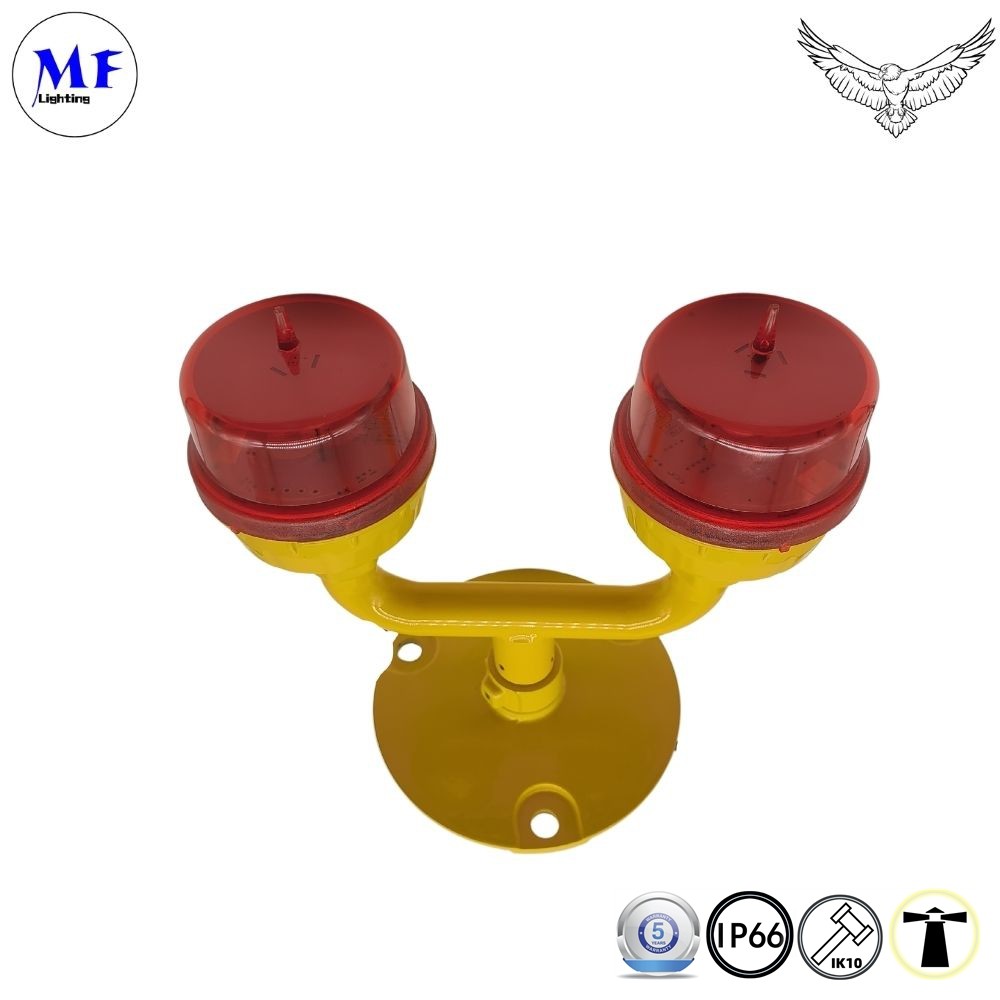

Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum

Minimum Order Quantity : 1 Packaging Details : Standard Carton
Delivery Time : Depends On Order Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 5000PCS/Months
Place of Origin: China Brand Name: MF
Certification: CE,CCC,ETL,FCC Model Number: MF-MI-B

Detail Information

Available Colors: Red Horizontal Outpu: 360
Mounting: 3/4 Inch Pipe Thread Or D140mmxm10*3 Input Voltage: 100-240VAC
Lighting Surge: IEC61000-4-5 L- N ±3kv Warranty: 5 Years
IP: 66 Wind Speed: 130lm/s
Base Material: Die-Casting Aluminum
High Light:

Red Aeronautical LED Aviation Obstruction Light

,

240VAC LED Aviation Obstruction Light

Product Description


Factory Price LED Aviation Obstruction Light with Aircraft Warning Red Aeronautical for Power Transmission Tower

Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 0

Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 1


The obstruction light is suitable for marking obstacles below 45 meters in height, such as high-rise buildings, tall chimneys, communication towers, high masts, tower cranes, and wind turbines. With its high reliability, stability, and durability, this light becomes an essential piece of equipment in these scenarios.


Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 2

Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 3




1.Utilizes CREE LED to ensure consistent brightness over extended use, providing a longer service life.
2.Supports dual power inputs of DC48V and AC110-240V, adaptable to various power supply environments, and offers a broader range of applications.
3.Equipped with bird deterrent spikes on the top to safeguard the device from potential damage caused by birds.
4.Features a uniquely designed PMMA lens for light convergen

ce and excellent transparency, enhancing the focusing effect and light transmission rate.

5.The highly translucent and UV-resistant polycarbonate housing prevents yellowing for 3-5 years, offering better weather resistance and UV protection.

6.The base is powder coated in bright yellow aluminum for improved visibility and durability, making the device more easily detectable in harsh environments.

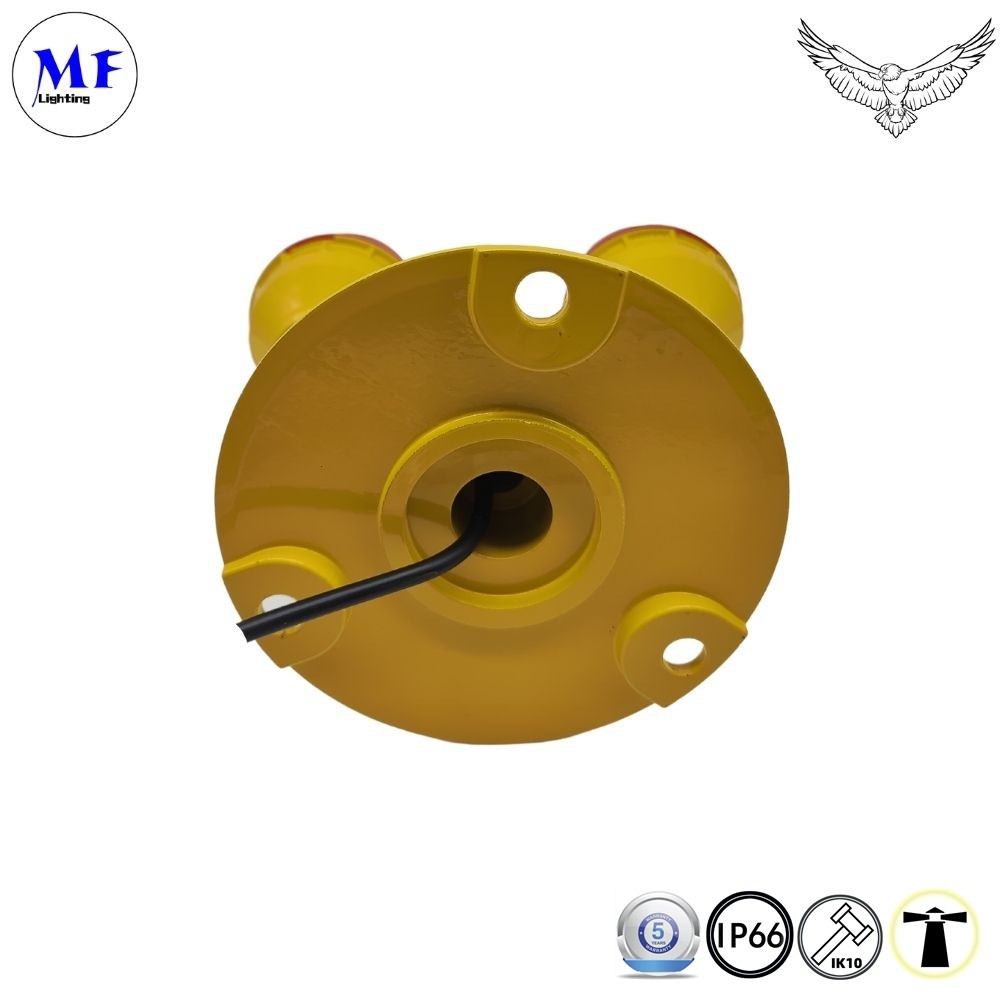

7.The base is made of die-cast aluminum, offering strong corrosion resistance, shock, and vibration protection for higher durability and stability.

8.Features a 3/4-inch thread hole for easy pole installation, providing a convenient installation method.

9.A screw-free fixing design allows the cover to be securely fastened by simply twisting, making the device easier to maintain.




Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 4

more

Electrical
1.High brand LED, make sure LED keep bright while use for long time
2.Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC

Physical
1.Bird deterrent spike on top
2.Unique designed PMMA lens for converging light and good transparency
3.High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
4.UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments()
5.Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
6.3/4inch thread hole make pole installation easy
7.No screw fix type - just twist, the cover will be fixed tightly

System design
1.Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below
50cd/m2
2.Steady/20FPM/30FPM/60FPM DIP switches on PCB
3.Surge and lightning protection
4.Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly
marked.

Optional
1.Infrared LED for pilot using NVG
2.Alarm contact output (Dry contact- NO COM NC), When powerfailed alarm generate & also when LED fails alarm generated
3.Solar power system

Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 5
Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 6Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 7



Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 8










ModelPower inputLight sourceFlash rateLens colorPhotocellDry contact alarmGPS sync
flashing
Control
MF-LI-B2110-240Vac&48Vdc
12VDC
36VDC
LED IRSteady
20FPM
30FPM
40FPM
60FPM
Red/ClearBuilt-in
No
No Alarm
Alarm
NO SYNC
GPS SNYC
Used alone
Used with controller


Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 9


Red Aeronautical LED Aviation Obstruction Light For Marking Obstacles Below 45 Meters With Yellow Color And Aluminum 10
