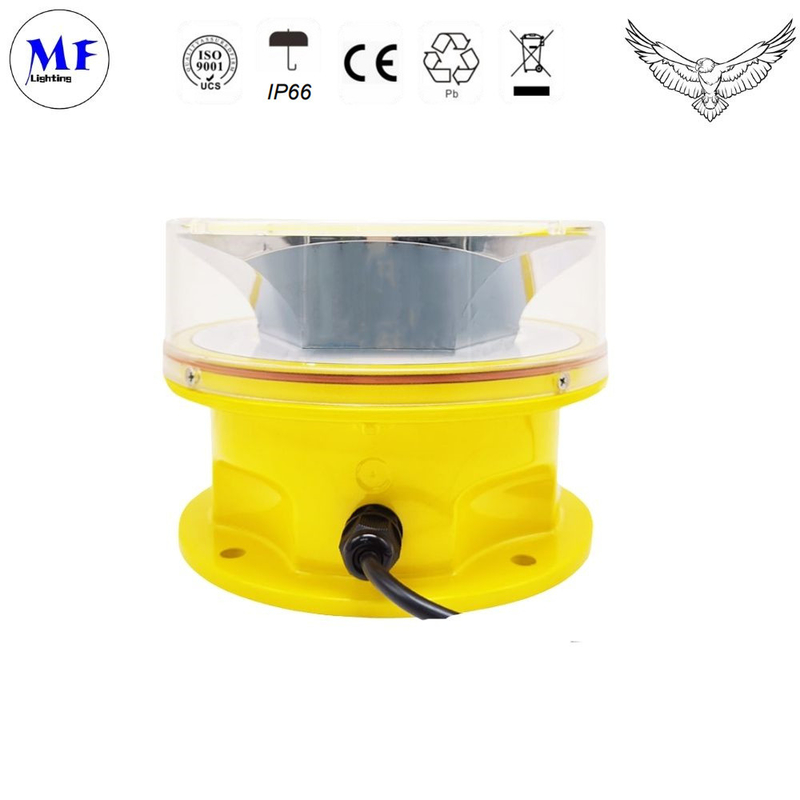

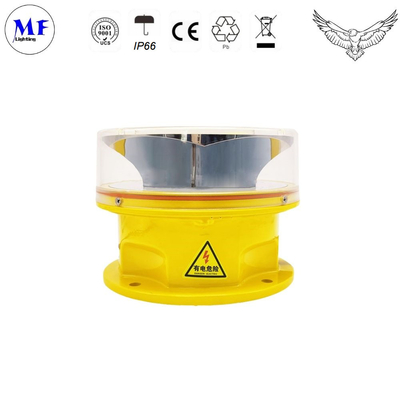

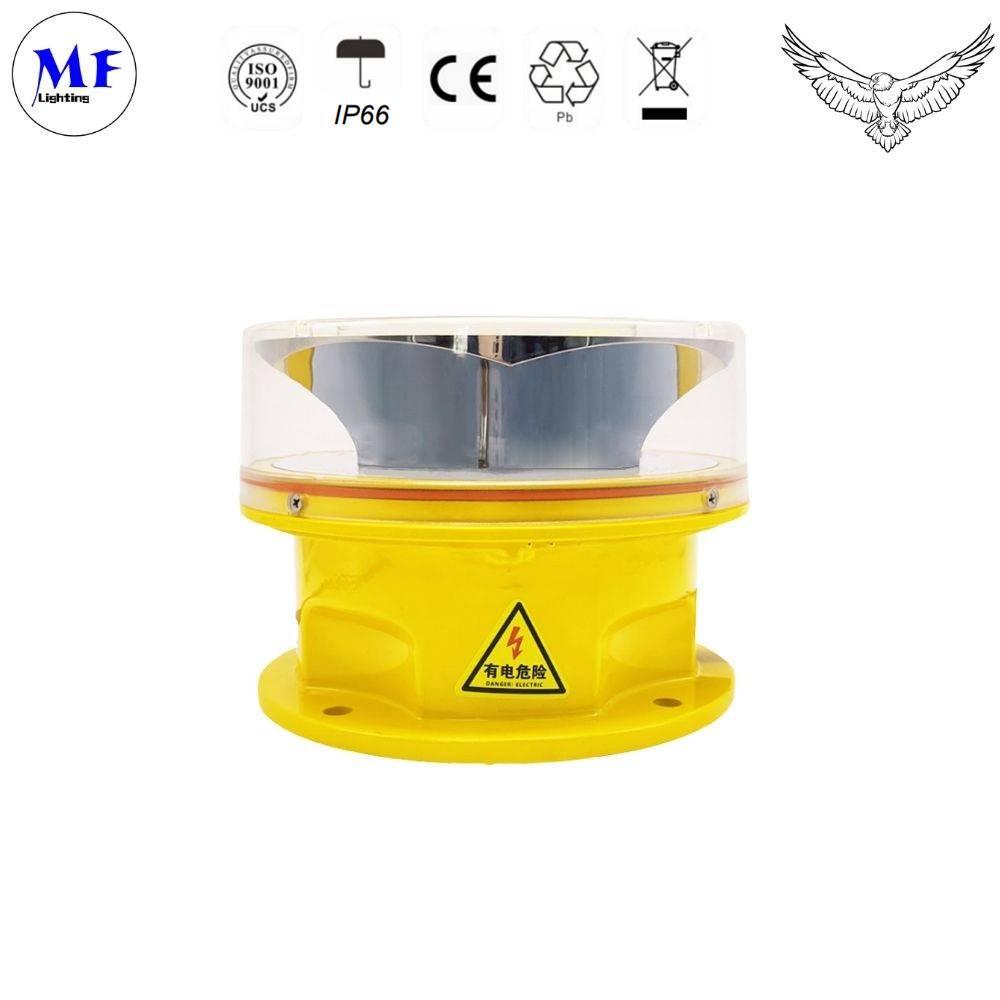

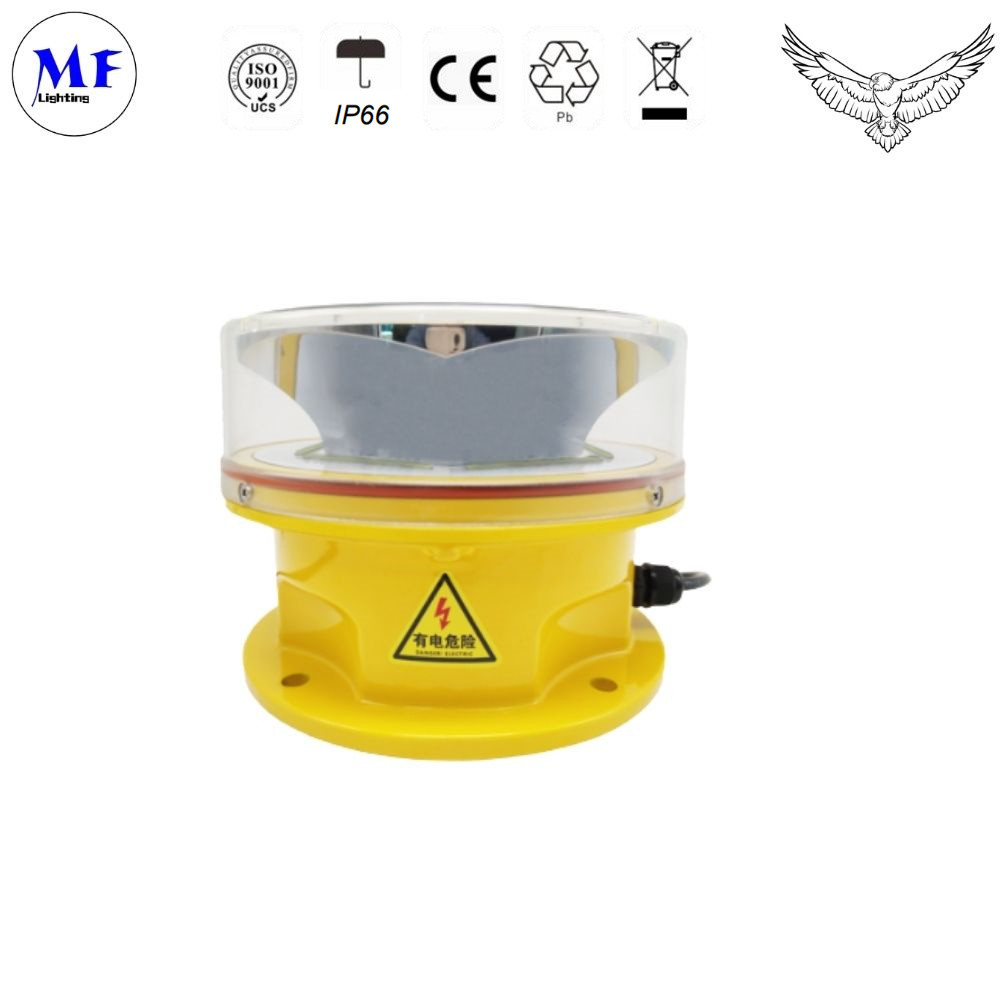

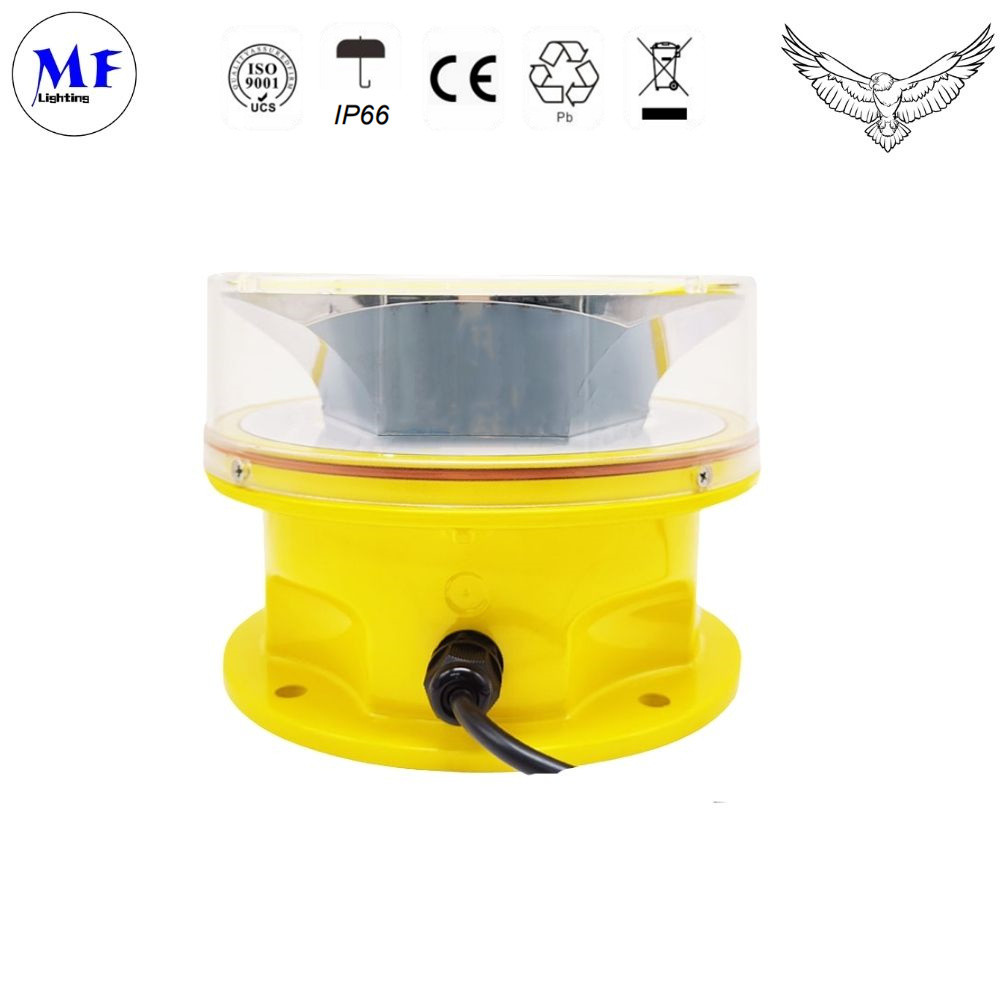

Red IP66 ICAO Medium-Intensity Type B L864 LED Aviation Obstruction Light For High Building Airoprt tower

Product Description

• ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium

  Intensity Type B Obstruction Light
• FAA L-864



  features

  Electrical



  1.CREE ultra high intensity LED as light source saving power
  consumption and maintenance than incandescent light or halogen
  2.lampPower supply available in DC(12V, 24V, 48V) or AC(110-240VAC)

  ​​​

Physical​

1.Unique design and UV protected polycarbonate reflector for converging light
2.UV protection Powder coated bright yellow color base make better visibility
3.Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
4.Special valve installed under base to make sure the air could go through but water is avoid, so that the whole light temperature won't be high

System design​​

1.Built-in photocell for day/night operation(dusk to dawn operation)
2.Surge and lightning protection

Optional

1.Dry contact Alarm output for remote monitoring
2.User adjustable flashing rate(20, 30, 40, 60 flashes/minute)
3.Infrared LED for pilot using NVG

Light Characteristics

​​

Light Source	CREE high intensity LED
Available Colors	Red(Other color is optional)
Intensity(cd)	≥2000cd
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	3
Flash Characteristics	20-60 flashes per minute(factory setting: 20fpm)
Operation Mode	Dusk-to-dawn Automatically as standard.
LED Life Experience(hours)	>100,000

Electrical Characteristics​

Operating Voltage	DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Instantaneous power	40W
Average Power	3W(20fpm)
Lightning surge	IEC61000-4-5 L- N ±3kV, IEC61000-4-5 L- PE ±6kV, IEC61000-4-5 N- PE ±6kV
Electrostatic	IEC61000-4-2 Contact discharge 8kV
Circuit Protection	Integrated

​

Physical Characteristics​

Body Material	UV protected Polycarbonate

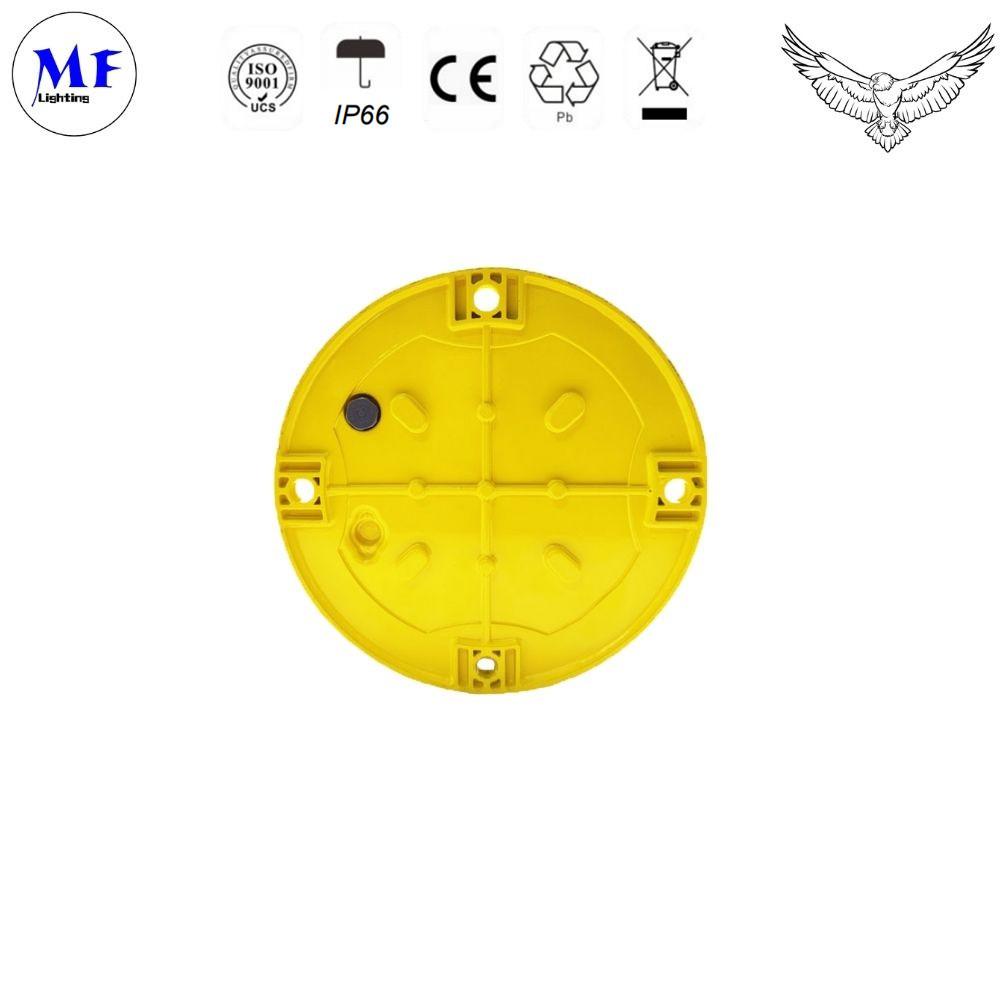

Base Material	Powder-coated Die-casting aluminum
Mounting	190*190*θ12
Dimension(mm)	229*229*168
Weight(kg)	2.5
Product Life Expectancy	10 years plus

​

Environmental Factors

Ambient Temperature(℃)	-40~65
Storage temperature(℃)	-55~70
Humidity	10%-95%RH(No condensation)
Wind Speed	240Km/h
Waterproof	IP66





Compliance

ICAO	Annex 14 Volume 1,'Aerodrome Design and Operations' Seventh edition July 2016, table 6.3 Medium-intensity Type B Red Obstacle Light
FAA	L-864



Options Available

Flashing rate

NVG(Night Vision Goggles) compatible LED

Dry contact alarm(NO COM NC)

GPS sync flashing

RS485 communication

Bird deterrent spike

Configuration

Model	Power input	Flash rate	Lens color	Photocell	Dry contact Alarm	GPS sync flashing	Control
MF-LI-B2	110-240Vac&48dc 12Vd c 24Vdc 36Vdc	Steady 20FPM 60FPM 40FPM 30FPM	Red clear	Built-in No	No Alarm	NO SYNC GPS SNYC	Used alone Used with controller











Wiring diagram









This LED Medium-intensity Type B L864 Aviation

Obstruction Light flashing red color, designed for marking

top of obstacle which height is more than 45meters.

Ultra high intensity CREE LED is used for the light source

ensure the long life experience and good performance.

Self-designed reflector is used to converge light, which

could reach the standard light intensity with as less as the

power consumption.
