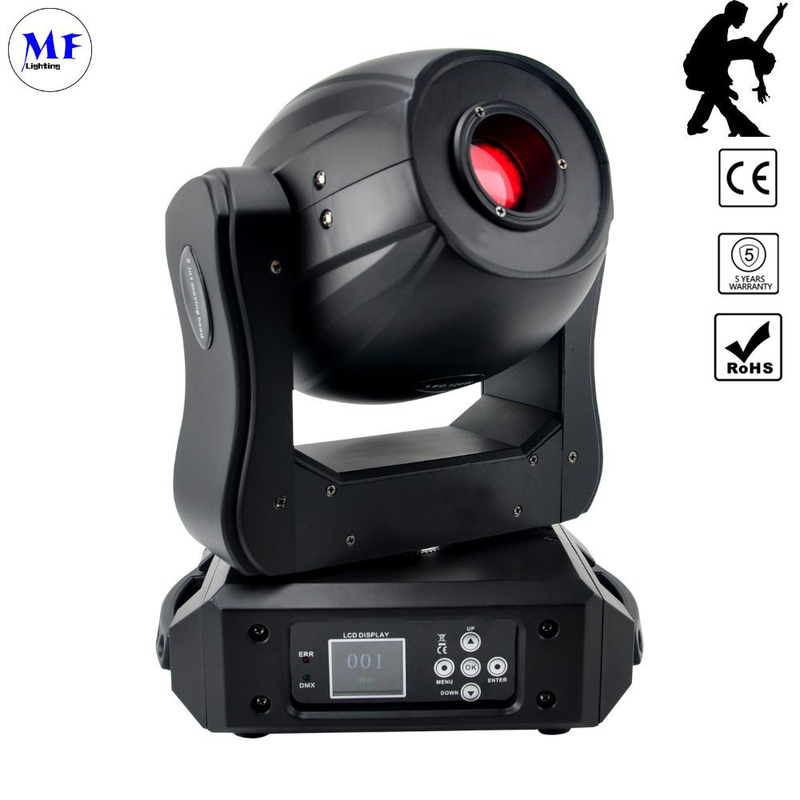

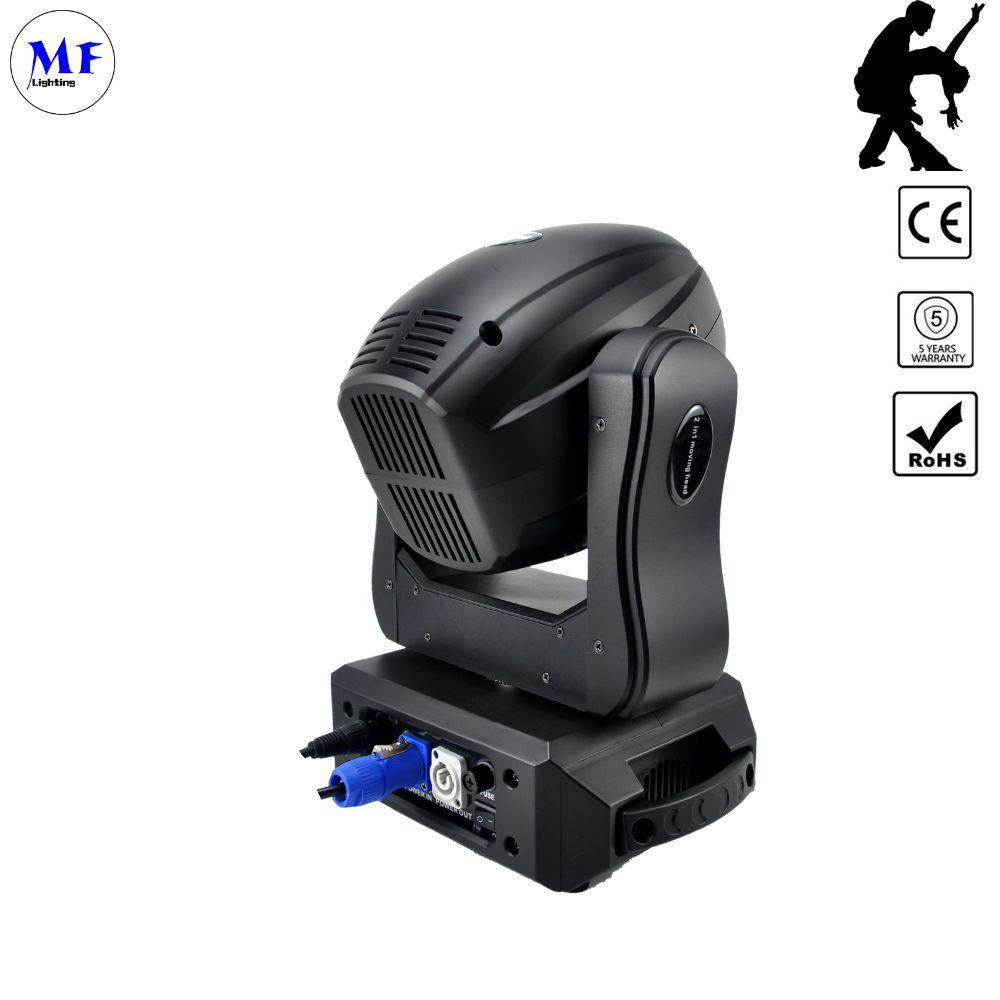

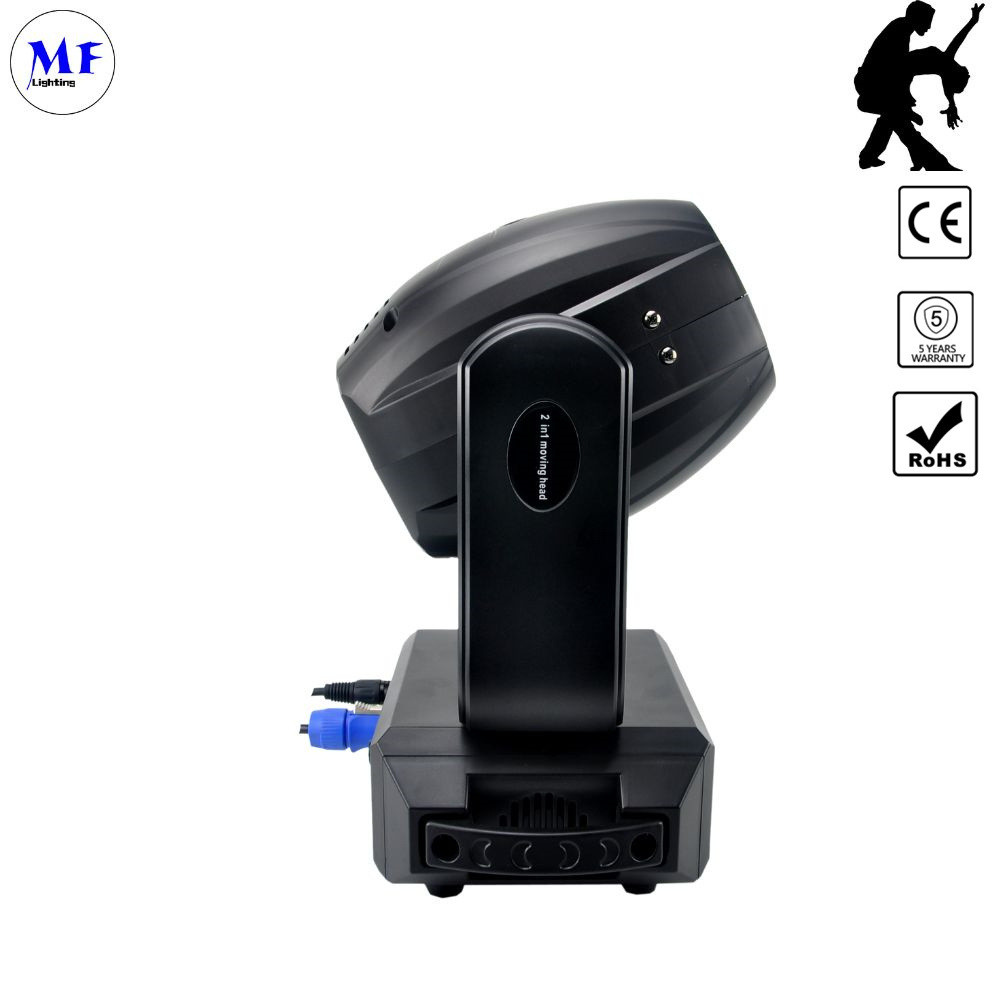

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub

Contact Now

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub

Minimum Order Quantity :	1PCS	Delivery Time :	depends on order
Supply Ability :	5000pcs/months

Place of Origin:	China	Brand Name:	MF
Certification:	CE,RoHs	Model Number:	MF-DM150WSMH

Detail Information
POWER:	150W	Light SourceMF-DM150WSMR:	1PCS 150W White LED
Color Wheel:	7colors Plus White	Control Channel:	16CH
Strobe:	0-16Hz, From Slow To Fast, Adjusting	Control Mode:	Auto, Sound Active , DMX512
Beam Angle:	13.5°	Pan Movement:	540°
Tilt Movement:	270°	Pan/Tilt Resolution:	8-16bit
1 Fixed Gobo Wheel:	8gobos Plus Blank	Focus:	Linear Focus From Close To Far
Max Temperature:	104°f(40°c)
Highlight:	5 years Warranty LED Stage Light , 150W LED Stage Light , 7colors LED Stage Light

Product Description

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 0

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 1

Features

*Light source:1pcs 150W white LED

*Power consumption:180W

*Beam Angle:13.5 degree

*Electronic dimmer 0~100%

*Pan movement:540°

*Tilt movement:270°

*Pan/Tilt resolution:8-16bit

*Prism rotating 5-facet prism

*Focus:linear focus from close to far

*1 fixed gobo wheel: 8gobos plus blank

*1 rotated gobo wheel: 6gobos plus blank,gobo rotating 360°

*1 color wheel:7colors plus white

*Strobe:0-16Hz, from slow to fast, adjusting

*Control mode:Auto, sound active , DMX512

*DMX channel:16CH

* LCD display

*Pan/Tilt invert option

*Reset to factory settings option.

*Fan Cooling /Forced convection

Technical specifications

DMX Channel

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 4

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 5

Set up

Disconnect the power cord before replacing a fuse and always replace with the same type fuse.

3.1 Fuse replacement

With a flat head screwdriver wedge the fuse hold out of its housing. Remove the damaged fuse from its holder and replace with exact

same type fuse. Insert the fuse holder back in its place and reconnect power.

3.2 Fixture linking

You will need a serial data link to run light show of one or more fixtures using a DMX-512 controller or to run synchronized on two or

more fixtures set to a master/slave operating mode. The combinednumber of channels required by all the fixtures on a serial data link

determines the number of fixtures the data link can support.

Note! If you use a controller with a 5 pin DMX output connector. You will need to

use a 5pin to 3 pin as apter

CHAU-VET Model No: DMX5M. Or DMX 5F

The chart below details a proper cable conversion:

At first link the first light and DMX control through XLR-connection signal cable,

then connect the light in series, as the follow:

1. Connect the (male) 3 pin connector side of the DMX cable to theoutput (female) 3pin connector of the first fixture.

2. Connect the end of the cable coming from the first fixture whichwill have a (female) 3 pin connector to the input connector of thenext fixture consisting of a (male) 3 pin connector. Then, proceed toconnect from the output as stated above to the input of thefollowing fixture and so on.

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 9

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 10

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 11

5 Years Warranty 150W 7colors LED Stage Light Moving Head Light For Party DJ Disco Nighclub 12

Unpacking instructions

On receiving a fixture, carefully unpack the carton, check the contents to ensurethat all parts are presented, and have been received in a good condition. Notifythe shipper immediately and retain packing material for inspection if any partsappear damaged from shipping or the carton itself shows, sign of mishandling.Save the carton and all packing materials. In the event that a fixture must bereturned to the factory, it is important that the fixture should be returned inoriginal factory box and packing.
