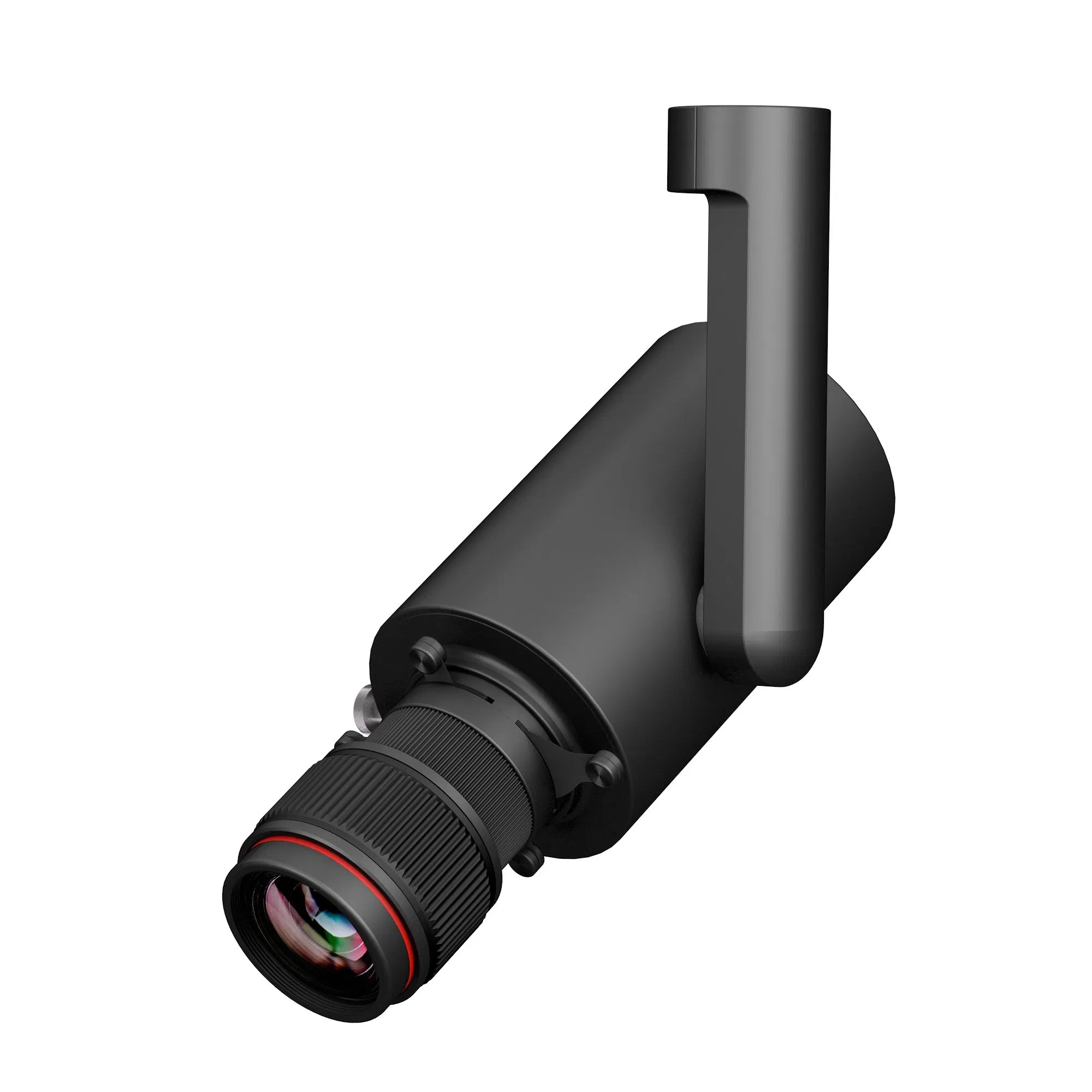

Professional-Grade DIP Color Dimmable Smart Control Shapeable Projection Track Light
Factory price optical-grade variable aperture dimmable shapeable projection track light for logo projection and architectural applications.
Product Specifications
| Product Name | T1008S |
| Item Type | Shapeable Track Light/LED Track Light/LED Spot Light |
| Wattage | 10W |
| Luminous Flux | 300-350LM |
| Supported Filters | 58 |
| Input Voltage | 220-240V |
| Light Source | Osram |
| CRI (Ra>) | 97 |
| Housing Color | White, Black |
| Installation | Track-Mounted, Wall-Mounted |
| Working Time | 50,000 hours |
| Warranty | 5 years |
GZ series shapeable track light features a compact design with dry mechanical damping system. It achieves stable and reliable front and rear zoom, spot shaping and projection, offering ultra-high cost performance suitable for modern commercial lighting design and no main lamp design.
DIP color temperature coupled with the single lamp knob dimming design enables easy single lamp dimming, spot shaping and color temperature adjustment. Can be used alone or equipped with other dimming devices.
Filter System Details
- Color Filter: Adjusts luminous color according to your requirements
- ND Filter: With electronic dimming, reduces small-angle illumination to less than 75LUX for authentic lighting
- UV Filter: Effectively filters UV rays in LED lamps, protecting illuminated objects - ideal for silk products and cultural relics lighting
- CPL Filter: Eliminates surface reflection, displaying objects' original appearance in high luminosity environments
- GND Filter: Alters light ratio into the lens, enabling even and constant illumination of objects

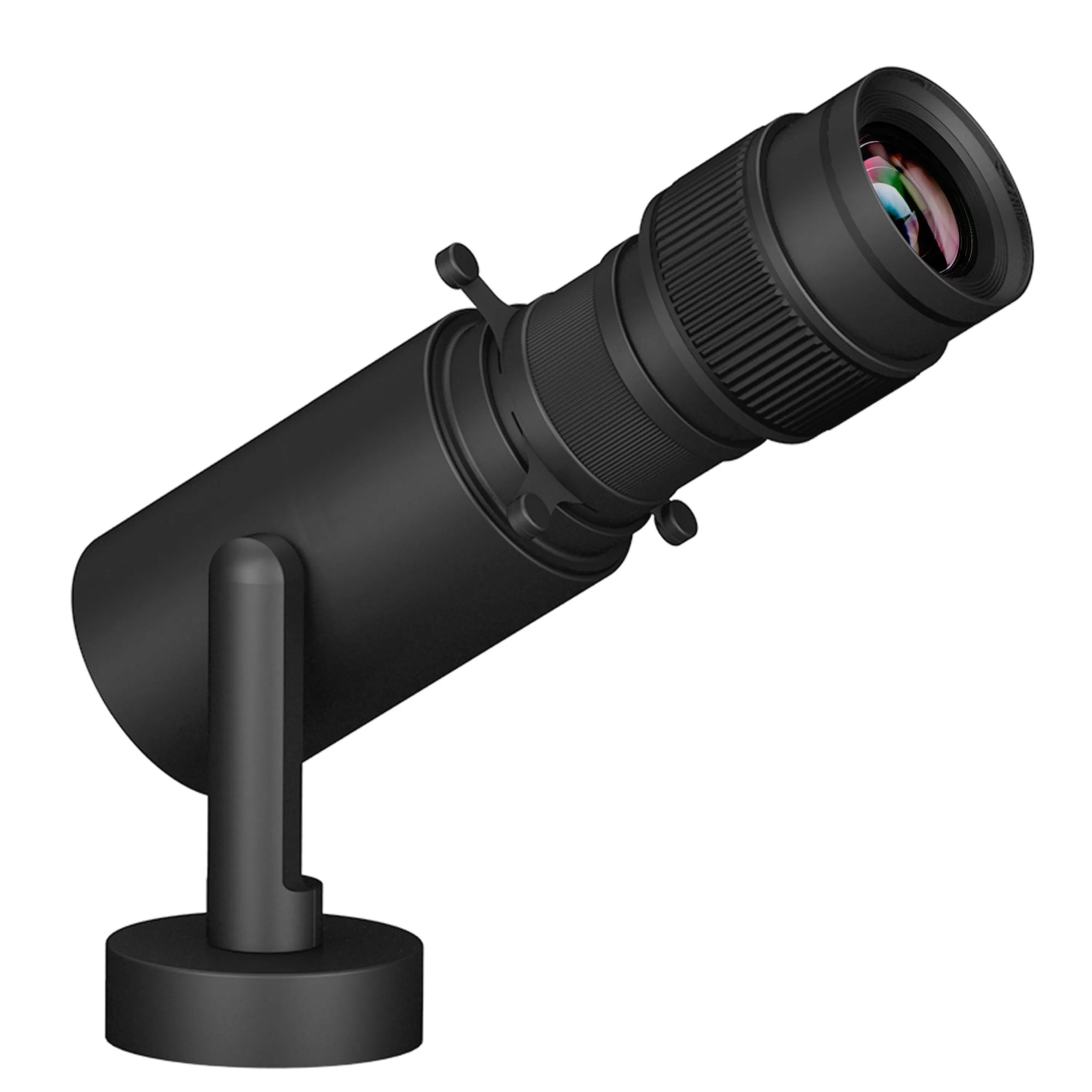

Mini shapeable track light with maximum diameter of only 36mm and maximum angle up to 45 degrees. Suitable for any commercial lighting application. Supports embedded installation, magnetic installation, and track installation.
Advanced Features
Cold Forging Integrated Radiator Design
Radiator made of 1070# pure aluminum molded by pressure molding. High thermal conductivity (226W/m.K), low temperature differences, low light failure, and long service life.
360° Manual Rotation Design
Loosen manual screw and turn lens to achieve 360° spot rotation adjustment. Solves 360° rotation of projection and light spot.

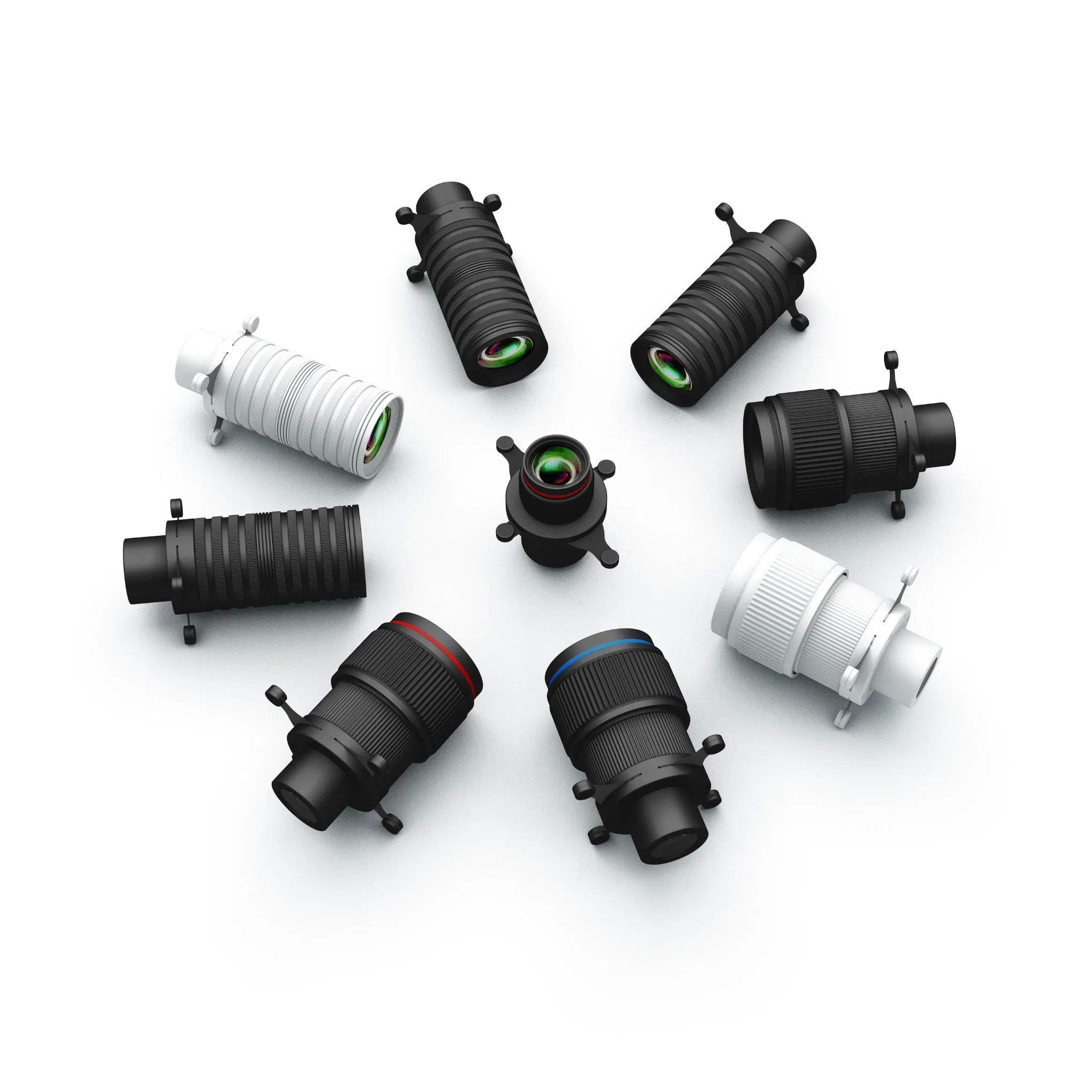

High-Definition Optical Lens Design
Formed by multiple high-definition coated optical lenses. Features high luminous efficiency, high spot uniformity, minimal distortion, extensive linear zoom range, and excellent spot cut-off line. Specially designed optical path for COB light sources.
Optical-Grade Variable Aperture Design
Optical diaphragm made of high-precision special material with no blurring or freezing. Manual insertion and removal of light cutting device allows free shape changes of the spot.
Multi-Layer Dry Damping Design
Focusing device requires no lubricating oil with silky feel. Stable, reliable, wear-resistant, high temperature resistant, and maintains performance after extended use. Rotating device changes spot sharpness.
Linear Zoom Mechanism
Short stroke, considerable focal length, high short-focus and long-focus recognition visible to naked eye. Enhanced linear zoom for convenient spot size adjustment.
Application Scenarios
Luxury Retail: 20° narrow beam highlights jewelry/watches, CPL filters eliminate glare, 2700K for ambiance
Museums/Galleries: UV filters protect paintings/manuscripts, 36° wide flood for display cases, CRI≥97
Fine Dining: Shapeable spots (circle/square) for brand logos/food close-ups, ND filters adjust softness
Stages/Theaters: Instant change 15° spot to 36° wash, silent operation during performances
Medical Labs: Flicker-free + UV-free for anatomy tables/precision instruments
Installation & Operation Guide

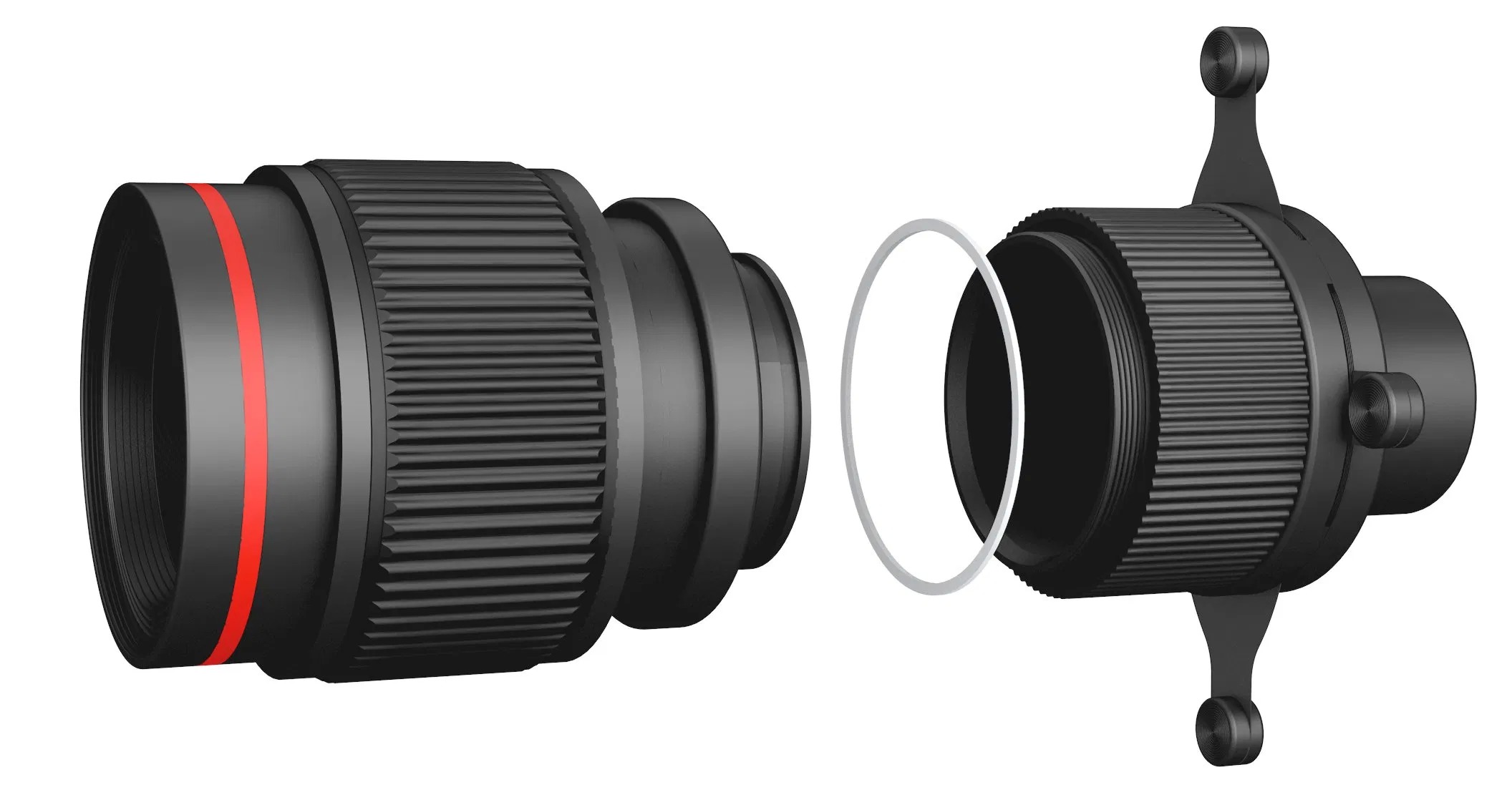

1. Loosen and pull out the hand screw (red part), then pull out the main lens part (blue area) and separate from lamp body
2. Stretch the four diaphragm sheets on the optical lens outward to maximum extent
3. Unscrew the blue part of optical components at bottom of lens and separate, then separate lens face ring
4. Install gobo device delivered by manufacturer, then reassemble optical lens and lamp body
5. Design and make various image gobos using manufacturer specifications
Adjust aperture to appropriate size, face center of irradiated object, and adjust sharpness to reasonable degree
Pull four diaphragm sheets outward to maximum, then push one by one vertically inward to ensure cut square spot is smaller than object to be illuminated. Adjust aperture sharpness until satisfactory.
If spot shape doesn't match object, loosen hand screw at red mark, rotate blue lens part to adjust spot edge parallel to object edge, then tighten hand screw. LOGO projection direction can also be adjusted using this method.
Stretch diaphragm sheets outward one by one until spot size substantially matches object. Repeat operations as needed to achieve desired spot effect.
