Product Description

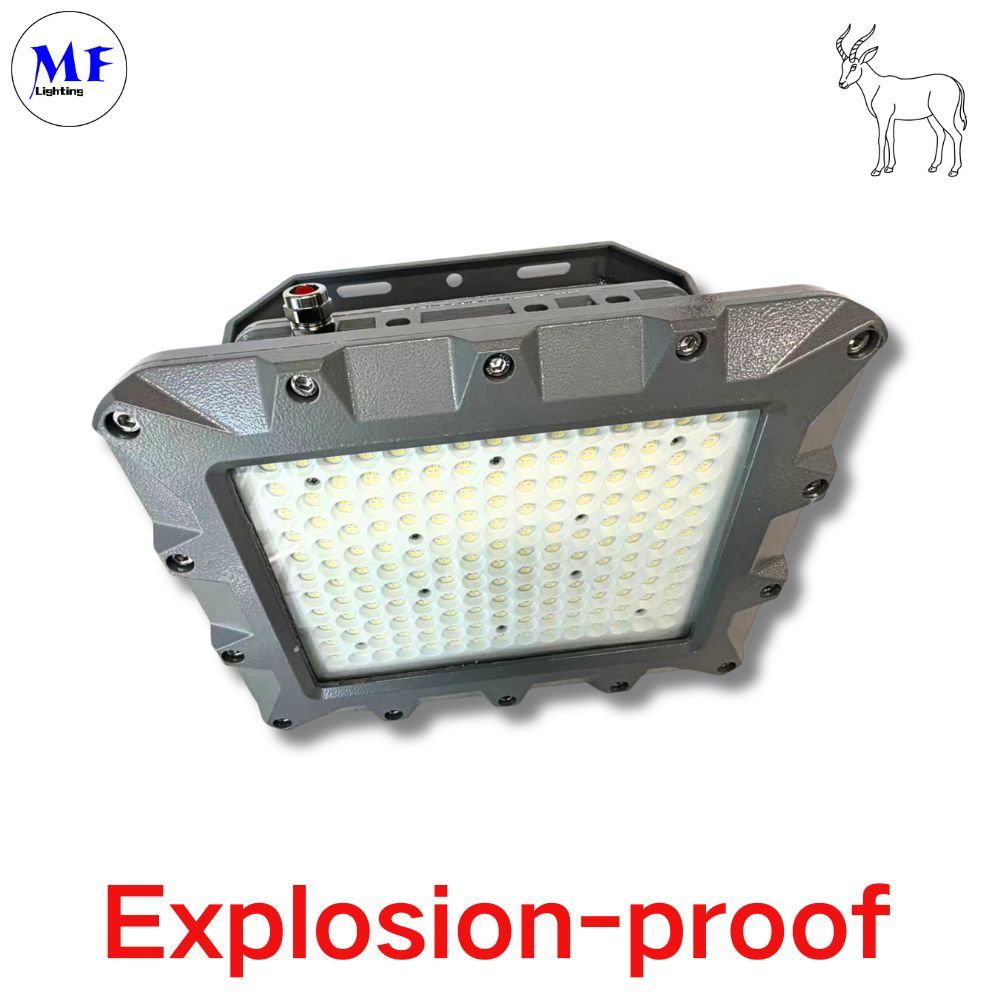

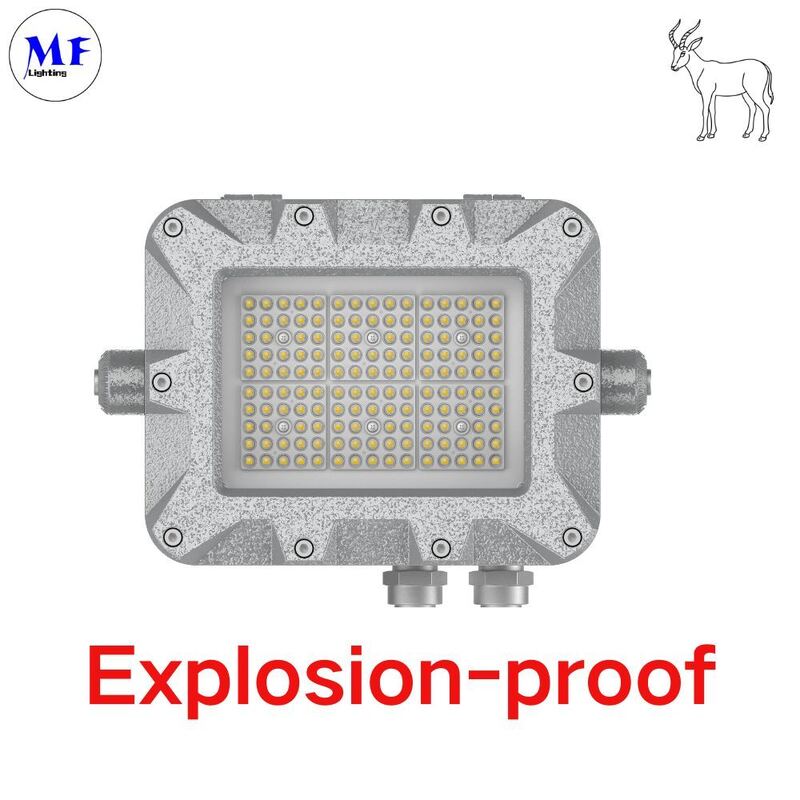

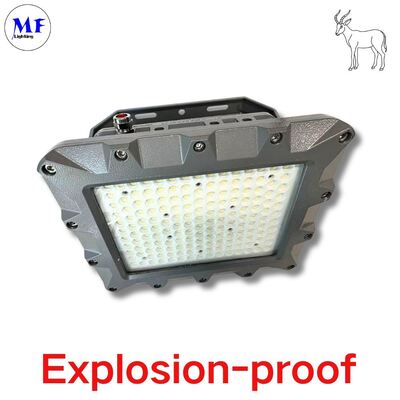

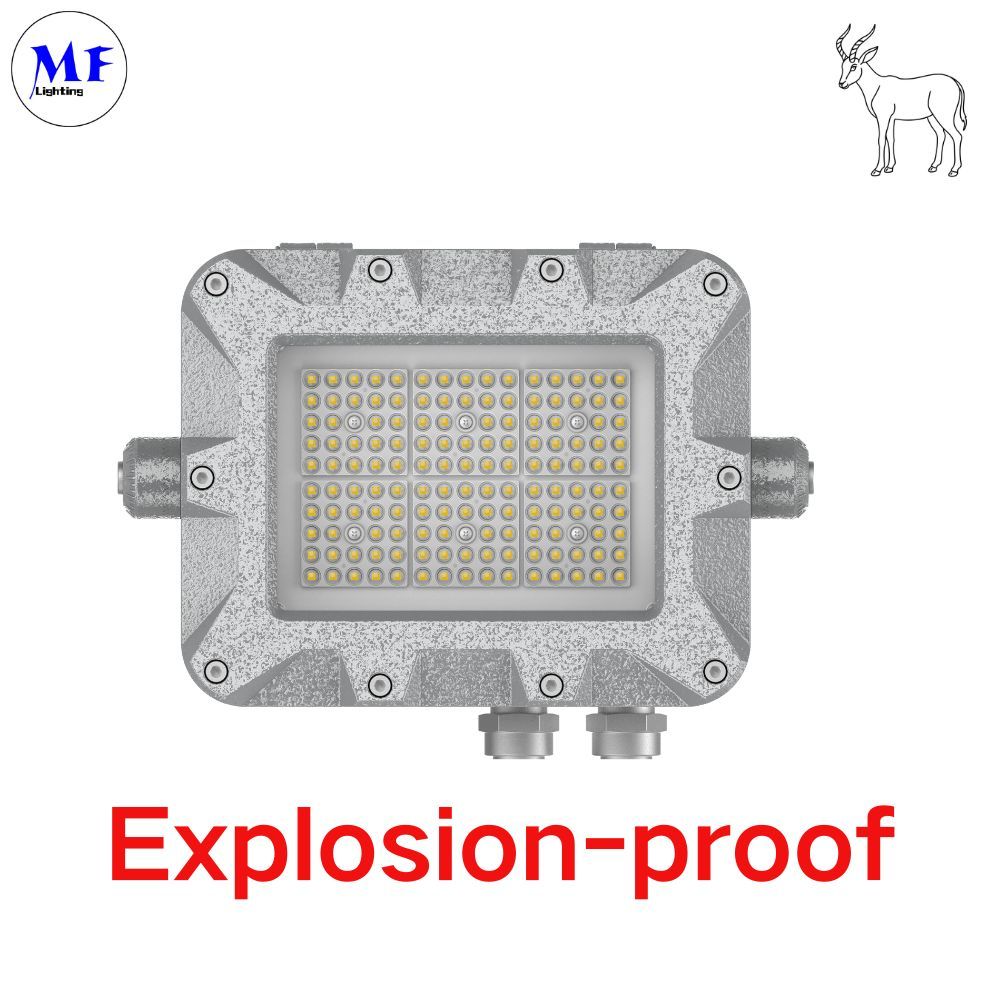

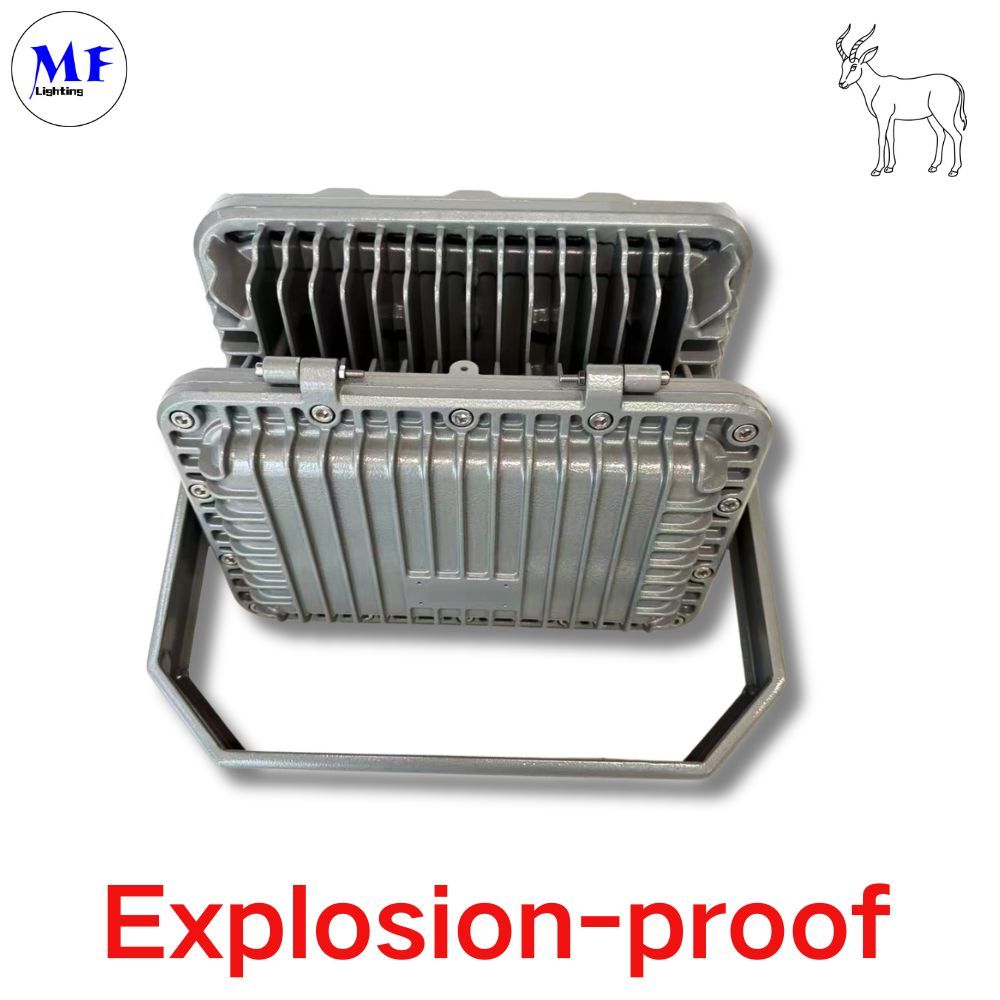

Explosion Proof Flood Light ATEX IECEx Zone 1 & 2 Ex db eb LED Oil Refinery, Chemical Industrial, Mining, 50W-400W, IP66 IK10, 5-Year Warranty for Hazardous Area
feature:1.Multiple beam angle 2.Working Temperature: -40°C ~ +55°C
3.High quality SMT LED and Brand Driver 4.Heavy-duty and high impact resistance
5.Integrated junction box for driver 6.Zinc-rich powder coated finish treatment
7.Up to 5 years warranty 8.Glass lens or polycarbonate lens
| Power |
Housing Length (mm) |
Housing Width (mm) |
Housing Height (mm) |
Mounting Hole Distance (mm) |
Cable Entry / Shaft Diameter (mm) |
| 50W – 150W |
266 |
170 |
110 |
14 |
13 |
| 200W – 240W |
330 |
170 |
110 |
15 |
13 |
| 300W – 400W |
462 |
423 |
191 |
295 |
325 |
| Beam Angle |
Typical Application |
| 30° |
Long-range precision lighting (e.g., towers, chimneys, distant projection) |
| 45° |
Medium-to-long range accent lighting (e.g., equipment zones, focused illumination) |
| 60° |
Medium-range general lighting (standard industrial areas) |
| 90° |
Medium-wide flood lighting (e.g., factory floors, storage yards) |
| 120° |
Wide-area flood lighting (e.g., open spaces, large coverage areas) |
Mounting Methods
1. Ceiling Mounting
Mounting direction adjustable via screw.
Wiring terminals: N (Neutral), L (Live), G (Ground).
Fixing screw size: M4.
2. Wall Mounting
Equipped with a balance chain for stable suspension.
Pole length is adjustable to suit different installation heights.
1. Oil and gas industry – petroleum production, refining, loading, transportation, storage, retail, LNG facilities, and mining operations
2. Chemical industry – paint facilities, chemical production, and storage
3. Ocean, marine and aerospace field – offshore platform facilities, vessel operations, and aerospace clean rooms
4.Metal treatment – steel and aluminum plants, pumping stations, and metal smelting
5.Food and alcohol industry – flour milling, fine particle storage, food processing, and alcohol production
6.Other harsh environments – high humidity, high dust, high temperature, and vapor-laden areas
| Parameter |
Specification |
| LED Type |
SMD 2835 |
| CCT |
3000K / 4000K / 5000K / 5700K / 6500K |
| Luminous Efficacy |
140 LM/W (±5%) |
| Input Voltage |
AC100-277V / 120-347V / 277-480V, 50-60Hz |
| CRI |
Ra > 80 (Ra70 / Ra90 optional) |
| Beam Angle |
30° / 45° / 60° / 90° / 120° |
| Rated Lifespan |
60,000 hours |
| Warranty |
5 Years |
| Working Temperature |
-40°C ~ +55°C |
| Working Humidity |
20% ~ 90% |
| Storage Temperature |
-40°C ~ +80°C |
| Storage Humidity |
10% ~ 90% |
Electrical Parameters
