Home ProductsLED Explosion Proof LightsIP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light
IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light
IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light
IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light
Contact Now

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light

Minimum Order Quantity : 1 Price : USD7-USD28.9
Delivery Time : 10workding days Payment Terms : T/T
Supply Ability : 10000PCS/Month
Brand Name: MF Model Number: MF-EX02-A-B-75W

Detail Information
Luminous Efficiency: 120LM/W Power Factor: >0.9
Inputvoltage: AC 85-265V Mounting Diameter: 75mm/90mm/100mm/115mm/145mm/170mm
Diameter: 90mm Switch Type: Touch On/Off Switch
Lifespan: 50000 Hours Nominal Current: 350,000mA
Luminousflux: 600 Lumens Selling Units: Single Item
Lamp Luninous: >600LM Shape: Round Shape
Leds: SAMSUNG Led Light Source: COB
Heat Sink: Aluminum Holesize: 105-110mm
Color Temperature: 3000K / 4000K / 6000K Item Type: Explosion-proof Lights
Lamp Body: White Power: 5-30W
Mounting Location: Ceiling Housing Color: Warm White
Led Chip: CREE Input Voltage: AC 85-265V
Light Color: Warm White Shade Type: Toughened Glass
Single Package Size: 20X20X3 Cm Installation: Recessed
Ip Grade: IP66 Efficiency: 110lm/w
Battery Type: Ni-MH Color: White
Start Time: ≤0.2 S Mounted Style: Recessed /Surface/Pendant
Life Span: 10 Years At 12 Hours/day Surge Protection: 6KV
Rated Lifespan: 300 Cycles Application: Hazardous Locations Such As Oil Refineries, Chemical Plants, And Mines
Chips: Lumileds Precision Aiming Device: MF
Cri: Ra>80 Operating Voltage: 100-277 VAC/141-392 VDC
Highlight:

EATON explosion proof LED flood light

,

IP66 offshore explosionproof lighting

,

ATEX certified mining LED light

Product Description

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED explosion proof Atex Flood light

Feature

- Multiple optional beam angles: 30°/45°/60°/90°/120°
- Wide operating temperature range:-40°C ~ +55°C
- Adopt high-quality SMD 2835 LED chips and branded Sosen drivers
- Heavy-duty structure with high impact resistance
- Integrated junction box built-in for driver installation
- Zinc-rich / marine-rating powder-coated housing surface treatment
- 5-year long product warranty
- Multiple mounting options to fit diverse site requirements
- Lens choices: tempered glass lens or polycarbonate lens for different beam outputs
- Replaceable LED board and drivers for easy maintenance
- Optional dimmable function & battery backup function
- High power factor>0.9, low THD<20%
- Rated service life up to 50,000-60,000 hours

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light





Characteristic

- Power range: 50W-400W(50/75/100/150/200/240/300/400W)
- Input voltage: AC85-265V; optional AC100-277V /120-347V /277-480V, 50-60Hz
- Luminous efficiency: 140LM/W (±5%)
- CRI Ra=80; CCT options: 3000-3500K(Warm White),4500K(Natural White),6000-6500K(Cool White); also 4000K/5000K/5700K available
- IP66 ingress protection, IK08 impact resistance
- Housing material: Die-casting ADC12 aluminum alloy
- Explosion-proof certifications: ATEX, IECEx; Marking: Ex mb eb IIC, Ex tb IIIC T85°C Db etc.
- Power Factor ≥0.9, Driver efficiency up to 90%
- Storage temperature:-40ºC ~ +80ºC; Working humidity:20%-90%, Storage humidity:10%-90%
- Two driver versions available: Sosen NH non-isolated driver / Sosen VH isolated driver

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light

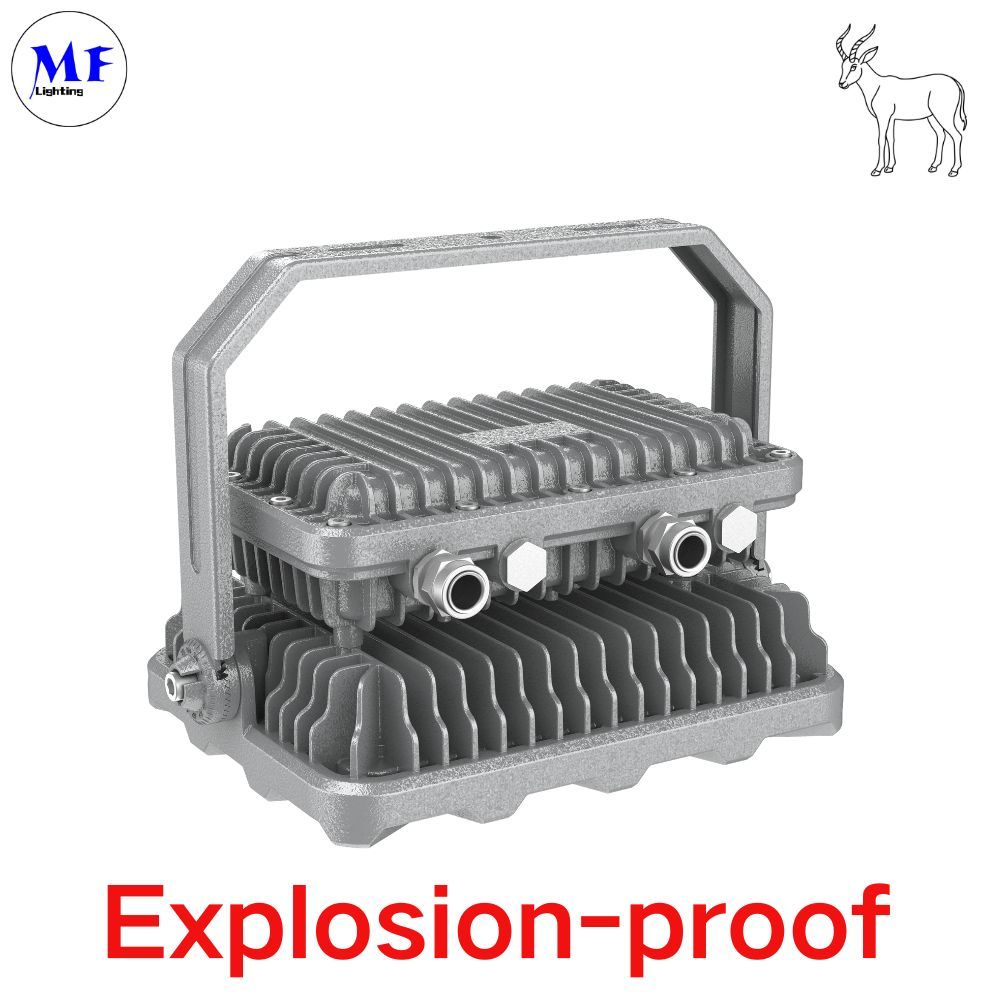

Mechanical Structure

1. Three overall size form factors:
- 50-150W: 329*217*166mm
- 200-240W: 389*268*191mm
- 300-400W: 462*312*205mm
2. Die-cast ADC12 aluminum housing with zinc-rich powder coating for anti-corrosion
3. Integrated internal driver junction box, separate lens options to achieve varied beam angles
4. Tempered glass front cover, high mechanical strength (IK08)
5. Adjustable lamp body angle via adjustment screw

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light

Product description



Parameter Specification
Product Name Explosion-Proof LED Flood Light
Series / Model Family MF Goat-1 / MF-EX02-A (120° beam), MF-EX02-B (30°/45°/60°/90° beam)
LED Type High-quality SMD 2835 (Lu-mileds chip)
Luminous Efficiency 140 LM/W (±5%)
Input Voltage AC85-265V (standard); optional AC100-277V / AC120-347V / AC277-480V, 50-60Hz
Color Temperature (CCT) 3000K / 4000K / 5000K / 5700K / 6500K (Cool White 6000-6500K, Nature White 4500K, Warm White 3000-3500K)
Color Rendering Index (CRI) Ra = 80 (Ra70 / Ra90 Optional)
Beam Angle 30° / 45° / 60° / 90° / 120° (beam option depends on series)
Housing Material Die-casting Aluminum (ADC12)
Cover Material Tempered Glass
Surface Treatment Zinc-rich powder coated / Marine-rating finish, anti-corrosion
Ingress Protection IP66
Impact Resistance IK08
Power Factor >0.9 (typ. 0.95)
Total Harmonic Distortion (THD) <20%
Driver Efficiency 90%
Surge Protection 6KV
Rated Life 50,000-60,000 hours (11 years at 12h/day)
Dimming No (standard); Dimmable & Battery Backup available as optional
Warranty 5 Years
Working Temperature -40°C ~ +55°C
Working Humidity 20% ~ 90%
Storage Temperature -40°C ~ +80°C
Storage Humidity 10% ~ 90%
Mounting Methods Ceiling mounting, Wall mounting, Hook/Pendant (chain) mounting, Pole mounting (adjustable)
Junction Box Integrated junction box for driver
Maintenance Replaceable LED board & driver





Model No. Series / Beam Power (W) LED Type LED Qty (PCS) Lumen Output (LM) CCT CRI Dimension L*W*H (mm)
MF-EX02-A-50W A (120°) 50W SMD 2835 232 7000 (Est.) 3000-6500K Ra=80 329*217*272
MF-EX02-B-50W B (30-90°) 50W 232 6500 (Est.) 3000-6500K 329*217*166
MF-EX02-A-75W A (120°) 75W 232 10500 (Est.) 3000-6500K 329*217*272
MF-EX02-B-75W B (30-90°) 75W 232 9750 (Est.) 3000-6500K 329*217*166
MF-EX02-A-100W A (120°) 100W 432 14000 (Est.) 3000-6500K 389*268*295
MF-EX02-B-100W B (30-90°) 100W 432 13000 (Est.) 3000-6500K 329*217*166
MF-EX02-A-150W A (120°) 150W 432 21000 (Est.) 3000-6500K 389*268*295
MF-EX02-B-150W B (30-90°) 150W 432 19500 (Est.) 3000-6500K 329*217*166
MF-EX02-A-200W A (120°) 200W 432 28000 (Est.) 3000-6500K 462*312*325
MF-EX02-B-200W B (30-90°) 200W 432 26000 (Est.) 3000-6500K 389*268*191
MF-EX02-A-240W A (120°) 240W 432 33600 3000-6500K 462*312*325
MF-EX02-B-240W B (30-90°) 240W 432 31200 3000-6500K 389*268*191
MF-EX02-A-300W A (120°) 300W 640 42000 3000-6500K 462*312*325
MF-EX02-B-300W B (30-90°) 300W 640 39000 3000-6500K 462*312*205
MF-EX02-A-400W A (120°) 400W 640 56000 3000-6500K 462*312*325
MF-EX02-B-400W B (30-90°) 400W 640 52000 3000-6500K 462*312*205





Product Size

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light





Installation:




Mounting methods

- Ceiling mounting
- Wall mounting
- Hook / pendant chain mounting
- Pole mounting (adjustable pole length)

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light

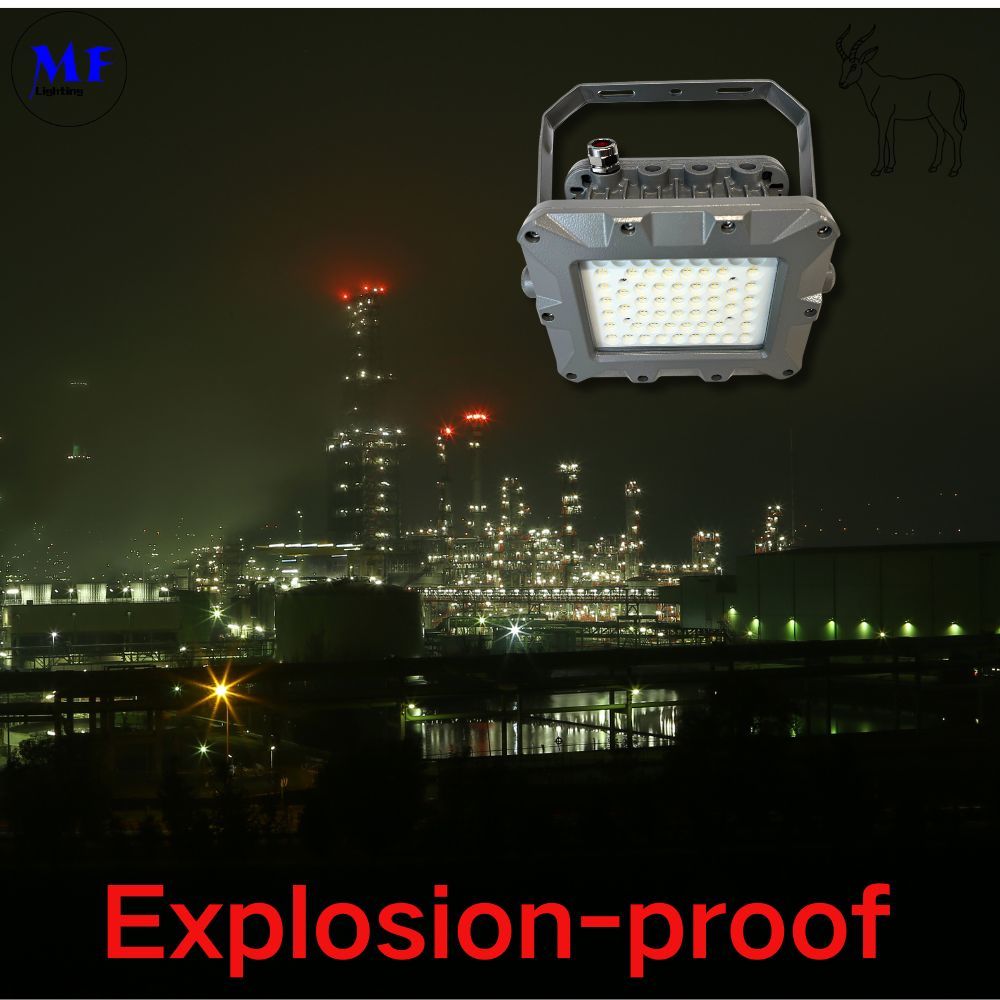

Application:

- Oil & gas industry: petroleum production, refining, loading, transportation, storage, retail; LNG industry
- Mining operations
- Chemical industry: chemical production & storage, paint manufacturing facilities
- Ocean & marine field: offshore platforms, ocean vessel operations
- Aerospace field: aerospace clean-room & production workshop
- Metal processing: steel & aluminum factories, metal smelting & foundry, pumping stations
- Food & alcohol industry: fine-particle flour production, food distilling, alcohol manufacturing
- Other hazardous locations: sites with high humidity, heavy dust, high temperature and vapor where explosion-proof lighting is required



IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light

IP66 50W 75W 100W 150W 200W 240W 300W 350W 400W EATON Oil Minging Offshore Zone Explosionproof Lighitng LED Explosion Proof Atex Flood Light
