Product Description
Atex IP66 IK08 Explosion Proof LED Flood Light 140LM/W 150W 200W 240W 300W 400W With Tempered Glass Lens For Oil Gas Chemical Mining Hazardous Zone
MF EX02 A Goat Family LED Explosion Proof Flood Light delivers high-performance illumination for classified hazardous working zones.Power options cover 50W to 400W with SMD LED source reaching 140LM/W luminous efficiency.
This ATEX and IECEx certified flood lamp carries IP66 ingress protection and IK08 impact resistance.
Multiple beam angles from 30 degree up to 120 degree are available with tempered glass or polycarbonate lens solutions.
Wide multi-range input voltage supports AC100-277V, AC120-347V and AC277-480V global industrial power grids. Die cast aluminum housing with zinc-rich powder coated finish withstands harsh temperature from -40ºC to +55ºC.
Multiple installation selections including ceiling mount, wall mount and pendant hook mount. Backed by 5-year factory warranty, ideal for oil gas refinery, chemical factory, mining operation and offshore platform lighting projects.
| Model No. |
MF-EX02-A-50W |
MF-EX02-A-75W |
MF-EX02-A-100W |
MF-EX02-A-150W |
MF-EX02-A-200W |
MF-EX02-A-240W |
MF-EX02-A-300W |
MF-EX02-A-400W |
|
General
|
| Watts |
50W |
75W |
100W |
150W |
200W |
240W |
300W |
400W |
| LED Type |
SMD 2835
|
| LED Quantity |
232PCS
|
232PCS
|
432PCS
|
432PCS
|
| CCT |
3000K,4000K,5000K,5700K,6500K
|
| Lumen Efficiency |
140LM/W (±5%)
|
| Volts |
AC100-277V/120-347V/277-480V,50-60Hz
|
| CRI |
Ra>80(70,90 Optional)
|
| Beam Angle |
30°/45°/60°/90°/120°
|
| Hours Rated |
60,000 hours
|
|
Electrical
|
| Power Factor |
>0.9
|
| THD |
<20%
|
| Driver Efficiency |
90%
|
| Dimming |
NO
|
|
Mechanical
|
| Housing Material |
Die-casting Aluminum
|
| Cover Material |
Tempered Glass
|
| IP Rating |
IP 66
|
| IK Rating |
IK 08
|
| Dimension(L*W*H) |
329*217*272mm
|
329*217*272mm
|
389*268*295mm
|
462*312*325mm
|
Multiple beam angle
ATEX & IECEx Full Explosion‑Protection Qualification For Hazardous Zones
Strictly built for explosive gas and combustible dust classified locations. Complete ATEX and IECEx marking compliance. Safe deployment within oil refinery, chemical processing plant, mining and offshore working sites.
EXPLOSION PROTECTION
•Working Temperature:-40°C ~+55°C.
•High quality SMT LED and Brand Driver
•Heavy-duty and high impact resistance .
•Integrated junction box for driver .
•Zinc-rich powder coated finish treatment .
•Up to 5 years warranty .
•Various installation ways for different applications.
•Glass lens or polycarbonate lens to make different beam angles.
Main housing is high-strength die cast aluminum alloy.
Zinc-rich powder coating delivers anti-rust, anti-corrosion capability for coastal offshore and chemical plant corrosive atmosphere.
IP66 structure fully blocks dust particle and high-pressure water jet; IK08 rating stands mechanical strike and site accidental collision.

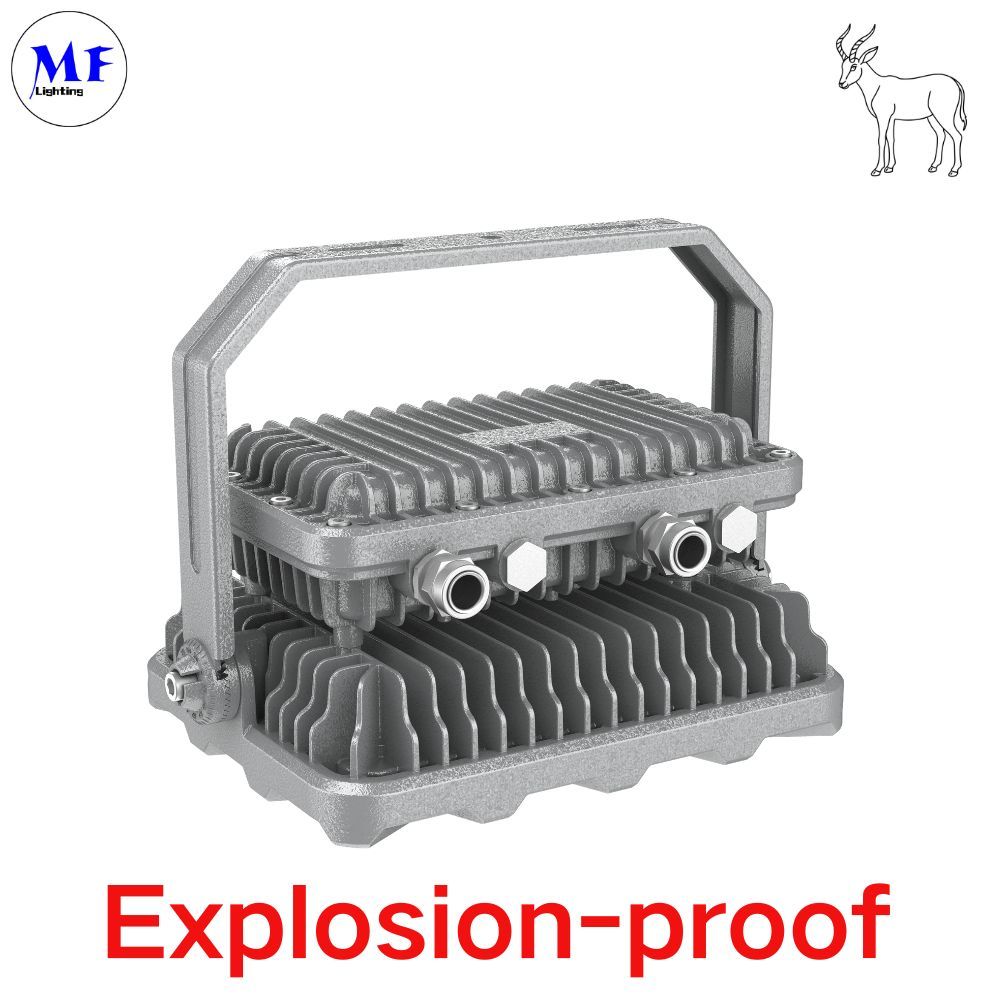

Independent integrated junction box design, driver placed inside sealed chamber, simplify field wiring while keep explosion-proof integrity.
Wide working temperature window -40ºC to +55ºC, can run normally under severe cold or high-temperature workshop environment.
Storage temperature supports -40ºC ~ +80ºC.
Multiple beam angles from 30 degree up to 120 degree are available with tempered glass or polycarbonate lens solutions.
Built specifically for high‑risk hazardous industrial environments, MF EX02 A Goat Family explosion proof flood light is heavy‑duty lighting hardware engineered for petrochemical, mining and offshore facilities.
Unlike ordinary commercial floodlights, this unit complies with strict ATEX and IECEx explosion‑protection standards to operate safely within explosive‑gas and combustible‑dust classified zones.
Three size frameworks cover power tier from 50W up to 400W, satisfying small‑area local lighting and large‑site wide‑range flood illumination requirements. Robust die cast aluminum main body with zinc‑rich anti‑corrosion surface treatment resists dust, moisture and mechanical collision.
Multiple beam angle choices and flexible mounting structures allow engineers to configure lighting layout freely for different field conditions. Long service cycle plus 5‑year warranty effectively cut recurring replacement expense for long‑run industrial projects.
Sea transportation / Air transportation / Rail transportation / International express
Oil & gas industry: petroleum refinery, oil storage terminal, LNG facility, petroleum loading-unloading station
Chemical industry: chemical production workshop, chemical raw-material storage warehouse, paint processing site
Mining operations: underground auxiliary area, surface mining site and mine service facility
Offshore & marine field: offshore platform working area, vessel related operation location
Metal processing plant: steel mill, aluminum smelting workshop, pumping station in corrosive environment
Food & alcohol processing: grain powder production warehouse, distillery and ferment production site
Other harsh sites: high-dust, high-humidity, high-temperature hazardous industrial zones
