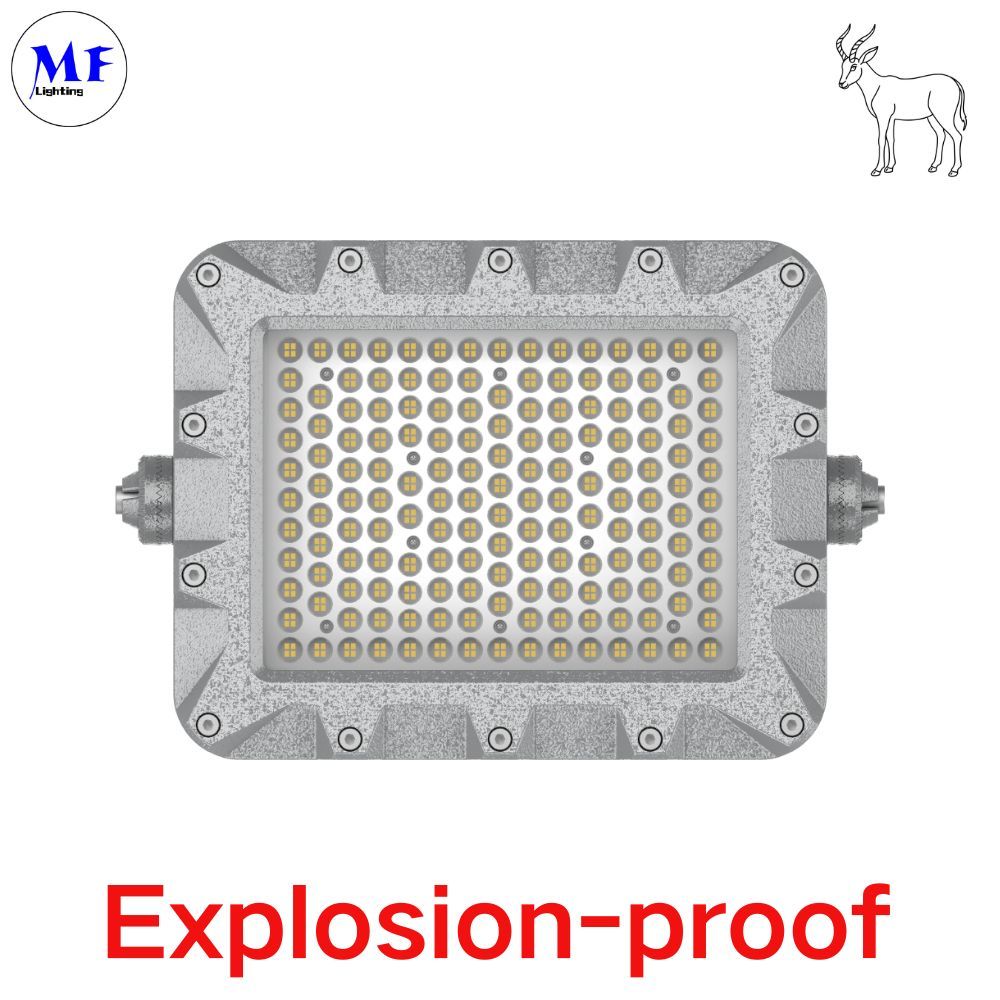

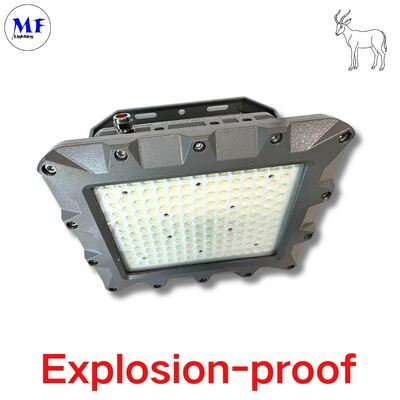

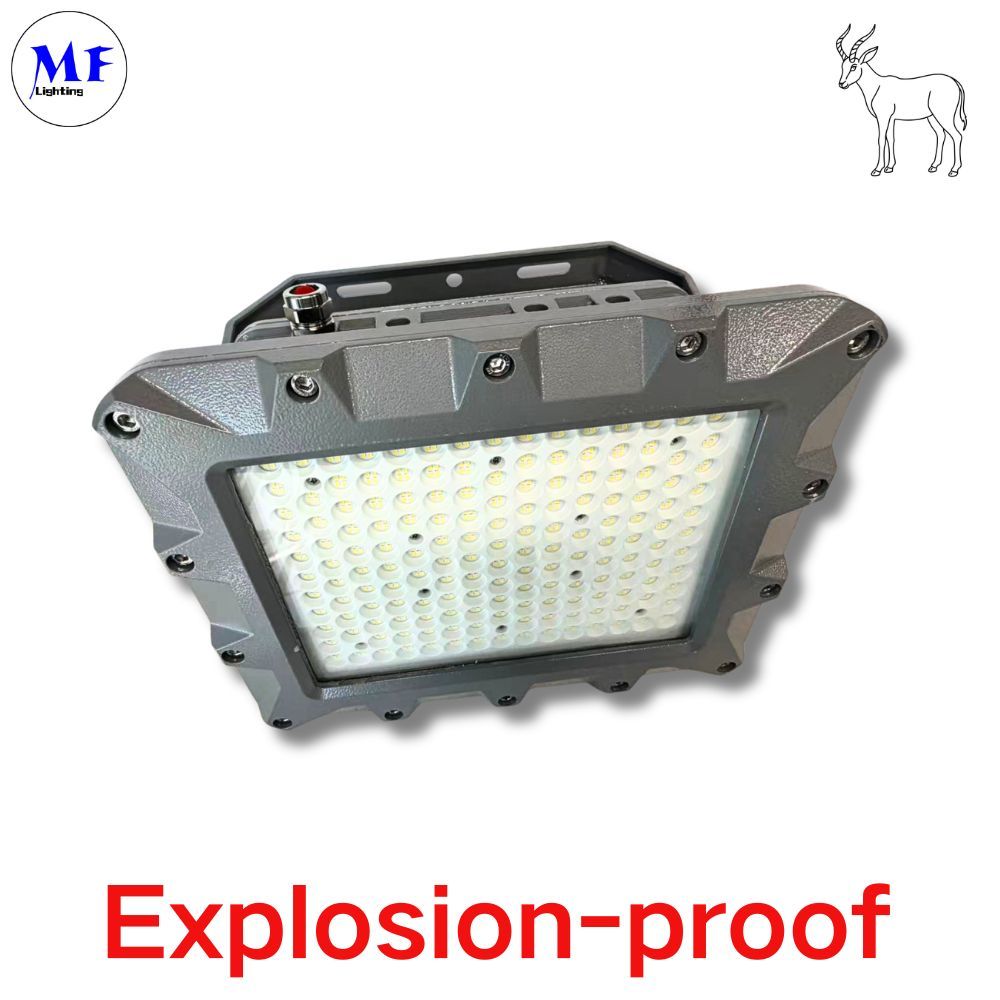

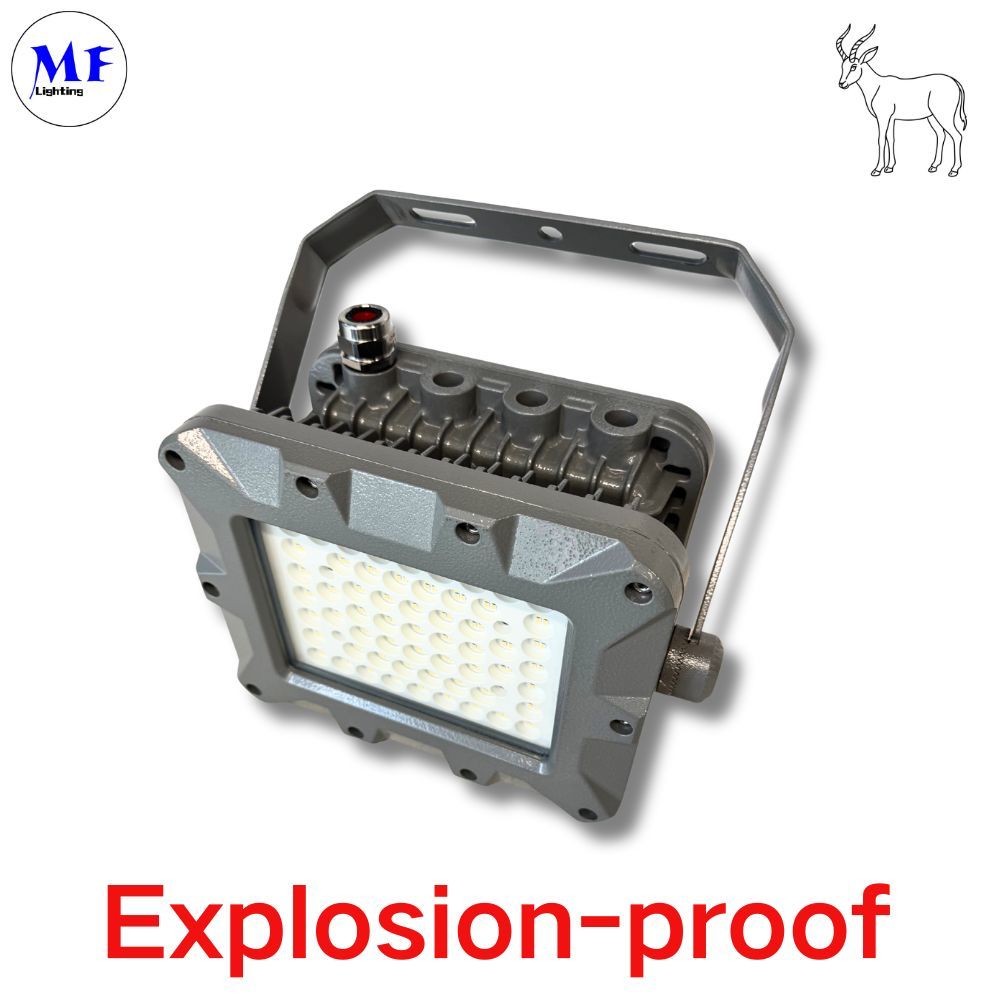

Factory Price 400W ExplosionProof Flood Light IECEx ATEX Die-casting Aluminum IP66 IK08 Oil Gas Chemical Mining Marine Hazard Industry LED Explosion Proof Light

Product Description

Factory Price 400W ExplosionProof Flood Light IECEx ATEX Die-casting Aluminum IP66 IK08 Oil Gas Chemical Mining Marine Hazard Industry LED Explosion Proof Light













                     Features:
                    •Working Temperature: -40°C ~ +55°C.
                    •High quality SMD LED.
                    •Heavy-duty and high impact resistance.
                    •Replaceable LED board and drivers.
                    •Integrated junction box for driver .
                    •Dimmable and battery back up function available.
                    •Marine rating powder coated finish treatment.
                    •Up to 5 years warranty .
                    •Various installation ways for different applications.
                    •Glass lens or polycarbonate lens to make different

                      beam angles.

















Detail Photos:





MF Goat-1 Family Explosion proof flood lights have optional lens beam angles: 30°/45°/60°/90° for long-distance focused lighting, and 120° wide flood beam for large-area coverage. Optimized secondary optical design delivers uniform light distribution and low glare, flexible for different hazardous site lighting plans.



Three cabinet sizes available to cover full power range from 50W to 400W:
▪ Small:50/75/100/150W
▪ Medium:200/240W
▪ Large:300/400W

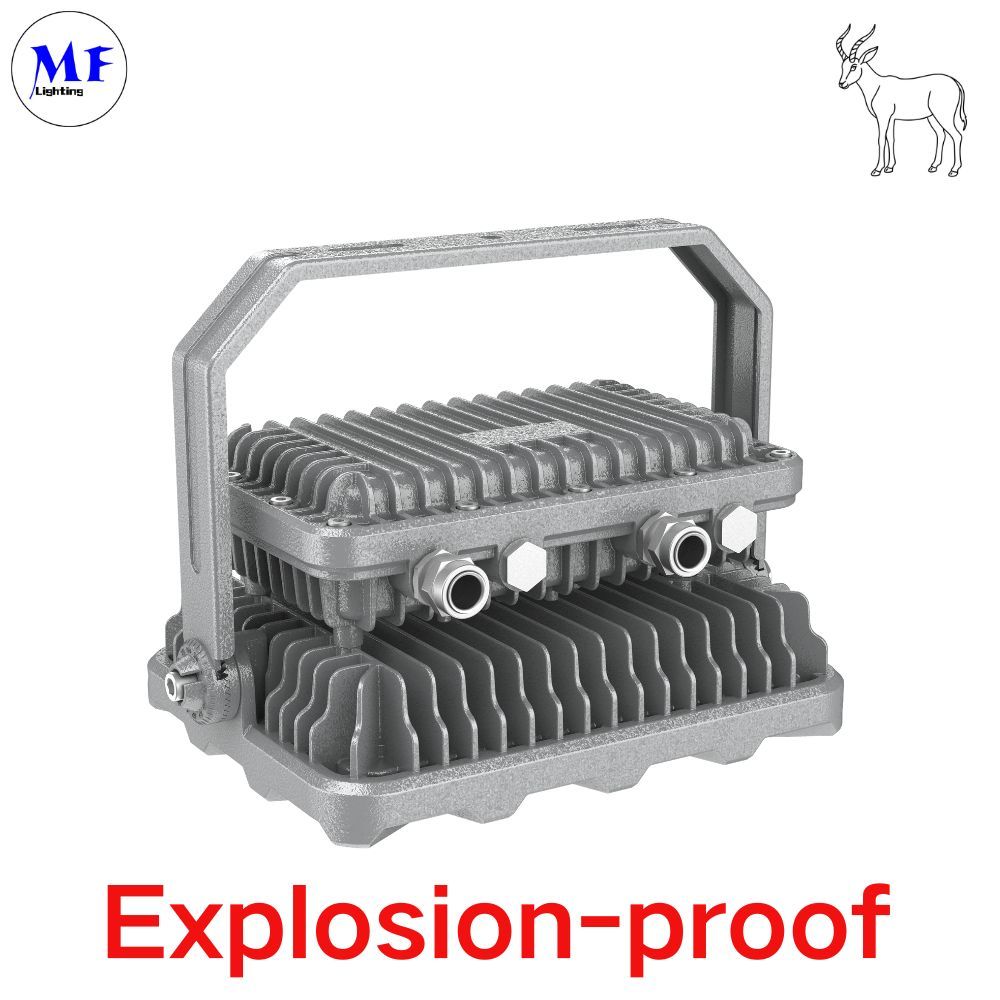

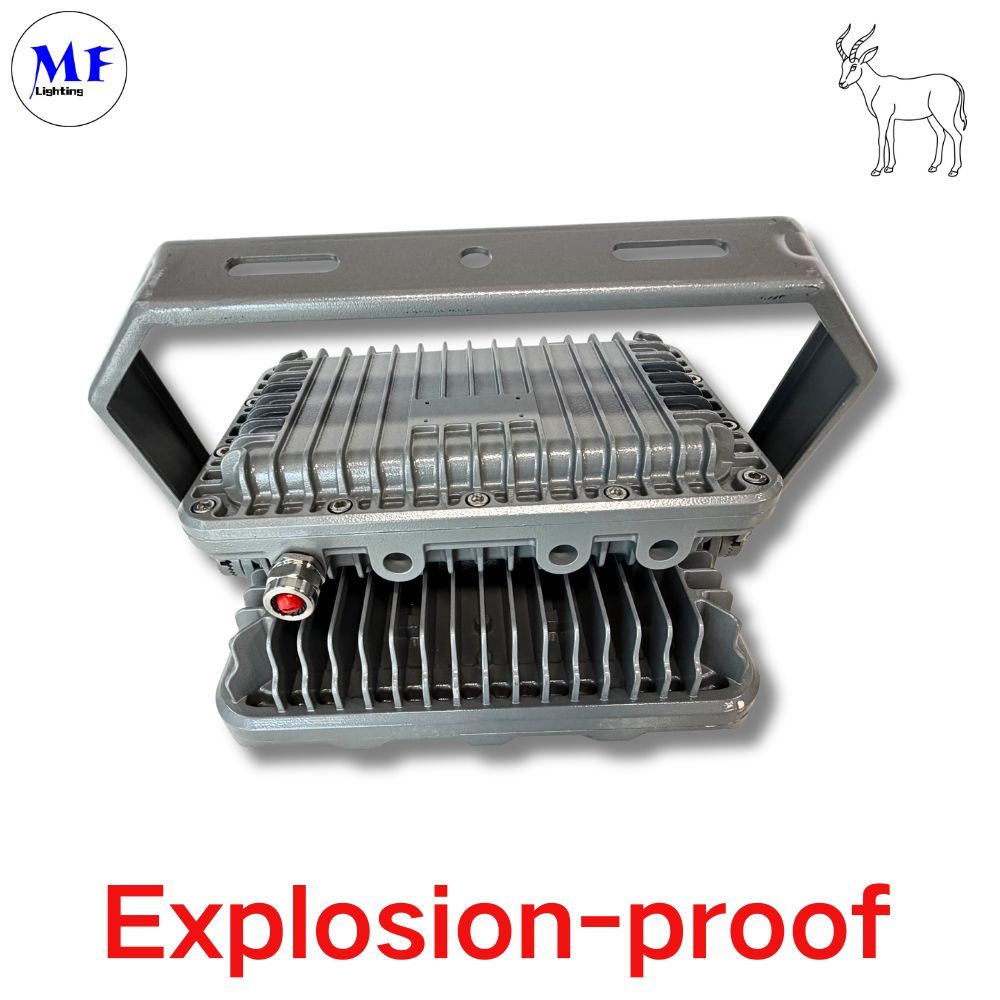

Die-cast aluminum heat sink with modular structure. Flexible selection for small hazardous workshops and high-power offshore & chemical platforms.



EXPLOSION PROTECTION





​

Model

MF-EX02A-50W

MF-EX02A-75W

MF-EX02A-100W

MF-EX02A-150W

MF-EX02A-200W

MF-EX02A-240W

MF-EX02A-300W

MF-EX02A-400W

General
Watts	50W	75W	100W	150W	200W	240W	300W	400W

LED Type	SMD2835
LED Quantity	232PCS	232PCS	232PCS	232PCS	432PCS	432PCS	432PCS	432PCS

CCT	3000K/4000K/5000K/5700K/6500K
Lumen Efficiency	140LM/W(±5%)
Volts	AC100-277V / 120-347V / 277-480V, 50-60Hz
CRI	Ra>80(70/90 optional)
Beam Angle	30° / 45° / 60° / 90° / 120°
Hours Rated	60,000 hours

Electrical
Power Factor	>0.9
THD	<20%
Driver Efficiency	90%
Dimming	NO

Mechanical
Housing Material	Die-casting Aluminum
Cover Material	Tempered Glass
IP Rating	IP66
IK Rating	IK08
Dimension (L×W×H)	329×217×272 mm	329×217×272 mm	329×217×272 mm	329×217×272 mm	389×268×295 mm	389×268×295 mm	462×312×325 mm	462×312×325 mm

Additional
Warranty	5 years
Working Temperature	-40ºC ~ +55ºC
Storage Temperature	-40ºC ~ +80ºC
Storage Humidity	10% ~ 90%



Photometry:



Our LED explosion-proof flood light adopts professional secondary optical lens, with 5 optional beam angles: 30°, 45°, 60°, 90°, 120°.

• Narrow beam (30°/45°): Concentrated luminous intensity for long-distance targeted lighting, fit for high pole, equipment zone in hazardous locations.
• Medium beam (60°/90°): Balanced brightness and coverage, great for chemical workshop, offshore platform and walkway lighting.
• Wide beam (120°): Uniform large-area flood lighting, ideal for storage yards and large hazardous working zones.

The polar diagrams display accurate luminous intensity distribution. Low-glare optical design ensures safe and stable illumination for explosion-risk industrial environments. Lighting engineers can reference these curves for professional lighting layout calculation.





Model	Power	Dimension	Beam angle
MF-EX02-A	50W/75W/100W/150W	329*217*272mm	30° / 45° / 60° / 90° / 120°
MF-EX02-A	200W/240W	389*268*295mm	30° / 45° / 60° / 90° / 120°
MF-EX02-A	300W/400W	462*312*325mm	30° / 45° / 60° / 90° / 120°









What is the function of explosion-proof lights
Explosion-proof lamps are one level lighting fixtures with explosion-proof performance, mainly used in industrial places. They are industrial lighting fixtures, so what is the use of explosion-proof lamps?
The main function of explosion-proof lamps is to prevent electric arcs, sparks, and high temperatures that may occur inside the lamp from causing flammable gases and dust in the surrounding environment, thereby achieving
According to the explosion-proof requirements, qualified explosion-proof lamps must be used for lighting in flammable and explosive places.



Where are explosion-proof lamps mainly used
Explosion proof lamps are mainly used in hazardous areas where combustible gases and dust exist, including:
1. Petrochemical enterprises
With the rapid expansion of petrochemical enterprises, the level of labor protection technology has also been correspondingly improved. Petrochemical industry is a continuous large-scale production that is technology intensive and capital intensive
Full production is particularly important, and explosion-proof lamps are one of the necessary equipment for safe production in the petrochemical industry.



2. Ports and docks
Ports and docks are used to handle and store the increasing amount of crude oil, liquefied natural gas, and sensitive grain, all of which increase the need for on-site use of hazardous area lighting
Seek. The nature of port applications and their coastal location also require the use of anti slow lighting fixtures.
3. Offshore Platforms
The nature of offshore platforms provides a challenging environment for designated lighting- Once a danger occurs, the relevant areas of the platform may experience or accumulate explosive hazards
Gas. When this gas reaches the explosive concentration range and encounters an open flame, it will explode. Considering continuous exposure to ocean conditions such as high wind speeds and saline environments, high quality and durable explosion-proof lighting fixtures that can withstand these factors are crucial.



4. Coal mining industry
The coal mining industry contains explosive mixtures of gases such as methane and coal dust. It is also necessary to use explosion-proof lamps for floodlighting in underground tunnels and chambers of coal mines.
