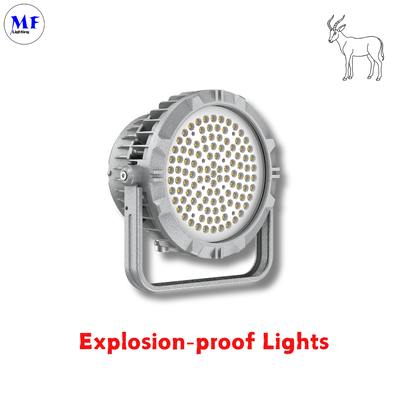

240W LED Explosion Proof Flood Light Atex Certified IP66 Ik08 Durable Round Robust 240W LNG Oil Gas Industrial Marine Platform Mining Chemical Industrial

Product Description

240W LED Explosion Proof Flood Light Atex Certified IP66 Ik08 Durable Round Robust 240W LNG Oil Gas Industrial Marine Platform Mining Chemical Industrial

                     Features:
                    •Working Temperature: -40°C ~ +55°C.
                    •High quality SMD LED.
                    •Heavy-duty and high impact resistance.
                    •Replaceable LED board and drivers.
                    •Integrated junction box for driver .
                    •Dimmable and battery back up function available.
                    •Marine rating powder coated finish treatment.
                    •Up to 5 years warranty .
                    •Various installation ways for different applications.
                    •Glass lens or polycarbonate lens to make different

                      beam angles.

MF Goat-2 Family Explosion proof flood lights have optional lens beam angles: 30°/45°/60°/90° for long-distance focused lighting, and 120° wide flood beam for large-area coverage. Optimized secondary optical design delivers uniform light distribution and low glare, flexible for different hazardous site lighting plans.

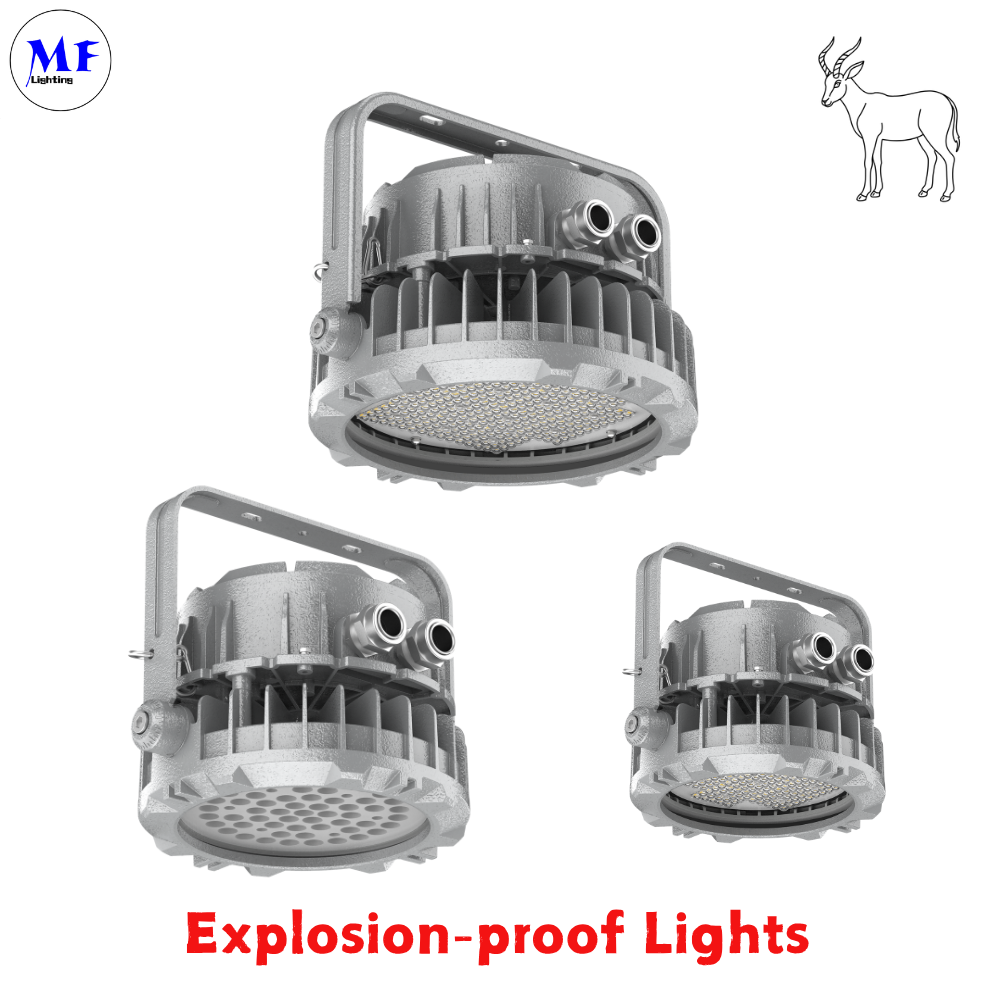

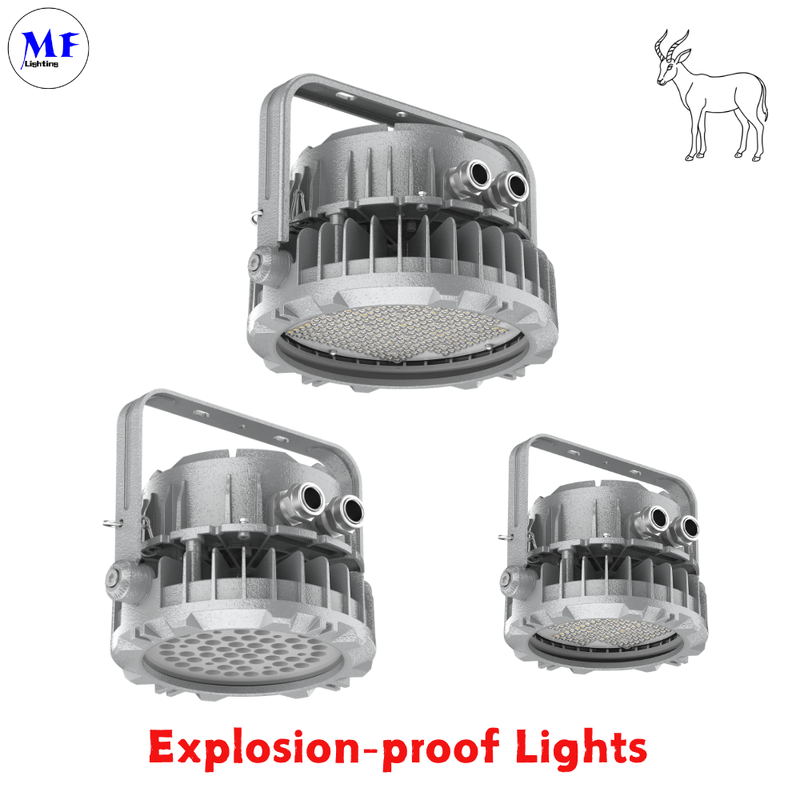

Three cabinet sizes available to cover full power range from 50W to 400W:
▪ Small:50/75/100/150W
▪ Medium:200/240W
▪ Large:300/400W
Die-cast aluminum heat sink with modular structure. Flexible selection for small hazardous workshops and high-power offshore & chemical platforms.

EXPLOSION PROTECTION

Parameters

Model No.	MF-EX02-B-50W	MF-EX02-B-75W	MF-EX02-B-100W	MF-EX02-B-150W	MF-EX02-B-200W	MF-EX02-B-240W	MF-EX02B-300W	MF-EX02-B-400W
General
Watts	50W	75W	100W	150W	200W	240W	300W	400W
LED Type	SMD 2835
LED Quantity	168PCS		168PCS		336PCS		504PCS
CCT	3000K,4000K,5000K,5700K,6500K
Lumen Efficiency	140LM/W (±5%)
Volts	AC100-277V/120-347V/277-480V,50-60Hz
CRI	Ra>80(70,90 Optional)
Beam Angle	30°/45°/60°/90°/120°
Hours Rated	60,000 hours
Electrical
Power Factor	>0.9
THD	<20%
Driver Efficiency	90%
Dimming	NO
Mechanical
Housing Material	Die-casting Aluminum
Cover Material	Tempered Glass
IP Rating	IP 66
IK Rating	IK 08
Dimension(L*W*H)	329*217*272mm		329*217*272mm		389*268*295mm		462*312*325mm

Photometry:

What is the function of explosion-proof lights
Explosion-proof lamps are one level lighting fixtures with explosion-proof performance, mainly used in industrial places. They are industrial lighting fixtures, so what is the use of explosion-proof lamps?
The main function of explosion-proof lamps is to prevent electric arcs, sparks, and high temperatures that may occur inside the lamp from causing flammable gases and dust in the surrounding environment, thereby achieving
According to the explosion-proof requirements, qualified explosion-proof lamps must be used for lighting in flammable and explosive places.

Where are explosion-proof lamps mainly used
Explosion proof lamps are mainly used in hazardous areas where combustible gases and dust exist, including:
1. Petrochemical enterprises
With the rapid expansion of petrochemical enterprises, the level of labor protection technology has also been correspondingly improved. Petrochemical industry is a continuous large-scale production that is technology intensive and capital intensive
Full production is particularly important, and explosion-proof lamps are one of the necessary equipment for safe production in the petrochemical industry.

2. Ports and docks
Ports and docks are used to handle and store the increasing amount of crude oil, liquefied natural gas, and sensitive grain, all of which increase the need for on-site use of hazardous area lighting
Seek. The nature of port applications and their coastal location also require the use of anti slow lighting fixtures.
3. Offshore Platforms
The nature of offshore platforms provides a challenging environment for designated lighting- Once a danger occurs, the relevant areas of the platform may experience or accumulate explosive hazards
Gas. When this gas reaches the explosive concentration range and encounters an open flame, it will explode. Considering continuous exposure to ocean conditions such as high wind speeds and saline environments, high quality and durable explosion-proof lighting fixtures that can withstand these factors are crucial.

4. Coal mining industry
The coal mining industry contains explosive mixtures of gases such as methane and coal dust. It is also necessary to use explosion-proof lamps for floodlighting in underground tunnels and chambers of coal mines.

Product Line


Ming Feng's explosion-proof lights are produced using a series of rigorous manufacturing processes to ensure their quality and safety. The production process begins with the selection of high-quality materials, including aluminum alloy and tempered glass, which provide durability and resistance to harsh environmental conditions.

The materials are then subjected to precision machining to create the components of the explosion-proof lights. These components are carefully inspected and tested to ensure that they meet Ming Feng's quality standards. Next, the components are assembled into the final products, with each step of the assembly process monitored and controlled to ensure the integrity of the explosion-proof design.

Once the explosion-proof lights are fully assembled, they undergo a series of testing and certification processes to verify their safety and compliance with industry standards. These tests include impact resistance, waterproofing, and explosion-proof performance testing, among others.

Throughout the production process, Ming Feng's team of experienced engineers and technicians work closely together to ensure that each explosion-proof light meets the highest standards of quality and safety. With their dedication to excellence and attention to detail, Ming Feng's explosion-proof lights are a reliable and safe choice for a wide range of hazardous environments.


Ming Feng Lighting Co.,Ltd is one of the leading LED light product, located in Guangdong Province, China. Established in year 2009 and has more than 14 years experience in exporting LED lighting products. Ming Feng LED lighting factory produce LED Indoor Light and LED outdoor lamp. For the LED indoor light, we are producing the LED Explosion Proof Lights, LED Triproof Lights, LED Vapor Tight Lights,LED down lights ,LED Flat panel, For the Outdoor LED Light, we are producing the LED flood light, LED high bay lighting, LED sports lights and some of outdoor LED landscape light.With the rapid growth of our sales volume in the market, our R&D are expanding quickly to meet the market demands.

Our main market is in European, South American and North American. Our factory locates between Shenzhen port and Guangzhou, it's convenient to visit our factory and delivery the container to all around the world based on Shenzhen port.

Ming Feng Lighting Co., Ltd warmly welcome all the partners visit our factory and share the ideas of the LED light. Ming Feng Lighting factory stays with you all the time to share the happiness of the LED light, let's work together to create an outstanding future.

HISTORY
Ming Feng Lighting Co.Ltd factory established in year 2009 and has 14 years great experience in exporting LED lighting products. We dedicate ourselves in the LED lighting area to develop the market-oriented LED light product. We are proud of that, our factory can manufacture the outstanding LED light with high quality standard.

SERVICE
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the world, Our LED light is in high quality standard at reasonable and competitive price, our designer and engineer help our LED light in tasteful design and excellent performance.We are able to offer our valuable clients:

★ OEM/ODM Serivce
★ Photometric/IES file
★ Dialux simulation design
★ PCB Design/Driver Design
★ Heat Management/Optical Design
★ Industry Design
★ Market Support
★ 3D Printing
★ Multiple Listing/Private Label.

OUR TEAM
Ming Feng Lighting Co.Ltd has 200 employees, which include administrative staff 30 people, engineers 10, industrial designer 5, quality control department 8, and 150 people involve in production line as well warehouse and logistics department.

FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
