|Item:||LED Street Light, LED Roadway Light, LED Parking Light||Power:||55W, 30W - 180W|
|LED Chip:||Lumileds||LED Driver:||Meanwell Or|
|Efficiency:||140lm/w OR 150lm/w||CRI:||80+ Or 70+|
|IP Grade:||IP66||Function:||Photocell Sensor / DALI / 1-10V Dimmable|
|Beam Angle:||Type I , Type II, ME1-ME5||Mounting:||Pole/wall Mount As Option|
led road light,
led street light

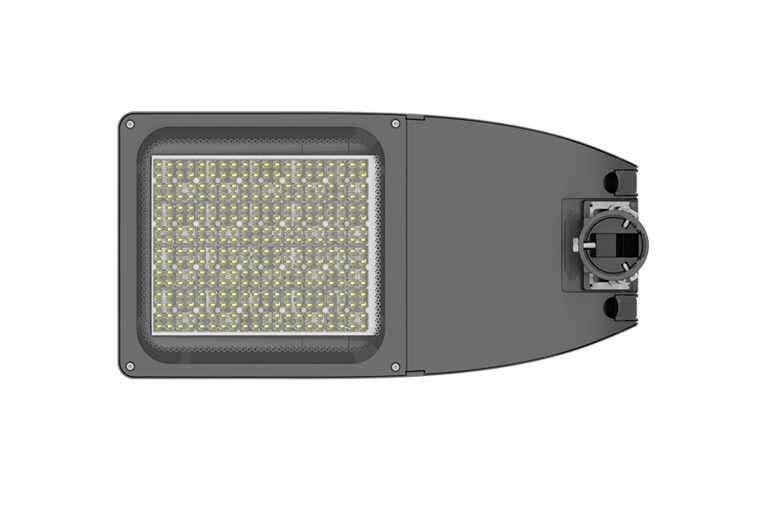

IP66 55W Smart Control Energy Saving LED Roadway Lights , Street Light With DALI Dimmable
The main characteristics :
LED Outdoor Lighting MF-J55W LED Street Light is one of new kind in Roadway Light Fixture in Ming Feng Lighting Company, this kind is very suitable for outdoor using, it is made of aluminum and PC, Lifetime is >=50000H.
We have been provided for several projects with using this kind of LED roadway lights. DIALUX file is available.
Ming Feng Lighting Co.,Ltd warmly welcome all the partners visit our factory and share the ideas of the LED light. Ming Feng Lighting factory stays with you all the time to share the happiness of the LED light, let's work together to create an outstanding future.
|Driver optional:||/MEAN WELL||LED Type :||
|Input Voltage :||AC100-277V /50-60Hz||LED Q’ty :||108pcs|
|Rated Power:||55W||Lumen :||140lm/w or 150lm/w|
|Power Factor :||0.95||CRI :||≧80 Ra or >=70 Ra|
|Waterproof :||IP66||Beam Angle :||Type I , Type II, ME1-ME5|
|Rating :||IK08 , class 1||Working environment :||-40~50℃|
|Pole diameter :||40/60mm||Power :||28W - 180W|
|Life Time :||≧50000H||CCT :||
warm white : 2800-3000K
Details Description :
Photo cell : Automatic switch for fixture according to the change of light intensity
NB-loT : Intelligent interconnection control
LED Driver : Non-dimmable : Xitanium or MW XLG series; Dimmable: SR series, DALI2 agreement, class I or classII option
Good performance and lifespan.
Breather: Breather ensure air balance inside and outside of the fixture,which can improves fixture's lifetime.
High-efficiency LED light source : Lumileds 3030 LED greater than 176lm/w high efficacy illumination grade led light source.
Power turn off protector : When the lamp maintenance , open lamp flash, internal power lamp, protect the safety of personnel.
WAGO quick connector : Disassemble easily which reduces maintenance costs.
Surge protection device(10KV) : To provide more reliable guarantee for LED drive power, extend the life of the product.
Level bubble : Easy for the installer to adjust the position of the lamp.
Product Details :
Beam Angels :
Type I to Type II , ME1, ME2, ME3, ME4, ME5
Intelligent support :
Photo cell, DALI, NB-IoT
Installation : Horizontal Installation , Vertical Installation
LED street lamps are mainly used for main road, secondary road, branch road, factory, school, garden, city square, courtyard and other road lighting.
