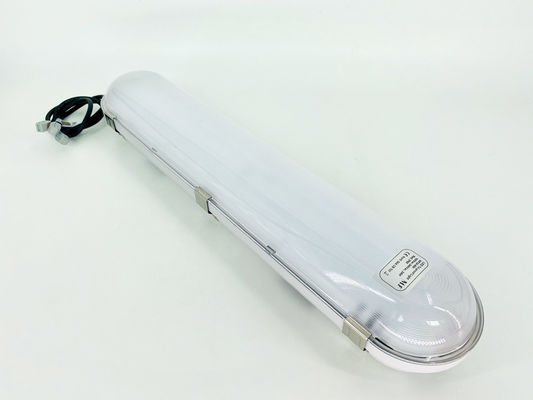

IP65 1500mm Epistar LED Tunnel Lamp For Railway

Minimum Order Quantity : 10PCS Price : Ex-work/FOB price
Packaging Details : L632*W240*H245 /4pcs/CTN, G.W: 9Kg/CTN Delivery Time : 7-10 days delivery time
Payment Terms : T/T, Western Union, Paypal Supply Ability : 20,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF12-600 / MF24-600 / MF24-1160......

Detail Information

Power: 12W/24W/36W/48W/34W/54W Material: Alumimum + PC Cover
Length: 600mm/1200mm/1500mm IP Rating: IP65
Input Voltage: AC 220V-240V / AC 100-277V/DC12/24V IK Rate: IK08
Lumen Efficiency (Lm/w): 100LM/W CRI: >80
Beam Angle: 120 Degree Led Chip: Epistar
High Light:

Epistar LED Tunnel Lamp


1500mm LED Tunnel Lamp


IP65 LED Tunnel Light

Product Description

IP65 Green LED Tunnel Lamp Car Wash Lights Emergency Battery


Description of IP65 LED Tri-proof Lights:


MF Tri-proof light is kind of tube shape of LED tri-proof lights, made of special protective materials, has waterproof, dust-proof, anti-oxidation characteristics, energy saving and environmental protection, high safety performance, long service life.It can be used in railway, power, metallurgy, Lighting for large places such as workshops and stations and so on.


Product range:

LED indoor light: LED spot light, LED bulb, LED tube, LED down light, LED ceiling light, LED track light, LED table light and LED panel light.

LED outdoor light: LED flood light, LED high bay light, LED street light, LED tunnel light and LED gas station light.





MF IP69K Tri-proof Datasheet.pdf


MF series IP65 LED Tri-proof Lights data sheet :

Model No. Power
MF12-600 12 600x86x80 100 1200 >80 3000k/4000K/5000K 120 Deg
MF24-600 24 600*120*108 100 2400 >80 3000k/4000K/5000K 120 Deg
MF24-1160 24 1160*120*108 100 2400 >80 3000k/4000K/5000K 120 Deg
MF36-1160 36 1160*120*108 100 3600 >80 3000k/4000K/5000K 120 Deg
MF48-1160 48 1160*120*108 100 4800 >80 3000k/4000K/5000K 120 Deg
MF34-1560 34 1560*120*108 100 3400 >80 3000k/4000K/5000K 120 Deg
MF54-1560 54 1560*120*108 100 5400 >80 3000k/4000K/5000K 120 Deg

Note : 130lm/w are workable and 6000K. Clear and frosted Cover are available.



Compared with others Tube Lights, our LED Tri-proof light has great advantages as below :


  1. Reflector:MCPCB or PCB for your option.
  2. Body and diffuser could meet the IK08,and 850 degree glow wire test requirement.
  3. Perfect replacement for the whole set of T8 fluorescent lighting fixture.
  4. Lightweight body material ,corrosion resistant,waterproof and dustproof.
  5. Easy Installation with fast connection design,shorten the installation process and save labor cost.
  6. It could be fitted with the Microwave sensor,fitted with the Emergency battery
    to meet the requirement.



Features Details:


1. Our MF Led tri-proof light are making two kinds of covers, frosted and clear covers, if customers need other materials,

we can try our best to make it. And for the clips, there are metal and plastic materials for choice.

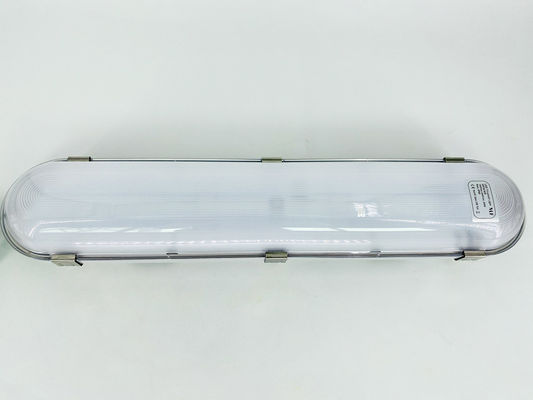

IP65 1500mm Epistar LED Tunnel Lamp For Railway 0


2. Offering Emergency battery : 10W 90min or others are available

    Driver : LiFud Driver, OSRAM, driver or other options.

    Can be fitted with the Microwave sensor , PIR sensor

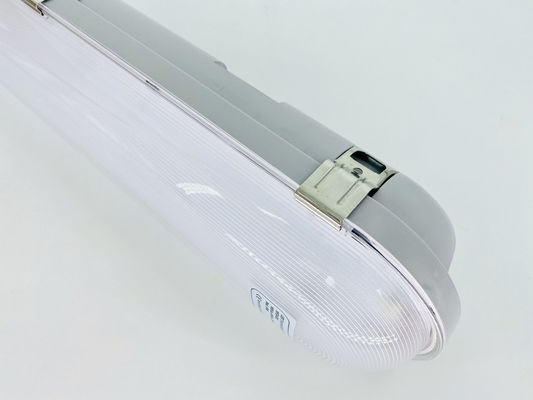

IP65 1500mm Epistar LED Tunnel Lamp For Railway 1


4. Green, Red, Blue Color temperature are available.


IP65 1500mm Epistar LED Tunnel Lamp For Railway 2



Packing Information :

Using the strong boxes for the package, there is a inner box with a set of lamp. 6 sets of lamp for outer box.

IP65 1500mm Epistar LED Tunnel Lamp For Railway 3





Car washing yard,Parking Lot ,Meat processing ,Farm, Food processing yard,Low temperature storage room , Department store ,

Railway stations, Bus stations, Tunnels .......


IP65 1500mm Epistar LED Tunnel Lamp For Railway 4
