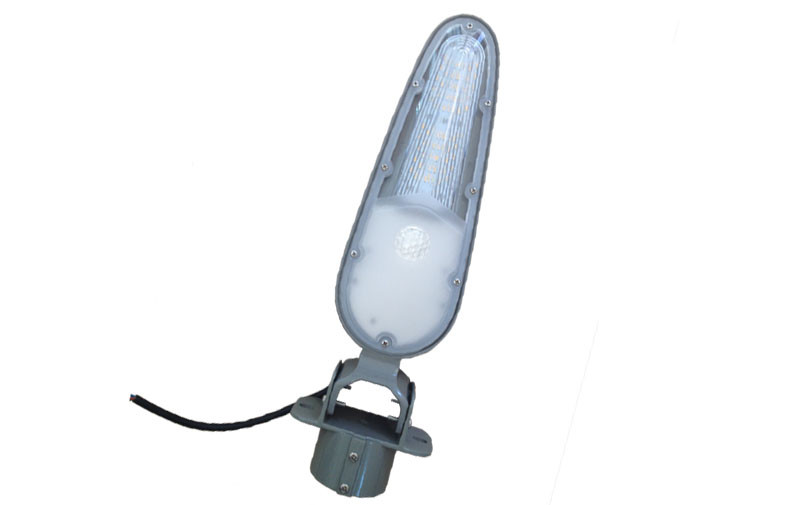

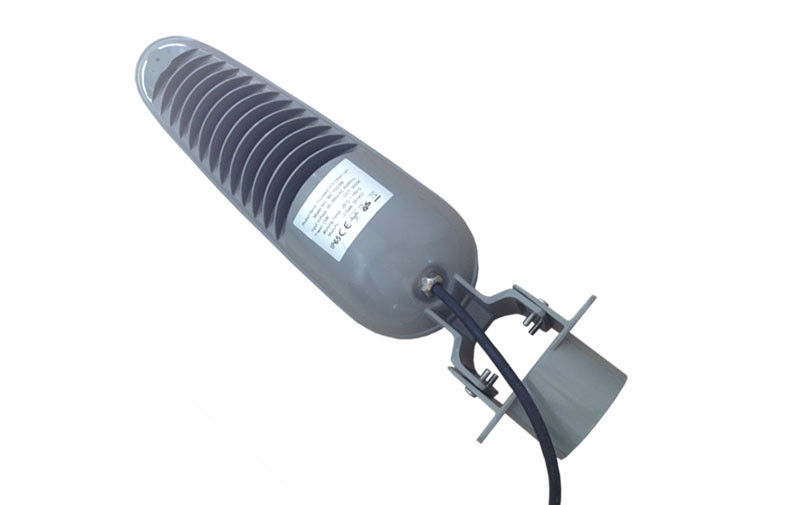

IP65 5500K CCT 20W LED Courtyard Light 1830LM CRI 70 AC85 - 265V Garden Lights

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 43.5*31.2*31.2cm/6pcs, G.W: 12Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-Y020W

Detail Information

High Light:

samsung led light

,

garden led light

Product Description



Energy Saving 20W LED Courtyard Light 1830LM CRI 70 AC85 - 265V Garden Lights



Quick Detail:



1.      20W LED courtyard light

2.      Input: AC 85V-265V, 50/60Hz

3.      Luminous Flux:≧1830 Lm

4.      CRI: 70

5.      Brand chip: SAMSUNG

6.      LED Driver: Meanwell

7.      Adjustable: -15 to +15

8.      IP:65

9.      CE, RoHS certificated





Description:



Excellent manufacturers of LED street lights in china, Ming Feng Come out LED courtyard light series in 2011. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from SAMSUNG, the street light attains over 78 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.



LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.





Specifications:



Item

MF-Y020W

Input voltage

85-265Vac  50Hz/60Hz

LED Power

20W

Rated Power

24W

Delivered Flux(Tj80°c)

1830lm

IP Rating

IP65

LED QTY

40 pcs

Color temperature

3000K-6500K

LED Chip

SAMSUNG

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

374(L)*114(W)*112(H)

Packing Size(mm)

422(L)*148(W)*128(H)/1pcs

Net Weight

0.9Kg

Gross Weight

1.1Kg

Certificate

CE/RoHS

Warranty Period

5 years







Competitive Advantage:



1. Die-cast roadway light

2. The light source use 100M/W SAMSUNG chip, the luminaire reach 78M/W

3. Beautiful appearance for the shell

4. High efficiency driver system from Meanwell

5. The product is suitable for use in the streets, walkways, park, garden light, etc

6. Warranty:5 years





Light Distribution Curve:



IP65 5500K CCT  20W LED Courtyard Light 1830LM CRI 70 AC85 - 265V Garden Lights 0





Product Size:



IP65 5500K CCT  20W LED Courtyard Light 1830LM CRI 70 AC85 - 265V Garden Lights 1





Installation Diagram Description:



1. Installed on the pole



IP65 5500K CCT  20W LED Courtyard Light 1830LM CRI 70 AC85 - 265V Garden Lights 2



2. Install on the wall



IP65 5500K CCT  20W LED Courtyard Light 1830LM CRI 70 AC85 - 265V Garden Lights 3





Applications:



The product is suitable for use in the streets, walkways, park, garden light, etc
