AC85 - 265V 90w Chip , Meanwell Driver LED Tunnel Light With DLC , UL , GS , CE Certificated

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 58.5*36.5*18.5cm/1pcs, G.W: 7.0Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union,L/C Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,DLC, UL Model Number: MF-YTL100

Detail Information

Input: 85-265Vac Power: 90Watt
LED Driver: Meanwell IP: 66
Warranty: 5 Years Certificated: DLC, UL, CE, RoHS
High Light:

led tri-proof lights

,

car wash led lights

Product Description

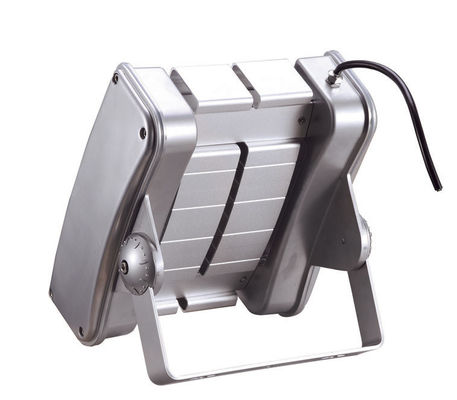

AC85 - 265V 90w Chip , Meanwell Driver LED Tunnel Light With DLC , UL , GS , CE Certificated



Quick Detail:



  1. 100W LED Modular Tunnel light
  2. Input: AC 85V-265V, 50/60Hz
  3. Luminous Flux:≧9000Lm
  4. CRI: 70
  5. Brand chip:
  6. LED Driver: Meanwell
  7. IP:66
  8. CE, RoHS certificated
  9. Power Factor:>0.9

AC 85 – 265V 90W Chip, Meanwell Driver LED Tunnel Light With 5 Years Warranty





Description:



LED tunnel lights is the latest released product for tunnel lighting from Ming Feng in 2011.This series has wide application with optional installations for tunnel lighting, gas station lighting, parking lot lighting, flood lighting, etc. which has won good reputation all over the world.



Modular design with aluminum alloy housing and electrostatic sprayed surface ensures this light reaching good resistance to corrosion. Top light source from and quality driver from Meanwell offers a lifespan over 50,000 hours and a warranty of 5 years. With spring clamp and adjustable bracket for installation, this LED light could be easily installed and operated and suits different demands for various driveways in tunnels.





Specifications:





Item

MF-YTL100

Input voltage

85-265Vac  50Hz/60Hz

LED Power

90W

Rated Power

100W

Delivered Flux(Tj80°c)

9000lm

IP Rating

IP66

LED QTY

42 pcs

Color temperature

3000K-6500K

LED Chip

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

330(L)*310(W)*163(H)

Net Weight

6.0Kg

Certificate

CE/RoHS

Warranty Period

5 years





Competitive Advantage:



1. Modular design, the light efficient reach 90lm/W

2. The light source use 120M/W rebels, the luminaire reach 90M/W

3. Aluminum alloy housing and electrostatic sprayed surface reaches good resistance to corrosion, complying with TUV-CE, RoHS standard

4. Modular structure could be applied for power variation by module increase and decrease

5. Easy maintenance with independent chambers for light source and driver

6. Adjustable installation bracket suits different demands for all tunnel





Product Dimensions(mm):

AC85 - 265V 90w  Chip , Meanwell Driver LED Tunnel Light With DLC , UL , GS , CE Certificated 0







Installation Diagram Description:



1. With M10 bolts fixed to the solid position of the lamp.

2. Link the power cord

3. Loosen the retaining screw, rotate the lamp at the desired angle and tighten the screw rotation.

AC85 - 265V 90w  Chip , Meanwell Driver LED Tunnel Light With DLC , UL , GS , CE Certificated 1AC85 - 265V 90w  Chip , Meanwell Driver LED Tunnel Light With DLC , UL , GS , CE Certificated 2





Applications:



.This series has wide application with optional installations for tunnel lighting, gas station lighting, parking lot lighting, flood lighting, etc.



AC85 - 265V 90w  Chip , Meanwell Driver LED Tunnel Light With DLC , UL , GS , CE Certificated 3
