Energy Saving 10 Watt LED Garden Lights 915 Lm With 20 pcs LED Bulbs

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-Y010W
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 43.5*31.2*31.2cm/6pcs, G.W: 12Kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union,L/C, Paypal
Supply Ability: 5,000pcs/Month

Detail Information

High Light:

samsung led light

,

garden led light

Product Description

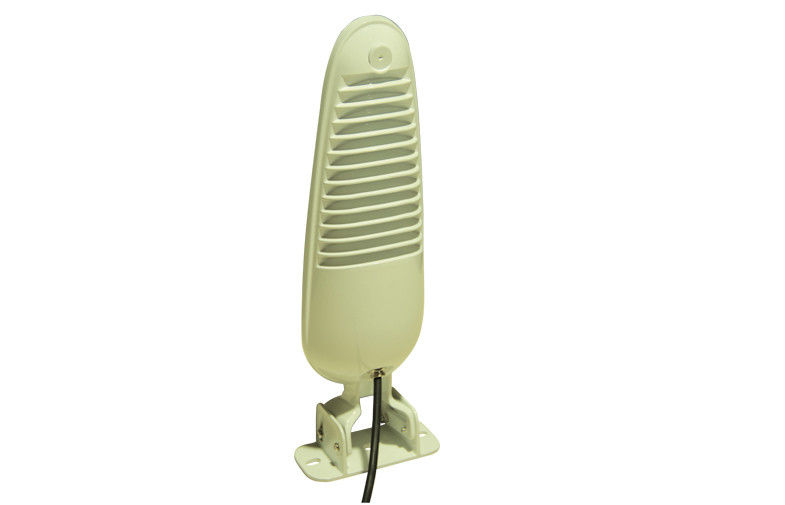

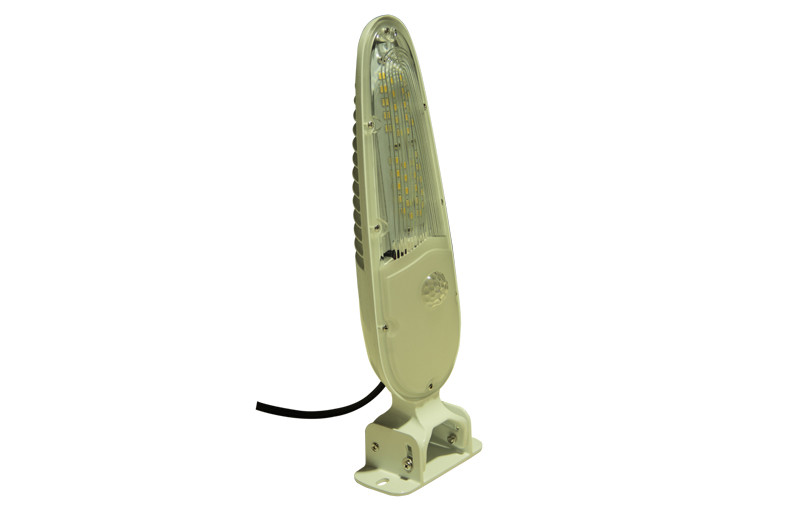

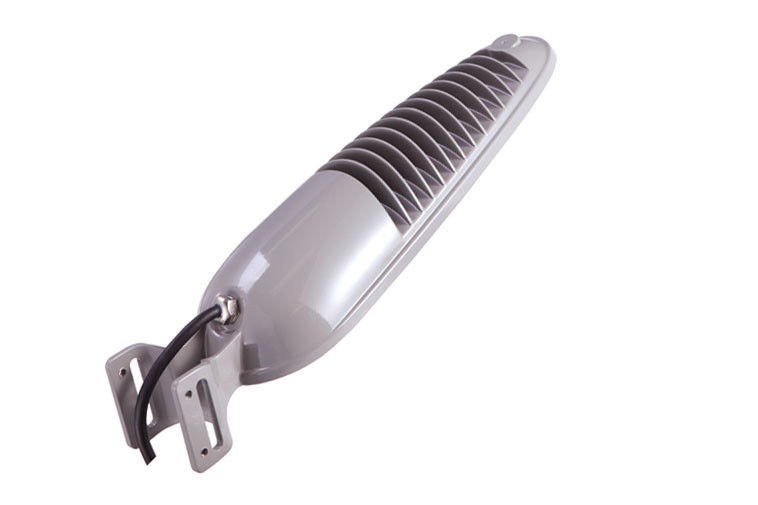

Energy Saving 10 Watt LED Garden Lights 915 Lm With 20 pcs LED Bulbs





Quick Detail:



  1. 10W LED courtyard light
  2. Input: AC 85V-265V, 50/60Hz
  3. Luminous Flux:≧915 Lm
  4. CRI: 70
  5. Brand chip: SAMSUNG
  6. LED Driver: Meanwell
  7. Adjustable: -15 to +15
  8. IP:65
  9. CE, RoHS certificated

10 Watt SAMSUNG Chip , Meanwell Driver IP65 LED Courtyard Light With Energy Saving





Description:



Excellent manufacturers of LED street lights in china, Ming Feng Come out LED courtyard light series in 2011. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from SAMSUNG, the street light attains over 78 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.



LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.





Specifications:



Item

MF-Y010W

Input voltage

85-265Vac  50Hz/60Hz

LED Power

10W

Rated Power

12W

Delivered Flux(Tj80°c)

915lm

IP Rating

IP65

LED QTY

20 pcs

Color temperature

3000K-6500K

LED Chip

SAMSUNG

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

374(L)*114(W)*112(H)

Packing Size(mm)

422(L)*148(W)*128(H)/pcs

Net Weight

0.9Kg

Gross Weight

1.1Kg

Certificate

CE/RoHS

Warranty Period

5 years





Competitive Advantage:



1. Die-cast roadway light

2. The light source use 100M/W SAMSUNG chip, the luminaire reach 78M/W

3. Beautiful appearance for the shell

4. High efficiency driver system from Meanwell

5. The product is suitable for use in the streets, walkways, park, garden light, etc

6. Warranty:5 years



Light Distribution Curve:



Energy Saving 10 Watt LED Garden Lights 915 Lm With 20 pcs LED Bulbs 0





Product Size:



Energy Saving 10 Watt LED Garden Lights 915 Lm With 20 pcs LED Bulbs 1





Installation Diagram Description:



1. Installed on the Pole



Energy Saving 10 Watt LED Garden Lights 915 Lm With 20 pcs LED Bulbs 2



2.  Installed on the wall



Energy Saving 10 Watt LED Garden Lights 915 Lm With 20 pcs LED Bulbs 3





Applications:



The product is suitable for use in the streets, walkways, park, garden light, etc
