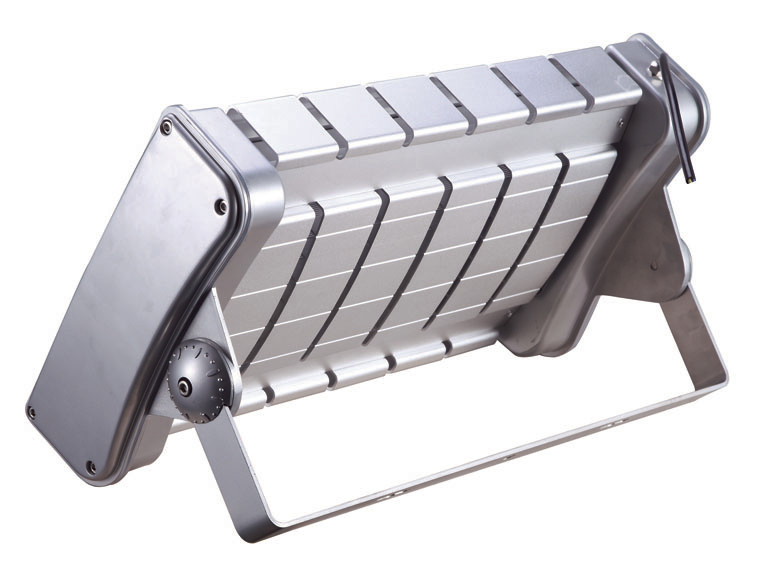

Outdoor Fixtures IP66 120Watt LED Tunnel Light 12150LM / SAMSUNG Chip

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE, RoHS
Model Number: MF-YTL135
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 65*36.5*18.5cm/1pcs, G.W:7.2 Kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, L/C, Paypal
Supply Ability: 5,000pcs/Month

Detail Information

Model No:: MF-YTL135 Input Voltage:: AC 85 -265V
Luminous Flux(lm):: 12150lm LED Chip:: / Samsung
LED Driver:: Meanwell LED Power:: 120W
CCT:: 3000K-6500K
High Light:

led tunnel lamp

,

car wash led lights

Product Description



Outdoor Fixtures IP66 120Watt LED Tunnel Light 12150LM  Chip





Quick Detail:



1.      120W LED Modular Tunnel light

2.      Input: AC 85V-265V, 50/60Hz

3.      Luminous Flux:≧12150 Lm

4.      CRI: 70

5.      Brand chip:

6.      LED Driver: Meanwell

7.      IP:66

8.      CE, RoHS certificated

9.      Power Factor:>0.9





Description:



LED tunnel lights is the latest released product for tunnel lighting from Ming Feng in 2011.This series has wide application with optional installations for tunnel lighting, gas station lighting, parking lot lighting, flood lighting, etc. which has won good reputation all over the world.



Modular design with aluminum alloy housing and electrostatic sprayed surface ensures this light reaching good resistance to corrosion. Top light source from and quality driver from Meanwell offers a lifespan over 50,000 hours and a warranty of 5 years. With spring clamp and adjustable bracket for installation, this LED light could be easily installed and operated and suits different demands for various driveways in tunnels.





Specifications:



Item

MF-YTL135

Input voltage

85-265Vac  50Hz/60Hz

LED Power

120W

Rated Power

135W

Delivered Flux(Tj80°c)

12150lm

IP Rating

IP66

LED QTY

56 pcs

Color temperature

3000K-6500K

LED Chip

LED Driver

Meanwell

Color Rendering Index

Ra>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

395(L)*310(W)*163(H)

Net Weight

6.5Kg

Certificate

CE/RoHS

Warranty Period

5 years







Competitive Advantage:



1. Modular design, the light efficient reach 90lm/W

2. The light source use 120M/W rebels, the luminaire reach 90M/W

3. Aluminum alloy housing and electrostatic sprayed surface reaches good resistance to corrosion, complying with TUV-CE, RoHS standard

4. Modular structure could be applied for power variation by module increase and decrease

5. Easy maintenance with independent chambers for light source and driver

6. Adjustable installation bracket suits different demands for all tunnel





Product Dimensions(mm):



Outdoor Fixtures IP66 120Watt LED Tunnel Light 12150LM  / SAMSUNG Chip 0







Installation Diagram Description:



1. With M10 bolts fixed to the solid position of the lamp.

2. Link the power cord

3. Loosen the retaining screw, rotate the lamp at the desired angle and tighten the screw rotation.

Outdoor Fixtures IP66 120Watt LED Tunnel Light 12150LM  / SAMSUNG Chip 1Outdoor Fixtures IP66 120Watt LED Tunnel Light 12150LM  / SAMSUNG Chip 2





Applications:



This series has wide application with optional installations for tunnel lighting, gas station lighting, parking lot lighting, flood lighting, etc.
