40W 3000 Lumen Waterproof IP65 Exterior COB LED Courtyard Light Up to 90LM/W

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 460*390*390mm/pcs, G.W:7.5Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-CS040W

Detail Information

High Light:

samsung led light

,

garden led light

Product Description

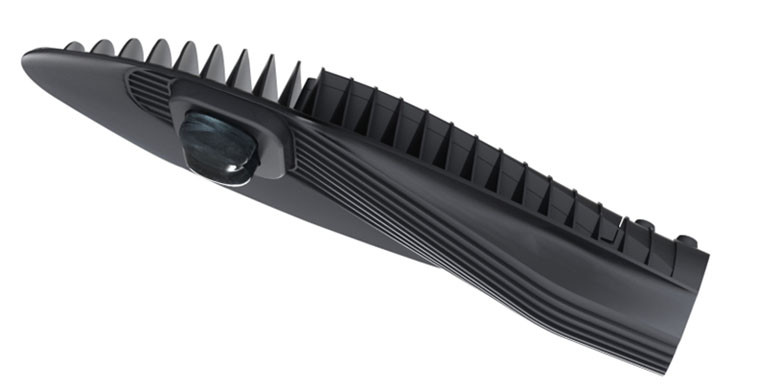

40W 3000 Lumen Waterproof IP65 COB LED Courtyard Light Up to 90LM/W





Quick Detail:



  1. 40W Cobra COB LED courtyard light
  2. Input: AC 90V-264V, 50/60Hz
  3. Luminous Flux:≧4000 Lm
  4. CRI: >70
  5. Brand chip: Bridgelux
  6. LED Driver: Meanwell
  7. Adjustable: -15 to +15
  8. IP:65
  9. CE, RoHS certificated





Description:



Excellent manufacturers of LED street lights in china, Ming Feng Come out  COB LED courtyard light series in 2014. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from Bridgelux , the street light attains over 90 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.



COB LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.





Specifications:



Item

MF-CS040W

Input voltage

90-264Vac  50Hz/60Hz

LED Power

40W

Rated Power

45W

Delivered Flux(Tj80°c)

4000lm

IP Rating

IP65

Luminous Efficiency

88LM/W

Color temperature

3000K-6500K

LED Chip

Bridgelux

LED Driver

Meanwell

Color Rendering Index

>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

402(L)*149(W)*88(H)

Packing Size(mm)

460(L)*390(W)*390(H)/pcs

Net Weight

1.2Kg

Certificate

CE/RoHS

Warranty Period

5 years







Competitive Advantage:



1. The light source use 100M/W Bridgelux chip, the luminaire reach 85M/W

2. Beautiful appearance for the shell

3. High efficiency driver system from Meanwell

4. The product is suitable for use in the streets, walkways, park, garden light, etc

5. Warranty:5 years

6. Could be both for wall packing and pole packing.





Light Distribution Curve:





40W 3000 Lumen Waterproof IP65 Exterior COB LED Courtyard Light Up to 90LM/W 0





Product Size:





40W 3000 Lumen Waterproof IP65 Exterior COB LED Courtyard Light Up to 90LM/W 1







Applications:



The product is suitable for use in the streets, walkways, park, garden light, etc.
