60W COB LED Courtyard street Light 5400LM PF 0.9 White / Black Housing Color

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 460*390*390mm/pcs, G.W:8.5Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS Model Number: MF-CS060W

Detail Information

High Light:

samsung led light

,

Outdoor LED light

Product Description

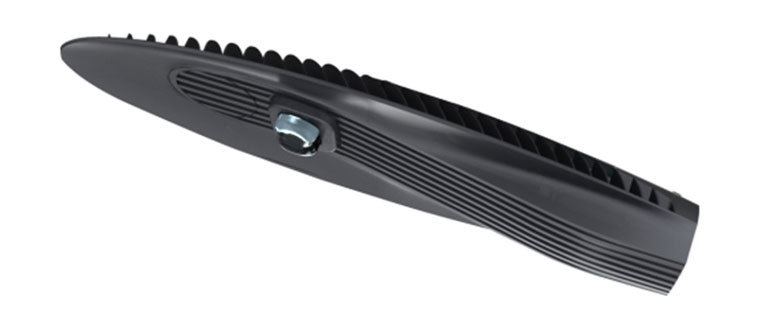

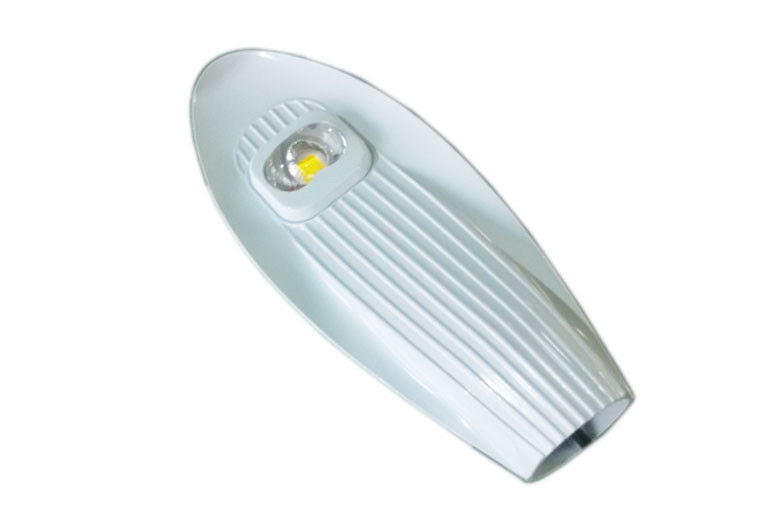

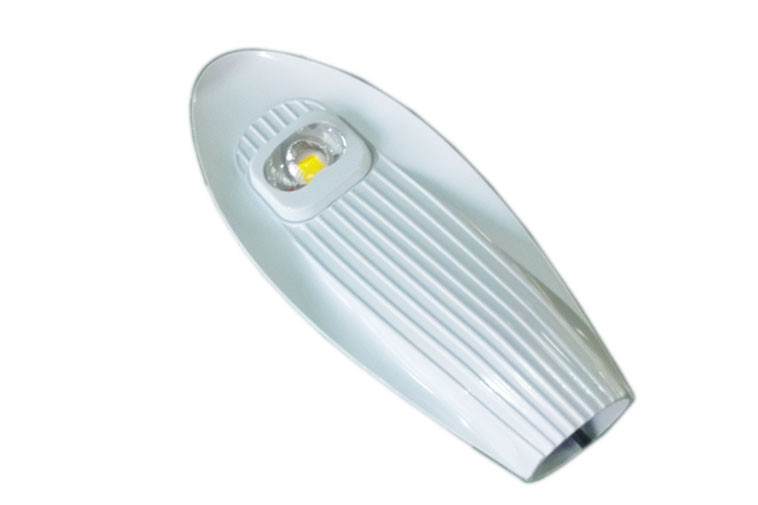

60W COB LED Courtyard street Light 5400LM PF > 0.9 White / Black Housing Color





Quick Detail:



  1. 60W COB LED courtyard light
  2. Input: AC 90V-264V, 50/60Hz
  3. Luminous Flux:≧5400 Lm
  4. CRI: >70
  5. Brand chip: Bridgelux
  6. LED Driver: Meanwell
  7. Adjustable: -15 to +15
  8. IP:65
  9. CE, RoHS certificated





Description:



Excellent manufacturers of LED street lights in china, Ming Feng Come out COB LED courtyard light series in 2014. These LED street lighting series combines all street LED lighting features together including economic, long lifespan and environment protection. Applied with the best LED from Bridgelux , the street light attains over 90 lm/w illumination efficiency. Accelerated by Professional Unique Optical Lens, Ming Feng LED street light distribute all the light onto road with maximum effect.



COB LED courtyard light embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.





Specifications:



Item

MF-CS060W

Input voltage

90-264Vac  50Hz/60Hz

LED Power

60W

Rated Power

65W

Delivered Flux(Tj80°c)

5400lm

IP Rating

IP65

Luminous Efficiency

90LM/W

Color temperature

3000K-6500K

LED Chip

Bridgelux

LED Driver

Meanwell

Color Rendering Index

>70

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature:-40°C~50°C/Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

402(L)*149(W)*88(H)

Packing Size(mm)

460(L)*390(W)*390(H)/pcs

Net Weight

2.0Kg

Certificate

CE/RoHS

Warranty Period

5 years





Competitive Advantage:



1. The light source use 100M/W Bridgelux chip, the luminaire reach 85M/W

2. Beautiful appearance for the shell

3. High efficiency driver system from Meanwell

4. The product is suitable for use in the streets, walkways, park, garden light, etc

5. Warranty:5 years

6. Could be both for wall packing and pole packing.





Light Distribution Curve:





60W COB LED Courtyard street Light 5400LM PF 0.9 White / Black Housing Color 0



Product Size:



60W COB LED Courtyard street Light 5400LM PF 0.9 White / Black Housing Color 1





Installation





60W COB LED Courtyard street Light 5400LM PF 0.9 White / Black Housing Color 2





Applications:



The product is suitable for use in the streets, walkways, park, garden light, etc.





60W COB LED Courtyard street Light 5400LM PF 0.9 White / Black Housing Color 3
