IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE,RoHS,TUV,FCC,DLC
Model Number: MF-BY240W
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Depends on the specific model
Delivery Time: Depends on orders
Payment Terms: T/T, L/C,Paypal
Supply Ability: 10,000pcs/Month

Detail Information

Item No:: MF-BY240W Power:: 240W
Input Voltage:: 100V-277Vac LED Chip:: Lumileds 3030/Lumileds 5050
LED Driver:: Meanwell XLG Luminous Flux(lm):: 130lm/w,150lm/w
CRI:: 70/80 IK Rate: IK08
IP Grade:: IP66 Warranty: 5 Years
Certifcated: CE, RoHS, ENEC,UL,SAA,PSE
High Light:

IK08 Waterproof LED Street Light

,

NEMA Connector LED Street Light

,

Waterproof 165lm/w LED Roadway Lights

Product Description

IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light

Features:

1. Excellent Heat Dissipation
2. Stylish and Classic Appearance Design
3. Multiple Beam Angles Available
4. Convenient Maintenance of Driver
5. Multiple Installation Methods
6. Tool-Free Maintenance Easy Open
7. Epoxy-Polyester Anti-corrosion Coating


Ming Feng Lighting has been committed to the research of high-quality optical light distribution. Aiming at road lighting, we have developed seven lens products with different road widths and suitable occasions, and developed four projection lamp lighting lens products and one tunnel lamp lighting lens product to meet the different lighting needs of customers.


Specifications:



Item

MF-BYxxW

Input voltage

110V,120V,230V,240V,347V ac

LED Power

30W,60W,90W,120W,150W,180W,200W,240W

Rated Power

30W,60W,90W,120W,150W,180W,200W,240W

IP Rating

IP66

IK rate IK08
SPD 10KV/20KV

Luminous Efficiency

130lm/w,150lm/w

Color temperature

3000K / 4000K / 5000K

LED Chip

Cree

LED Driver

Lumileds 3030/Lumileds 5050

Color Rendering Index

70/80

Power Factor

>0.98

Lifespan

≥100,000hrs

Beam

143*50°/156*68°/150*150°/150*75°

Material

Die-cast Alu.+PC+glass

Certificate

CE, RoHS, ENEC,UL,SAA,PSE

Warranty Period

5 years/10 years conditionally



Competitive Advantage:


*30W 丨 50W 丨 60W | 90W 丨 100W 丨 120W 丨
*150W 丨 180W 丨 200W 丨 210W 丨 240W

*Lamp body ADC12 Aluminum,Powder spraying surface treatment, corrosion resistance
*Optical lens Type II

*500H salt spray test
*LED source and driver respectively
*Open power supply chamber by top cover, knob type tools free
*Smooth back cover, easy to clean
*Applications: Widely used in main roads, highways, sidewalks,parks, squares, docks, factories and other indoor or outdoor areas.
*L80:50000H/100000H
*Efficiency :135-170lm/w

*IP66/IK08

*LED source2: 835/3030/5050 optional


CCT Range WW(3000K) NW(4000K) DW(5000K) CW(6500K)


Beam Angle:
IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 0IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 1

IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 2IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 3

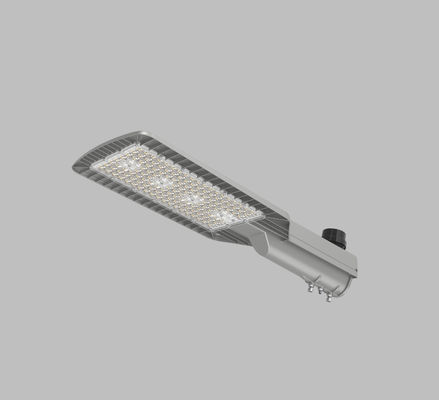

Product Detail:





IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 4    IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 5

IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 6IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 7


Product Drawing:



IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 8


 Installation Methods:



Wiring Method

IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 9

Top Mounting

IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 10

IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 11
Application:
Highway, National road, Country road,Bicycle lanes, Sidewalks, Courtyard, High-speed rail, Standard rail...etc.
IP66 IK08 Waterproof 165lm/w NEMA Connector LED Street Light LED Roadway Light 12
