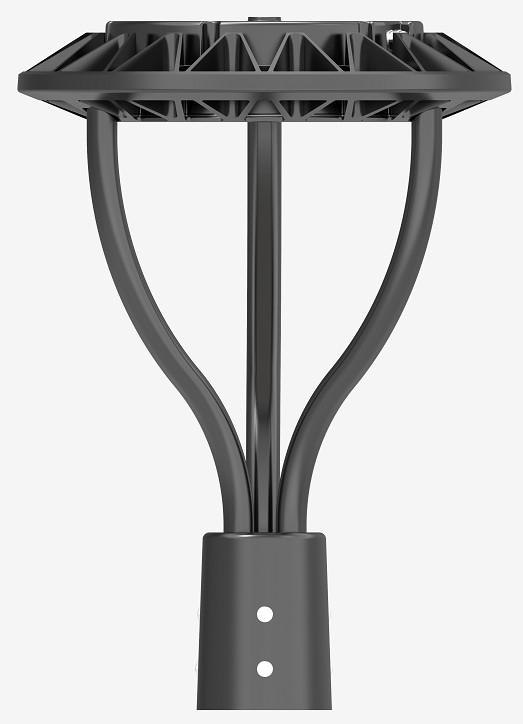

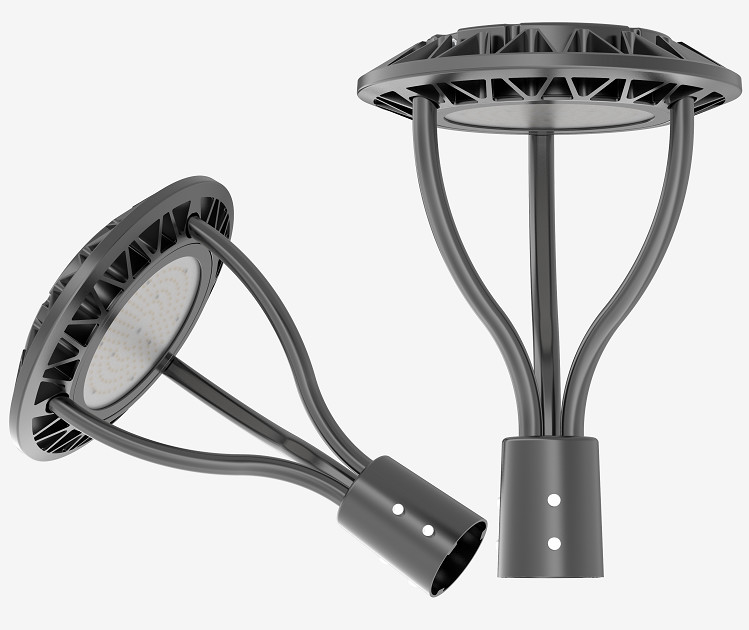

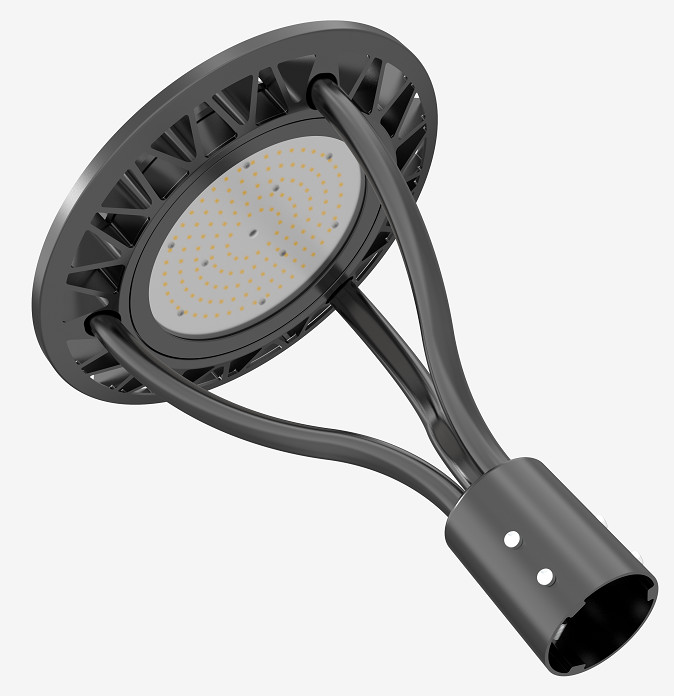

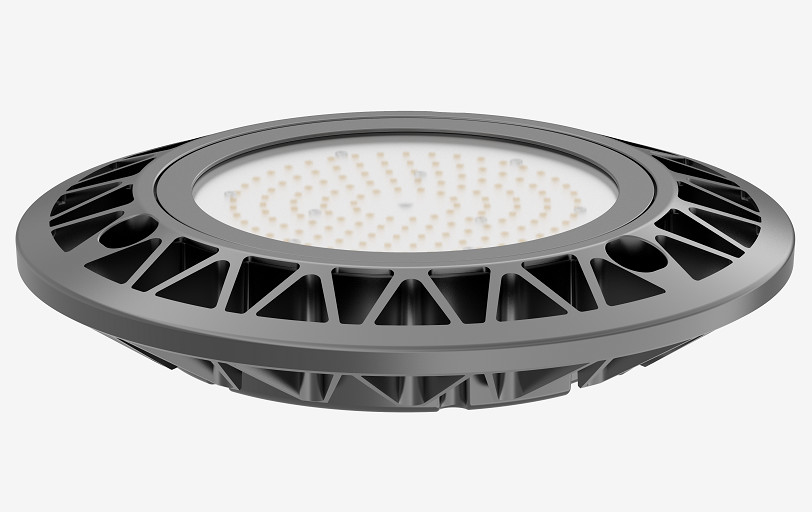

SAA UL IP67 CCT Adjustable 30W 50W 70W Three In One LED Garden Street Light

Product Description

SAA UL IP67 Waterproof CCT Adjustable 30W 50W 70W Three In One LED Garden Street Light

Features:
1. Air cooling design
2. IP67 rated enclosure
3. Post top or pendeant mounting
4. Superior Low-glare illumination
5. Optional with photo cell
6. Optional black, white or bronze color
The area series has the high-performance solution for the most demanding applications within a unique design. With different precision refractive optical lens and an easy-install design,it can be used in many applications such as pedestrian street, factory, schools, garden, courtyard,hotel,parking lot,public parks etc.

Specifications:

Adjustable power,Adjustable color temperature controller instructions (manual operation)

*Pull out the controller cover firmly upwards. See picture 1
*Adjust the power in zone A and adjust the color temperature in zone B. The factory default power is 75W and the color temperature is 5000K. See picture 2.

Instructions for adjusting the power (zone A):
1. Adjust to 50W: pull A1 to ON, A2 to OFF, see picture 3.
2. Adjust to 30W: Pull A1 to OFF. Pull A2 to ON. See picture 4.
Instructions for adjusting the color temperature (zone B):
3 gears adjustment: B3=3000K, B2=4000K, B1=5000K.
The factory default is 5000K (B1). When adjusting the color temperature, just pull the button to the corresponding position.
How to use photocell sensor:
* Open the photocell sensor function: remove the photocell sensor cover.
* Close the photocell sensor: close the photocell sensor cover.


Replacement:

By using our 50W Area Light to replace 150W Metal Halide bulb for parking area lighting fixtures, the customer is now able to save a lot per month from his electric bill.

Fixture assembly:
* Feed the (3) Housing wires through one of the three Rods.
* Clip the (3) Rods onto the Housing. Be sure the Housing clips are properly engaged onto the Rods.
* Feed Fixture Wires through the Tenon Pole Adaptor.
* Slide Tenon Pole Adaptor on three Rods. Be sure the notches face the inside of theTenon Pole Adaptor.
* Tighten the (3) Set Screws at the Tenon Pole Adaptor to secure Rods.


Product Details:

               External Photocell Sensor                                             Built-in Photocell Sensor
                     (Manual operation)                                                        (Remote control )
.

Product Drawing:


Application:
Courtyard lighting, public parks lighting, street scapes lighting, parking areas lighting,hotel lighting...etc.
