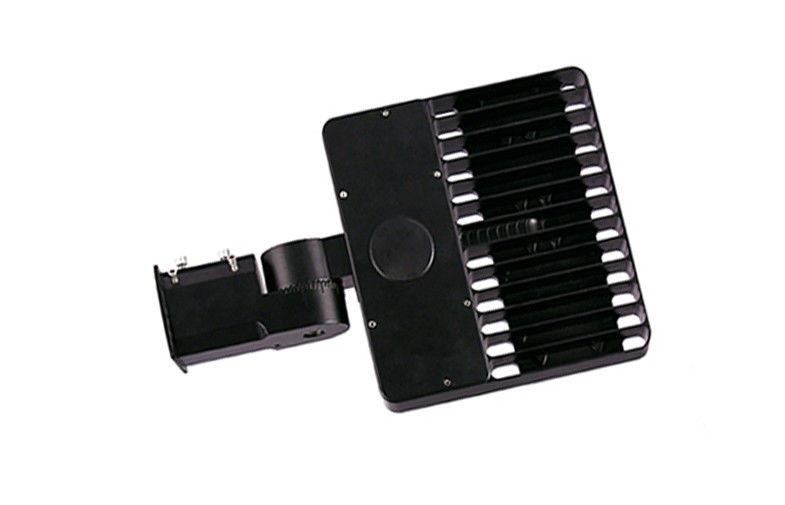

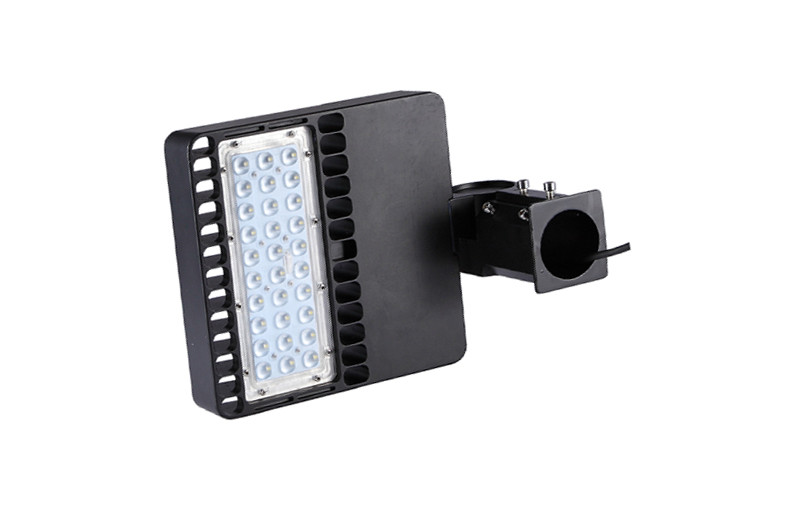

130LM/W 40W IP65 LED Parking Lot Lighting DLC,ETL Listed, Cree / Samsung Chip

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE,RoHS,TUV, FCC, DLC
Model Number: MF-P040
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: 400*395*115mm/pcs, N.W:4.5Kg G.W:6.0kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 10,000pcs/Month

Detail Information

Item No:: MF-P040 Power:: 40W
Input Voltage:: AC85-305V LED Chip:: Cree/ SAMSUNG
LED Driver:: Meanwell Luminous Flux(lm):: 5200lm
CRI:: 80+ IP Grade:: IP65
Beam Angle: 90° , 120°, 90*120°, 85*135° Mounting: Pole/wall Mount As Option
CCT: 3000K,4000K And 5000K PF: >0.98
High Light:

led parking lot light

,

parking lot led lights

Product Description


130LM/W 40W Cree / Samsung Chip IP65 LED Parking Lot Lighting DLC,ETL Listed


Description:

LED Parking Lot Lighting is the latest released product for Parking lot lighting from Ming Feng in 2014. This light is allocated with top grade LED from Cree and driver from Meanwell, which guarentees a working lifetime over 50,000h hours and a warranty of 5 years. Ming Feng LED Parking Lot Lighting could be adjustable and  bracket for installtion, this LED light could be easily installed and operated and suits different demands for various car park.

With the elegant and fashion design, hight illumination performance, various lighting distribution, Hollow out heat sink design make the lamp lighter and good heat dissipation.Built-in Meanwell driver, meet IEC standard.it is one of our star product and the first choice to our professional clinets in the project application.


Application:

6 different kinds of brackets available for wall lighting area, street lighting...etc.



Specifications: MF-P040 Parking Light Data Sheet.pdf



Item

MF-P040

Input voltage

90-305Vac  50Hz/60Hz

LED Power

40W

Rated Power

45W

Delivered Flux(Tj80°c)

5200lm

IP Rating

IP65

Luminous Efficiency

130LM/W

LED Qty: 20pcs
Pole Diameter(mm): Dia60mm / Dia76mm

Color temperature

3000K / 4000K / 5000K

LED Chip

Cree XTE/ Samsung 351B

LED Driver

Meanwell

Color Rendering Index

80+

Power Factor

>0.98

Lifespan

≥100,000hrs

Operation Environment

Temperature:-40°C~50°C / Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

275(L)*364(W)*176(H)

Packing Size(mm)

400(L)*395(W)*115(H)/pcs

Net Weight

4.5Kg

Certificate

CE/RoHS/TUV/FCC/DLC

Warranty Period

5 years



Competitive Advantage:

1. We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip ,options, efficiency acheives 130LM/W.
2. Module lens design make the lamp with well suited lighting distributing for LED Parking lot lighting.
3. Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.
4. Installation angle -90~ +90 adjustable
5. Goo-looking appearance reaches 95 lm/w
6. Warranty:5 years
7. IP65
 8. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.



Light Distribution Curve:

130LM/W 40W   IP65 LED Parking Lot Lighting DLC,ETL Listed, Cree / Samsung Chip 0


Dimension:

130LM/W 40W   IP65 LED Parking Lot Lighting DLC,ETL Listed, Cree / Samsung Chip 1


Packaging:

130LM/W 40W   IP65 LED Parking Lot Lighting DLC,ETL Listed, Cree / Samsung Chip 2




130LM/W 40W   IP65 LED Parking Lot Lighting DLC,ETL Listed, Cree / Samsung Chip 3
