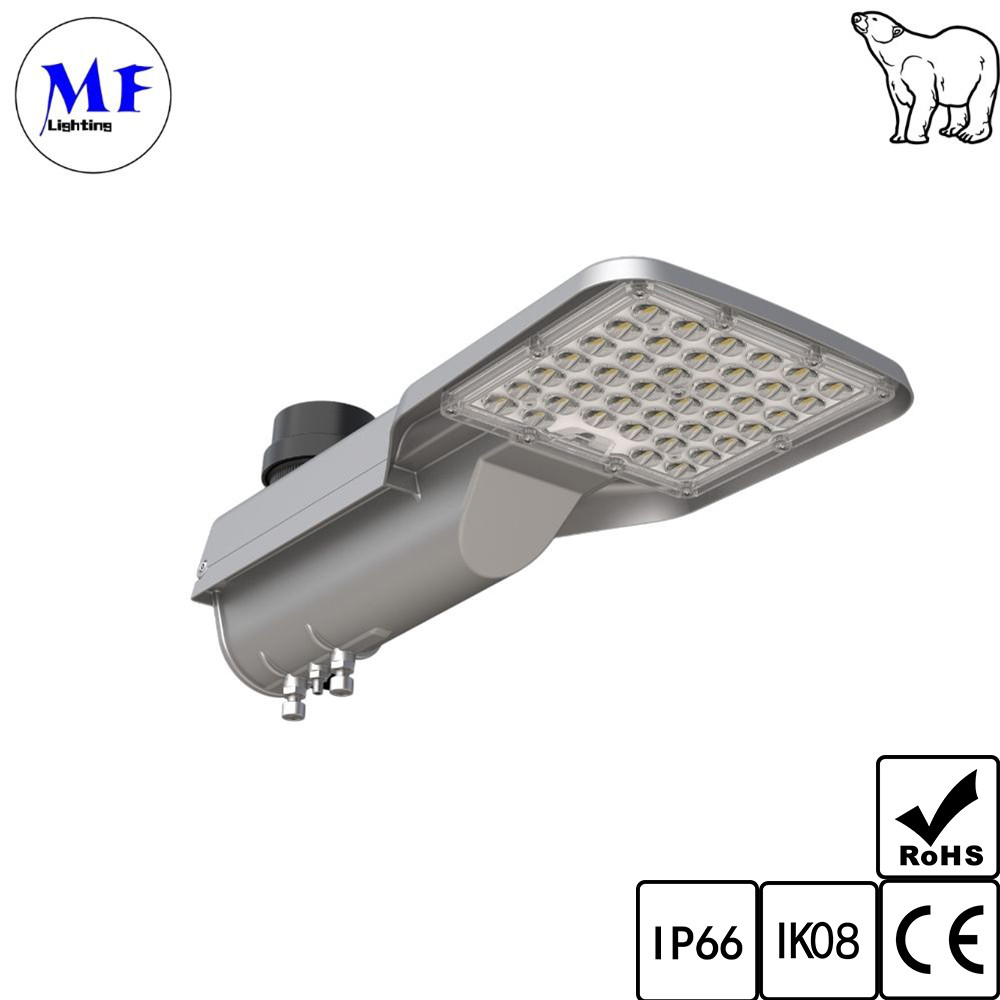

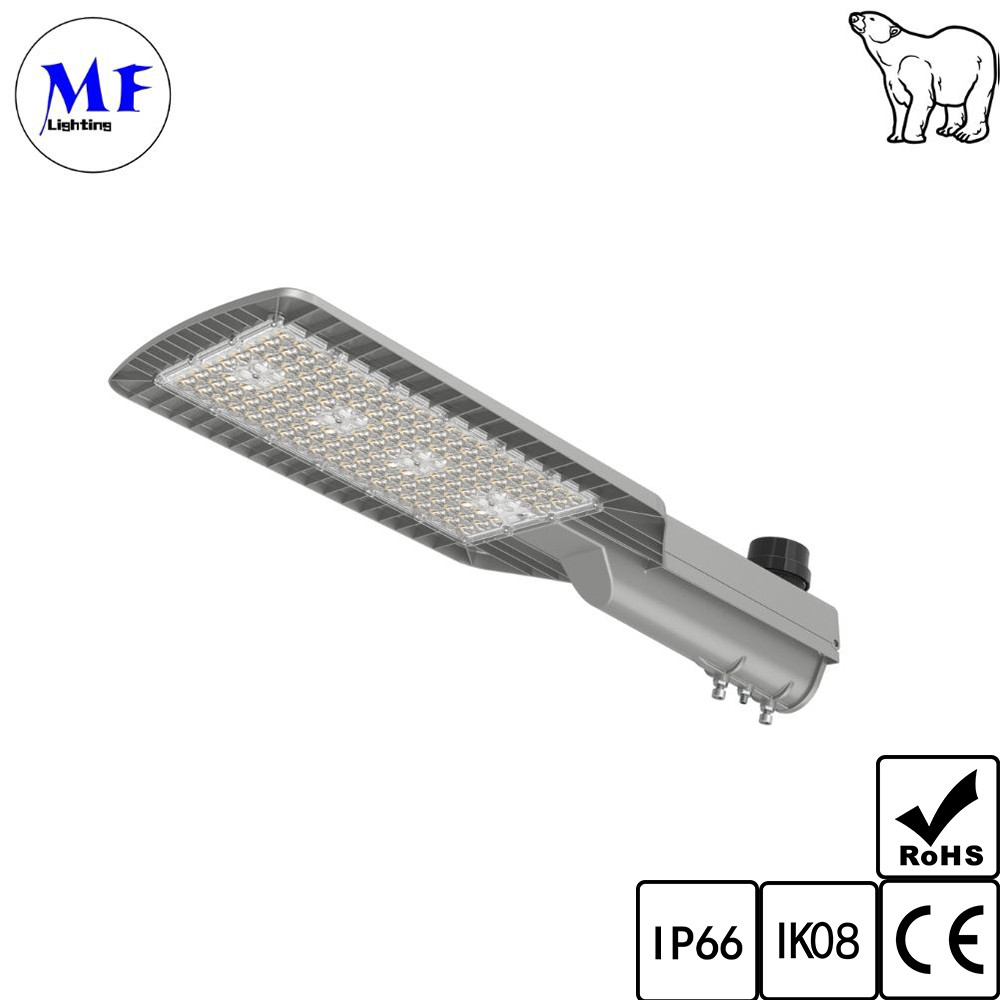

30W-240W LED Road Street Light With Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-Bear

Detail Information

CCT: 3000K-6500K Material: ADC12 Aluminum Die-Casting + PC
Power: 30W/50W/60W/90W/100W/120W/150W/180W/200W/210W/240W Input: 100V-277VAC
IP Rate: IP66 Warranty: 5years
LifespanTemperature: >60, 000hrs Beam Angle: Type II-M/S
Surge Protection: L-N 5kv,L/N-PE 10kv Lumen Efficiency: 130/150lm/W
Ik: Ik08 Pole: φ48-60mm,Depth≈100mm
Color: Ral9007 / Grey
High Light:

3000K LED Roadway Street Light

,

240W LED Road Street Light

,

Self-Cleaning LED Roadway Street Light

Product Description

Product Description

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
200W/210W/240W Compact Design with self-cleaning function Garden parking lot plaza wall highway overpass sidewalk squares schools LED street light

Product Description

1.30W/50W/60W/90W/100W/120W/150W/180W/200W/210W/240W

2.Lamp body ADC12 Aluminum,Powder spraying surface treatment, corrosion resistance

3.Optical lens Type II;

4.LED source and driver respectively;

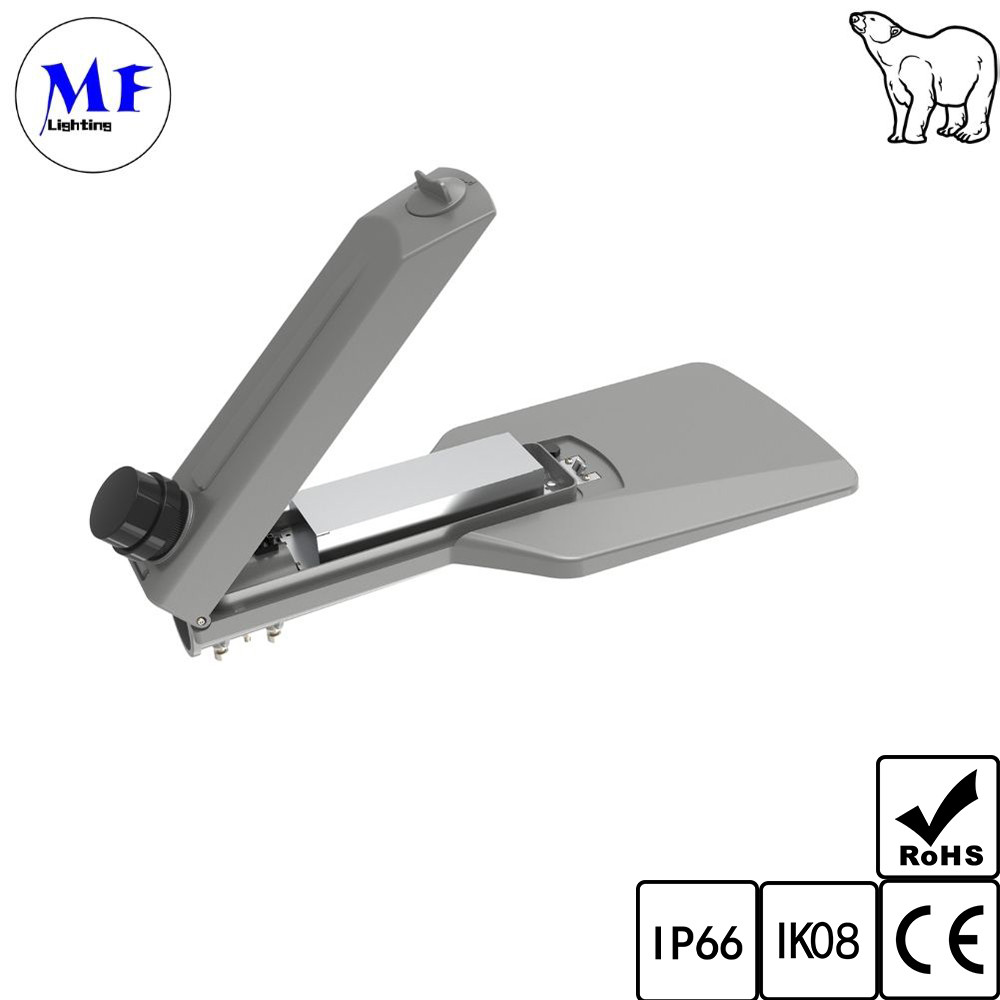

5.Open power supply chamber by top cover, knob

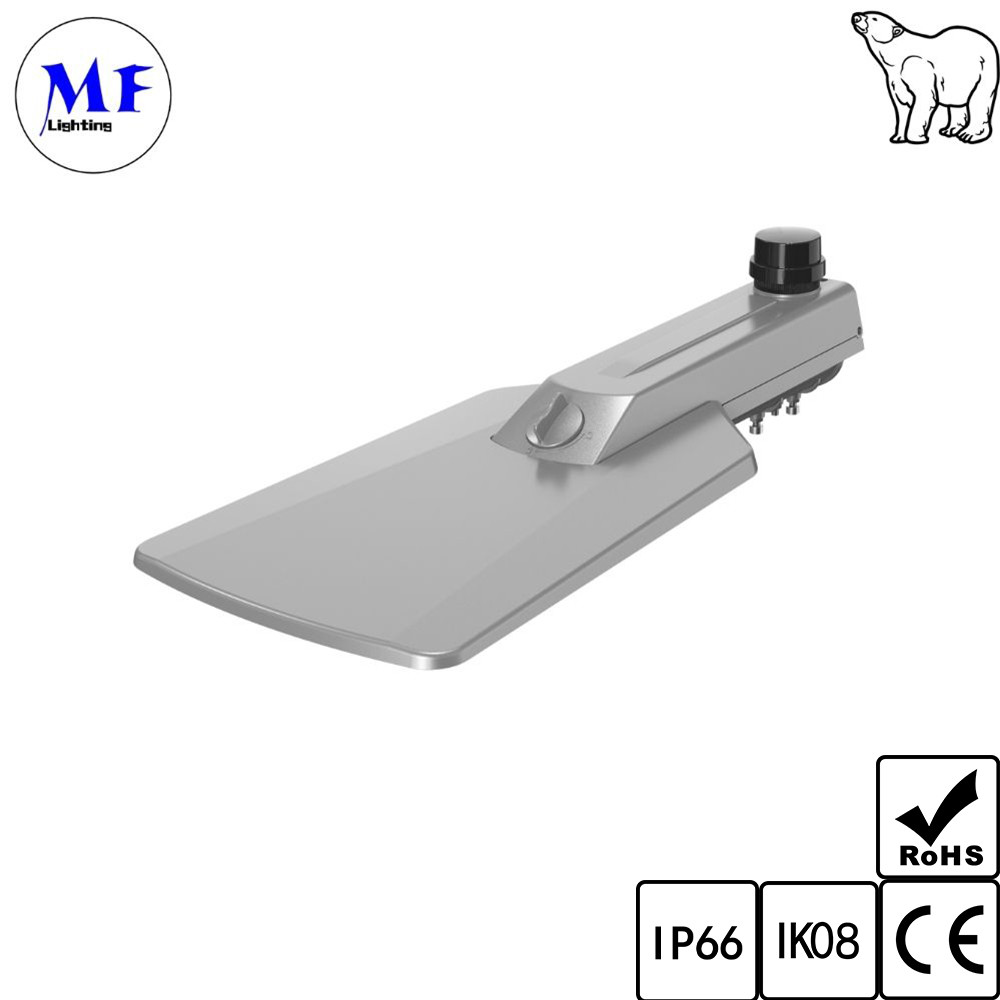

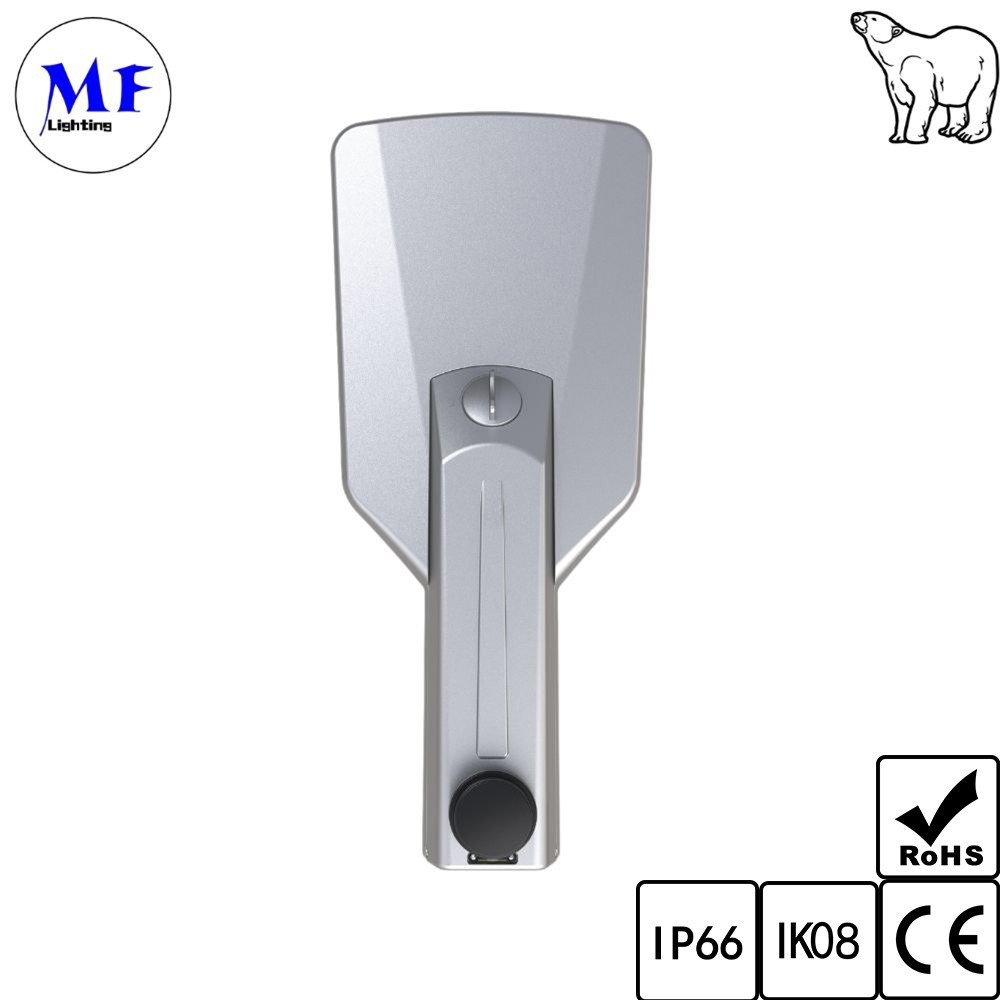

6.Smooth back cover, easy to clean

7.L80:50000H/100000H

8.Efficiency 135-170lm/w, LED source 2835/3030/5050 optional;

9.T2-M,T2-S light distribution

10.IP66/IK08;

11.500H salt spray test;
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light



No ME-BY30w
MF-BY50w
MF-BY60w
MF-HY90w
MF-BY100w
MF-BY120w
MF-BY150w
MF-BY180w
MF-BY200w
MF-BY210w
MF-BY240W
Power 30w/50w/60w 90w/100w/120w 150w/180w 200w/210w/240w
Input voltage 100v-277Vac
Frequency 50/60Hz
lnput current 0.33/o.55/0.67 1.0/1.10/1.22 1.66/1.75 2.22/2.33/2.67
pp 100~240Va PF20.95 240~277Vac PF20.90
surge protection L-N 5KVL/N-PE 10KV
THD THD<20%
LED SMD2835 9v/SMD3030 6v/ SMD505024v
Max LED quantity 5050:40 Pes
3030:16O Pcs
2B35160 Pes
5050:7B Pes
3030:312 Pe
2835:312 Pes
5050:110Pes
3030:440 Pes
2835:440 Pes
s050:15OPes
3030600 Pe
2835600 Pes
Beam angle Typell-M/s
CcT 3000K/4000K/5000K/5700K
CRI 270
lK lK08
IP IP66
Pole p18-60mm.Depthe100mm
Color RAL9007/ GREY
Efficiency 130/150Lm/w
Net weight(kg] 2.9(30~60w) 4.2 (90~120w) 5.3(150W~180w) 6.5(200W-240w)
Gross weight(kg] 3.4 5.1 6.5 8.1
Product size 195*440*165 245*550*172 280*650*173 320*780*174
Packing 5D0*235*190 610*285*200 720*330*200 850*370*200





200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
WATERPROOF

1 IP66 waterproof

2 Safer outdoor use



Product dimension:

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


Installation Instructions



200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light



Application

LED street lights are commonly used for outdoor lighting in streets, highways, and public areas. They provide energy-efficient and long-lasting lighting solutions that are environmentally friendly and cost-effective. Some common applications of LED street lights include:
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

Street lighting: LED street lights are commonly used for lighting up streets, roads, and highways. They provide bright and uniform lighting, making it easier for drivers to navigate the roads and for pedestrians to move around safely at night.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
Parking lot lighting: LED street lights are also used for lighting up parking lots and other outdoor areas. They provide bright and uniform lighting, making it easier for drivers to park their vehicles and for pedestrians to move around safely.

Public area lighting: LED street lights are also used for lighting up public areas such as parks, plazas, and other outdoor spaces. They provide a bright and comfortable environment for people to enjoy outdoor activities and events.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
Security lighting: LED street lights are also used for security lighting purposes. They can be used to illuminate dark areas and deter potential criminals from entering the area.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
Overall, LED street lights are versatile and can be used in a wide range of outdoor lighting applications, providing energy-efficient and long-lasting lighting solutions that are environmentally friendly and cost-effective.



Certifications

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

Company Profile

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
Ming Feng Lighting Co.,Ltd is one of the leading LED light product, located in Guangdong Province, China. Established in year 2009 and has more than 14 years experience in exporting LED lighting products. Ming Feng LED lighting factory produce LED Indoor Light and LED outdoor lamp. For the LED indoor light, we are producing the LED Triproof Lights, LED Vapor Tight Lights,LED down lights ,LED Flat panel, For the Outdoor LED Light, we are producing the LED flood light, LED high bay lighting, LED sports lights and some of outdoor LED landscape light.With the rapid growth of our sales volume in the market, our R&D are expanding quickly to meet the market demands.

Our main market is in European, South American and North American. Our factory locates between Shenzhen port and Guangzhou, it's convenient to visit our factory and delivery the container to all around the world based on Shenzhen port.



Ming Feng Lighting Co., Ltd warmly welcome all the partners visit our factory and share the ideas of the LED light. Ming Feng Lighting factory stays with you all the time to share the happiness of the LED light, let's work together to create an outstanding future.

HISTORY
Ming Feng Lighting Co.Ltd factory established in year 2009 and has 14 years great experience in exporting LED lighting products. We dedicate ourselves in the LED lighting area to develop the market-oriented LED light product. We are proud of that, our factory can manufacture the outstanding LED light with high quality standard.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


SERVICE
Ming Feng lighting CO.,Ltd providing the OEM & ODM service for all the partners all around the world, Our LED light is in high quality standard at reasonable and competitive price, our designer and engineer help our LED light in tasteful design and excellent performance.We are able to offer our valuable clients:

OEM/ODM Serivce
Photometric/IES file
Dialux simulation design
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.

OUR TEAM
Ming Feng Lighting Co.Ltd has 200 employees, which include administrative staff 30 people, engineers 10, industrial designer 5, quality control department 8, and 150 people involve in production line as well warehouse and logistics department.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


FAQ:

Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.

Q2: Can I order a sample of the LED High Mast Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.

Q3: What is the lead time for the LED High Mast Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.

Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).

Q5: Can I print my logo on the LED High Mast Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.

Q6: How do I proceed with an order for the LED High Mast Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.

Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
