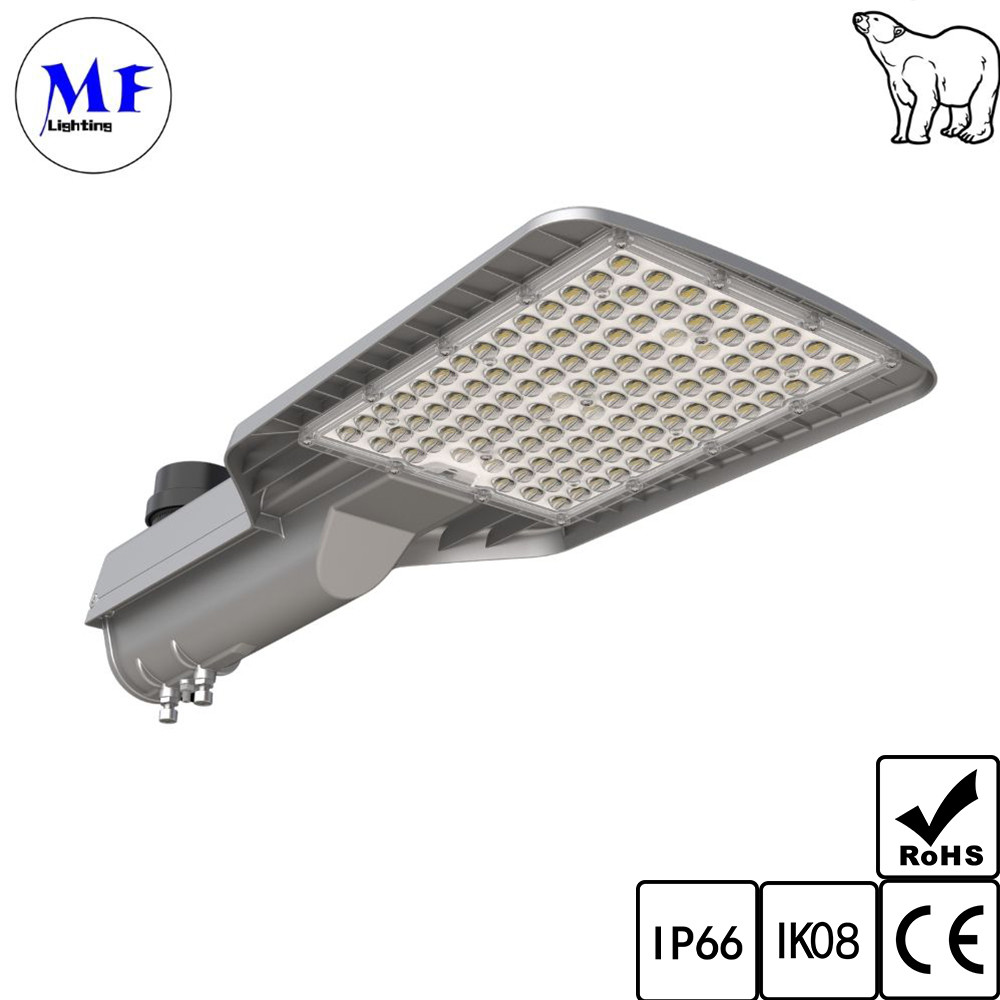

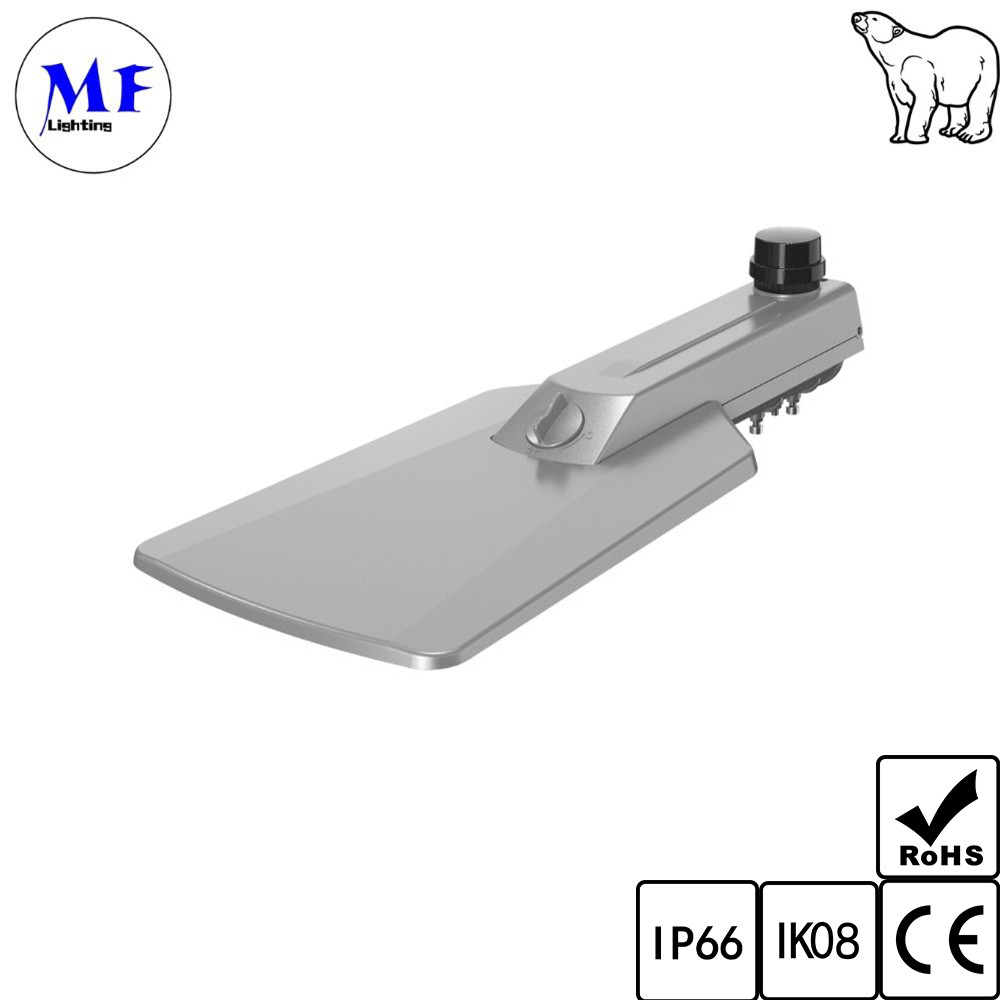

200W/210W/240W LED Road Street Light With Self-Cleaning Function For Garden Parking Lot Plaza Wall Highway Overpass

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-Bear

Detail Information

CCT: 3000K-6500K Material: ADC12 Aluminum Die-Casting + PC
Power: 30W/50W/60W/90W/100W/120W/150W/180W/200W/210W/240W Input: 100V-277VAC
IP Rate: IP66 Warranty: 5years
LifespanTemperature: >60, 000hrs Beam Angle: Type II-M/S
Surge Protection: L-N 5kv,L/N-PE 10kv Lumen Efficiency: 130/150lm/W
Ik: Ik08 Pole: φ48-60mm,Depth≈100mm
Color: Ral9007 / Grey

Product Description

Product Description

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
200W/210W/240W LED Road Street Light With Self-Cleaning Function For Garden Parking Lot Plaza Wall Highway Overpass

Product Description

1.30W/50W/60W/90W/100W/120W/150W/180W/200W/210W/240W

2.Lamp body ADC12 Aluminum,Powder spraying surface treatment, corrosion resistance

3.Optical lens Type II;

4.LED source and driver respectively;

5.Open power supply chamber by top cover, knob

6.Smooth back cover, easy to clean

7.L80:50000H/100000H

8.Efficiency 135-170lm/w, LED source 2835/3030/5050 optional;

9.T2-M,T2-S light distribution

10.IP66/IK08;

11.500H salt spray test;
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light



No ME-BY30w
MF-BY50w
MF-BY60w
MF-HY90w
MF-BY100w
MF-BY120w
MF-BY150w
MF-BY180w
MF-BY200w
MF-BY210w
MF-BY240W
Power 30w/50w/60w 90w/100w/120w 150w/180w 200w/210w/240w
Input voltage 100v-277Vac
Frequency 50/60Hz
lnput current 0.33/o.55/0.67 1.0/1.10/1.22 1.66/1.75 2.22/2.33/2.67
pp 100~240Va PF20.95 240~277Vac PF20.90
surge protection L-N 5KVL/N-PE 10KV
THD THD<20%
LED SMD2835 9v/SMD3030 6v/ SMD505024v
Max LED quantity 5050:40 Pes
3030:16O Pcs
2B35160 Pes
5050:7B Pes
3030:312 Pe
2835:312 Pes
5050:110Pes
3030:440 Pes
2835:440 Pes
s050:15OPes
3030600 Pe
2835600 Pes
Beam angle Typell-M/s
CcT 3000K/4000K/5000K/5700K
CRI 270
lK lK08
IP IP66
Pole p18-60mm.Depthe100mm
Color RAL9007/ GREY
Efficiency 130/150Lm/w
Net weight(kg] 2.9(30~60w) 4.2 (90~120w) 5.3(150W~180w) 6.5(200W-240w)
Gross weight(kg] 3.4 5.1 6.5 8.1
Product size 195*440*165 245*550*172 280*650*173 320*780*174
Packing 5D0*235*190 610*285*200 720*330*200 850*370*200





200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

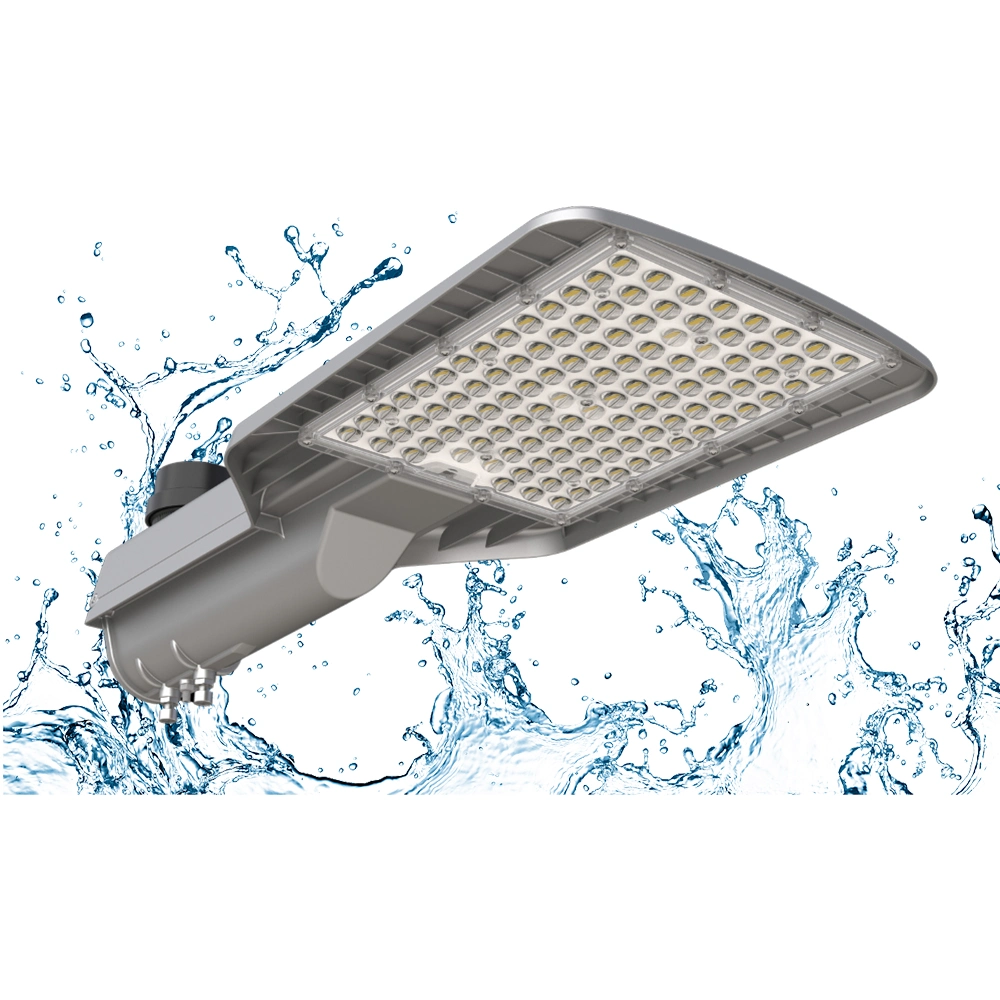

WATERPROOF

1 IP66 waterproof

2 Safer outdoor use

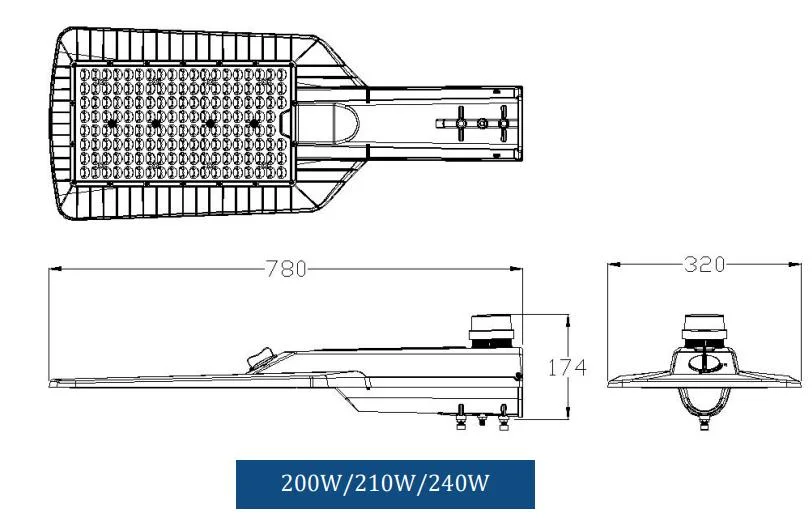

Product dimension:

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

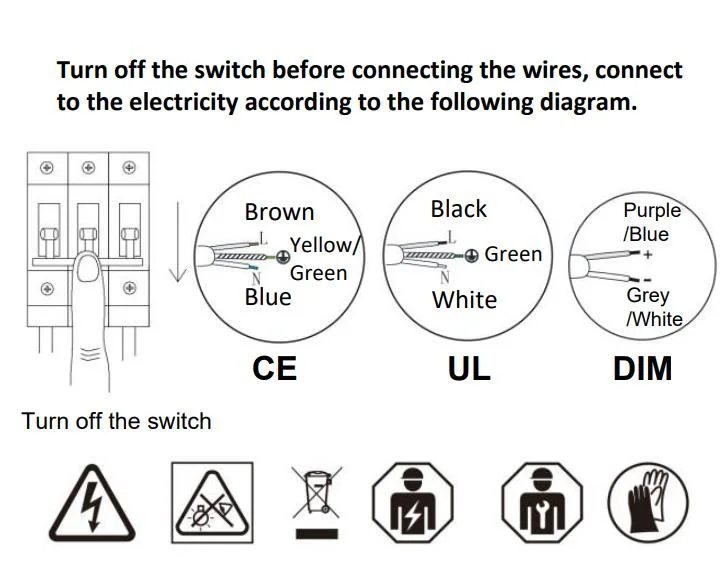

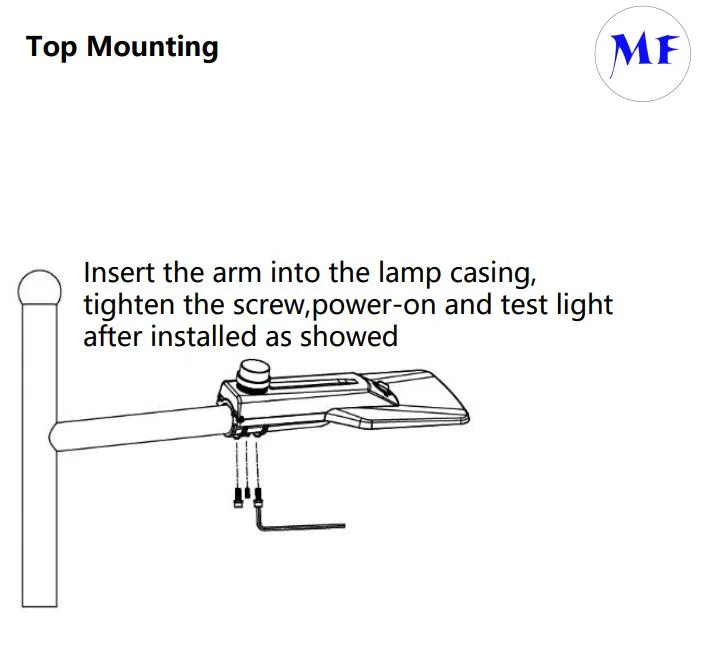

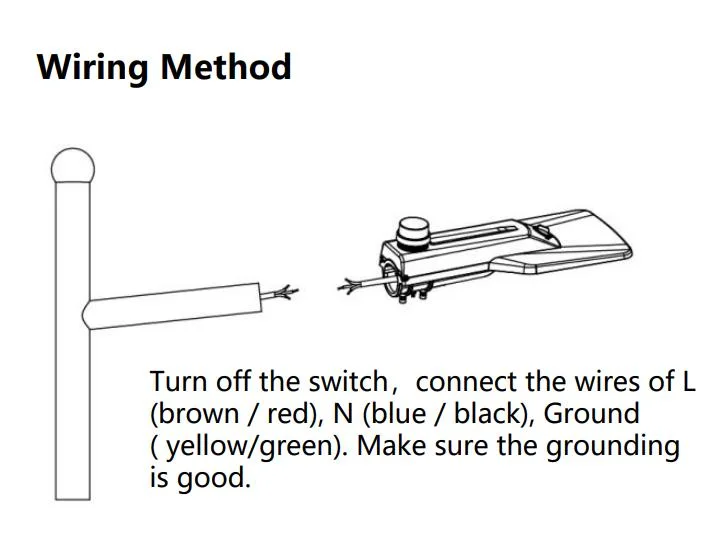

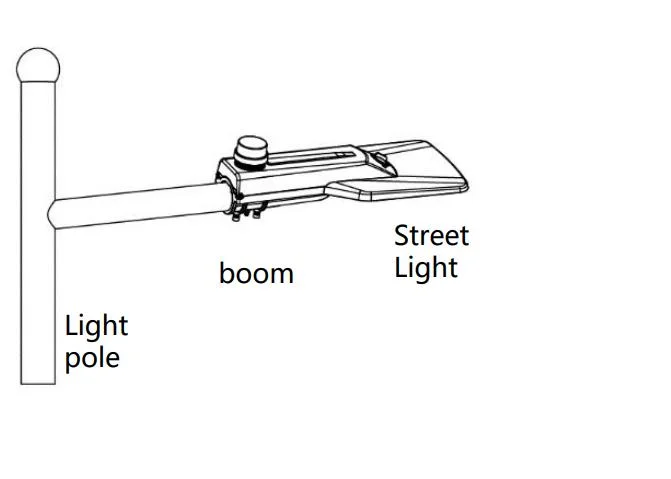

Installation Instructions



200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light



Application

LED street lights are commonly used for outdoor lighting in streets, highways, and public areas. They provide energy-efficient and long-lasting lighting solutions that are environmentally friendly and cost-effective. Some common applications of LED street lights include:
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

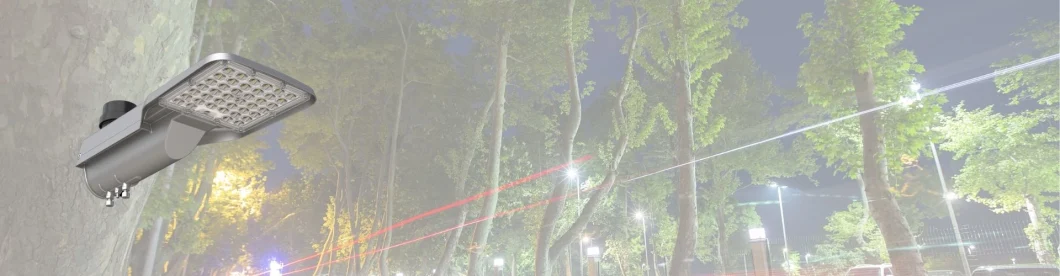

Street lighting: LED street lights are commonly used for lighting up streets, roads, and highways. They provide bright and uniform lighting, making it easier for drivers to navigate the roads and for pedestrians to move around safely at night.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

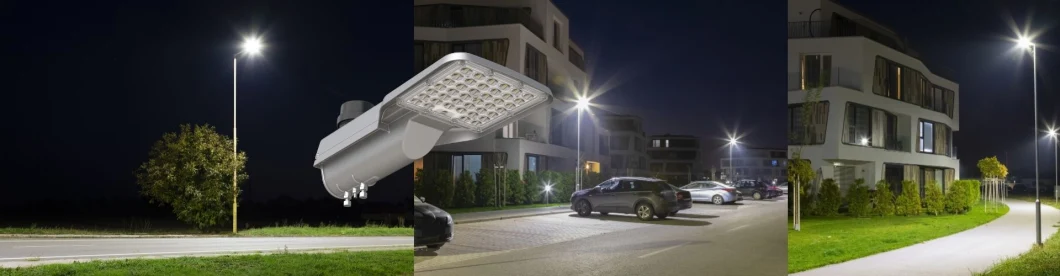

Parking lot lighting: LED street lights are also used for lighting up parking lots and other outdoor areas. They provide bright and uniform lighting, making it easier for drivers to park their vehicles and for pedestrians to move around safely.

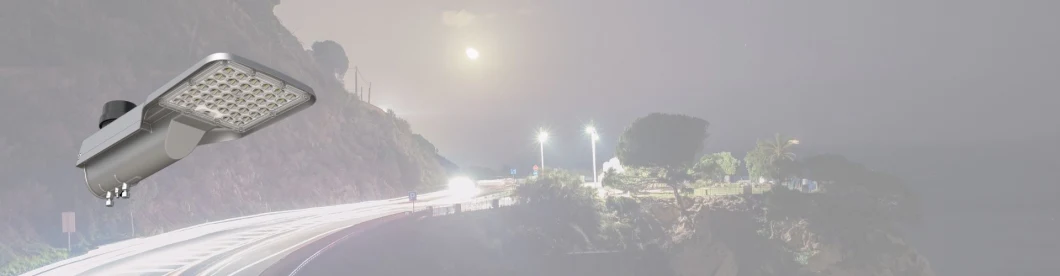

Public area lighting: LED street lights are also used for lighting up public areas such as parks, plazas, and other outdoor spaces. They provide a bright and comfortable environment for people to enjoy outdoor activities and events.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

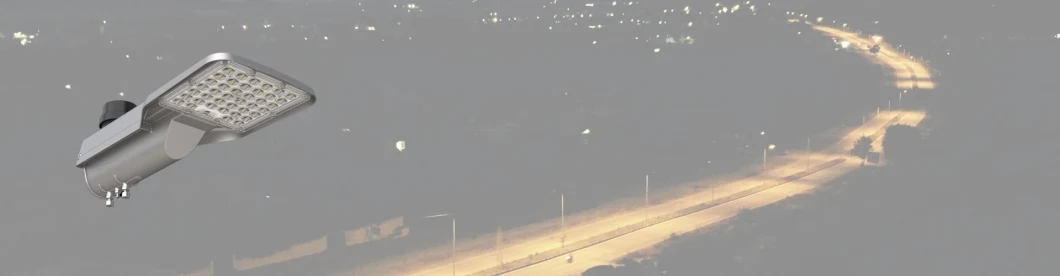

Security lighting: LED street lights are also used for security lighting purposes. They can be used to illuminate dark areas and deter potential criminals from entering the area.
200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light
Overall, LED street lights are versatile and can be used in a wide range of outdoor lighting applications, providing energy-efficient and long-lasting lighting solutions that are environmentally friendly and cost-effective.



Certifications

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light

Company Profile

200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


200W/210W/240W Compact Design with Self-Cleaning Function Garden Parking Lot Plaza Wall Highway Overpass Sidewalk Squares Schools LED Street Light


About Us:

We are a factory specializing in the production of LED lights for a wide range of indoor and outdoor applications. Our product portfolio includes LED downlights, LED panel lights, LED wall lights, LED tube lights, LED spotlights, LED track lights, LED ceiling lights, LED high bay lights, LED tri-proof lights, LED flood lights, LED high mast lights, LED stadium lights, LED street lights, LED garden lights, and LED explosion-proof lights. These products are widely installed in various large-scale lighting applications, such as farms, factories, schools, bridges, tunnels, ports, subways, airports, mines, hospitals, and more.

With a focus on LED lighting, we have gained expertise in producing and exporting high-quality LED light fixtures to over 132 countries in Asia, Europe, North America, Latin America, and the Pacific Ocean islands. Our LED lights are manufactured under the ISO9001 system, and our professional team ensures efficient management throughout the production process. We hold certifications such as CE, CB, ENEC, RoHS, CSA, UL, SAA, and REACH, which are accredited by reputable organizations like SGS or TUV, depending on the LED light family.

At MF, our dedicated R&D team is driven by passion, persistence, and technological expertise. Our engineers meticulously develop our LED lights, paying attention to even the smallest details. Our goal is to provide high-quality LED lighting solutions by combining our visionary approach with in-depth knowledge. We firmly believe in the power of lighting to enhance the quality of life and work for users worldwide. As a team, we understand that "LIGHTS THE WORLD" is not just a slogan but a commitment that we strive to fulfill through our hard work, day by day.
