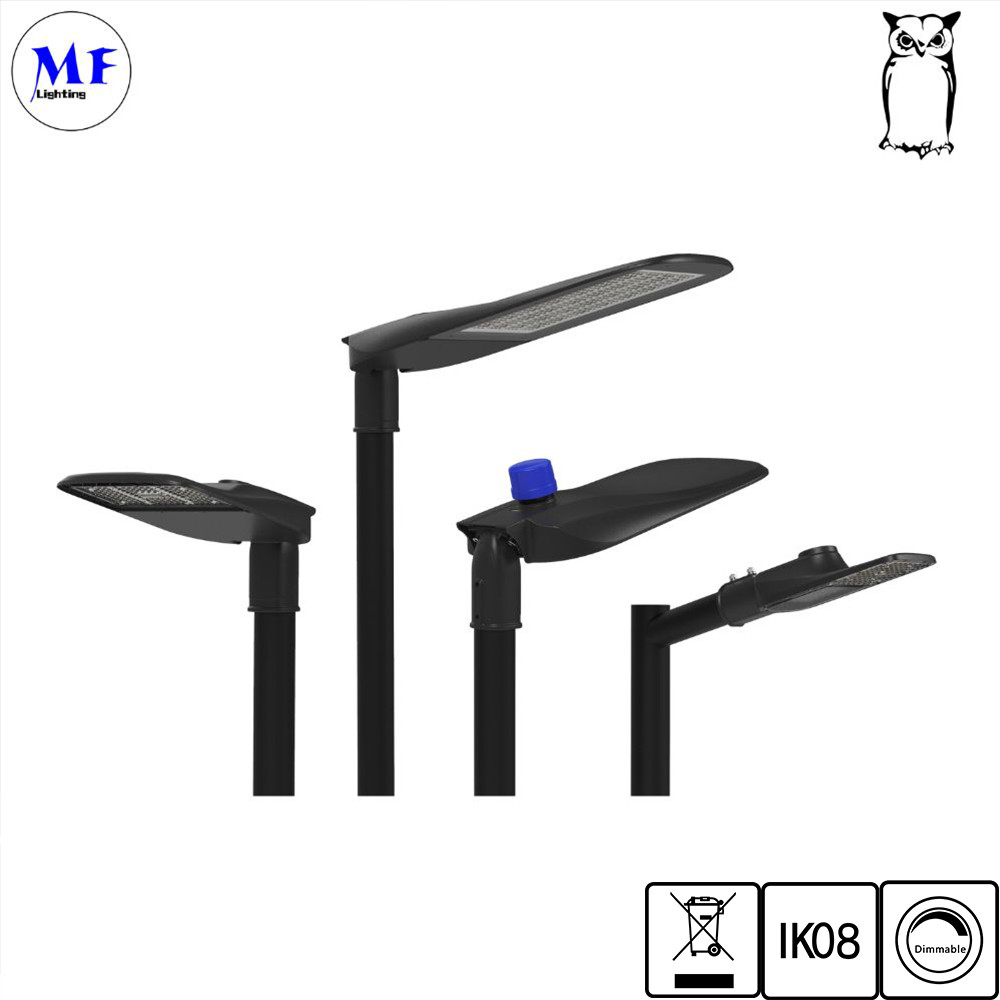

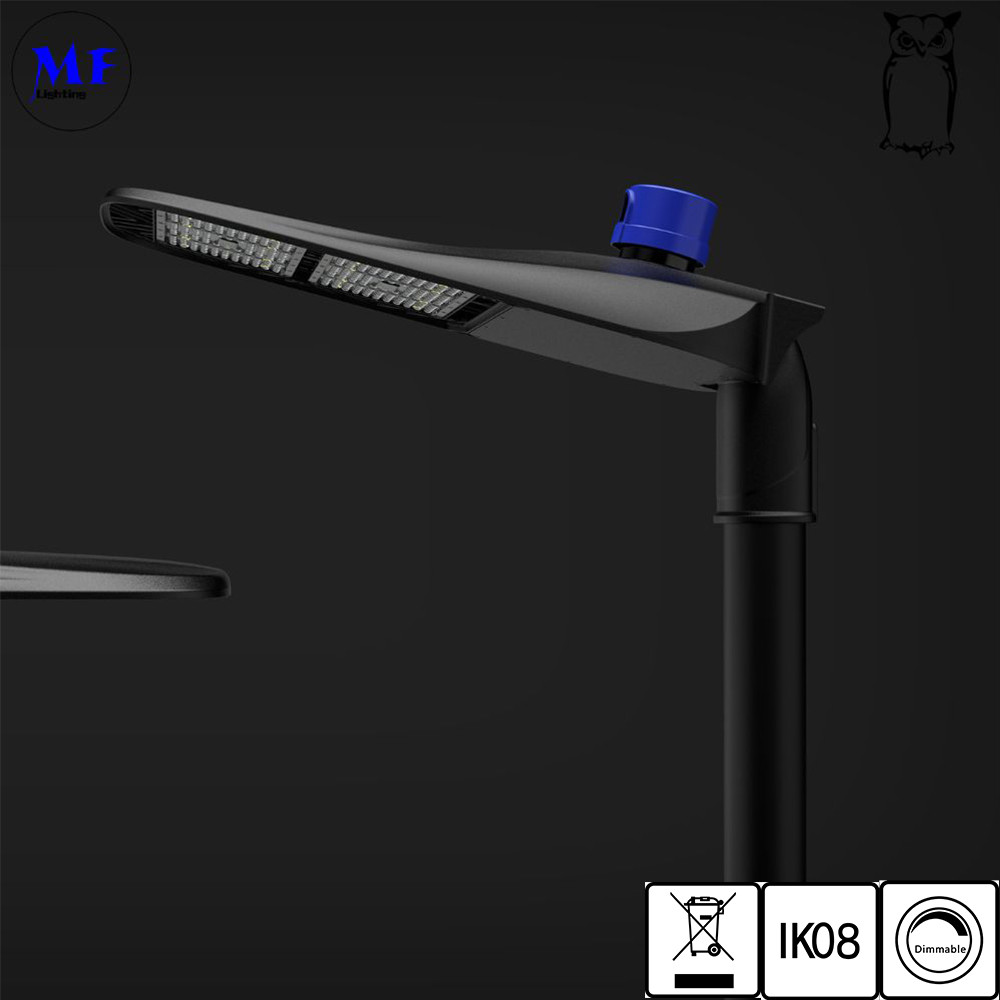

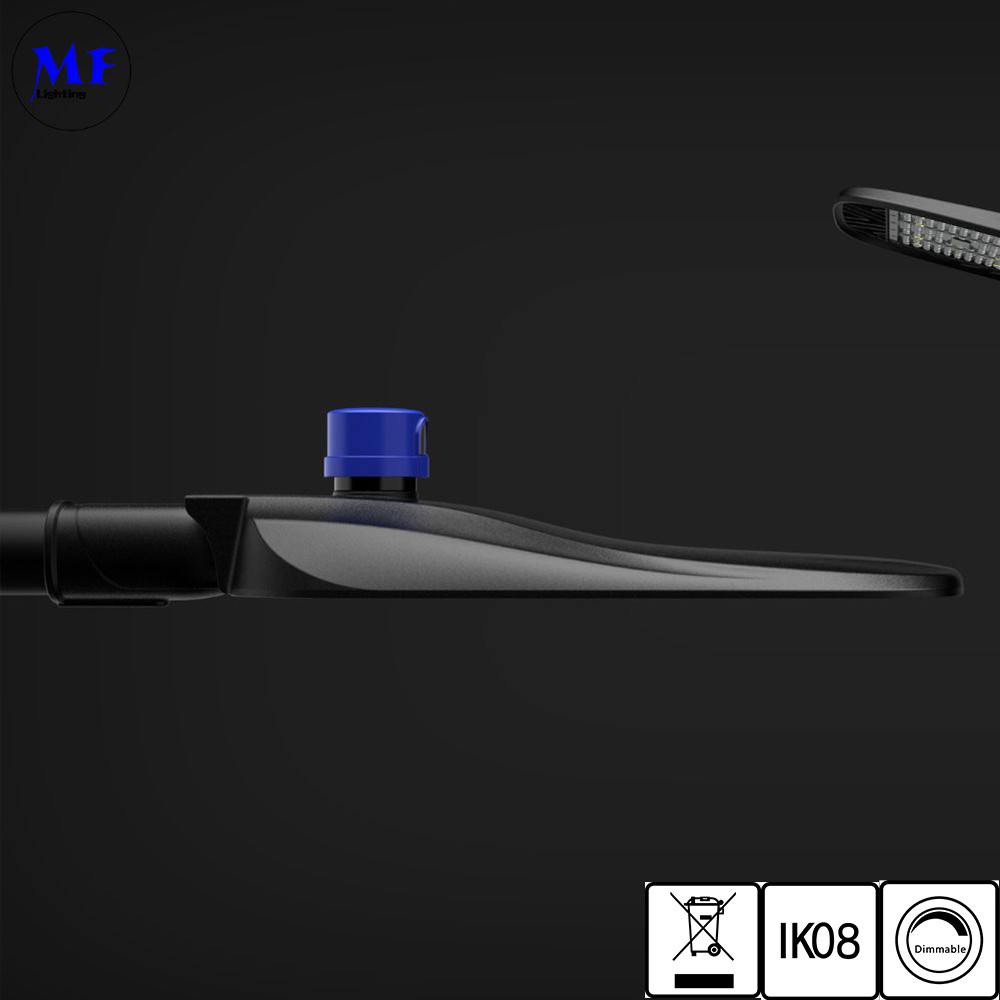

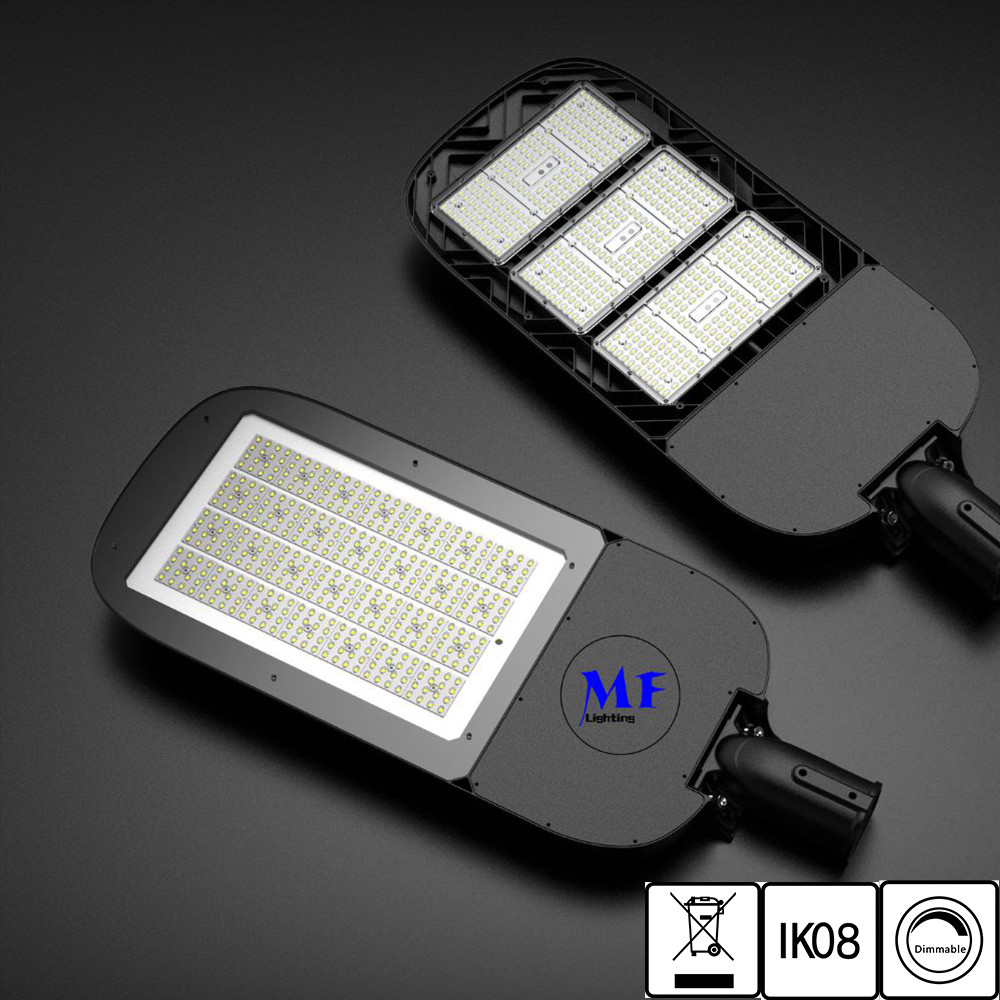

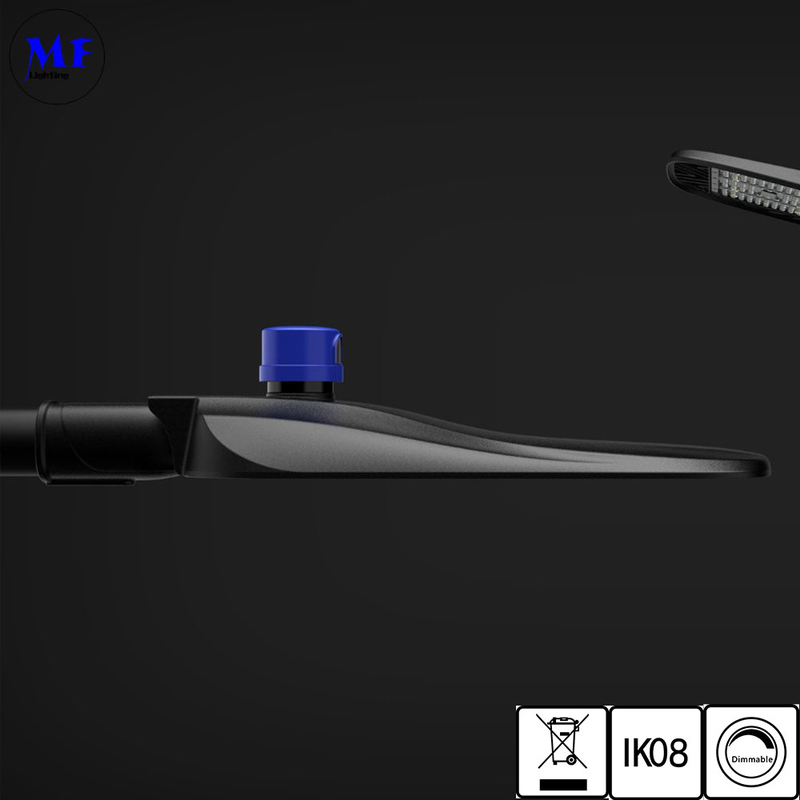

240W LED Street Light 10V Dim Die-Casting Aluminum Waterproof Weatherproof Smart Control Photocell Highways Parks Square

Factory price 240W 0-10V Dim Die-casting Aluminum Waterproof Weatherproof Smart Control Photocell highways parks square parking lots led flood Street Light

Product dimension:

(20~50W) (20~240W)

(60~240W)(L1xW1xH1) (60~240W)(L2xW2xH2)

Model MFSL-G9-020 MFSL-G9-030 MFSL-G9-040 MFSL-G8-050 MFSL-G9-060 MFSL-G9-075	Power	(L1xW1xH1)	(L2xW2xH2)	EPA	l*w*h(mm)	NW	NW(with glass)
	20w	405x135x78.5	/	0.0546m²	440x170x125	1.5KG	/
	30w	405x135x78.5	/	0.0546m²	440x170x125	1.5KG	/
	40W	405x135x78.5	/	0.0546m²	440x170x125	1.5KG	/
	50W	405x135x78.5	/	0.0546m²	440x170x125	1.5KG	/
	60w	530x301.5x92	444.5x301.5x170.5	0.1597m²	565x345x135	4.0KG	4.5KG
	75W	530x301.5x92	444.5x301.5x170.5	0.1597m²	565x345x135	4.0KG	4.5KG
MFSL-G9-100 MFSL-G9-120 MFSL-G9-150 MFSL-G9-180 MFSL-G9-200 MFSL-G9-240	100w	530x301.5x92	444.5x301.5x170.5	0.1597m²	565x345x135	4.0KG	4.5KG
	120W	695x310x92	605.5x310×170.5	0.2154m²	730x345x135	5.6KG	6.6KG
	150W	695x310x92	605.5x310x170.5	0.2154m²	730x345x135	5.85KG	6.85KG
	180W	695x310x92	605.5x310x170.5	0.2154m²	730x345x135	5.85KG	6.85KG
	200w	865x350x92	779.5x350x170.5	0.3027m²	900x385x135	7.6KG	9.4KG
	240W	865x350x92	779.5x350x170.5	0.3027m²	900x385x135	7.8KG	9.4KG

LUX LEVEL CHART

Wiring:
Cut off the power input (turn the switch gear to "OFF"). Connect the core wires of the powyer cableto the input wire of lamp correspondingly (lamp input wire: brown to the powerrid l (liye line),blue to the power grid N (Neutral line), yellow-green to the power grid G (ground wire) , and wrapwith fireproof insulating tape according to safety regula-tions).

Installation steps:
1.Screw the photocontrol onto the base (optional)2.Fasten the hoop to the lamp body with bolts3.Connect the cable according to the wiring diagram4Loosen the fastening screws, align the hoop mouth with the light pole in the direction of thearrow shown in the figure, and slowly slide the light pole to the bottom;5.Refer to the level bubble, rotate the lamp to keep it parallel to the direction of the road, thentighten two fixing screws, and finally tighten two fastening nuts.

Remarks:
Light pole diameter can be 52mm ~ 60mm;Horizontal or vertical installation available, + 15 °elevation and depression angle adjustment;Hex wrench would be used when installing, and the tightening strength is 18Nm.

Inspection after installation:
1.Firmness, cleanliness; direction, angle.
2.The wire is not exposed and the wire sheath is not damaged.3.Power-on inspection (air switch and other devices need to be turned to the ON position); thecontrol system need overall adjustment; For lamps with construction errors, they need to bepower off and to do re-construction.

Diagram of Pallet loading



20ft Container loading 40ft Container loading

Increase the sense of security of residents: The use of street lights in the community can increase the sense of security of residents, improve the environmental quality of the community, and reduce the crime rate.

In conclusion, street lights can be used in many different venues and applications to increase public safety and visibility, improve urban environments and landscapes, and protect wildlife and the natural environment.
