IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Model Number: MF-Explorer

Detail Information

Certification: CB/TUV/Dlc/ENEC/CE/ROHS/ETL/SAA CCT: 3000K-6500K
Material: ADC12 Aluminum Die-Casting Fixture Housing Input: VDC22-36V/32-54V
Power: 25W/50W/75W/100W IP Rate: IP66
Warranty: 5years Lifespan: >60, 000hrs
Luminous Flux: 130lm/W Ik Rate: Ik10
Light Source: CREE 3030/5050 Total Harmonic Distortion: <15%
Application: Parking Lot Light/Urban/Village Street/Road/Highways/Garden/Park/Schoole/Square/Hospital/Any Large Outdoor PLACE Beam Angle: Type II Short/III Medium
Driver Efficiency: 92% Power Factor: >0.95

Product Description

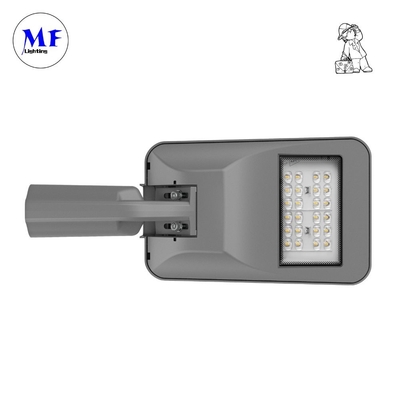

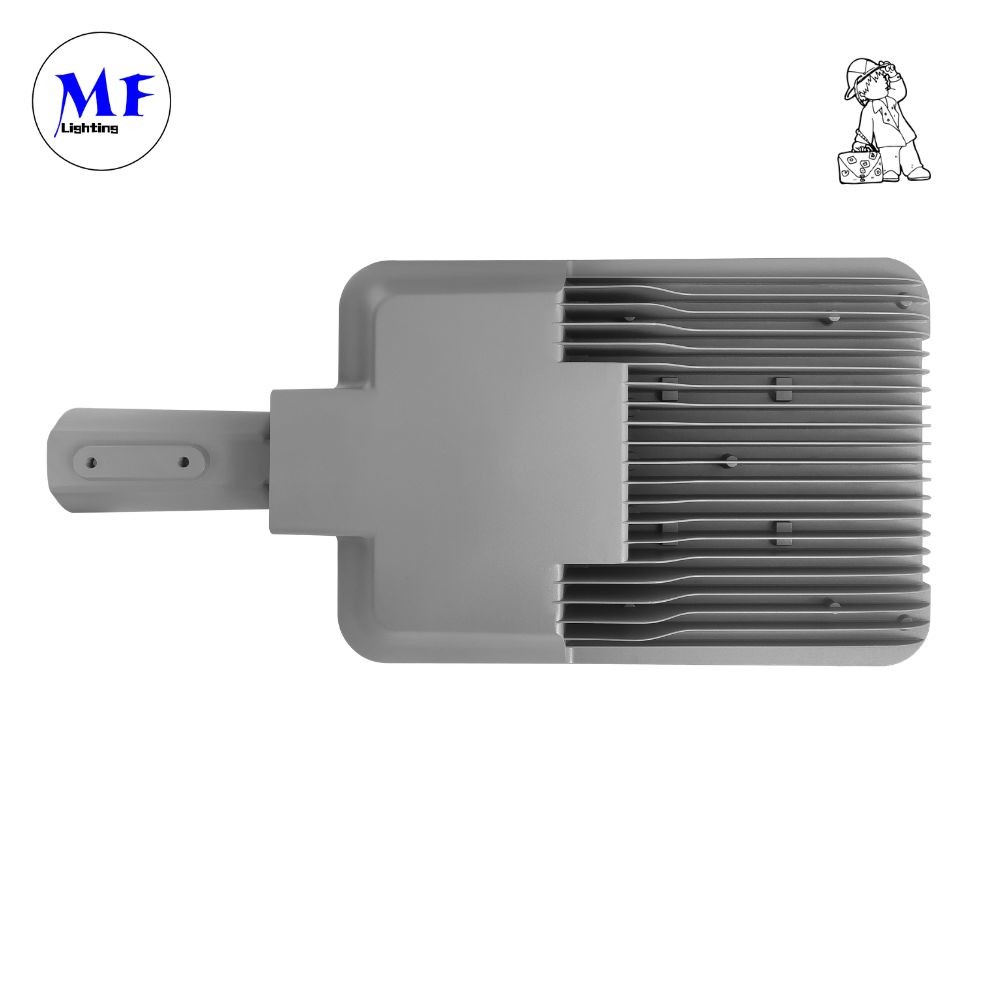

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 0



1.System efficiency up to 130lm/Watt.Professional light distribution design

2.IP66 rated and IK08.

3.0-10V,1-10V Dimmable available

4.Photocell available

5.Compact Design, with self-cleaning function.

6.Tool-less Entry, Easy installation and maintenance.

7.Class Il Optional.

8.5 years warranty.

LED calculated life


131,000 hrsLifetime(L70B50)

82,000 hrsLifetime(L80B50)

40,000 hrsLifetime(L90B50)

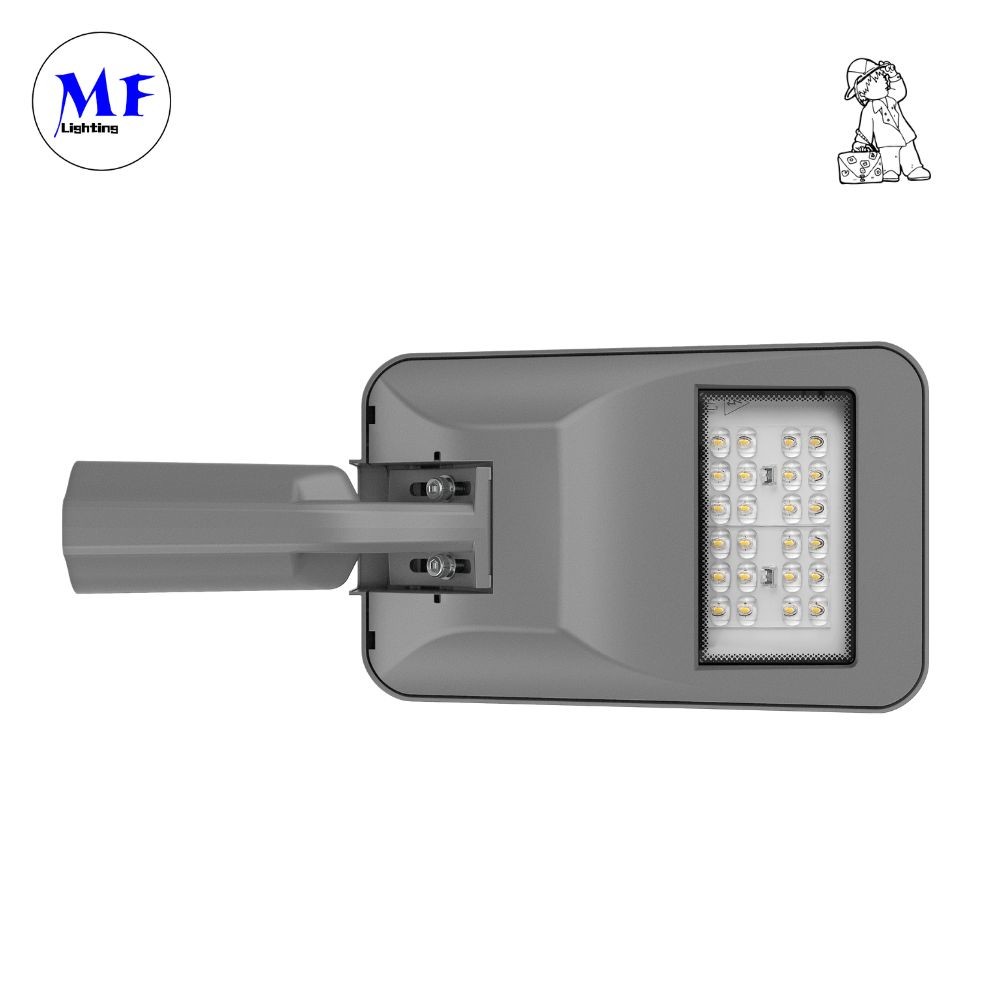

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 1

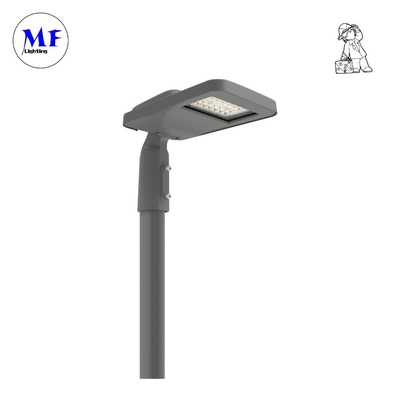

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 2

Model No. MF-S19A50S MF-S19A50H MF-S19A50H-T3M
Light Source Cree 3030 Cree 5050 Cree 5050
Input Voltage 100-277VAC 50/60Hz 100-277VAC 50/60Hz 100-277VAC 50/60Hz
LED Power (W) 43-47 42-47 42-47
System Power(W) 49-54 48-54 48-54
Luminous flux (lm) 5,100-5,800 5,600-6,300 5.600-6,300
Power Factor >0.95 >0.95 >0.95
Light Distribution Type ll Short Type ll short Type lll Medium
ccT(K) 3000/4000/5000/5700 30004000150005700 3000/4000/5000/5700
cRI >70 >70 >70
THD(230VAC) <20% <20% <20%
surge Protection CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well)
CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well)
CM: 10KV,DM:6KV(Son-sen)
CM:6KV.DM:4KV(Mean-well)
Power Cable 1.5m HO5RN-F3×1.0 1.5m HO5RN-F 3×1.0 1.5m HO5RN-F3x1.0
Driver Output Voltage (vDc) 36-48 36-48 36-48
Driver Ourtput Gurrent (mA) 950 950 950
Working Temperature rc) -20 to +50 -20to +50 -20to+50
Working Humidity(RH%) 10-90 10-90 10-90

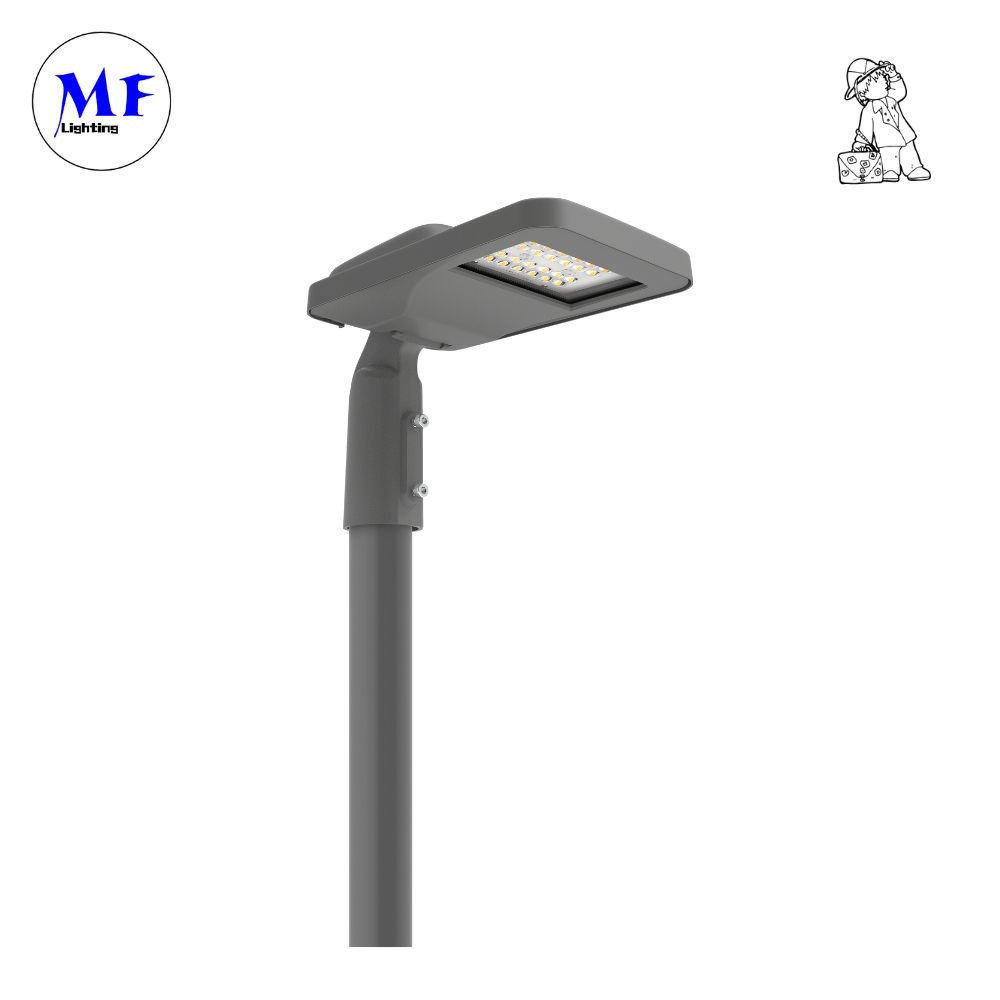

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 3

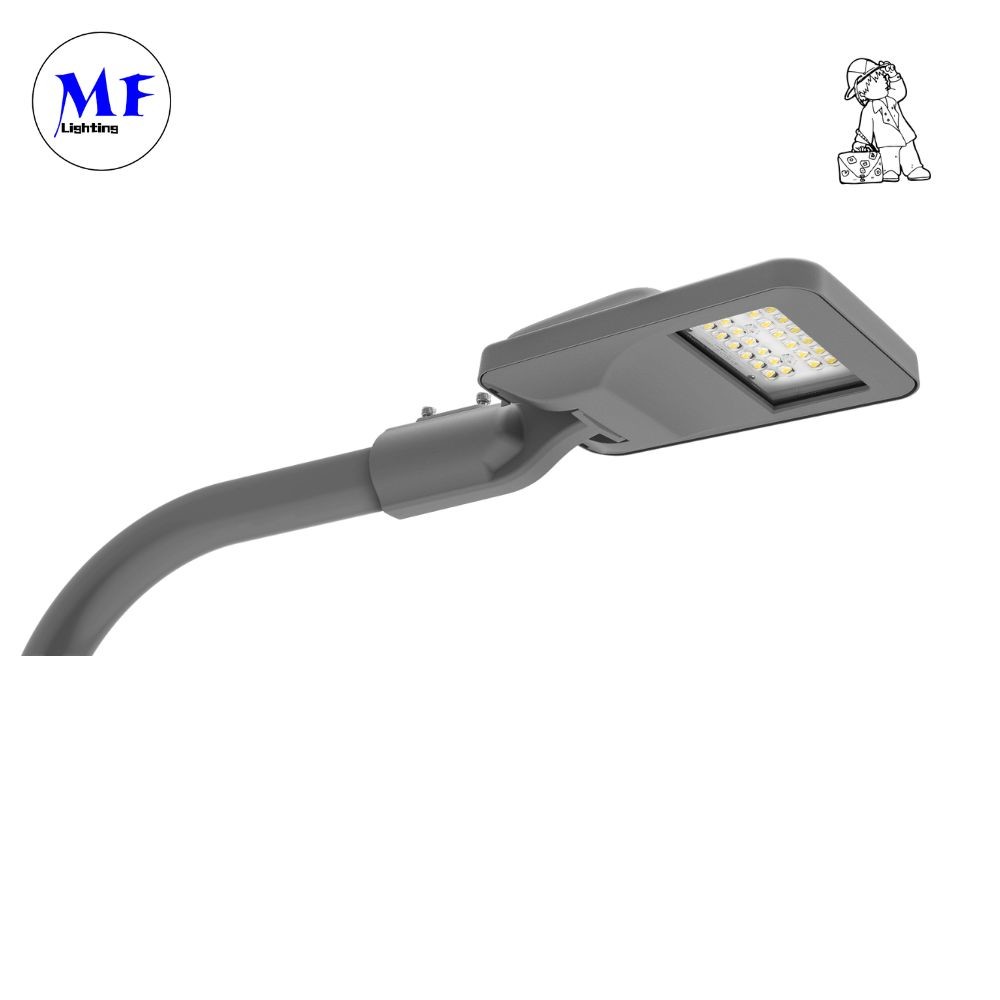

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 4

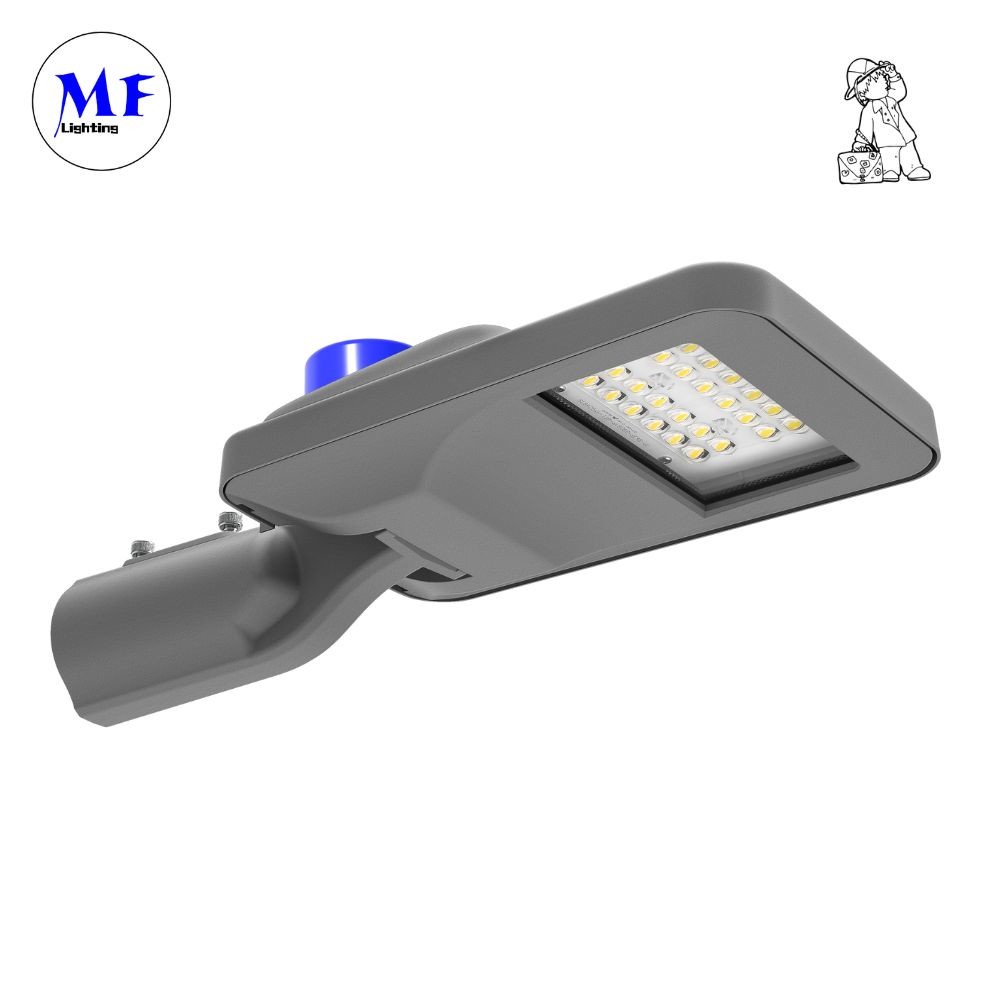

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 5



Light Distribution:

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 6






Installation:



IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 7



CLASS OF Highway:

Model M5 M4
Height of pole(H) Distance between poles (L) Height of pole (H) Distance between poles (L)
S19A25H-T3M 4.5m 10m 5m 6m
S19A50H-T3M 6.5m 17m 6.5m 11m
S19A75H-T3M 8m 21m 8m 15m
S19A10OH-T3M 10m 26m 8.5m 19 m
S19A25H 6 m 7m 6m 5m
S19A50H 8m 14 m 7m 9m
S19A75H 10 m 17 m 9m 12m
S19A100H 12m 21m 11m 14m
S19A25S / / 5m 5 m
S19A50S / / 7m 8 m



CLASS OF Sidewalk:



Model P1 P2
Helght of pole (H) Distance between poles (L) Height of pole (H) Distance between poles (L)
S19A25H-T3M 4 m 13m 4.5m 17m
S19A50H-T3M 6.5m 25m 8.5m 31m
S19A75H-T3M 7.5m 27 m 10m 33 m
S19A100H-T3M 9.5 m 36m 11.5m 44m
S19A25H 4.5m 11m 4.5m 17m
S19A50H 5m 23 m 6 m 33 m
S19A75H 6 m 32 m 8m 42m
S19A10OH 7.5m 40m 9.5m 50m
S19A25S 4.5 m 13 m 4.5m 18m
S19A50S 5.5m 22m 7m 27m

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 8



LED Street Light Applications:

  1. Parking lot light
  2. Urban/Village Street
  3. Road
  4. Highways
  5. Garden/Park
  6. Schoole/Square/Hospital
  7. Any Large Outdoor Area,etc



IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 9



1.Roadway lighting: LED street lights are widely used for illuminating roads and streets in urban and rural areas, providing enhanced visibility and safety for motorists and pedestrians.
2.Parking lot lighting: LED lights are commonly installed in parking lots to ensure well-lit and secure environments, improving visibility for drivers and pedestrians.
Pathway and sidewalk lighting: LED street lights are utilized to illuminate pathways, sidewalks, and park trails, creating safer walking and cycling routes, especially during nighttime.
3.Highway lighting: LED street lights are employed along highways and expressways, offering clear visibility for drivers, reducing accidents, and improving overall road safety.
4.Residential street lighting: LED lights are commonly used for lighting residential streets, enhancing the safety and security of neighborhoods.
5.Public space lighting: LED street lights are installed in public spaces such as parks, plazas, and public buildings, providing adequate lighting for outdoor activities and gatherings.
6.Industrial area lighting: LED lights are utilized in industrial areas and warehouses, ensuring proper illumination for increased productivity and worker safety.
7.Campus and institutional lighting: LED street lights are used in educational campuses, hospitals, and other institutional settings to provide efficient and reliable lighting solutions.
8.Smart city integration: LED street lights can be integrated into smart city systems, allowing for remote monitoring, energy management, and adaptive lighting control.
Overall, LED street lights find applications in various settings, including roadways, parking lots, pathways, highways, residential areas, public spaces, industrial areas, and smart city infrastructures, contributing to improved visibility, energy efficiency, and safety.





IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 10





Accessory and Production:

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 11

Model No. MF-S19A25S/HH-T3M MF-S19A50S/HH-T3M MF-S19A75SHH-T3M MF-S19A100S/HH-T3M
lnner Box(mm) 380*380*130 380*380*130 495*470*150 495*470*150
outer Carton(cm) 40*40*57(4pcs/CTN) 40*40*57(4pcs/CTN) 51.5*49"33.5(2pcsICTN) 51.5-49*33.5(2pcs/CTN)
Net Weight(kg) 2.7 2.7 4.6 4.6



IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 12

IP66 Outdoor Waterproof 30W-200W LED Street Light With Sensor Photocell For Tunnel Bridge Resort 13

About us:





As a leading manufacturer of LED light product MING FENG LIGHTING Co., Ltd established in year 2009 and has more than 14 years experience in exporting LED lighting products. We are producing LED Tri-Proof Lights, LED Vapor Tight Lights, LED Down Lights, LED Flood Light, LED Sport Light, LED Stadium light, LED High Bay Light, LED Explosion Proof Light and some of outdoor LED landscape light.

Our company established a quality management system in accordance with the ISO9001 standard. Products are CE, CB, RoHS, SAA ETL, DLC certified. And now Ming Feng has expanded its business to many countries to Europe, America, Southeast Asia and etc. Ming Feng's lighting products enjoy a wide range of application. Like workshop, railway, building, airport tunnel and mines.

In order to provide our customers with attractive lighting fixtures, optimal energy saving and thoughtful lighting solutions, Ming Feng hired the professional, Dialux lighting designer, and providing the OEM & ODM service for all the partners around the world, Our designer and engineer always pay full attention to them in the field of high quality standard at reasonable and competitive price, fast delivery, trust and honest services etc.
