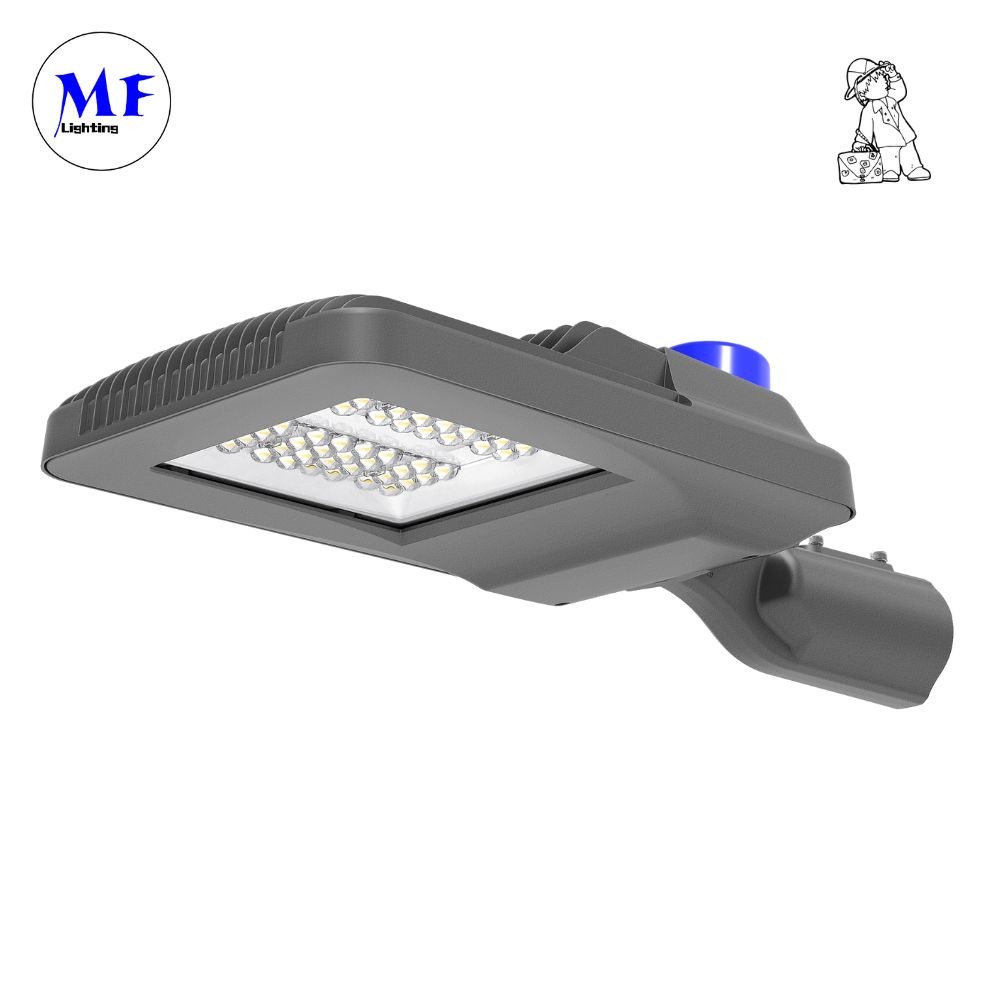

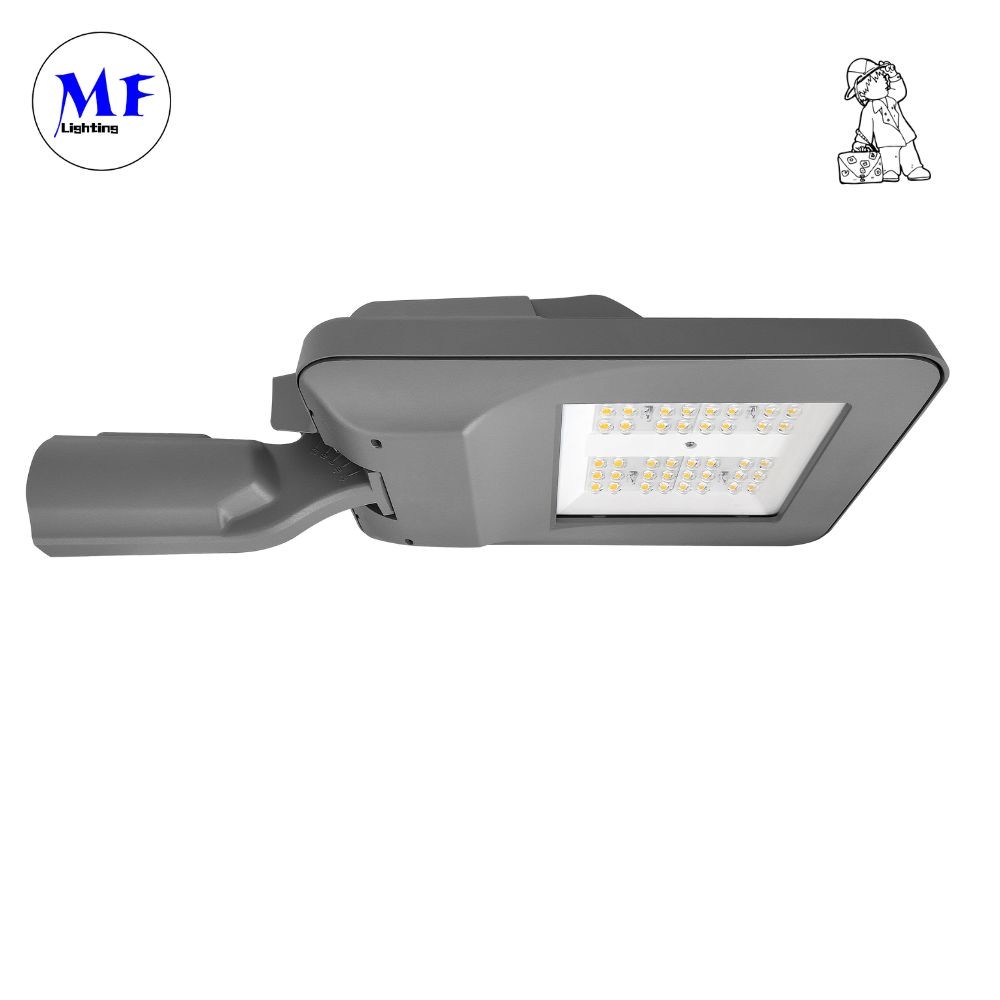

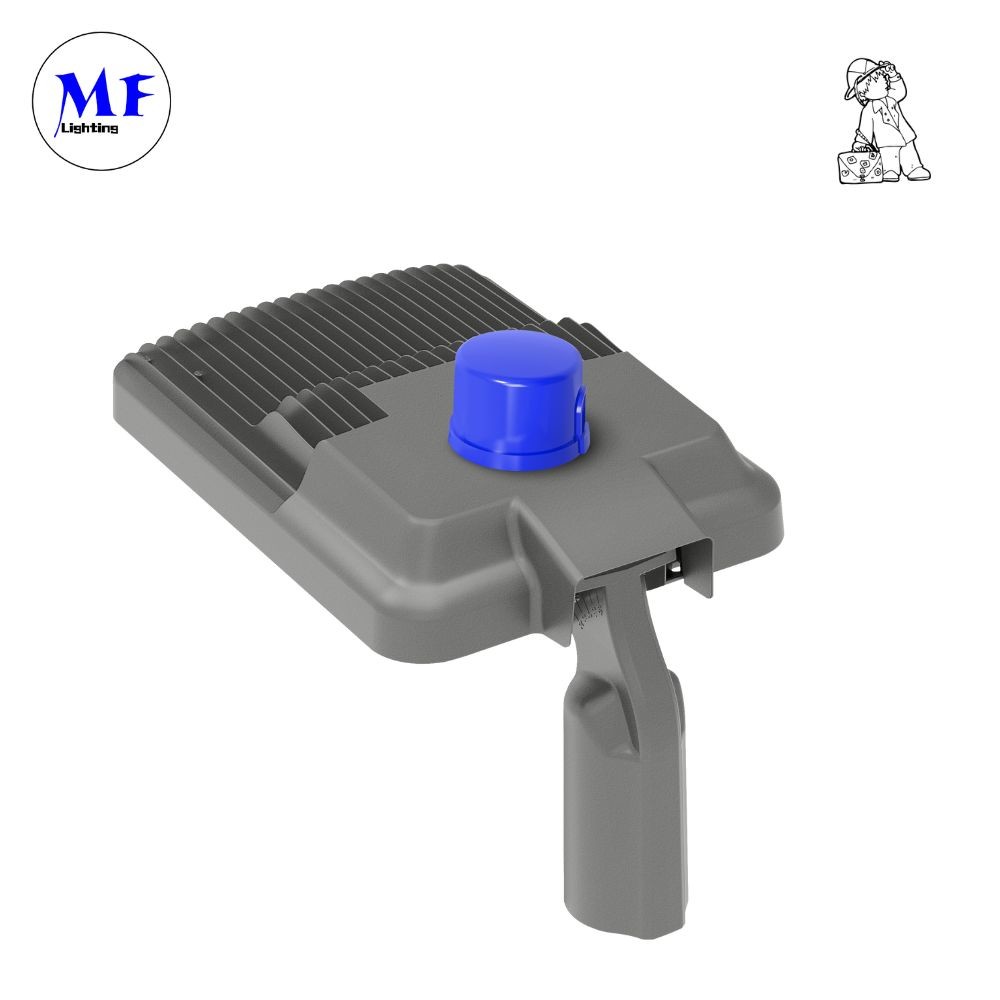

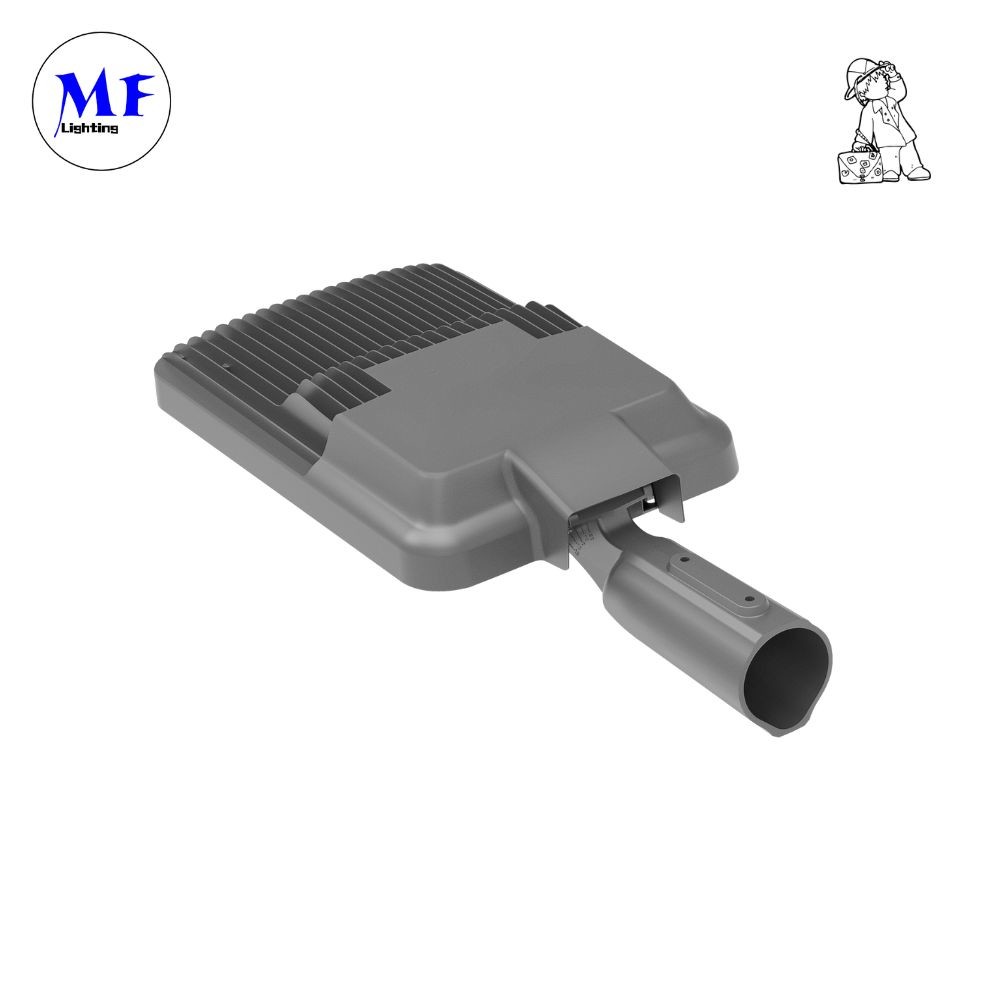

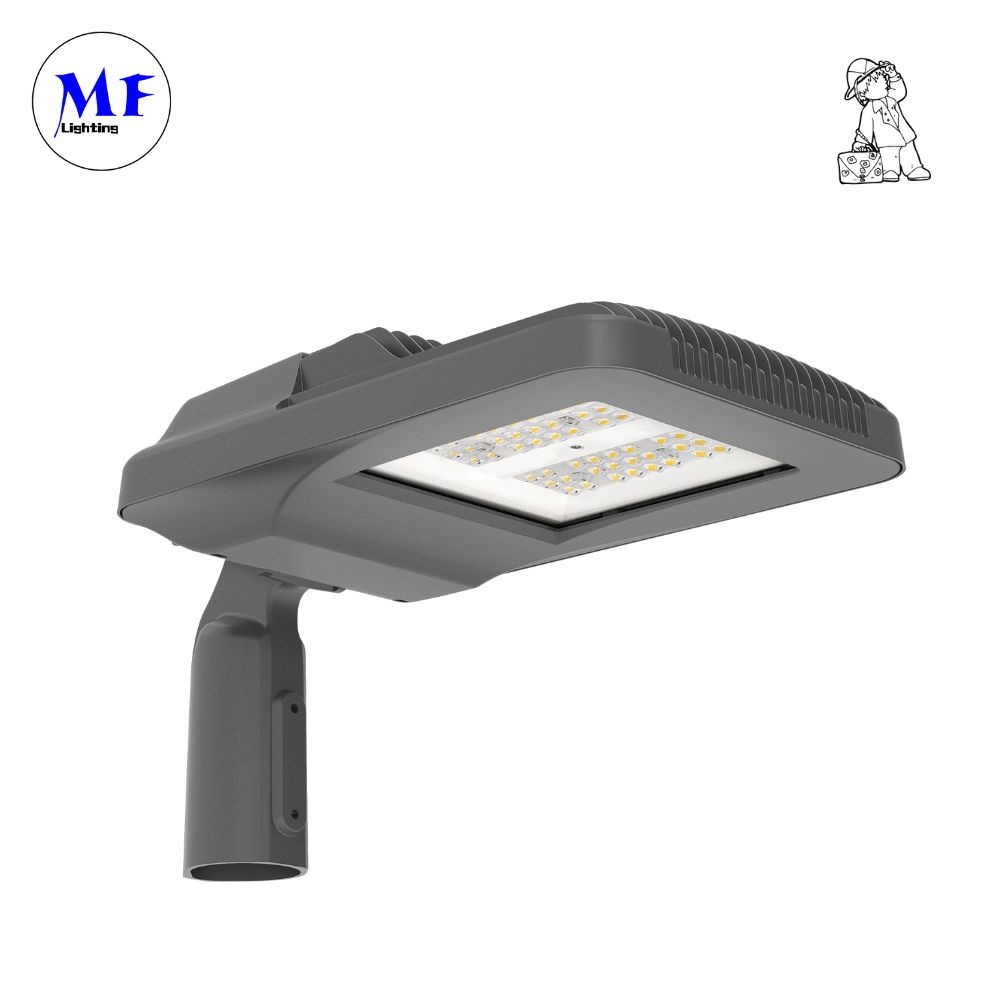

Photocell Sensor Garden Light LED Street Light 240W 100W 50W Pole IP66 Ik08 Waterproof Road Sidewalks Parking Light
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
| Minimum Order Quantity : | 100PCS | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
| Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
| Place of Origin: | China | Brand Name: | MF |
|---|---|---|---|
| Model Number: | MF-Explorer |
|
Detail Information |
|||
| Certification: | CB/TUV/Dlc/ENEC/CE/ROHS/ETL/SAA | CCT: | 3000K-6500K |
|---|---|---|---|
| Material: | ADC12 Aluminum Die-Casting Fixture Housing | Input: | VDC22-36V/32-54V |
| Power: | 25W/50W/75W/100W | IP Rate: | IP66 |
| Warranty: | 5years | Lifespan: | >60, 000hrs |
| Luminous Flux: | 130lm/W | Ik Rate: | Ik10 |
| Light Source: | CREE 3030/5050 | Total Harmonic Distortion: | <15% |
| Application: | Parking Lot Light/Urban/Village Street/Road/Highways/Garden/Park/Schoole/Square/Hospital/Any Large Outdoor PLACE | Beam Angle: | Type II Short/III Medium |
| Driver Efficiency: | 92% | Power Factor: | >0.95 |
Product Description
30W-200W IK08 IP66 Outdoor Auto LED Street Light With Sensor Photocell For Bike Lane Walkway Bus Stop Station
1.System efficiency up to 130lm/Watt.Professional light distribution design
2.IP66 rated and IK08.
3.0-10V,1-10V Dimmable available
4.Photocell available
5.Compact Design, with self-cleaning function.
6.Tool-less Entry, Easy installation and maintenance.
7.Class Il Optional.
8.5 years warranty.
LED calculated life
131,000 hrsLifetime(L70B50)
82,000 hrsLifetime(L80B50)
40,000 hrsLifetime(L90B50)
| Model No. | MF-S19A50S | MF-S19A50H | MF-S19A50H-T3M |
| Light Source | Cree 3030 | Cree 5050 | Cree 5050 |
| Input Voltage | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz | 100-277VAC 50/60Hz |
| LED Power (W) | 43-47 | 42-47 | 42-47 |
| System Power(W) | 49-54 | 48-54 | 48-54 |
| Luminous flux (lm) | 5,100-5,800 | 5,600-6,300 | 5.600-6,300 |
| Power Factor | >0.95 | >0.95 | >0.95 |
| Light Distribution | Type ll Short | Type ll short | Type lll Medium |
| ccT(K) | 3000/4000/5000/5700 | 30004000150005700 | 3000/4000/5000/5700 |
| cRI | >70 | >70 | >70 |
| THD(230VAC) | <20% | <20% | <20% |
| surge Protection | CM: 10KV,DM:6KV(Son-sen) CM:6KV.DM:4KV(Mean-well) |
CM: 10KV,DM:6KV(Son-sen) CM:6KV.DM:4KV(Mean-well) |
CM: 10KV,DM:6KV(Son-sen) CM:6KV.DM:4KV(Mean-well) |
| Power Cable | 1.5m HO5RN-F3×1.0 | 1.5m HO5RN-F 3×1.0 | 1.5m HO5RN-F3x1.0 |
| Driver Output Voltage (vDc) | 36-48 | 36-48 | 36-48 |
| Driver Ourtput Gurrent (mA) | 950 | 950 | 950 |
| Working Temperature rc) | -20 to +50 | -20to +50 | -20to+50 |
| Working Humidity(RH%) | 10-90 | 10-90 | 10-90 |
Light Distribution:
Installation:
CLASS OF Highway:
| Model | M5 | M4 | ||
| Height of pole(H) | Distance between poles (L) | Height of pole (H) | Distance between poles (L) | |
| S19A25H-T3M | 4.5m | 10m | 5m | 6m |
| S19A50H-T3M | 6.5m | 17m | 6.5m | 11m |
| S19A75H-T3M | 8m | 21m | 8m | 15m |
| S19A10OH-T3M | 10m | 26m | 8.5m | 19 m |
| S19A25H | 6 m | 7m | 6m | 5m |
| S19A50H | 8m | 14 m | 7m | 9m |
| S19A75H | 10 m | 17 m | 9m | 12m |
| S19A100H | 12m | 21m | 11m | 14m |
| S19A25S | / | / | 5m | 5 m |
| S19A50S | / | / | 7m | 8 m |
CLASS OF Sidewalk:
| Model | P1 | P2 | ||
| Helght of pole (H) | Distance between poles (L) | Height of pole (H) | Distance between poles (L) | |
| S19A25H-T3M | 4 m | 13m | 4.5m | 17m |
| S19A50H-T3M | 6.5m | 25m | 8.5m | 31m |
| S19A75H-T3M | 7.5m | 27 m | 10m | 33 m |
| S19A100H-T3M | 9.5 m | 36m | 11.5m | 44m |
| S19A25H | 4.5m | 11m | 4.5m | 17m |
| S19A50H | 5m | 23 m | 6 m | 33 m |
| S19A75H | 6 m | 32 m | 8m | 42m |
| S19A10OH | 7.5m | 40m | 9.5m | 50m |
| S19A25S | 4.5 m | 13 m | 4.5m | 18m |
| S19A50S | 5.5m | 22m | 7m | 27m |
LED Street Light Applications:
1.Roadway lighting: LED street lights are widely used for illuminating roads and streets in urban and rural areas, providing enhanced visibility and safety for motorists and pedestrians.
2.Parking lot lighting: LED lights are commonly installed in parking lots to ensure well-lit and secure environments, improving visibility for drivers and pedestrians.
Pathway and sidewalk lighting: LED street lights are utilized to illuminate pathways, sidewalks, and park trails, creating safer walking and cycling routes, especially during nighttime.
3.Highway lighting: LED street lights are employed along highways and expressways, offering clear visibility for drivers, reducing accidents, and improving overall road safety.
4.Residential street lighting: LED lights are commonly used for lighting residential streets, enhancing the safety and security of neighborhoods.
5.Public space lighting: LED street lights are installed in public spaces such as parks, plazas, and public buildings, providing adequate lighting for outdoor activities and gatherings.
6.Industrial area lighting: LED lights are utilized in industrial areas and warehouses, ensuring proper illumination for increased productivity and worker safety.
7.Campus and institutional lighting: LED street lights are used in educational campuses, hospitals, and other institutional settings to provide efficient and reliable lighting solutions.
8.Smart city integration: LED street lights can be integrated into smart city systems, allowing for remote monitoring, energy management, and adaptive lighting control.
Overall, LED street lights find applications in various settings, including roadways, parking lots, pathways, highways, residential areas, public spaces, industrial areas, and smart city infrastructures, contributing to improved visibility, energy efficiency, and safety.
Accessory and Production:
| Model No. | MF-S19A25S/HH-T3M | MF-S19A50S/HH-T3M | MF-S19A75SHH-T3M | MF-S19A100S/HH-T3M |
| lnner Box(mm) | 380*380*130 | 380*380*130 | 495*470*150 | 495*470*150 |
| outer Carton(cm) | 40*40*57(4pcs/CTN) | 40*40*57(4pcs/CTN) | 51.5*49"33.5(2pcsICTN) | 51.5-49*33.5(2pcs/CTN) |
| Net Weight(kg) | 2.7 | 2.7 | 4.6 | 4.6 |
About us:
As a leading manufacturer of LED light product MING FENG LIGHTING Co., Ltd established in year 2009 and has more than 14 years experience in exporting LED lighting products. We are producing LED Tri-Proof Lights, LED Vapor Tight Lights, LED Down Lights, LED Flood Light, LED Sport Light, LED Stadium light, LED High Bay Light, LED Explosion Proof Light and some of outdoor LED landscape light.
Our company established a quality management system in accordance with the ISO9001 standard. Products are CE, CB, RoHS, SAA ETL, DLC certified. And now Ming Feng has expanded its business to many countries to Europe, America, Southeast Asia and etc. Ming Feng's lighting products enjoy a wide range of application. Like workshop, railway, building, airport tunnel and mines.
In order to provide our customers with attractive lighting fixtures, optimal energy saving and thoughtful lighting solutions, Ming Feng hired the professional, Dialux lighting designer, and providing the OEM & ODM service for all the partners around the world, Our designer and engineer always pay full attention to them in the field of high quality standard at reasonable and competitive price, fast delivery, trust and honest services etc.
FAQ:
Are you a manufacturer?
Absolutely, we are a professional manufacturer with 16 years of experience.
Our products include IP67 waterproof recessed lights, aluminum garden outdoor landscape lighting, inground buried lamp, and LED underground lights.
What is your main product?
Our main products are as follows:
LED Triproof lights/ LED Vapor Tight Lights
LED High Bay Lights
LED Flood lgihts
LED Explosion Proof Lights
LED Down Lights
LED underwater lights (swimming pool lights, fountain lights, underwater spotlights)
LED garden spot/spike lights
LED inground lights
What is the minimum order quantity (MOQ)?
For customized models, samples should be prepaid. We offer free customized models if the order quantity is more than 1000 pieces.
What are the payment options?
We accept T/T, Western Union, Paypal. Payment terms are 50% advanced payment and 50% balance payment. Our shipping terms are EXW, FOB, and CIF, CNF and DDP
What is the delivery time?
The delivery time is about 5-7 working days for samples and 20-30 working days for mass production, depending on the quantity.
How are the products packaged?
Each piece is packed in an individual color box and then placed in a strong master carton.
Why should you choose us?
1). We offer OEM/ODM services.
2). We have our own design team.
3). We offer high-quality products at reasonable prices.
4). We have no MOQ request.
5). Our sales team has 12 years of experience in underwater lighting.
