Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light

Minimum Order Quantity : 100PCS Price : Negotiable
Delivery Time : Depends on orders Payment Terms : T/T, Western Union, L/C, Paypal
Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CB, CE, RoHS, CQC,EMC Model Number: MF-BYXXXW

Detail Information

Input Voltage: AC100-277V 50/60Hz Efficiency: 130/150lm/W
Pole: φ48-60mm Depth≈100mm Beam Angle: Type II-M/S
PF: 100~240VAC PF≥0.95 240~277VAC PF≥0.90 IP Rating: IP66
CCT: 3000K/4000K/5000K/5700K CRI: >70
Warranty: 6 Years Color: Ral9007 / Grey
High Light:

Waterproof LED Street Roadway Light

,

240W LED Roadway Lights

,

5700K LED Roadway Lights

Product Description

30W/50W/60W/90W/100W/120W/150W/180W/200W/210W/240W IP66 IK08 3000-5700K AC100-277V Bear Family LED Street Light for Highway/Street/Roadside

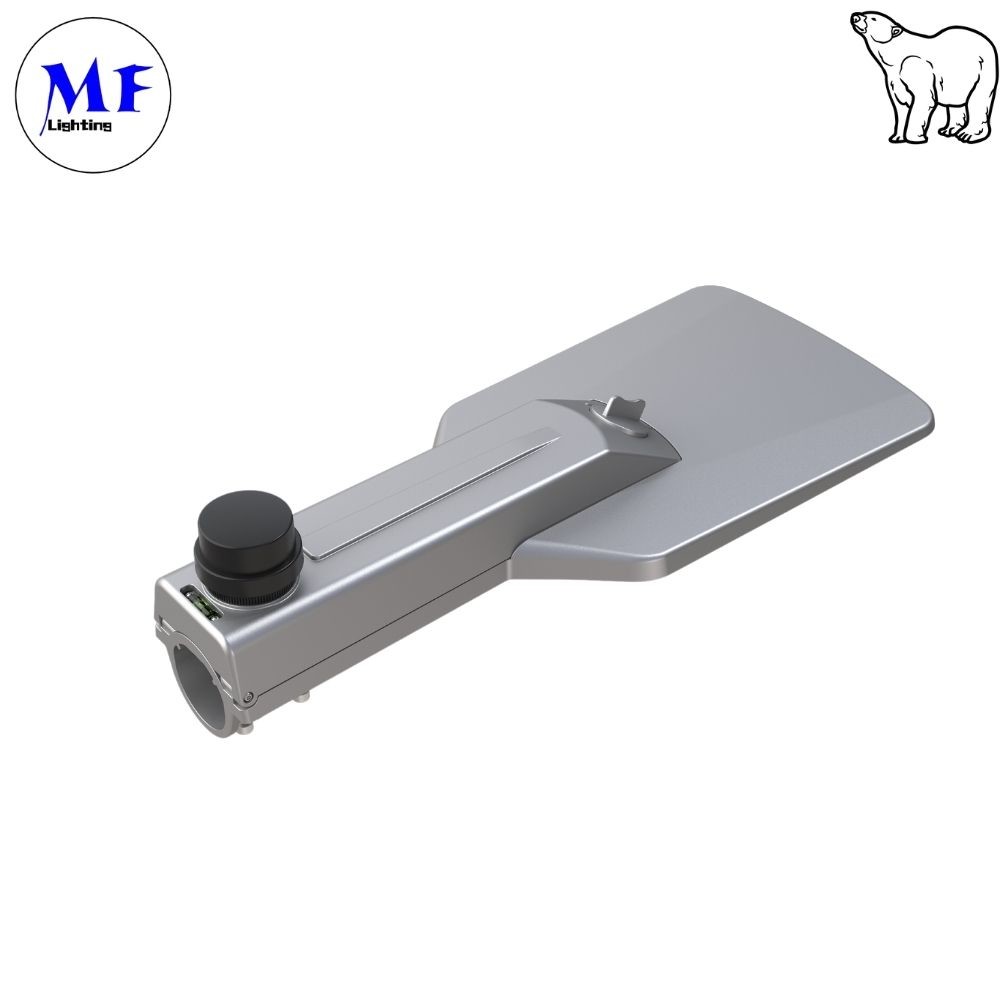

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 0



Specifications:



Model No.
MF-BY30W
MF-BY50W
MF-BY60W
MF-BY90W
MF-BY100W
MF-BY120W
MF-BY150W
MF-BY180W
MF-BY200W
MF-BY210W
MF-BY240W
Power
30W/50W/60W
90W/100W/120W
150W/180W
200W/210W/240W
Max LED Quantity
5050:40 Pcs
3030:160 Pcs
2835:160 Pcs
5050:78 Pcs
3030:312 Pcs
2835:312 Pcs
5050:110Pcs
3030:440 Pcs
2835:440 Pcs
5050:150Pcs
3030:600 Pcs
2835:600 Pcs
Net Weight(kg)
2.9
4.2
5.3 6.5
Gross Weight(kg)
3.4 5.1 6.5 8.1
Product Size
195*440*165
245*550*172
280*650*173
320*780*174
Packing
500*235*190
610*285*200
720*330*200
850*370*200
Input Current
0.33/0.55/0.67
1.0/1.10/1.22
1.66/1.75
2.22/2.33/2.67
Input Voltage
100V-277Vac 50/60Hz
PF
100~240Vac PF≥0.95
240~277Vac PF≥0.90
Surge Protection
L-N 5KV,L/N-PE 10KV
THD
THD<20%
LED
SMD2835 9V/SMD3030 6V/ SMD5050 24V
Beam Angle
Type II-M/S
CCT
3000K/4000K/5000K/5700K
CRI
≥70
IP
IP66 IK08
Pole
φ48-60mm,Depth≈100mm
Color
RAL9007 / GREY
Efficiency
130/150Lm/W



Key Features:



Lamp body ADC12 Aluminum,Powder spraying surface treatment, corrosion resistance

500H salt spray test;

Optical lens Type II;

LED source and driver respectively;

Open power supply chamber by top cover, knob type tools free;

Smooth back cover, easy to clean

Efficiency 135-170lm/w, LED source 2835/3030/5050 optional;

T2-M,T2-S light distribution

IP66/IK08;

L80:50000H/100000H

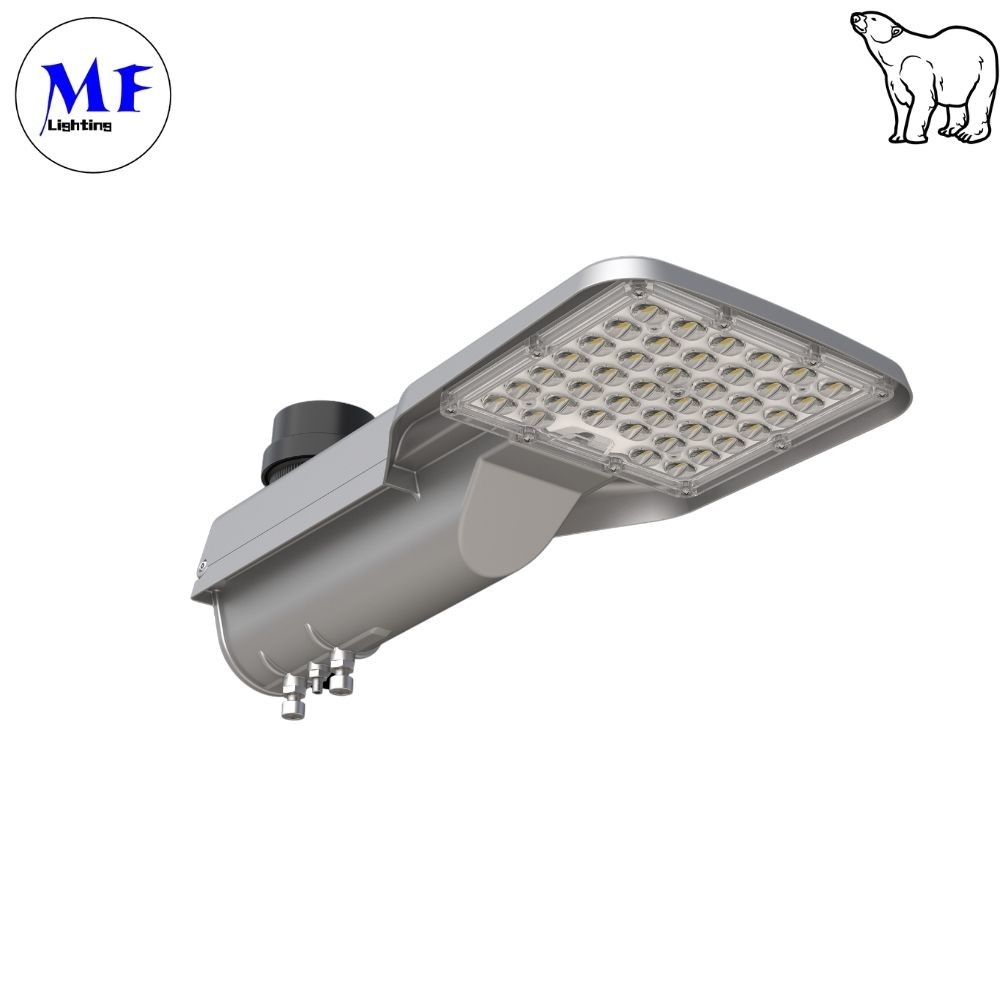

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 1







Installation:

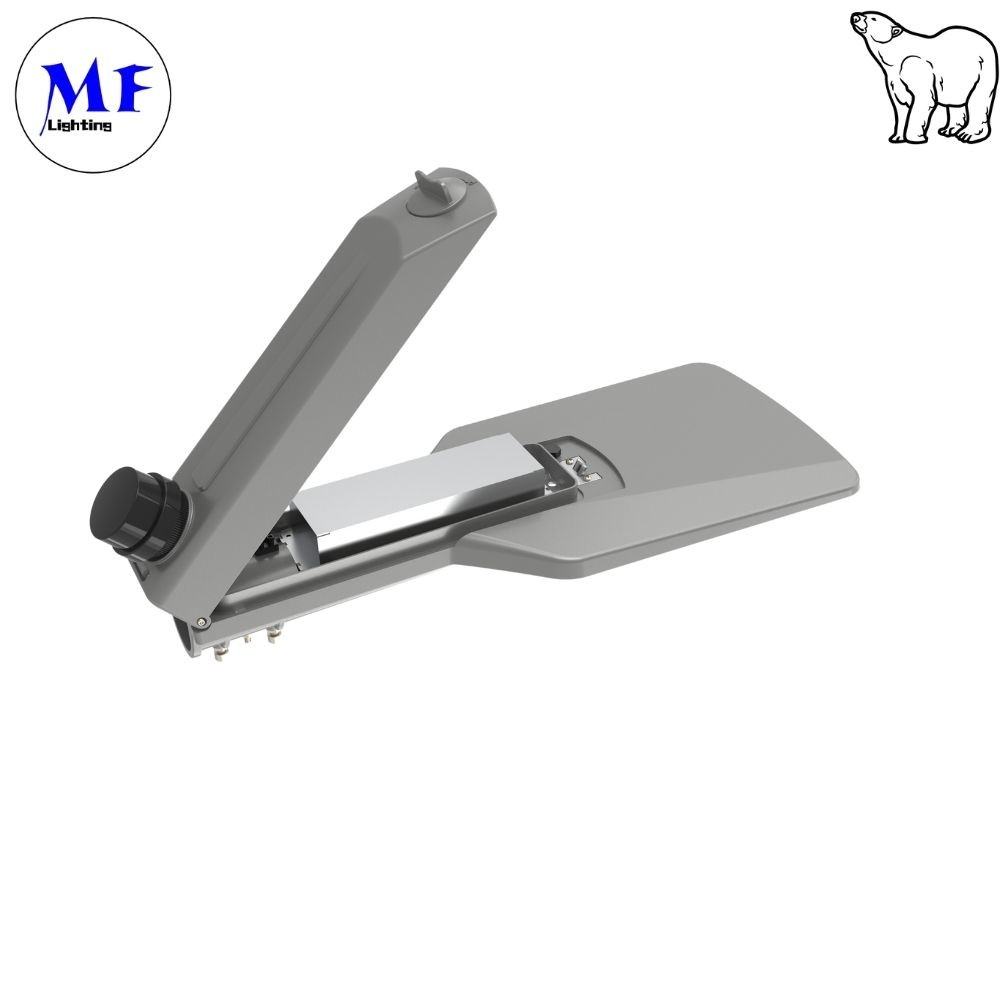

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 2





Dimension:

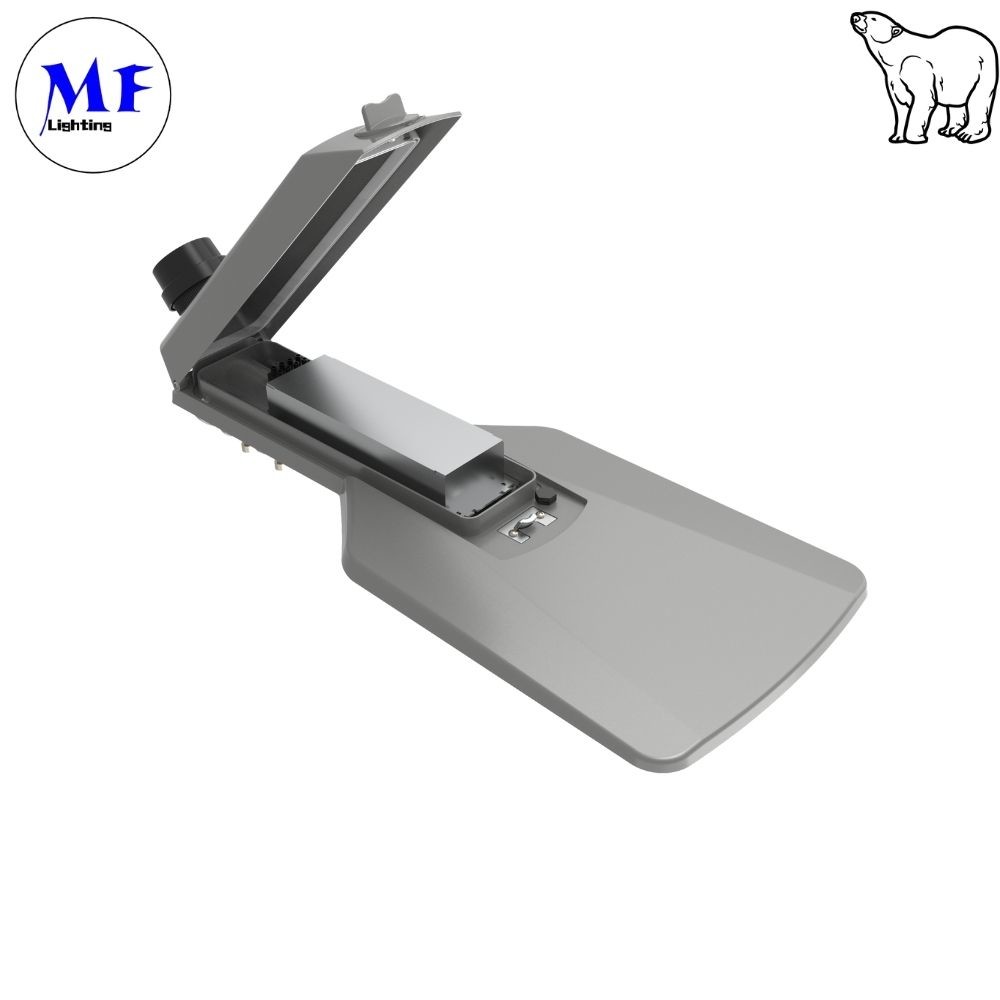

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 3



Production Line:



Ming Feng Lighting manufactures LED street lights with precision and expertise. The production process begins with the careful selection of high-quality materials. Advanced manufacturing techniques are employed to ensure the efficiency and durability of the lights.

First, the LED chips, known for their energy-saving properties, are meticulously placed on circuit boards. These boards undergo thorough testing to ensure optimal performance.

Next, the assembled components are housed in rugged and weather-resistant casings, designed to withstand the harshest outdoor conditions.

Quality control measures are implemented at every stage of production. Rigorous testing procedures guarantee that each LED street light meets the highest industry standards.

Ming Feng Lighting's commitment to innovation and reliability has positioned them as a leading provider of LED street lights. Their dedication to producing top-quality products ensures long-lasting performance, energy efficiency, and customer satisfaction.

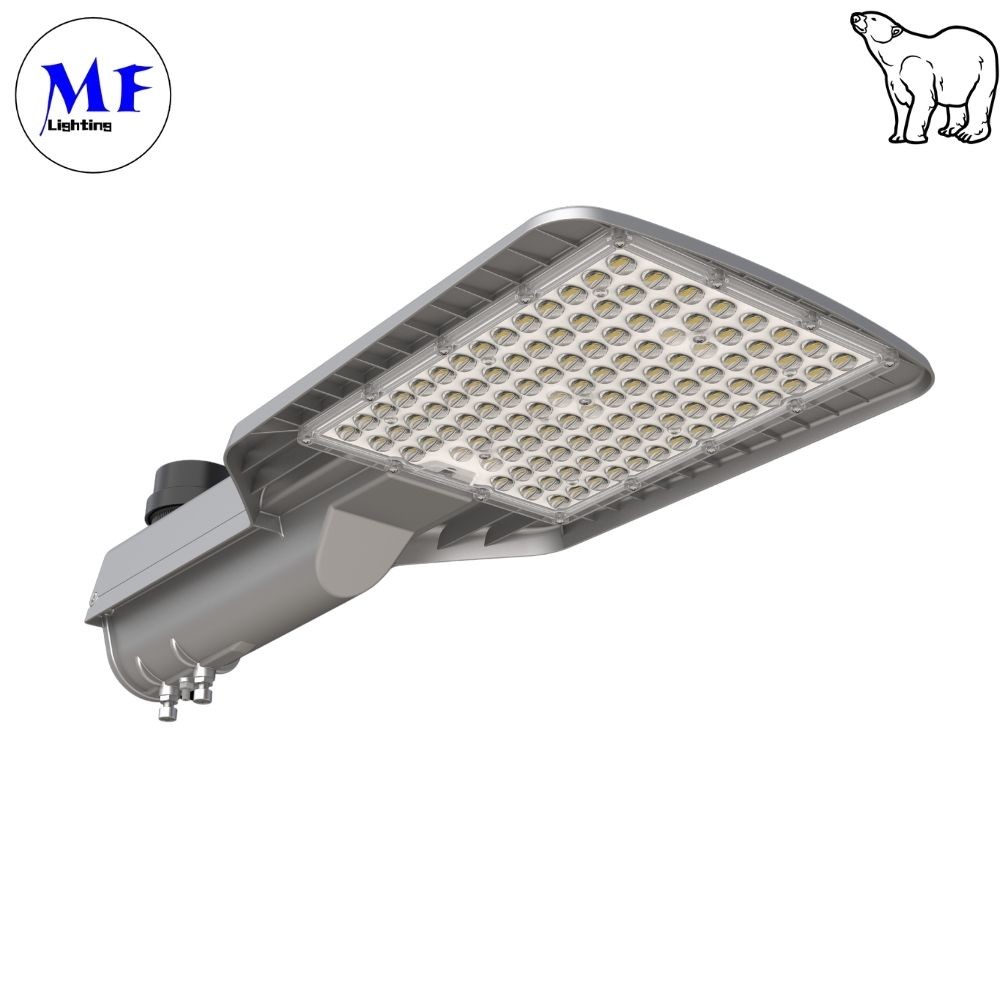

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 4

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 5



Applications:



Ideal for highways, squares, schools and other outdoor lighting place.



Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 6



Viaducts, urban streets

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 7



Overpasses, sidewalks

Photocell 30W-240W IP66 Flood Road Garden Yard Lamp Outdoor Lighting Parking Lot Light Waterproof LED Street Light 8



FAQ:



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
