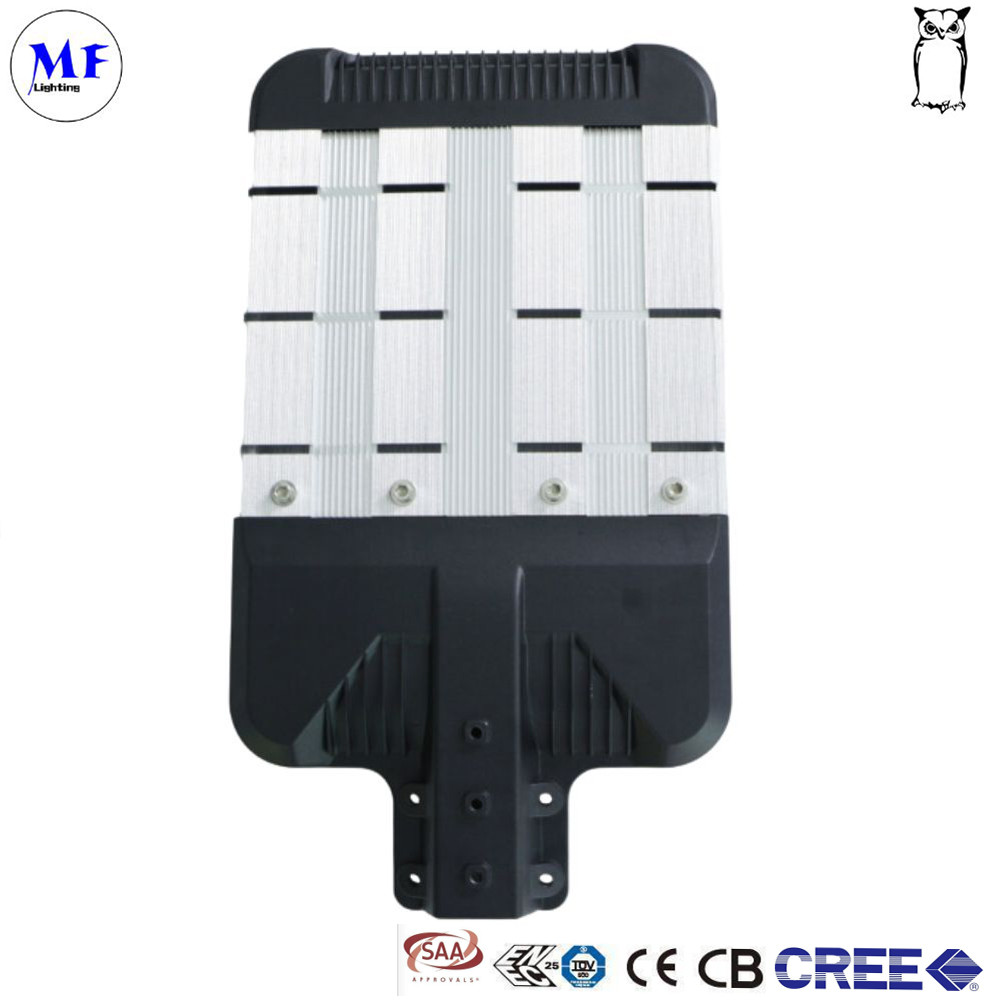

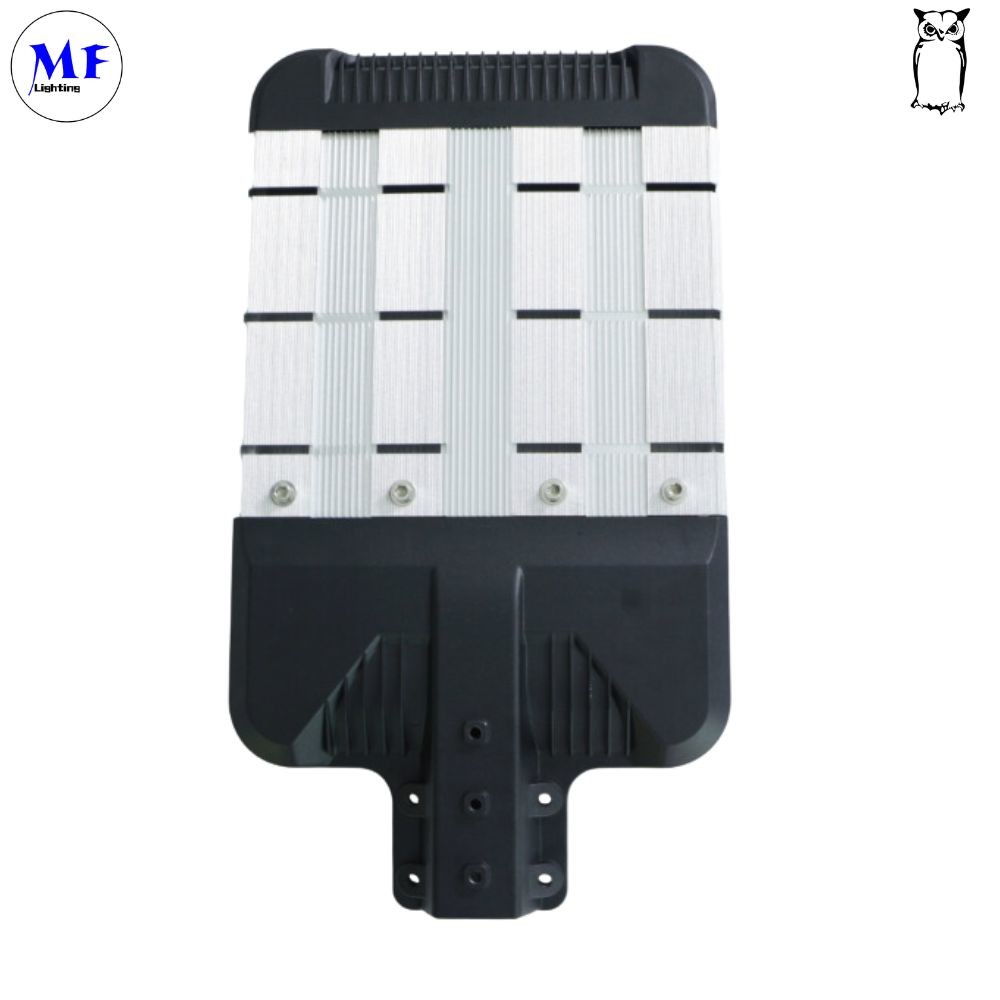

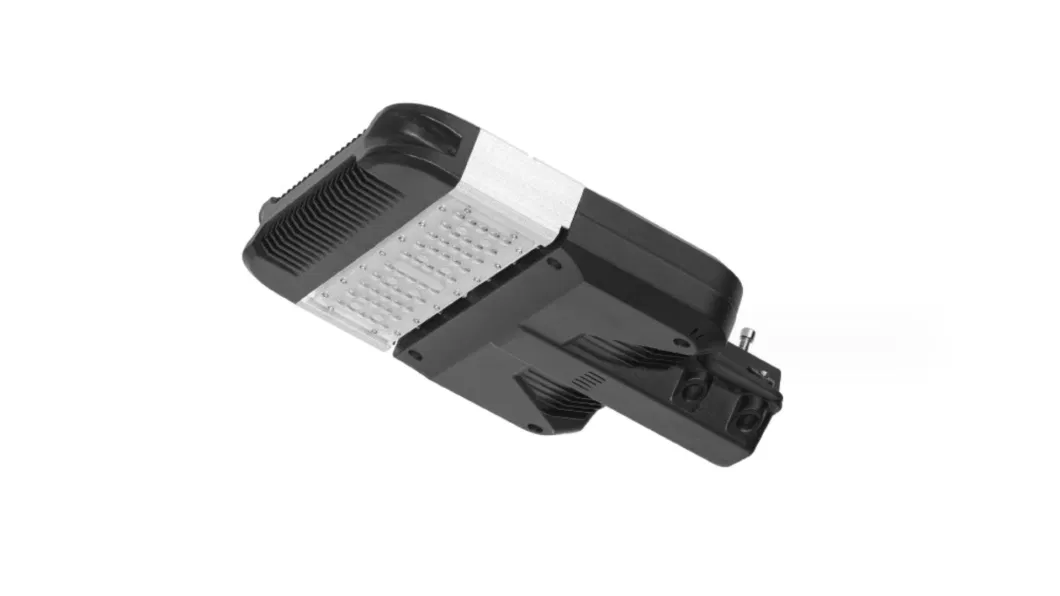

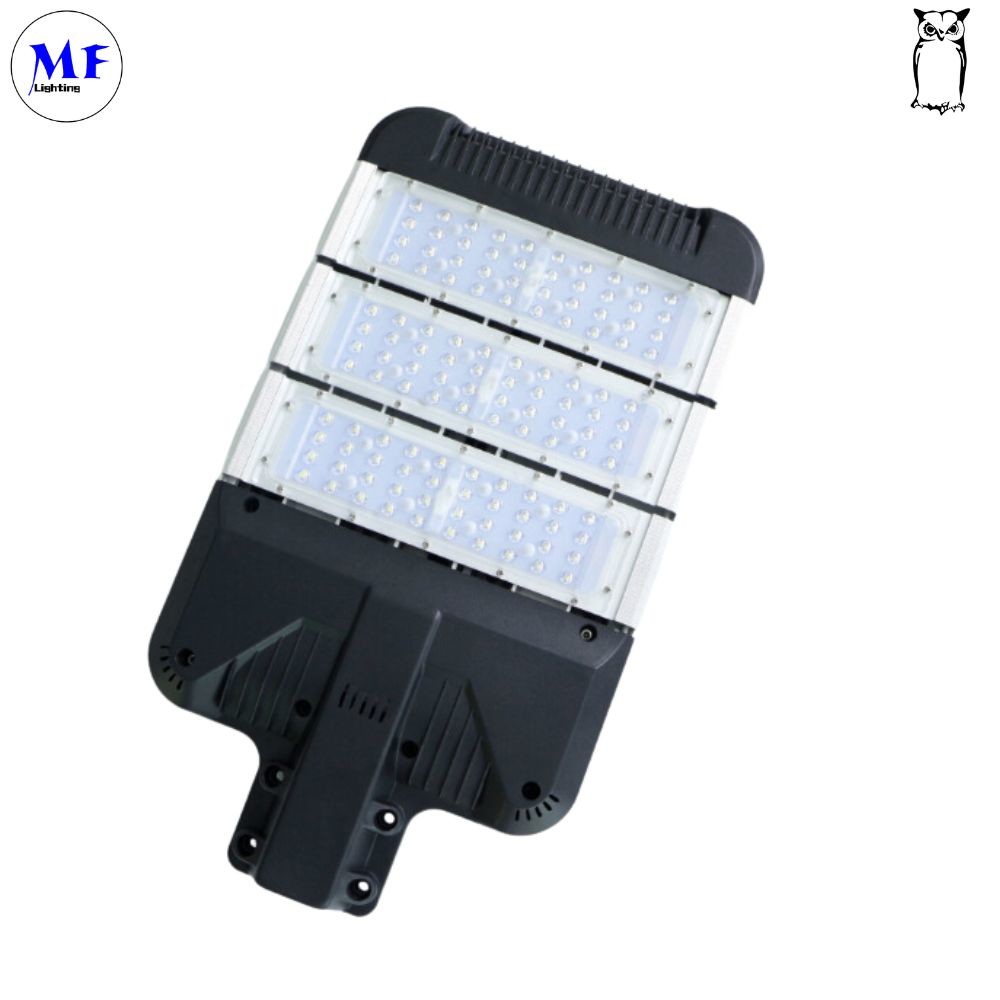

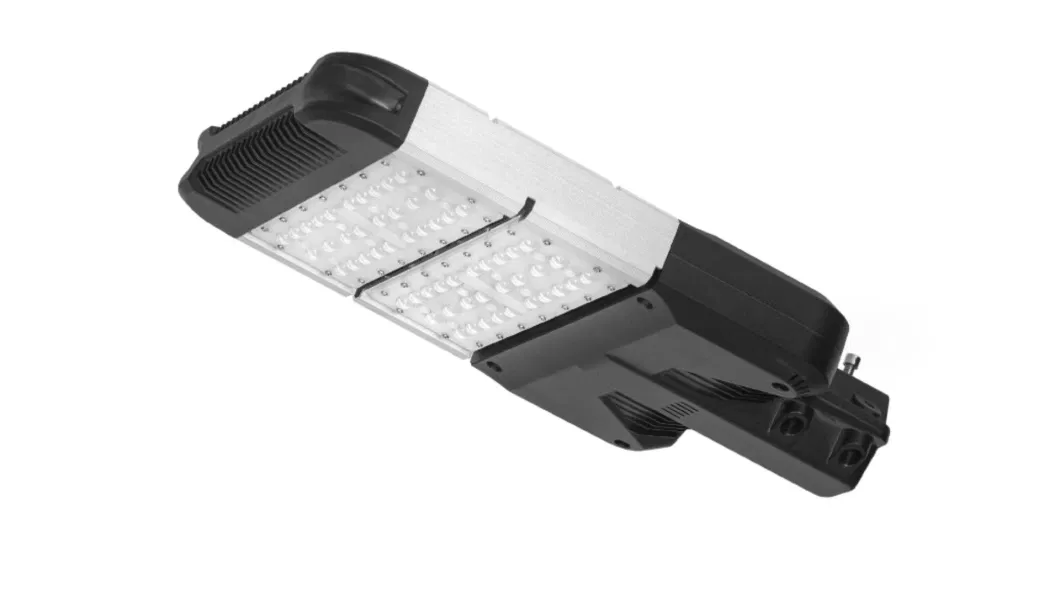

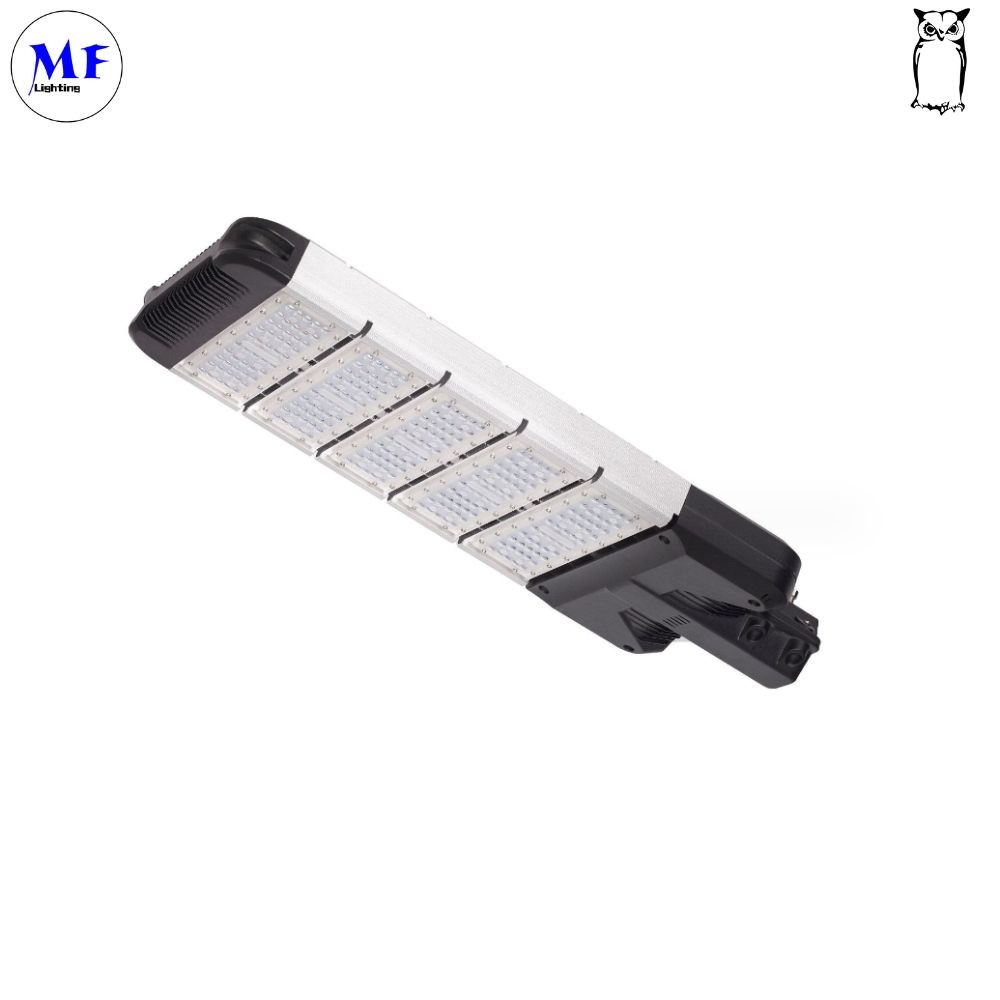

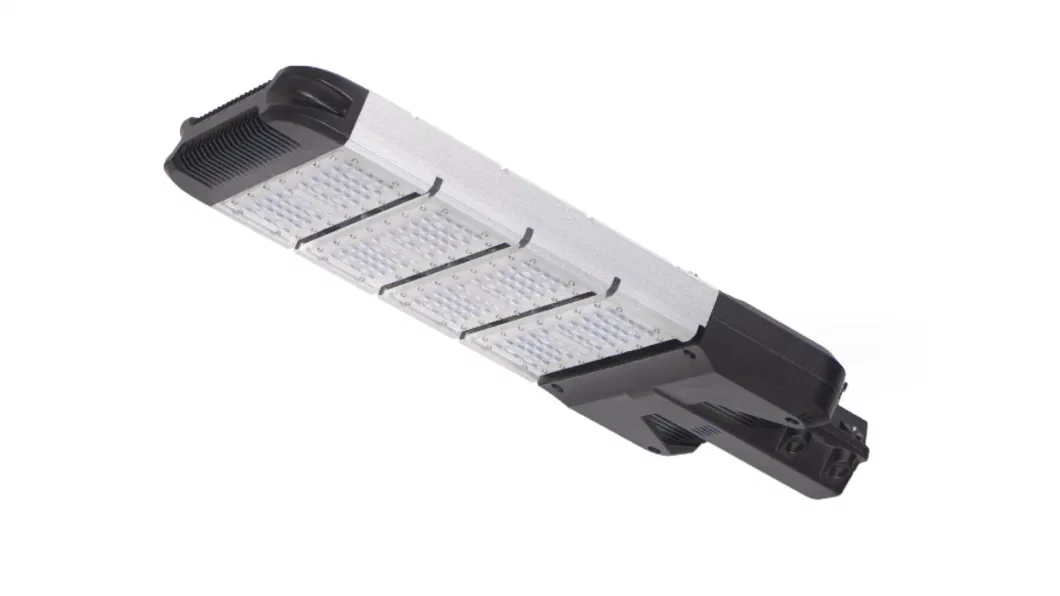

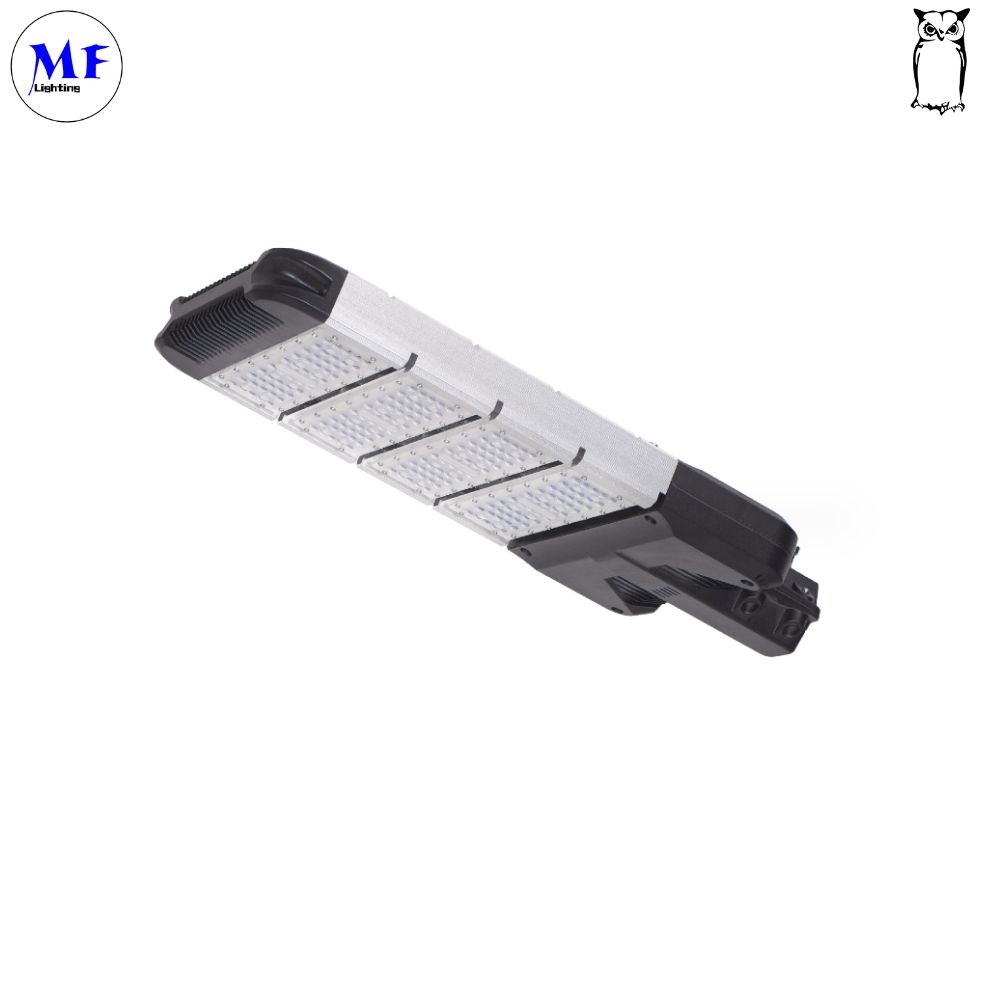

Factory Price 50W 120W 150W 200W 250W 20KV SPD 0-10V Dim Die-Casting Aluminum Waterproof IP65 175lm/W LED Flood Street Light

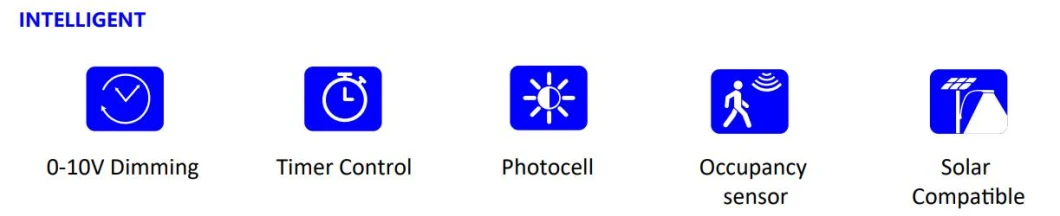

ENERGY SAVING CONTROL OPTION- DIM - 0-10 volt dimming enabled with controls by others.
EXPECTED LIFE - Minimum 100,000 hours depending upon the ambient temperature of the installation location.
LEDS - Select high-brightness LEDs in Warm White, Neutral White or Cool White color temperature, 80 CRI.
DISTRIBUTION/PERFORMANCE- High performance, multifaceted, reflector provides uniform Forward Throw (FT) distribution with sharp backlight cutoff. Photometric data is tested in accordance with IESNA guidelines
HOUSING - One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed, weather-resistant wiring compartment.
Hinged wiring access door (with safety lanyard) located underneath. Fixture is IP65 rated.
OPTICAL UNIT - Precision engineered lenses made of optical grade Mitsubishi polycarbonate for maximum light intensity. Come standard with field-rotatable optics
OPERATNG TEMPERATURE - -30° C to +55°ºC (-40°F to +122°F)
WARRANTY - 5 years warranty
SHIPPING WEIGHT - 465x320x120MM,3.1Kg/CTN (in carton)
Features
| Lighting Data |
Electrical Data |
| LED Type |
Sanan/Phili-ps LUMI-LEDS |
Power Supply |
IEC Certified PSU |
| System Efficacy |
170lm/W±5%(CCT=5000K) |
Input Voltage |
100~240V ac |
| System Power Consumption |
120W |
Power Frequency |
50~60Hz |
| CCT |
2700K,3000K,4000K,5000K |
SPD |
4KV/10KV/20KV as options |
| Beam Angle |
Type I,Type II,Type III,Type V |
Class Rate |
Class I |
| CRI |
Ra70/Ra80/Ra90+ |
Power Efficiency |
>90% |
| Lens |
PC |
Power Factor |
>0.90 |
| SDCM |
<5 |
Total Harmonic Distortion |
<20% |
| Material Data |
Packing Data |
| Fixture Material |
Alu.+PC |
Junction Temperature(Tj) |
<70ºC(Ta=30ºC) |
| Powder Coating |
AkzoNobel |
Storage Temperature |
-40~+70ºC |
| Cable |
3x1.00mm |
Operating Temperature |
-30~+50ºC |
| Ingress Protection |
IP65 |
Outlook Size(MM) |
451x300x90 MM |
| Life Span |
10 years at 12 hours/day |
Export Carton Size |
465x320x120MM,3.1Kg/CTN |
Photometry

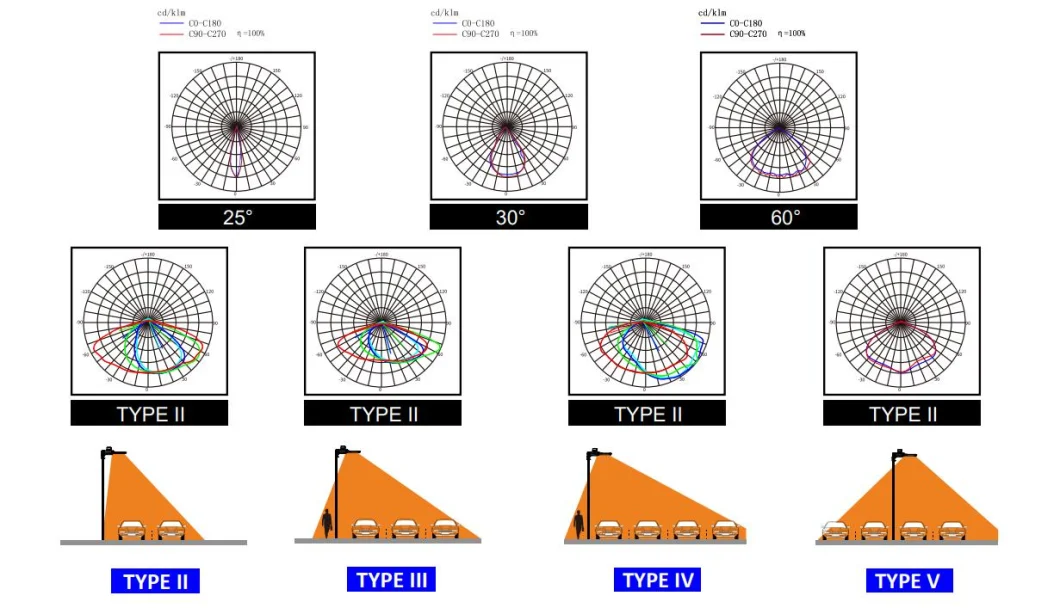

LIGHT DISTRIBUTION CURVE

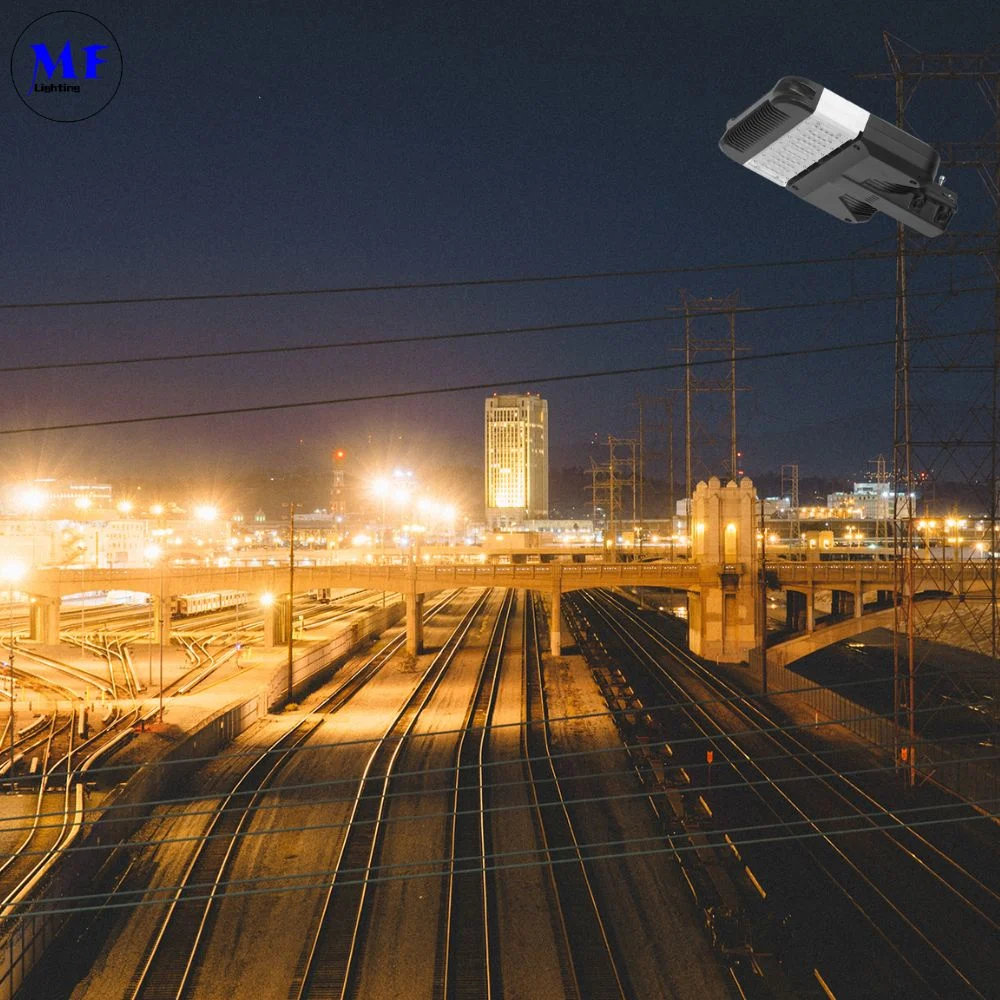

Street lights are commonly used to illuminate roads, streets, highways, parks, squares, parking lots and other public places. They can provide nighttime lighting, improve visibility for pedestrians and vehicles, reduce the risk of traffic accidents, and increase public safety. In addition, street lights can also be used for:
Enhance the urban landscape: The use of street lights in cities and communities can improve the beauty of the urban landscape and night environment, and promote urban tourism and economic development.
Wildlife protection: The use of street lights in protected areas and nature reserves can improve the safety of visitors at night and reduce disturbance to wildlife.
Increase the sense of security of residents: The use of street lights in the community can increase the sense of security of residents, improve the environmental quality of the community, and reduce the crime rate.
In conclusion, street lights can be used in many different venues and applications to increase public safety and visibility, improve urban environments and landscapes, and protect wildlife and the natural environment.
