IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building Bridge

Minimum Order Quantity : 1PCS Delivery Time : depends on order
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 5000pcs/months
Place of Origin: China Brand Name: MF
Certification: CE,ISO9001,SAA,RoHs Model Number: MF-MI-BF

Detail Information

Light Source: CREE Available Colors: White (Daytime); Red (Night)
IP: IP66 Horizontal Output(degrees): 360
LED Life: >100,000h Average Power: Power(W) 5W(20fpm, Red Mode) + 13W(20fpm, White Mode)
Power: 40W (Red Mode)+600W(White Mode) Wind Speed: 80m/s
Circuit Protection: Integrated Body Material: UV Protected Polycarbonate
Base Material: Powder-coated Die-casting Aluminum Weight(kg): 4
High Light:

LED Aviation Obstruction Light For Airport

,

Medium-Intensity LED Aviation Obstruction Light

Product Description

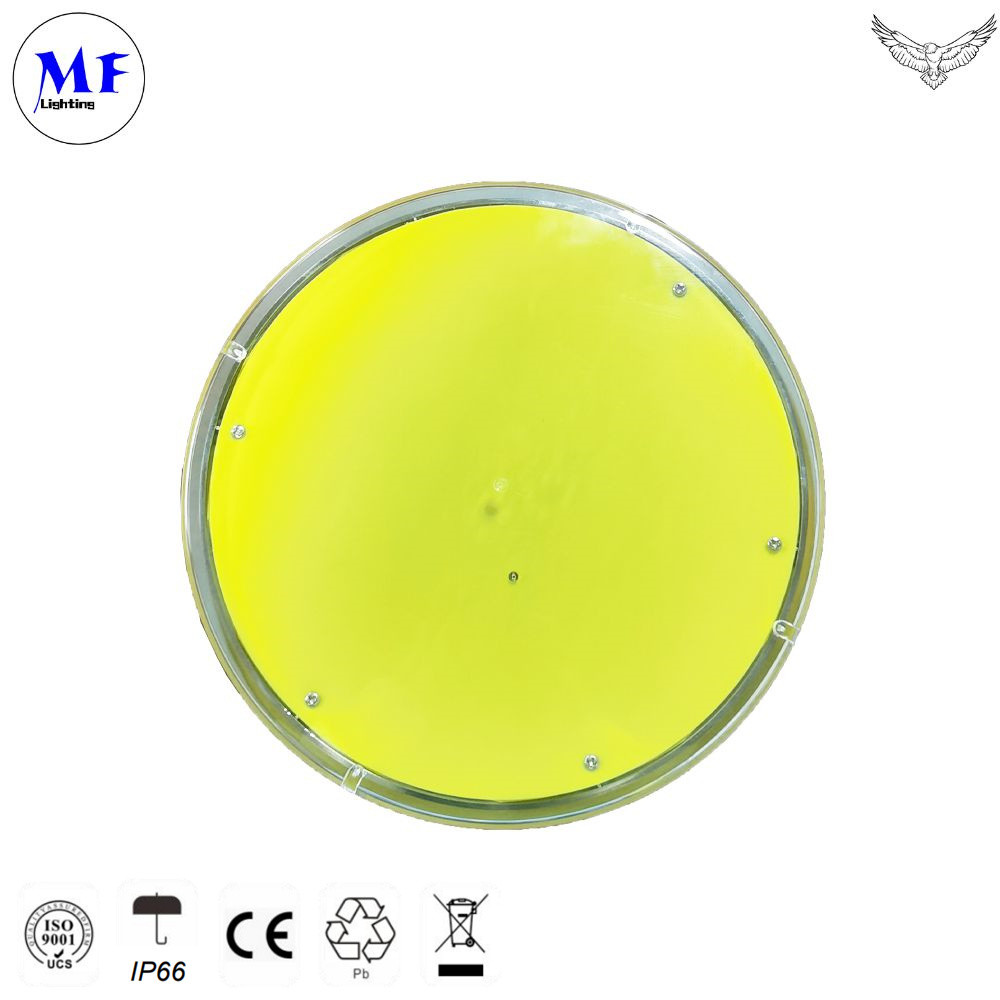

IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 0

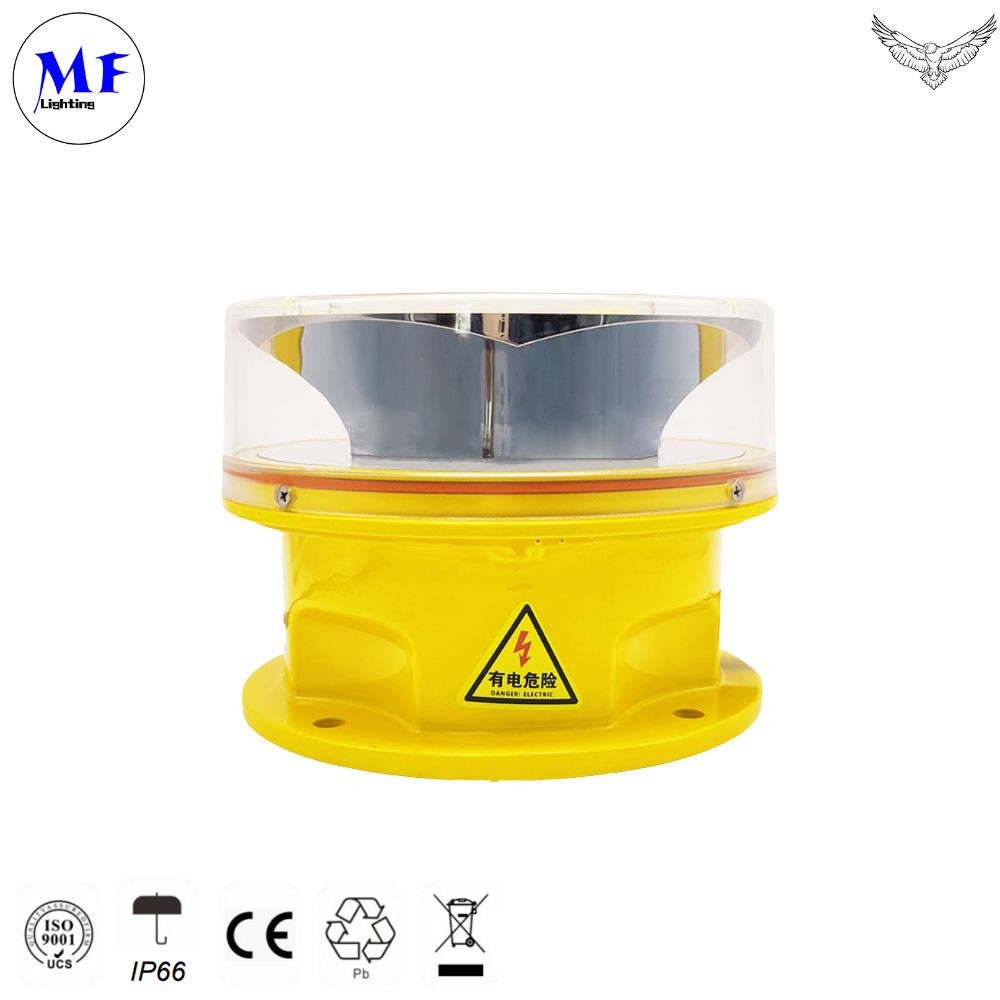

IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 1

This LED Medium-intensity Red&White Dual Aviation
Obstruction Light flashing white color at daytime and
red color at night. It's designed for marking top of obstacle
which height is between 45-150 meters.

Ultra high intensity CREE LED is used for the light source
ensure the long life experience and good performance.
Self-designed reflector is used to converge light, which
could reach the standard light intensity with as less as the
power consumption.















Compliance
1.ICAO Annex 14 Volume 1, Eight edition, 2018, table 6.3 Medium Intensity Type A, Medium Intensity Type B/C Obstruction Light
2.FAA L-865&FAA L-864

features

Electrical



1.CREE ultra high intensity LED as light source saving power
consumption and maintenance than incandescent light or halogen lamp
2.Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
​​​

Physical

1.Unique design and UV protected polycarbonate reflector for converging light
2.UV protection Powder coated bright yellow color base make better visibility
3.Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
4.
Special vent installed under base to make sure the air could go through but water is avoid, so that the whole light temperature won't be high, to avoid the High pressure steam goes inside



System design

1.Built-in photocell for day/night operation(dusk to dawn operation)
2.Surge and lightning protection





Optional

1.Dry contact Alarm output for remote monitoring
2.GPS synchronization
3.Infrared LED for pilot using NVG





IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 2

Light Characteristics

Light Source CREE high intensity LED
Available Colors
White(Other color is optional)
Intensity(cd)
≥20,000cd (Daytime)≥2,000cd(Night)
Horizontal Output(degrees)
360
Vertical Divergence(degrees) 3
Flash Characteristics
20-60 flashes per minute(factory setting: 20fpm)
Operation Mode
24hours operation, 2 different modes
LED Life Experience(hours)
>100,000



Electrical Characteristics
Operating Voltage
DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Instantaneous power(W)
40W (Red mode)+600W(White mode)
Average Power(W)
5W(20fpm, red mode) + 13W(20fpm, white mode)
Circuit Protection
Integrated
Physical Characteristics
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Mounting
190*190*θ12
Dimension(mm)
236*236*215
Weight(kg)
4
Product Life Expectancy
10 years plus
Environmental Factors
Humidity 0%-100%
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO
Annex 14 Volume 1,'Aerodrome Design and
Operations' Eight edition 2018, table 6.3
Medium-intensity Type A White Obstacle Light
Medium-intensity Type B/C Red Obstacle Light
FAA L-865,L-864
Options Available
GPS sync flashing
Infrared LED compatible for NVG (Night
Vision Goggles)
Dry contact alarm output
RS485 communication
Bird deterrent spike

Configuration
Model Power input Flash rate Lens color Photocell Dry contact Alarm GPS sync flashing Control
MF-MI-BF
110-240VAC
12VDC
36VDC
48VDC
20FPM (Type B&A)
30FPM (Type B&A)
60FPM (Type B&A)
40FPM (Type B&A)
Fixed (Type C&A)
White&Red
Built-in Photocell
No Photocell
No Alarm

NO SYNC

GPS SNYC

Used alone

with controller

IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 27
IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 28

IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 29

IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 30

Wiring diagram


IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 31

IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 32
IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 33
IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 34
IP66 Red White Medium-Intensity FAA L865 L864 LED Aviation Obstruction Light For Airport High Building  Bridge 35

This LED Medium-intensity Red&White Dual Aviation
Obstruction Light flashing white color at daytime and
red color at night. It's designed for marking top of obstacle
which height is between 45-150 meters.
Ultra high intensity CREE LED is used for the light source
ensure the long life experience and good performance.
Self-designed reflector is used to converge light, which
could reach the standard light intensity with as less as the
power consumption.
