IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine

Contact Now

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine

Minimum Order Quantity :	1	Price :	Negotiable
Delivery Time :	Depends on orders	Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	20,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MFTL-T9

Detail Information
Power:	40W~480W	Luminous:	280lm
Beam Angle:	45°	IP Rate:	IP67
PF:	>0.9	CCT:	3000K-6000K
Input Voltage:	AC100~305VAC	Warranty:	5 Years
Body Material:	Aluminum	IK Rating:	08
CRI:	>70

Product Description

Factory Price 20W40W60W100W120W 130lm/w 140lm/w overpass textile factory library supermarket display rack warehouse LED Triproof Light

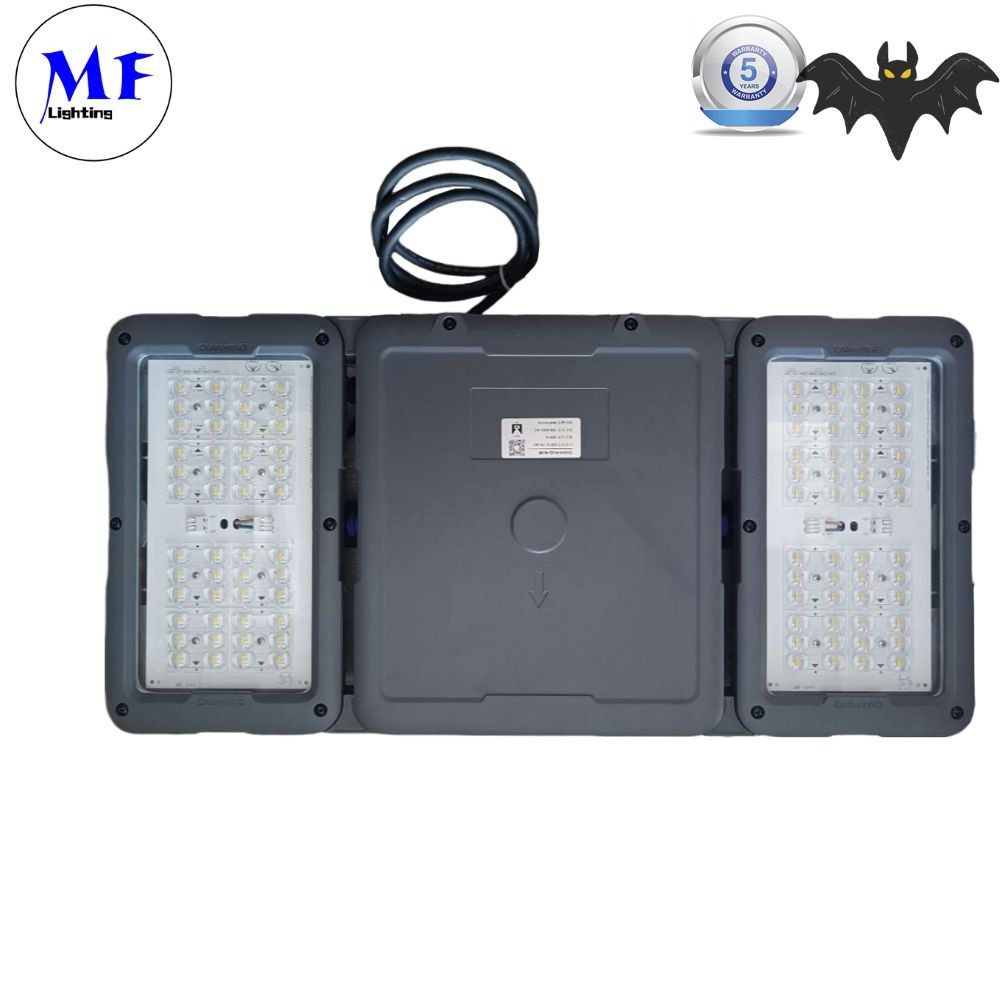

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 1

The MF Tunnel Light T9 series is an efficient lighting solution designed specifically for underground spaces such as tunnels and bridges. The product range includes 10 power specifications from 40W to 450W, utilizing high-quality Lumiled' LED beads to ensure a long service life of up to 80,000 hours. The product offers three color temperature options: warm white, cool white, and natural white, with a color temperature range of 3000K to 6000K and a luminous efficacy of 140lm/W to 150lm/W. With an IP67 protection rating and an aluminum alloy housing, the product is suitable for various harsh environments.

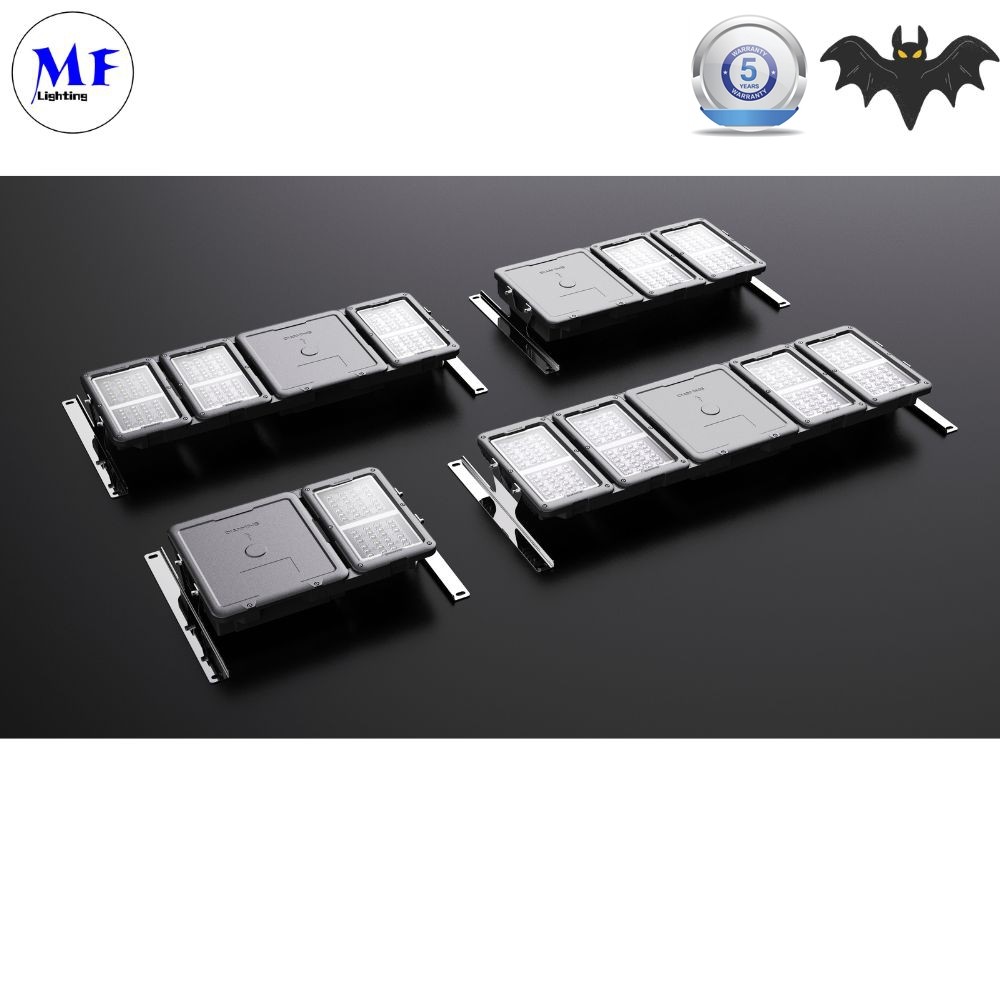

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 2

Enhanced Insulation Design
The product features a reinforced insulation design that supports both Class I and Class II power supplies, ensuring electrical safety.

Optional Stainless Steel Housing
An optional stainless steel housing is available to effectively prevent electrochemical corrosion in extreme environments, thereby extending the service life.

Next-Generation High-Brightness Outdoor LED
The use of a next-generation high-brightness outdoor LED with lower current drive enhances the overall luminous efficiency by approximately 10% and reduces light decay.

Simple and Convenient Installation

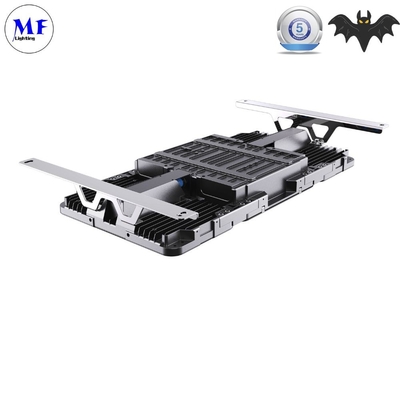

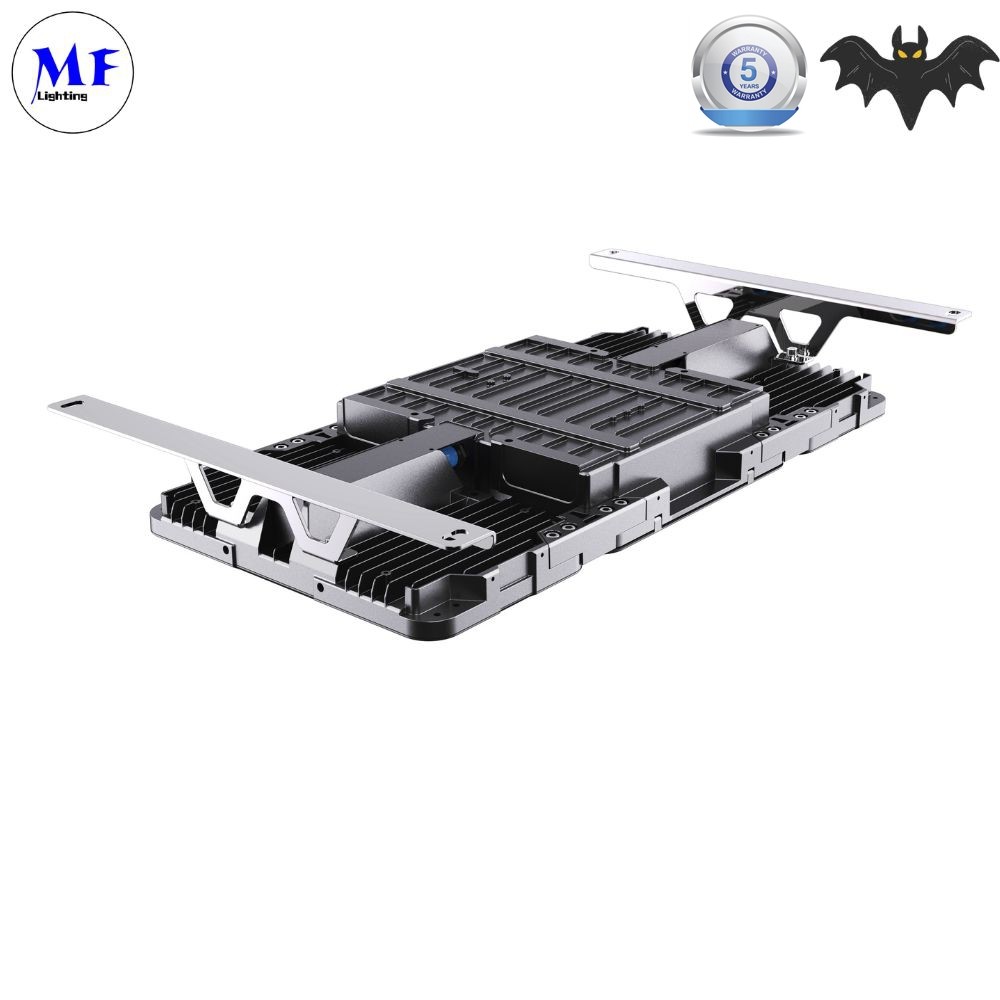

The product offers simple and convenient installation with two mounting bracket options: ceiling and side wall, allowing for flexible selection based on actual needs.

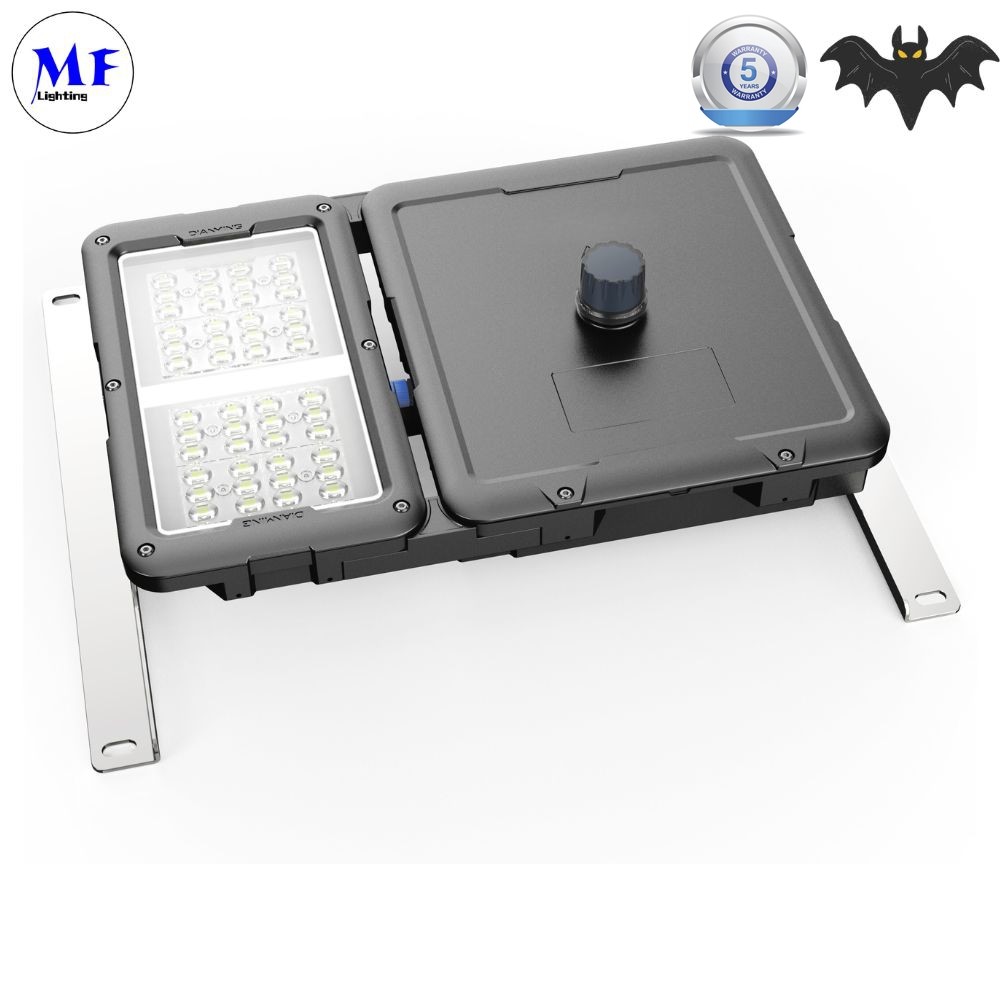

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 4

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 5

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 6

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 7

Powe	40W	50W		60W		80W		100W
Luminous Flux	5600±5%Im	7000±5%Im		8400±5%Im		11200±5%Im		14000±5%Im
LED Quantity	48 pcs	48 pcs		48 pcs		48 pcs		48 pcs
Luminous Efficacy	150 Im/W			140 Im/W
LED	5050
Module Quantity	1 module
Power	120W	150W		180W		200W		240W
Luminous flux	16800±5%Im	21000±5%Im		25200±5%Im		28000±5%Im		33600±5%Im
LED quantity	48 pcs	96 pcs		96 pcs		96 pcs		96 pcs
Luminous Efficacy	140 Im/W	140 ImN
LED	5050	5050
Module quantity	1 module	2 modules
Power	270W	300W		350W		400W		450W
Luminous flux	37800±5%Im	42000±5%Im		49000±5%Im		56000±5%Im		63000±5%Im
LED quantity	144 pcs	144 pcs		192 pcs		192 pcs		192 pcs
Luminous Efficacy	140 Im/W			140 ImW
LED	5050			5050
Module Quantity	3 modules			4 modules
color	Warm White		Natural White		Cold white		Cold white
color temperature	3000±300K		4000±300K		5000±300K		5700±300K
color rendering index	70
Beam angle	85°x155°;102°x155°;125°x148°;23°×105°
Main material	Alloy aluminum,optical PC,stainless steel
Service life	>80000h
Storage temperature	-30ºC~+60ºC
Operating temperature	-30°ºC~+50ºC
input frequency	47~63HZ
nput voltage	-100~240V AC

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 8

The MF Tunnel Light T9 series is the ideal choice for applications that demand extensive and premium lighting solutions, including tunnels, underground parking garages, urban overpasses, and highways. Boasting superior luminous efficiency, an extended lifespan, an IP67 rating for robust protection, and a modular build, this series ensures steadfast and dependable illumination tailored to diverse environments. Its versatile design and user-friendly installation further streamline project execution. Engineered to excel in challenging settings, the T9 series is especially adept at enhancing tunnel, overpass, and highway lighting, delivering consistent illumination that enhances traffic safety and efficiency.

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 10

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 12

Model	Power	Module Qty	PACKING(LxWxH)		B	EPA	Weight	Packaging size (Ix wxh)
MFTL-T9-040	40W	1pc	558430104.5	402.5mm	524mm	0.2399m²	8.92kg	540395120(mm)
MFTL-T9-050	50W						8.92kg
MFTL-T9-060	60W						9.03kg
MFTL-T9-080	80W						9.03kg
MFTL-T9-100	100W						9.03kg
MFTL-T9-120	120W						9.16kg
MFTL-T9-150	150W	2pcs	748430104.5	402.5mm	714mm	0.3216m²	11.30kg	730395120(mm)
MFTL-T9-180	180W						11.34kg
MFTL-T9-200	200W						11.34kg
MFTL-T9-240	240W						11.51kg

IP67 Waterproof 140lm/W LED Tunnel Light Aluminum AC 100-305V IK08 for Outdoor Industrial Mine 13

FAQ

Q1: What products do you offer?
A: We offer a wide range of products, including LED Indoor light and LED Outdoor light.

Q2: Do you offer customization services?
A: Yes, we offer customization services for many of our products.

Q3: What are your payment terms?
A: Our payment terms are typically 30% deposit and 70% balance before shipment,depends on product.

Q4: What is your lead time?
A: Our lead time varies depending on the product and order quantity.

Q5: What is your quality control process?
A: We have a strict quality control process in place to ensure that every product meets our high-quality standards.

after-sales issues

We offer a free 5-year warranty from the date of purchase, which covers any defects in materials and workmanship. This warranty does not cover damage caused by mishandling or improper use, such as failure and damage caused by unpacking the product, or failure caused by falling and touching during handling and use.
It is important that the product is operated in accordance with the instructions provided to prevent any failure that may occur due to improper use. Therefore, any failure caused by the failure to operate the product in accordance with the instructions is not covered by the warranty.
After the warranty period, we offer maintenance services at the cost of materials only for any parts that may need to be replaced. However, any additional labor costs incurred during the maintenance process will not be covered by the warranty.
We are committed to providing exceptional customer service and support, and our team is available to answer any questions or concerns you may have regarding the product warranty or maintenance process.
We believe that our warranty policy demonstrates our commitment to providing high-quality products and ensuring customer satisfaction. With our warranty, you can be confident in the quality and reliability of our product.
