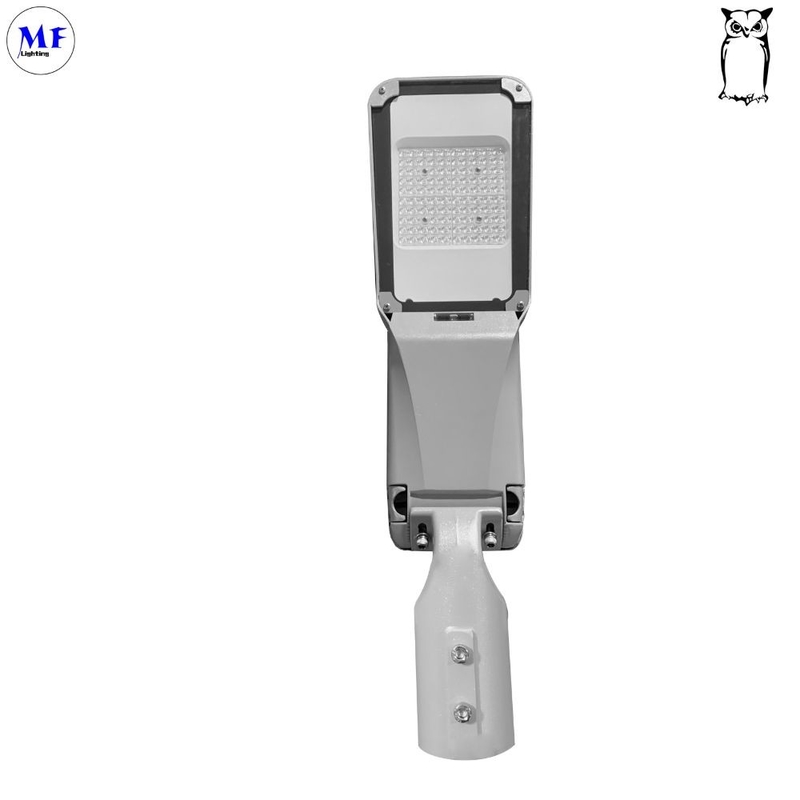

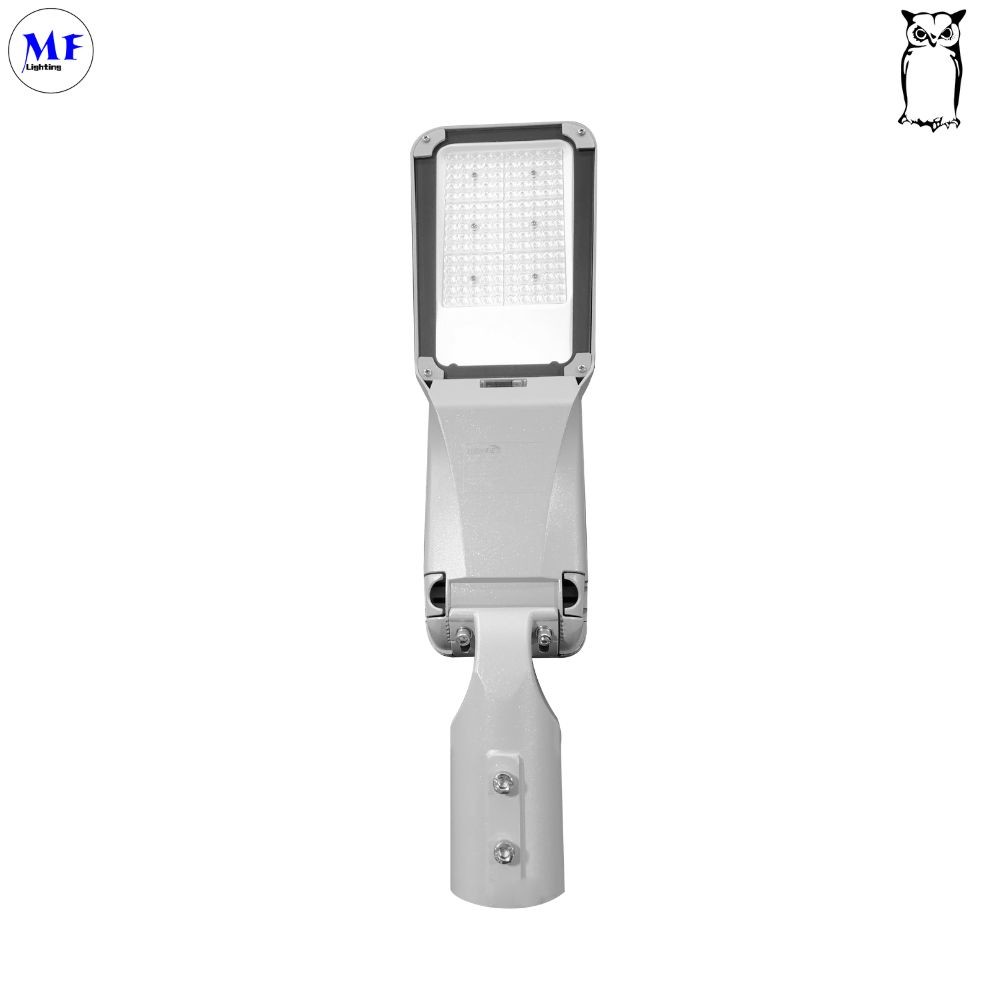

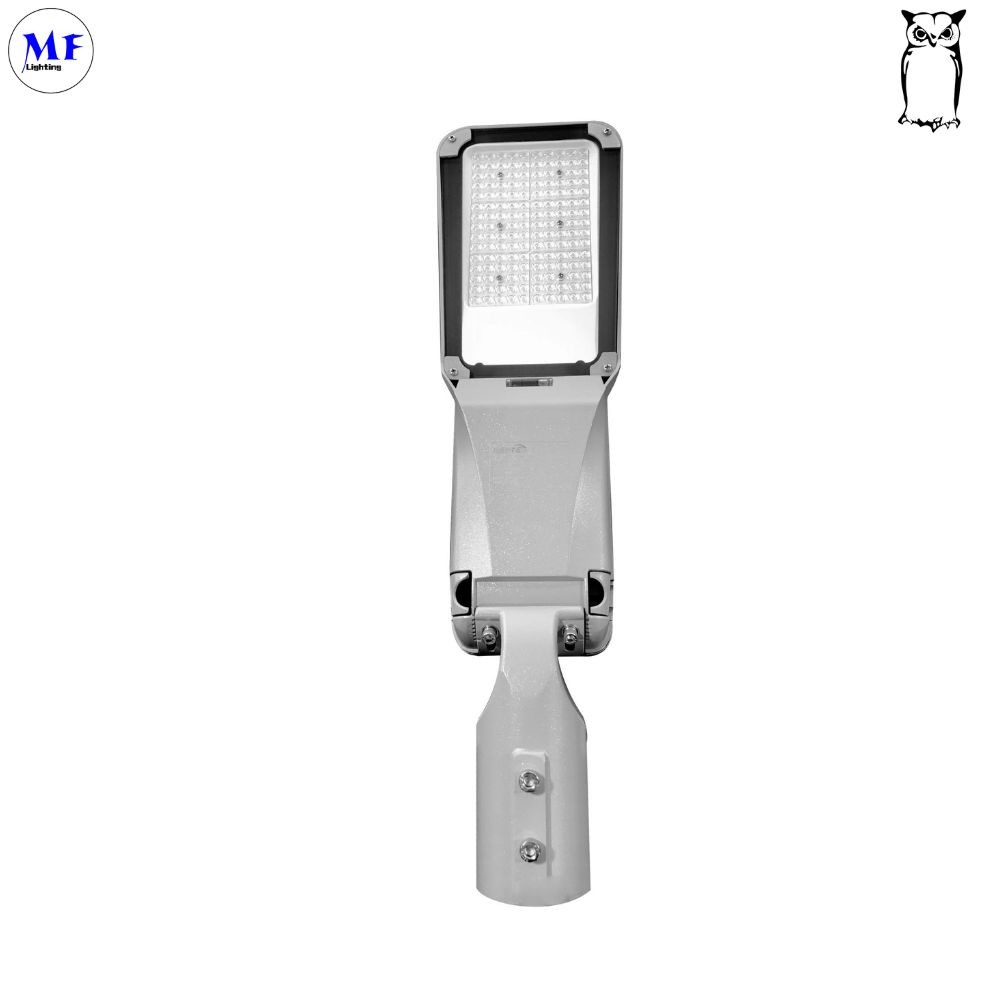

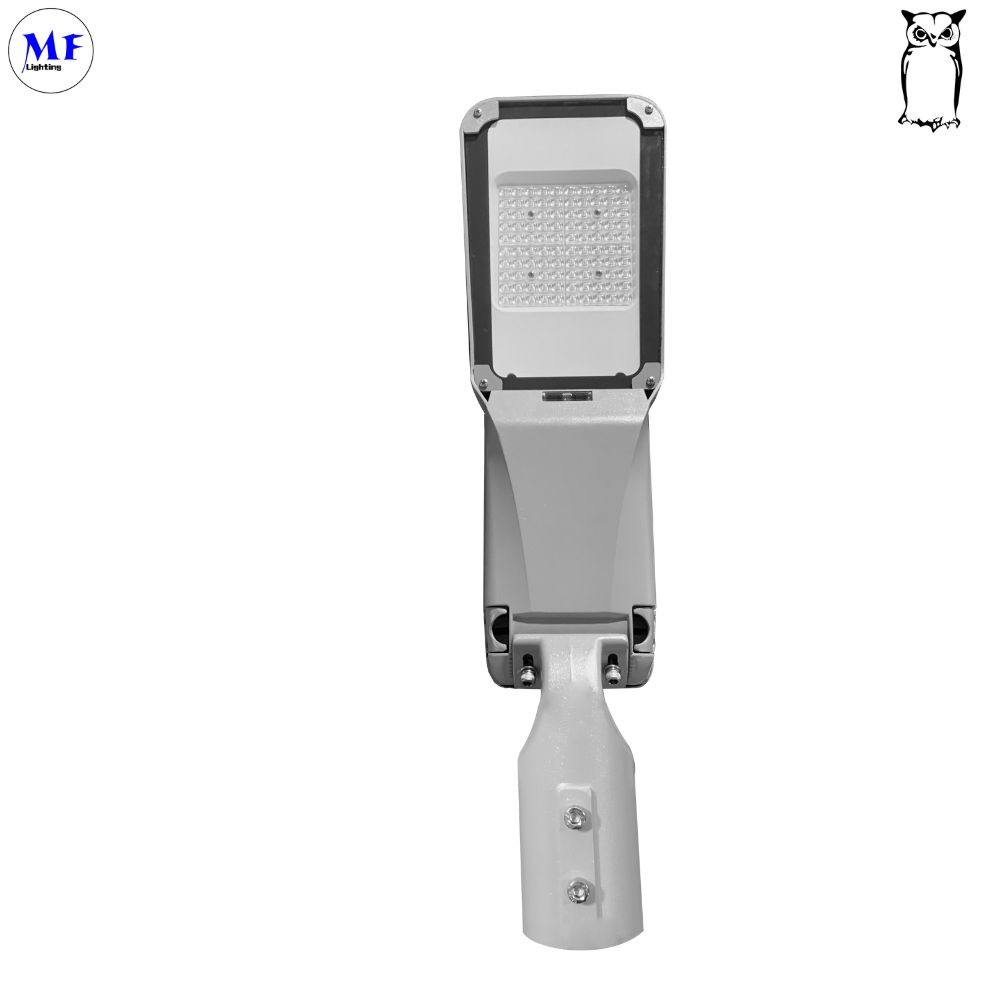

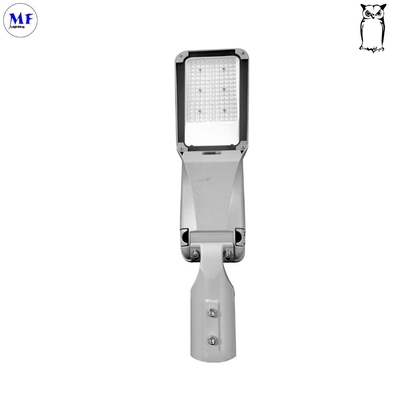

IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 16.5*15*22cm/1pcs, G.W: 1.2Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA,TUV,CB,ETL,UL Model Number: MF Owl Street light 3

Detail Information

Power Supply: AC CCT: 3000K-6500K
Material: ADC12 Aluminum Die-Casting + PC Power: 45W/75W/100W/150W/200W/250W
IP RATE: IP65 Voltage: AC 100V-277V
LED Chip: LuMileds3030 Ik Rate: Ik10
Beam Angle: Typeii,Typeiii,Typeiv,Typev,25°,60°,90° Lens: PC+Glass
Smart Control: Photocell, Motion Sensor, Lora, Zigbee Luminous Efficacy: 175lm/W
Adjustable Bracket: 90degree And 180 Degree Support, Up And Down 30deg Function: 0-10V Dimming/Timer Control/Photocell
Function 2: Occupancy Sensor/Solar Compatible

Product Description

IP65 Outdoor LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway ExpresswayIP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 0



Waterproof IP65,high thermal conductivity housing


Beam angle TypeII,TypeIII,TypeIV,TypeV,25° 60° 90° PC+glass lens


Support smart control: photocell, motion sensor, lora, zigbee etc


High lumen SMD3030 chip, luminous efficacy 175Im/w

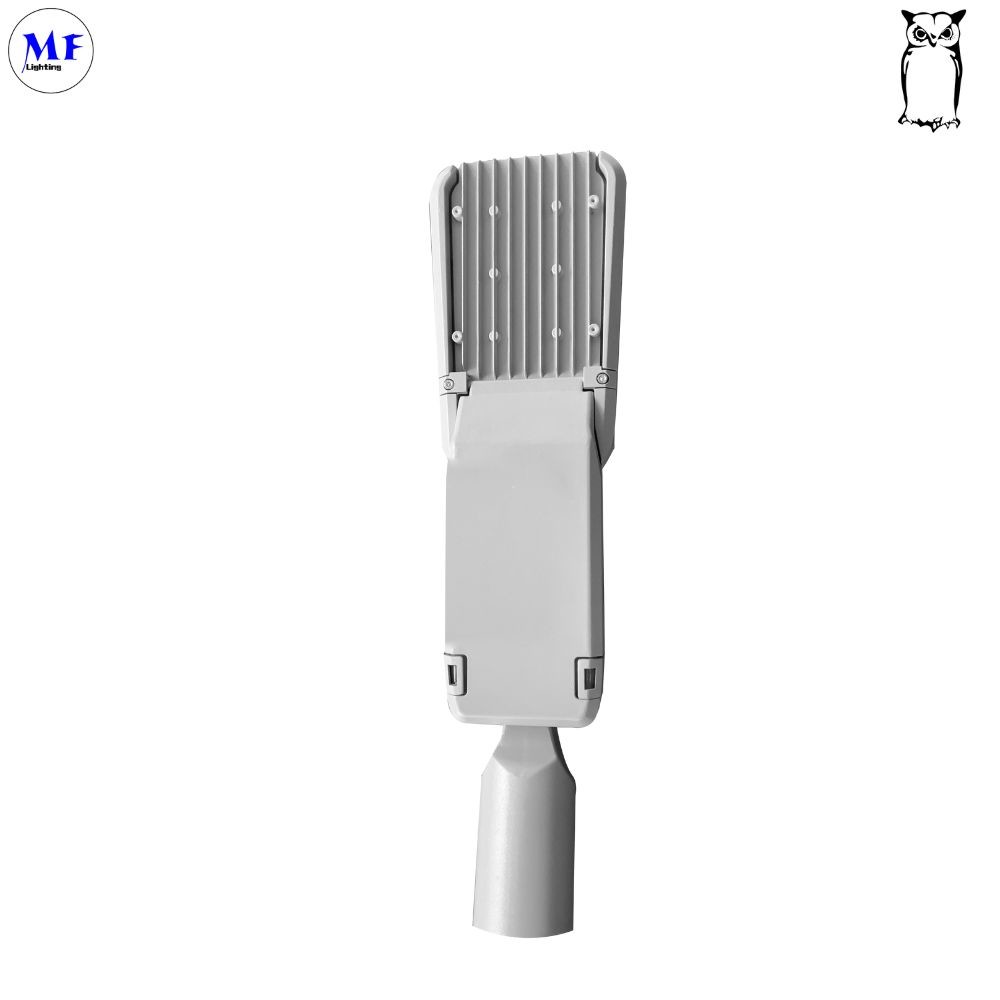

Ultra slim heat sink design makes the lamp lighter and betier in heat dissipation

IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 1

ENERGY SAVING CONTROL OPTION:DIM - 0-10 volt dim-ming enabled with controls by others.

EXPECTED LIFE:Minimum 100,000 hours depending uponthe ambient temperature of the installation location.

LEDS:Select high-brightness LEDs in Warm White NeutralWhite or Cool White color temperature, 80 CRl.

DISTRIBUTION/PERFORMANCE:High performance, multifaceted, reflector provides uniform Forward Throw (FI) dis-tribution with sharp backlight cutoff photometric data istested in accordance with IESNA quidelines

OPERATNG TEMPERATURE: -30°C to +55°C(-40F to +122°F)

WARRANTY: 7 years warranty SHIPPING WEIGHT:3.6 KG/4.2 KG3.6 KG/42 KG -5 KG/5.8 KG (in carton)

HOUSING:One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed, weather-resistant wiring compartment.Hinged wiring access door (with safety lanyard) located underneath. Fixture is IP65 rated.

OPTICAL UNIT:Precision engineered lenses made of opti.cal grade Mitsubishi polycarbonate for maximum lightintensity. Come standard with field-rotatable optics



IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 2

Owl-3 LED Street Light is the most cost-effective professional LEDstreet light launched by MF Lighting . Owl-3 was designed toprovide customers with tool-free installation, lower maintenancecosts, and lower operating costs. Hi-rise LED Street Light featuresmodern streamlined geometry, exquisite design, attention todetail, and outstanding application performance, energy efficiency
and system reliability

IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 3



IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 4


IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 5



WATT LUMEN OUTPUT LED CHIP EFFICACY LED QUANTITY
75W 13125lm Lu-mileds3030 175LM/W 96pcs
100W 17500lm 144pcs
120W 21000lm 192pc
150W 26250lm 192pc
200W 35000lm 288pcs
250W 43750lm 360pcs



LIGHT ANGLE CCT&CRI VOLTAGE CERTIFICATION
25°/60°/90°
TYPE II,III,IV,V
3000K-6500K
≥80
AC100-277V
347V/480V
50/60Hz
U-L
DLC Premium
SAA
VEET
CB



IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 6







IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 7

  1. Parking lot light
  2. Urban/Village Street
  3. Road
  4. Highways
  5. Garden/Park
  6. Schoole/Square/Hospital
  7. Any Large Outdoor Are,etc




IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 8



LED street lighting is a versatile and energy-efficient solution that brightly illuminates urban and outdoor environments. These lights are perfect for lighting streets, roads, and highways. Here are some key applications of LED street lighting:
City Streets: LED street lights are widely used to illuminate city streets, providing safe and well-lit pathways for pedestrians, cyclists, and drivers. Their bright and uniform illumination enhances visibility, reduces the risk of accidents, and improves overall road safety.
Highways and Expressways: LED street lights are extensively used on highways and expressways to provide clear visibility over long distances. They help drivers navigate these high-speed roads safely by ensuring well-lit surroundings, minimizing glare, and enhancing overall visibility.



IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 9

Residential Neighborhoods: LED street lighting is essential for residential areas, ensuring that neighborhoods are well-lit and secure. These lights effectively illuminate streets, sidewalks, and communal spaces, fostering a safer environment for residents and deterring potential criminal activity.
Parking Facilities: LED street lights are a popular choice for parking lots, providing the necessary illumination for safe and efficient parking. Their high-quality, uniform lighting assists drivers in navigating and parking safely, improves visibility in low-light conditions, and heightens security throughout the parking area.

IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 10

Parks and Recreational Spaces: LED street lighting is an integral part of illuminating parks, playgrounds, and leisure areas, creating a secure and welcoming atmosphere for nighttime enjoyment. These lights facilitate evening strolls, jogging, and sports, enriching the usability of public spaces beyond sunset.
Commercial and Industrial Zones: In commercial and industrial settings, LED street lights provide robust illumination essential for business operations, warehousing, and manufacturing. Their energy efficiency not only reduces operational costs but also fosters a well-lit and productive environment for employees.
Smart City Synergy: LED street lights are designed to complement smart city infrastructure, offering cutting-edge control and management capabilities. By integrating with centralized systems, these lights enable remote monitoring, adjustable dimming, and scheduling, which maximizes energy efficiency and streamlines maintenance processes.





IP65 175lm/W LED Street Light 45W-250W With Photocell Motion Sensor Zigbee Dimming For Highway Expressway 11



About us:





Our factory has been producing LED lights for indoor and outdoor applications, Such as LED down lights, LED Panel Light,LED wall light,LED tube light, LED spot light, LED track light,LED ceiling light,LED high bay light,LED tri-proof light,LED flood light, LED high mast light, LED Stadium light, LED street light, LED Garden light and LED explosion proof light. Our products are widely intalled in large-scale lighting applications, such as in large farms, factories, schools, bridges, tunnels, ports, subways,airports,minings, hospitals and many other applications.

Mingfeng specializes in LED lights, and produces and exports high-quality LED light fixtures to Asia, Europa, North American, Latin American and Pacafic ocean island for almost 132 countries, all LED lights are under ISO9001 system with professional team management, the certificate of CE, CB, ENEC,RoHS,CSA, UL, SAA and REACH are certifiedy by SGS or TUV depends on LED lights family.

MF R&D team are with passion, persistence and technology know-how to develp our LED lights, our engineers takes our LED develpment as baby care onto any single tiny details, the aim to this is that providing high quality LED lights by our vision plus knowleadge ,and at the end of story,enable an quality life and work under MF lights for all users in this planet, MF stuff knows "LIGHTS THE WORLD" is not a joke, but make it happen day by day with hard working.
