AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial

Contact Now

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial

Minimum Order Quantity :	1	Price :	Negotiable
Delivery Time :	Depends on orders	Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	20,000pcs/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MFTL-T9

Detail Information
Power:	40W~480W	Luminous:	140lm/W
IP Rate:	IP67	PF:	>0.9
CCT:	3000K-6000K	Input Voltage:	100
Warranty:	5 Years	CRI:	70Ra
Highlight:	Outdoor Industrial LED Tunnel Light , 140lm/W LED Tunnel Light , IP67 Waterproof LED Tunnel Light

Product Description

Factory Price IP67 Waterproof 140lm/W 40W50W80W100W150W200W400W480W Outdoor Industrial LED Tunnel Light

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 1

The MF Tunnel Light T9 series is a robust lighting solution crafted for the unique demands of underground settings such as tunnels and bridges. This series boasts a spectrum of ten power options, ranging from 40W to 450W, and is equipped with superior Lumileds LED technology, ensuring a long-lasting performance of up to 80,000 hours. Offering a selection of three color temperatures—warm white, cool white, and natural white—across a spectrum of 3000K to 6000K, with luminous efficacies of 140lm/W to 150lm/W, these lights accommodate a wide range of lighting needs. Designed with an IP67 rating and encased in durable aluminum alloy, these fixtures are built to endure the rigors of diverse and challenging environments.

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 2

AEnhanced Insulation System
Our product features a sophisticated insulation system that supports both Class I and Class II power supplies, ensuring an unparalleled level of electrical safety.
Stainless Steel Housing Upgrade
To withstand severe environmental conditions, we provide an optional upgrade to a stainless steel housing that effectively combats electrochemical corrosion, significantly extending the product's service life.
Next-Generation High-Brightness LED
Outfitted with the latest high-brightness LED technology, which operates on a lower current, our product achieves a roughly 10% enhancement in overall luminous efficiency while also minimizing light output decline over its lifespan.

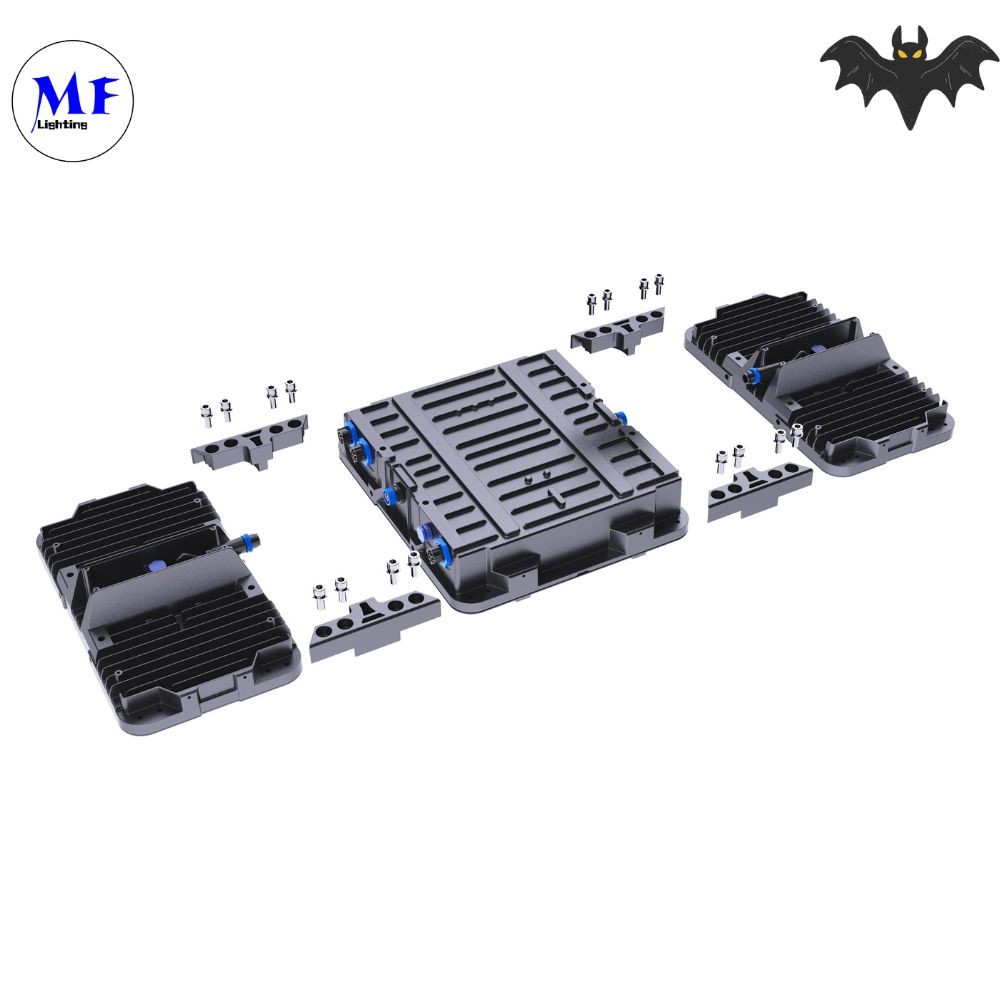

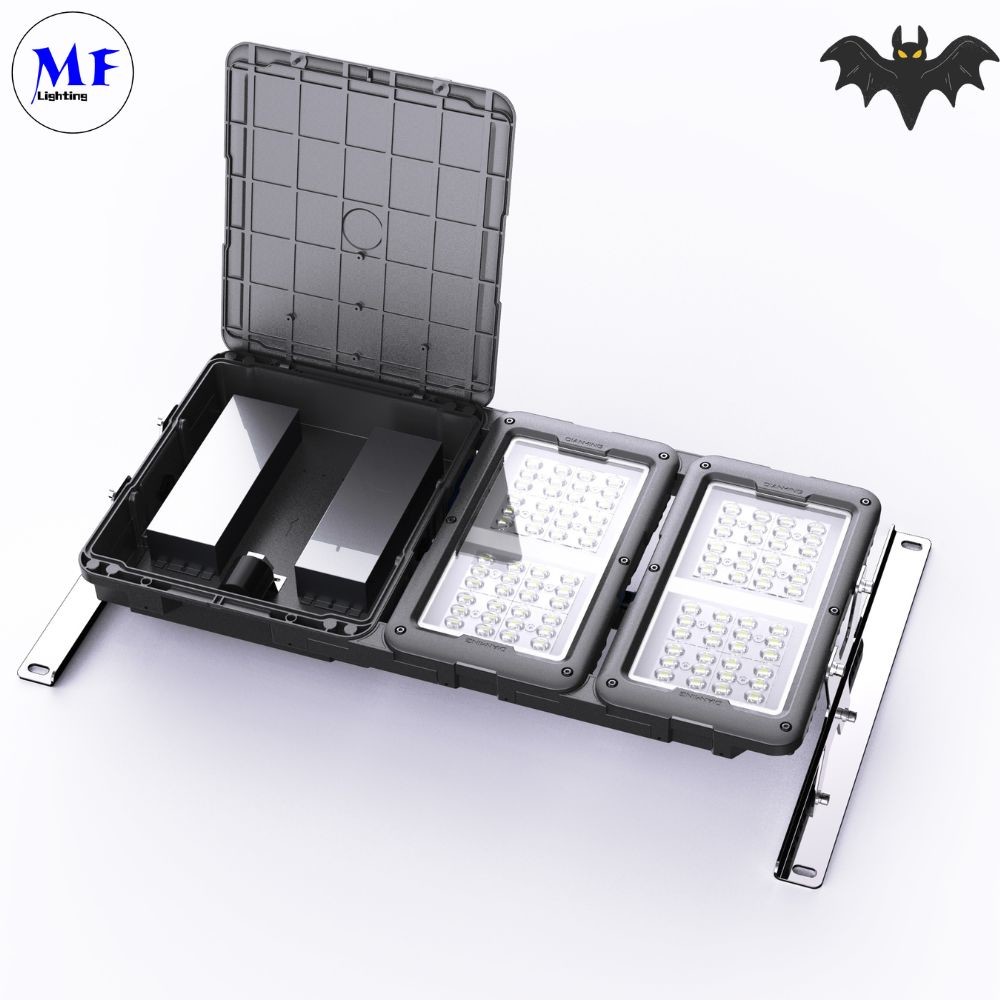

Streamlined Installation Process
The product is designed with two mounting bracket options—ceiling and side wall—for a hassle-free and versatile installation, easily adapting to a variety of setting and simplifying the setup process.

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 4

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 5

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 6

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 7

The MF Tunnel Light T9 series is tailor-made for extensive and challenging lighting requirements, such as in tunnels, underground parking structures, urban overpasses, and highways. With its exceptional luminous efficiency, long lifespan, IP67 protection grade, and modular build, this lighting system provides reliable and consistent illumination across a range of environments. Its adaptable design and user-friendly installation process facilitate smooth project implementation. Specifically designed for durability, it is particularly suited for demanding applications such as tunnel interiors, overpass lighting, and highway lighting, where it ensures stable lighting performance and improves traffic safety.

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 9

Powe	40W	50W		60W		80W		100W
Luminous Flux	5600±5%Im	7000±5%Im		8400±5%Im		11200±5%Im		14000±5%Im
LED Quantity	48 pcs	48 pcs		48 pcs		48 pcs		48 pcs
Luminous Efficacy	150 Im/W			140 Im/W
LED	5050
Module Quantity	1 module
Power	120W	150W		180W		200W		240W
Luminous flux	16800±5%Im	21000±5%Im		25200±5%Im		28000±5%Im		33600±5%Im
LED quantity	48 pcs	96 pcs		96 pcs		96 pcs		96 pcs
Luminous Efficacy	140 Im/W	140 ImN
LED	5050	5050
Module quantity	1 module	2 modules
Power	270W	300W		350W		400W		450W
Luminous flux	37800±5%Im	42000±5%Im		49000±5%Im		56000±5%Im		63000±5%Im
LED quantity	144 pcs	144 pcs		192 pcs		192 pcs		192 pcs
Luminous Efficacy	140 Im/W			140 ImW
LED	5050			5050
Module Quantity	3 modules			4 modules
color	Warm White		Natural White		Cold white		Cold white
color temperature	3000±300K		4000±300K		5000±300K		5700±300K
color rendering index	70
Beam angle	85°x155°;102°x155°;125°x148°;23°×105°
Main material	Alloy aluminum,optical PC,stainless steel
Service life	>80000h
Storage temperature	-30ºC~+60ºC
Operating temperature	-30°ºC~+50ºC
input frequency	47~63HZ
nput voltage	-100~240V AC

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 10

AC100-277V IP67 Waterproof 140lm/W LED Tunnel Light 40W50W80W100W150W200W400W480W Outdoor Industrial 12

FAQ

Q1: What products do you offer?
A: We offer a wide range of products, including LED Indoor light and LED Outdoor light.

Q2: Do you offer customization services?
A: Yes, we offer customization services for many of our products.

Q3: What are your payment terms?
A: Our payment terms are typically 30% deposit and 70% balance before shipment,depends on product.

Q4: What is your lead time?
A: Our lead time varies depending on the product and order quantity.

Q5: What is your quality control process?
A: We have a strict quality control process in place to ensure that every product meets our high-quality standards.

after-sales issues

We offer a free 5-year warranty from the date of purchase, which covers any defects in materials and workmanship. This warranty does not cover damage caused by mishandling or improper use, such as failure and damage caused by unpacking the product, or failure caused by falling and touching during handling and use.
It is important that the product is operated in accordance with the instructions provided to prevent any failure that may occur due to improper use. Therefore, any failure caused by the failure to operate the product in accordance with the instructions is not covered by the warranty.
After the warranty period, we offer maintenance services at the cost of materials only for any parts that may need to be replaced. However, any additional labor costs incurred during the maintenance process will not be covered by the warranty.
We are committed to providing exceptional customer service and support, and our team is available to answer any questions or concerns you may have regarding the product warranty or maintenance process.
We believe that our warranty policy demonstrates our commitment to providing high-quality products and ensuring customer satisfaction. With our warranty, you can be confident in the quality and reliability of our product.
