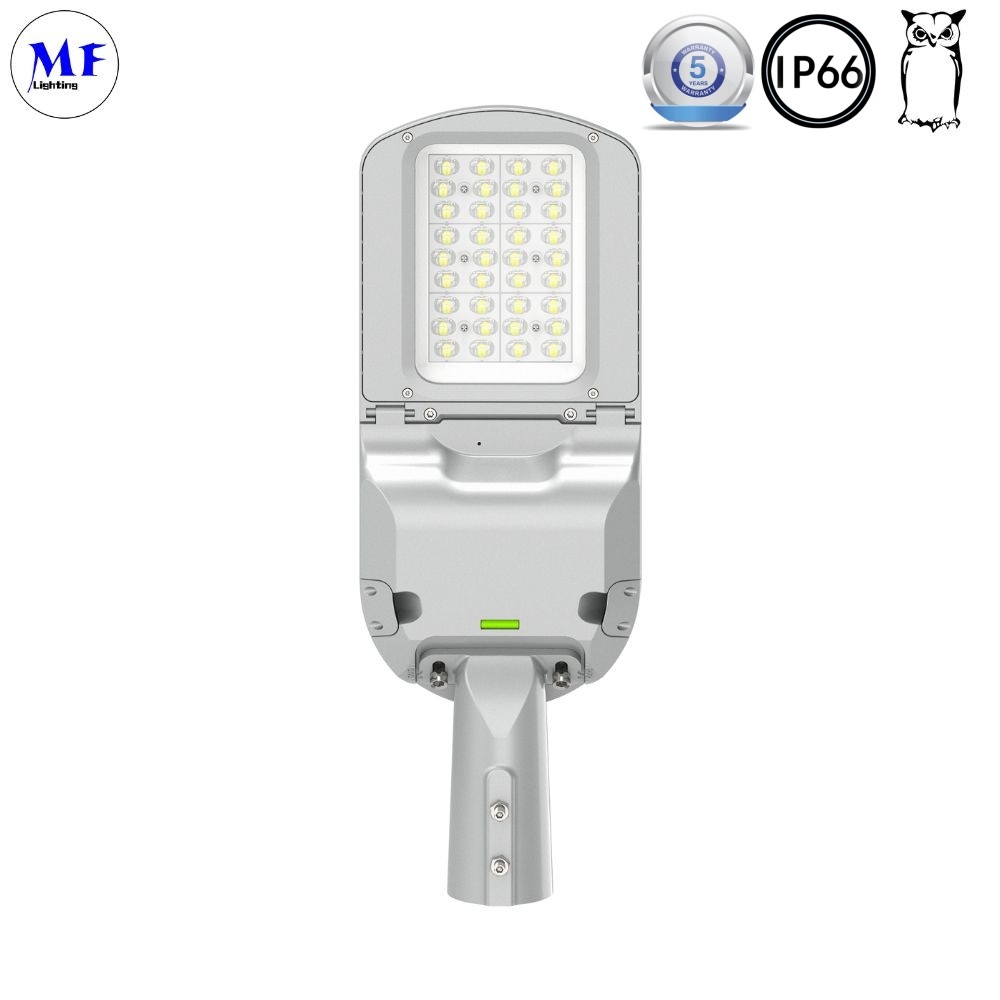

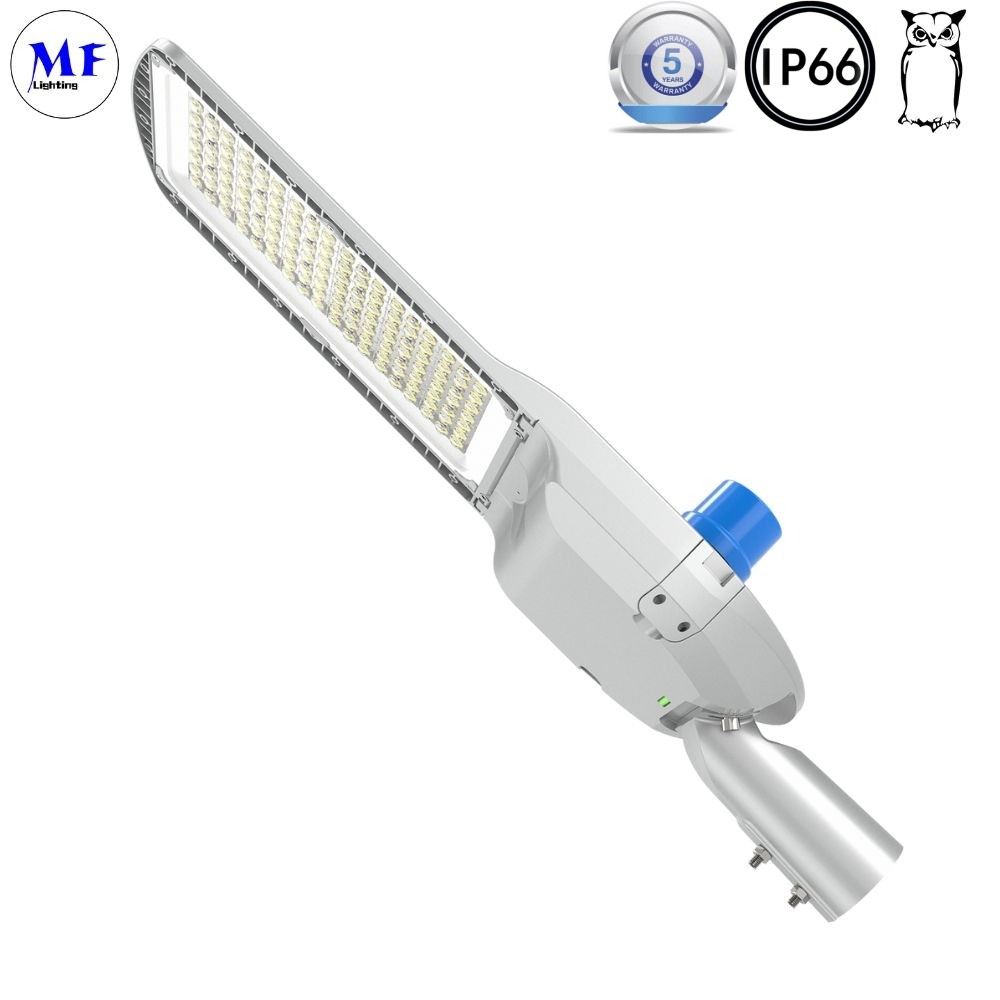

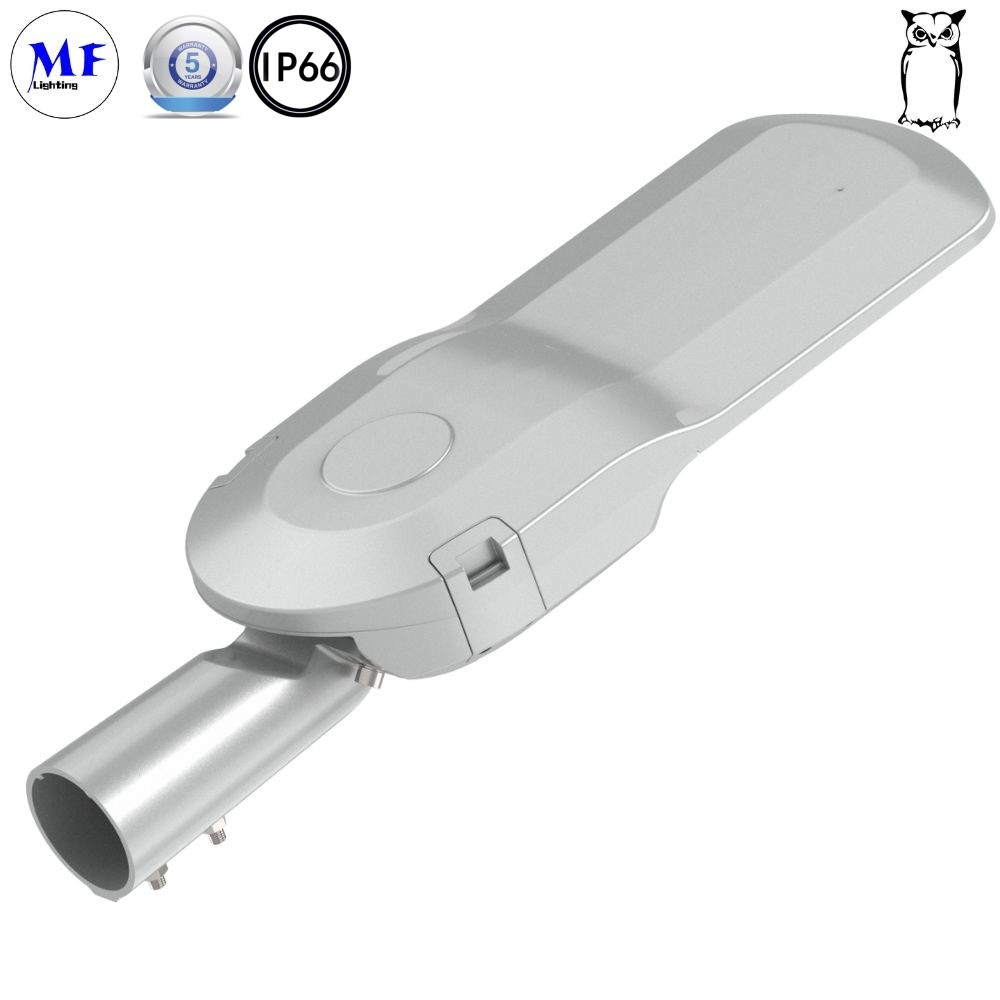

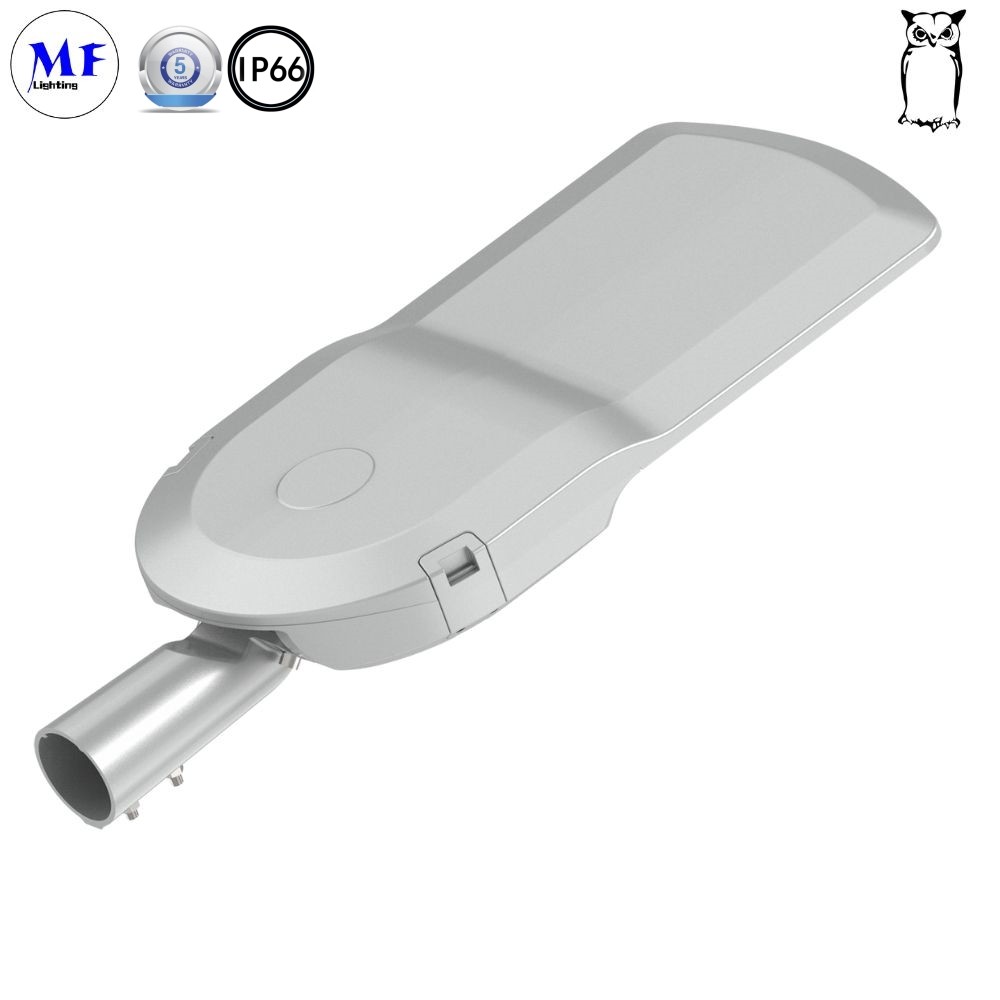

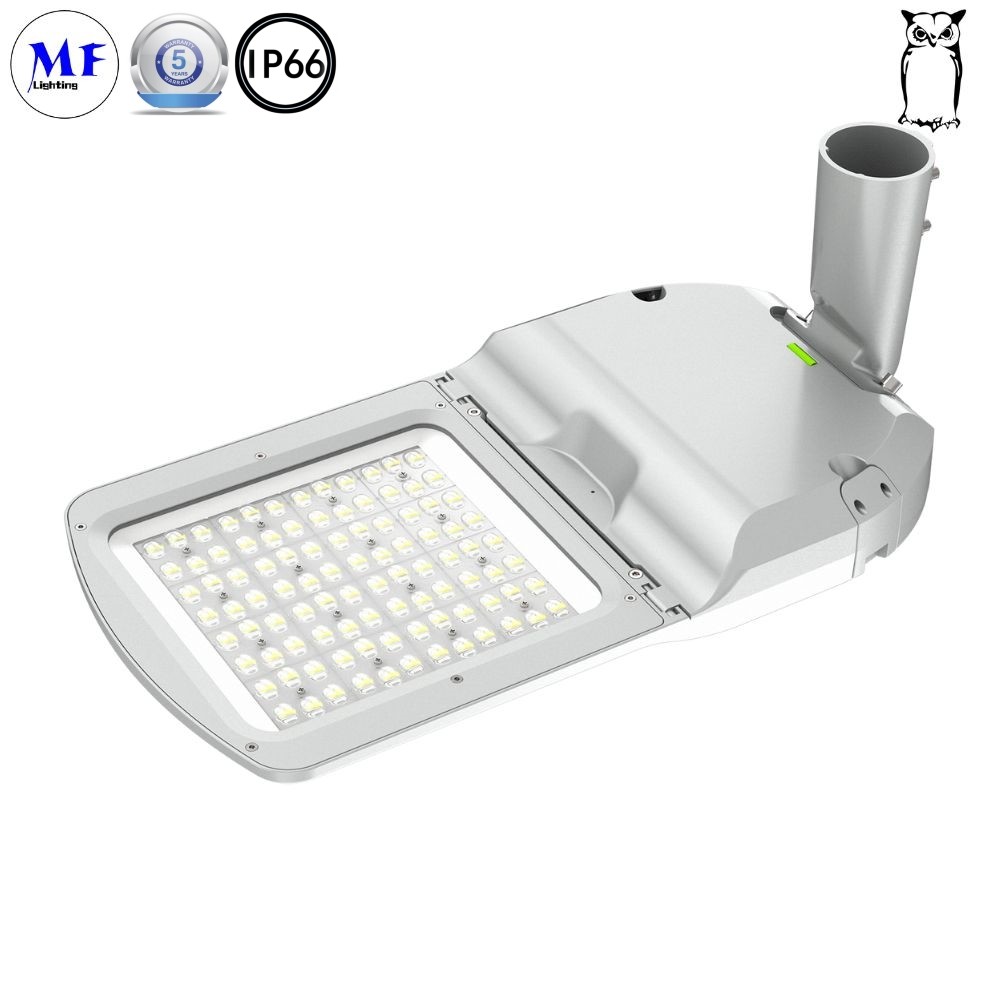

Photocell Sensor Garden Light LED Street Light 240W 100W 50W Pole IP66 Ik08 Waterproof Road Sidewalks Parking Light
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 100PCS | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 16.5*15*22cm/1pcs, G.W: 1.2Kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C, Paypal | Supply Ability : | 5,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE, RoHS,SAA,TUV,CB,ETL,UL | Model Number: | MF Owl II Street light |
Detail Information |
|||
Power Supply: | AC | CCT: | 2700K-6500K |
---|---|---|---|
Material: | Aluminum+Glass | Power: | 30W/50W/80W/100W/150W/200W/250W/300W |
IP RATE: | IP66 | Voltage: | AC 200V-277V |
LED Chip: | LUMILEDS 5050/Philips EMC5050 | Ik Rate: | Ik10 |
Beam Angle(±3): | Typeii,Typeiii,Typeiv,60°,90° | SDCM: | <5 |
Installation: | 40mm/50mm/60mm Optional | Efficacy: | Up To 170Lm/W |
Frequency: | 50Hz-60Hz | CRI: | >70,80 Optional |
Operating Temperature: | -40°C To +50°C | Operating Humidity: | 10% To 90% RH |
Efficiency In: | >92% | Power Factor: | >0.92 |
Energy Efficiency Class (EU 2019/2015): | B | Starting Time: | <0.5s |
Life Time: | 50000hours | ||
Highlight: | 100W LED Street Light,150W LED Street Light,170lm/W LED Street Light |
Product Description
170lm/W 100W 150W 300W LED Street Light Waterproof Alu Housing Outdoor LED Parking Light for Roadway Highway
Efficacy: Up to 170Lm/W
ENERGY SAVING CONTROL OPTION: DIM - 0-10 volt dim-ming enabled with controls by others.
EXPECTED LIFE: Minimum 100,000 hours depending uponthe ambient temperature of the installation location.
LEDS:Select high-brightness LEDs in Warm White NeutralWhite or Cool White color temperature, 80 CRl.
DISTRIBUTION/PERFORMANCE:High performance, multifaceted, reflector provides uniform Forward Throw (FI) dis-tribution with sharp backlight cutoff photometric data istested in accordance with IESNA quidelines
OPERATNG TEMPERATURE: -30°C to +55°C(-40F to +122°F)
WARRANTY: 7 years warranty SHIPPING WEIGHT:3.6 KG/4.2 KG3.6 KG/42 KG -5 KG/5.8 KG (in carton)
HOUSING:One-piece, die-formed aluminum housing contains factory prewired driver in a gasketed, weather-resistant wiring compartment.Hinged wiring access door (with safety lanyard) located underneath. Fixture is IP65 rated.
OPTICAL UNIT:Precision engineered lenses made of opti.cal grade Mitsubishi polycarbonate for maximum lightintensity. Come standard with field-rotatable optics
Owl-II LED Street Light is the most cost-effective professional LEDstreet light launched by MF Lighting . Owl-II was designed toprovide customers with tool-free installation, lower maintenancecosts, and lower operating costs. Hi-rise LED Street Light featuresmodern streamlined geometry, exquisite design, attention todetail, and outstanding application performance, energy efficiency
and system reliability
Product Data
Model | MF-LD-C30W MF-LD-C50W MF-LD-C80W |
MF-LD-C100W | MF-LD-C150W | MF-LD-C200W MF-LD-C250W |
MF-LD-C300W |
Wattage | 30W/50W/80W | 100W | 150W | 200W/250W | 300W |
Lumen | 13600Lm | 17000Lm | 25500Lm | 42500Lm | 51000Lm |
LED QTY (pcs) |
48 | 72 | 96 | 128 | 192 |
Light Source |
LUMILEDS 5050 | ||||
Luminous Efficacy |
150-170Lm/W | ||||
CCT | 2700K/3000K/4000K/5000K/5700K/6500K | ||||
CRI | >70(Ra≥80 optional) | ||||
Input Voltage |
100-277Vac | ||||
Arm Dia. | 40mm/50mm/60mm optional | ||||
Housing Material |
Aluminum,Glass | ||||
Operating Temperature |
-40°℃ to +50℃ | ||||
Operating Humidity |
10%to 90%RH | ||||
Lifespan | >50000hours |
ErP Technical Specification
Item | Specification/Data |
Efficiency In | >92% |
Power Factor | >0.92 |
Energy Efficiency Class(EU 2019/2015) | B |
SDCM | <5 |
Starting Time | <0.5s |
Life time | L80B20@50000hours |
Repair and maintenance
When repairs or maintenance are required, the entire street light source and drive can be disassembled in a modular manner, which is convenient and convenient to disassemble and install.
Highway,National road,Country road,Bicycle lanes,Sidewalks ,Courtyard etc.
