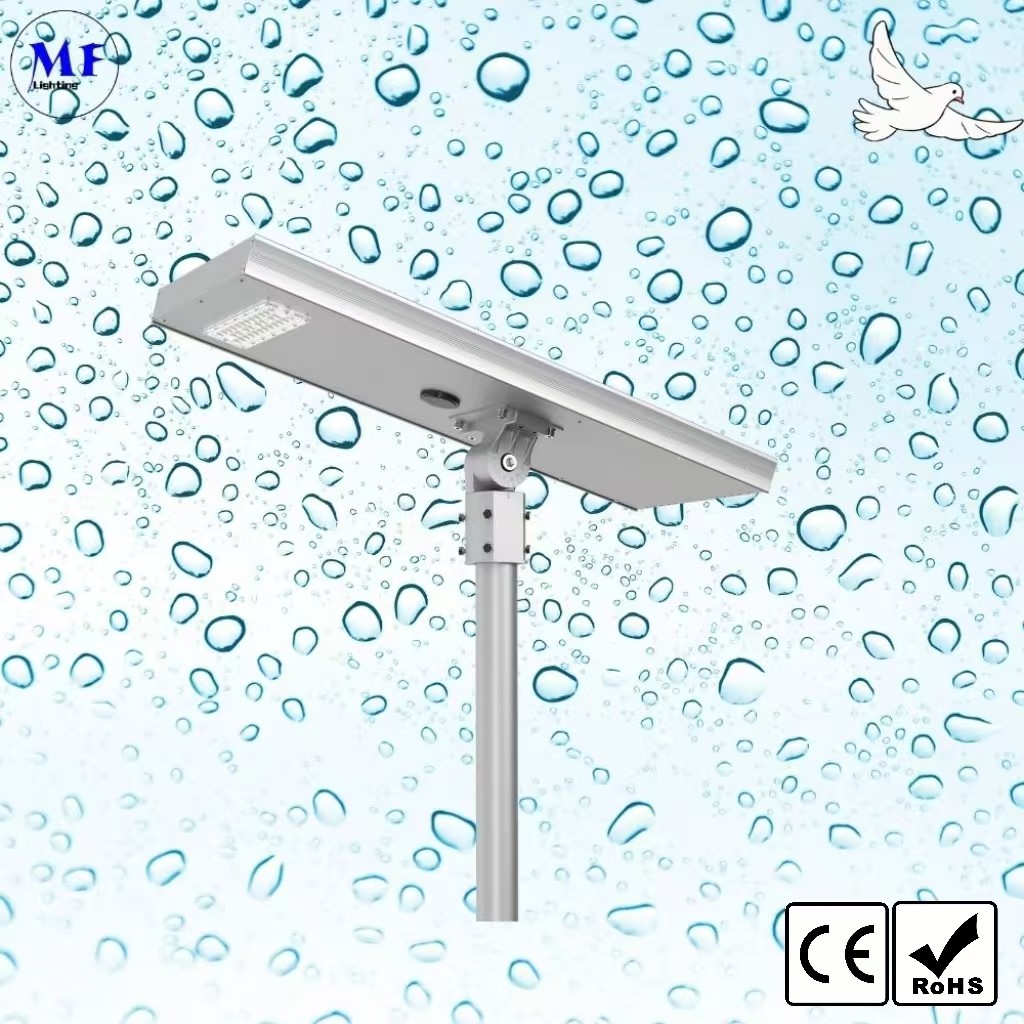

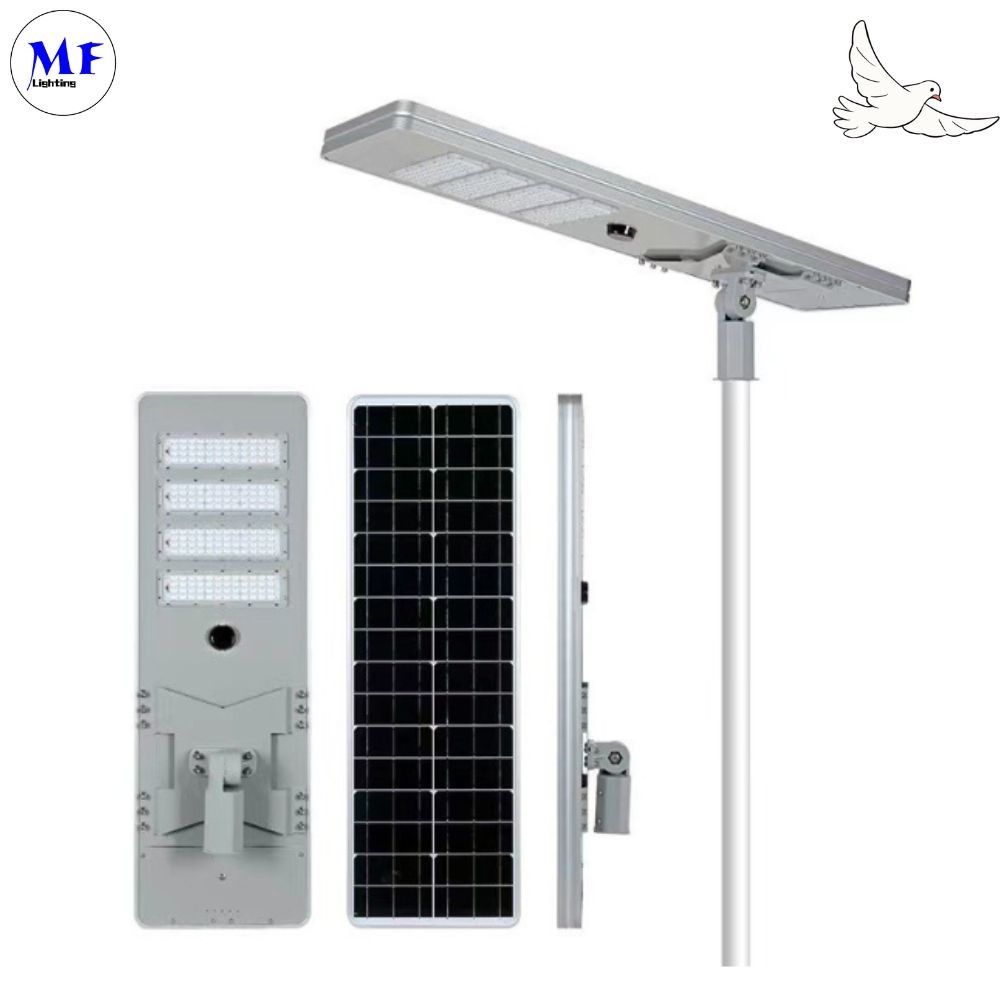

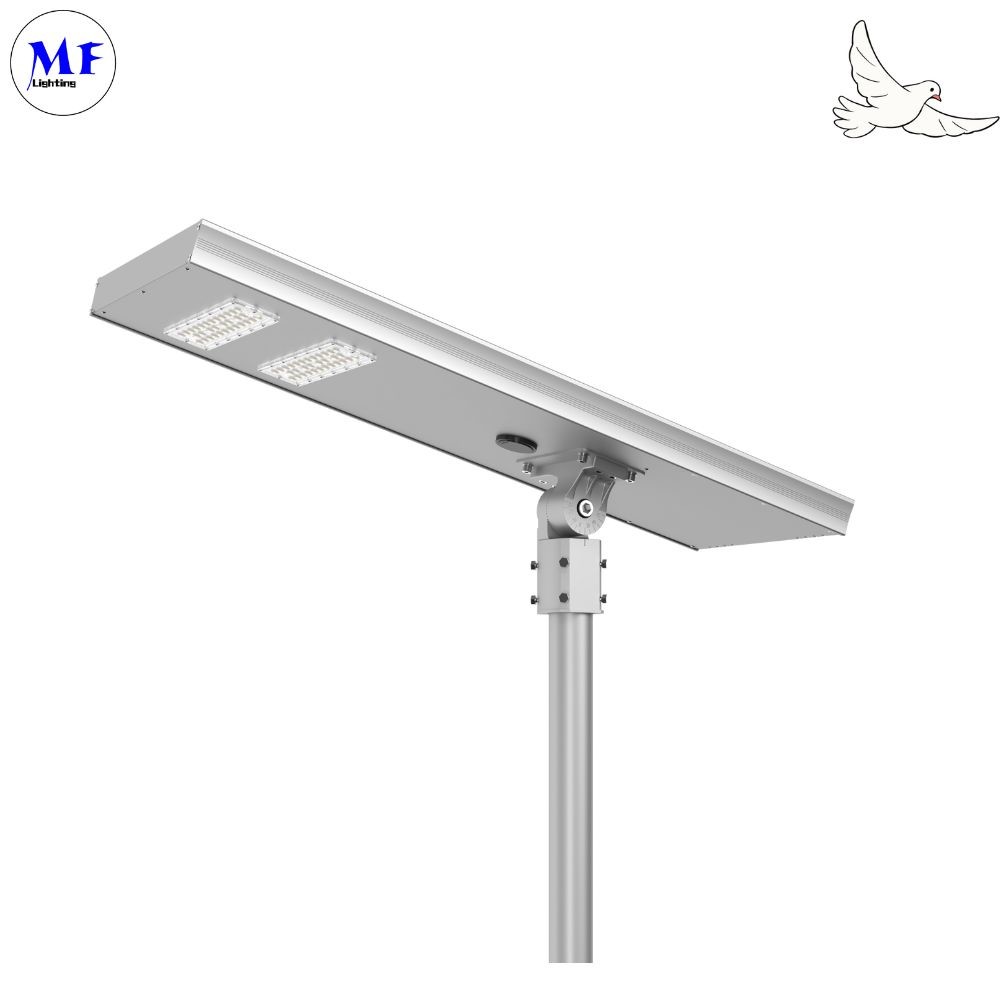

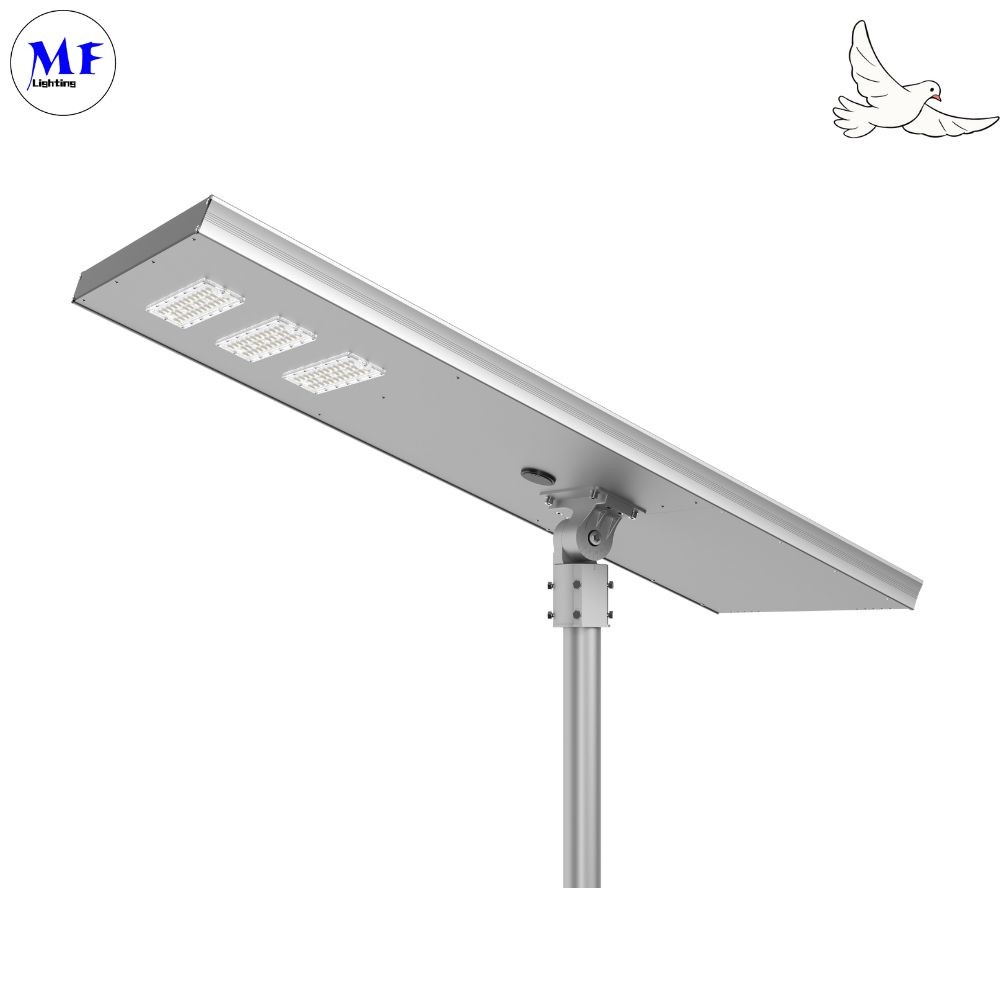

50W IP65 Outdoor LED Solar Street Garden Lighting Waterproof Dustproof 200lm/W 3000K/4000K/5000K/6500K For Riverside

1. Charging duration: Approximately 7.1 to 7.2 hours (standard).

2. Optional external charging interface with external power switch (additional configuration required).

3. Integrated/external grid complementing power supply.

4. Illumination choices: T203, T212 (T2M), T304, T402, T502;

5. The controller incorporates IP67 waterproof connectors for convenient assembly and disassembly. An IP65 waterproof switch guarantees minimal energy usage during transportation.

Advantages of MF All in One Solar Garden Light

1. Aerospace-grade aluminum profile frame, offering robust corrosion resistance and lightweight properties
2. Akzo powder coating subjected to a neutral salt spray corrosion test for 1000 hours;
3. Utilizing the 5050 LED chip, providing exceptional light output of up to 210lm/W;
4. Enhanced light distribution for a more uniform illumination, reducing upward light pollution.

Multiple Distribution Options

* Due to working temperature and CCT/CRI adjustments, actual photometric values may vary slightly. Please consult the measured IES file

for accurate data. The above information is for reference purposes only.

For power outputs ranging from 20W to 80W, the driver is housed within the battery box as part of the standard configuration. In contrast, for power outputs between 100W and 120W, the driver is positioned outside the battery box in the standard setup.

The standard configuration does not incorporate the Hybrid Grid Power Solution, which allows for a replaceable internal power supply to smoothly transition between mains electricity and battery power depending on voltage thresholds.

Smart Control Ready For Efficient Management
Application of Typical Networking of smart street light (optional)

Single lamp control

Control street light switch, brightness adjustment, current acquisition. Voltage acquisition, power calculation and power factor functions.


Wireless network

From the device to the cloud, NB-IoT, GPRS, LTE and other cellular networks are used, without cabling.


Fault management

The street light can automatically report fault information, troubleshoot faults through the plaorm, and query historical faults.


Energy management

Supports online monitoring and storage of energy consumption and configuring energy saving policies.


Intelligent monitoring

Support remote monitoring and remote control through PC web and mobile APP


Big data analysis

Based on the massive data of the platform, street light fault analysis and energy consumption analysis can be carried out to provide a basis for the maintenance of street light equipment to save energy and reduce consumption

Application Reference:
• Road & street lighting
• Residential area ligthing
• Garden, parks & perimeter lighting
• Parking lot lighting
• Industrial and commercial park lighting
• Railway & station side lighting
• Riverside & jogging track lighting

Parameter Table (1)

Parameter Table(2)
