Self-Detect LED Emergency Driver Panic Light Ballast Compatible IP20 Constant Power Multi-Protection 1-3h Customizable Li-ion FEP04 Ni-CD With 3-Year Warranty

Product Description

Self-Detect LED Emergency Driver Panic Light Ballast Compatible IP20 Constant Power Multi-Protection 1-3h Customizable Li-ion FEP04 Ni-CD with 3-Year Warranty

Features:

1. Multiple safety protection

Over-charging/over-discharging/over-loading/short-circuit protection

Comply with CE/RoHS international certification standards

Fireproof material shell, IP20 protection level

2. Intelligent energy-saving design

0uA standby power failure, zero static power consumption.

Self-test function supports monthly/yearly automatic test

3W-12W adjustable power, adaptable to different lamps and lanterns needs

3. Flexible and compatible configuration

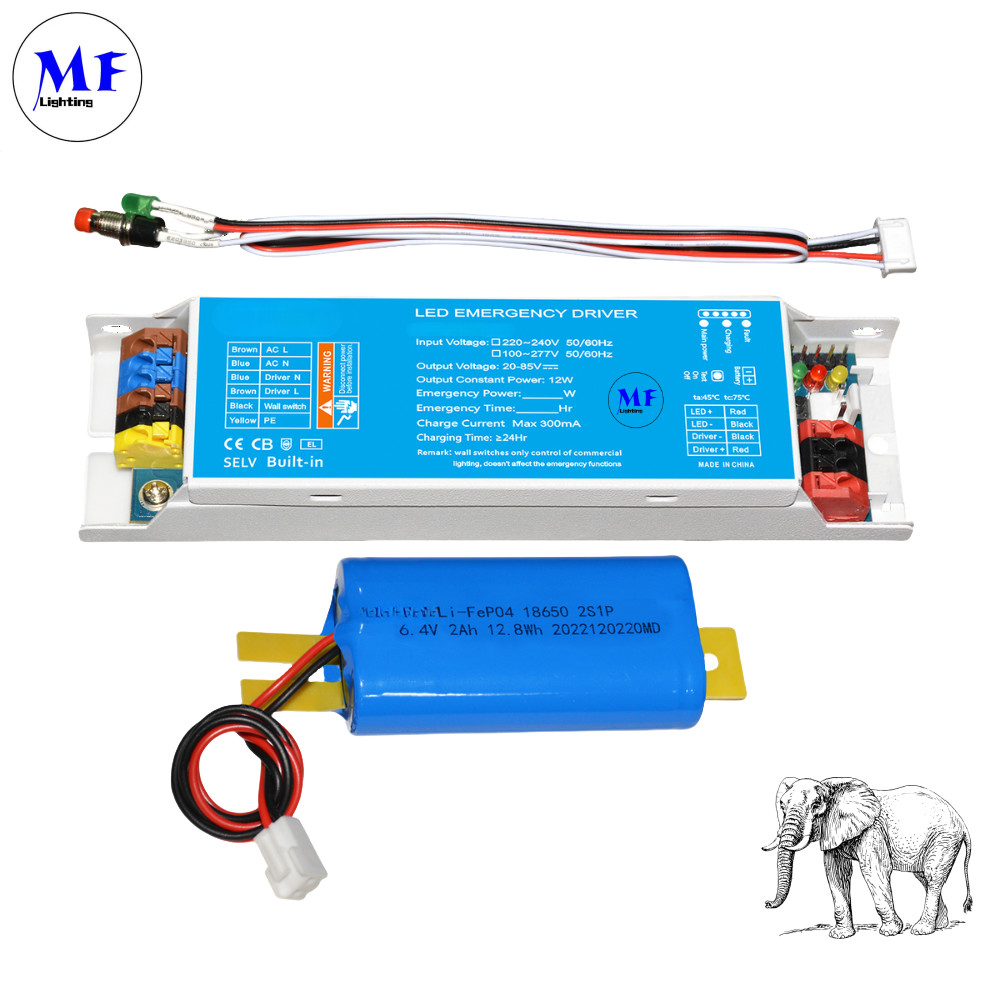

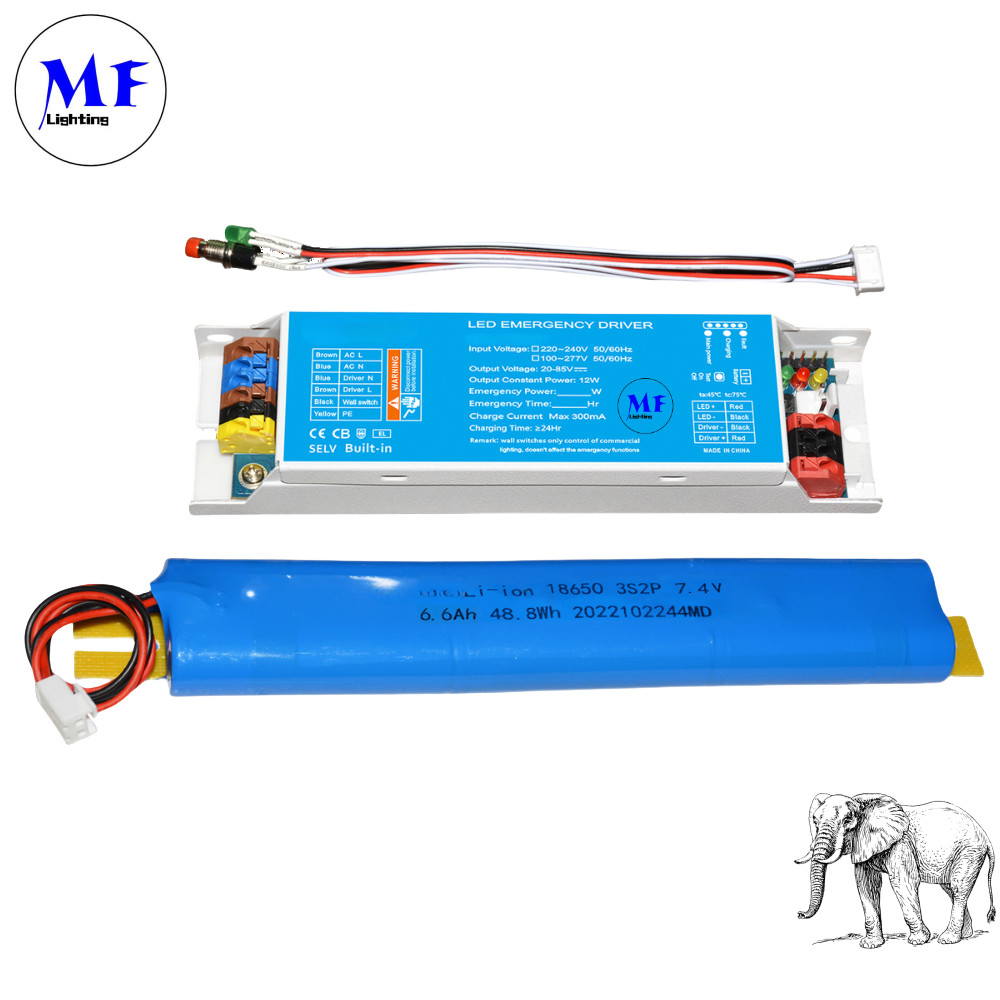

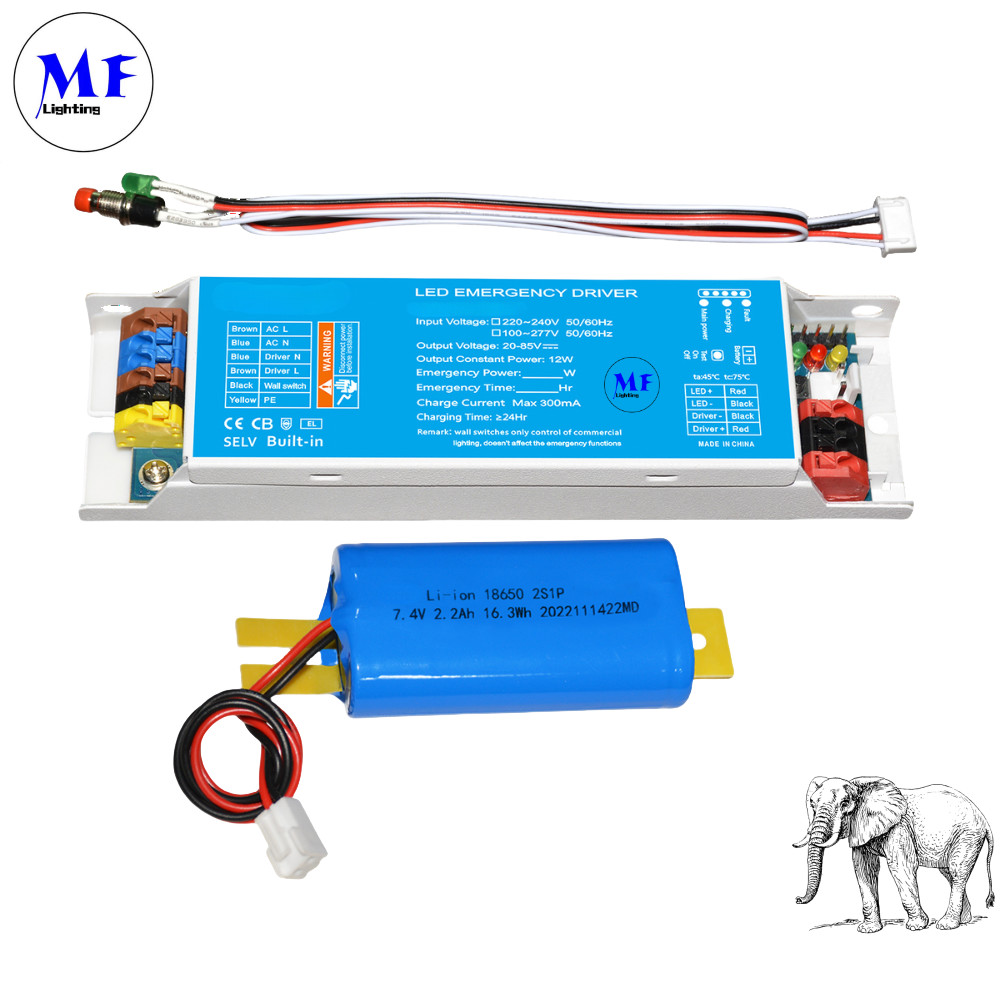

Support Li-ion/Li-FeP04/Ni-CD batteries.

Emergency endurance 1-3 hours can be customised

Adapt to external LED driver, ready to install and use

Key advantages:

1. Comprehensive Safety Guarantee

Quadruple circuit protection

Fireproof shell + IP20 protection, adapt to harsh environments

CE/RoHS certified, in line with international safety standards

2. High efficiency and energy saving

0uA power-off standby, completely eliminating ineffective energy consumption.

Intelligent self-test (monthly/annual/quarterly), reducing maintenance costs

3W-12W adjustable output, accurately matching the needs of the lamps and lanterns

3. Flexible Compatibility and Adaptation

Support Li-ion/Li-FeP04/Ni-CD multi-type batteries.

Emergency time 1-3 hours can be customised to meet diversified scenarios.

Plug-and-play design, adaptable to external LED driver system.

​​

Green indicator light - the battery is fully charged and lights up in green.

Red indicator light-battery charging, when the battery is charged to 85%, the red light turns off and the green light turns on,
and the battery continues to be charged with a trickle until it is fully charged.

Alternately flashing red and green lights - battery failure or battery not present.

Test button

There is mains power,
press the test button once, it will switch to
emergency, and after 3-4 seconds, it will turn to
the charging state of mains power

When the emergency power supply is connected to electricity grid under stable condition, MCU detects that there is power on, and the timer starts counting. Self detection is performed every 90 days. The self dection method is: when the MCU detects that there is mains power for 90 days, the system will automatically cut off the mains power, light will be operating by battery, the duration is the emergency time required by the customer. After the battery is used to supply lamps, the system will automatically switch back to electricity grid supply for lamps and then charge the emergency power supply.

1. Commercial public places

Shopping malls/supermarkets power failure emergency lighting, to protect the evacuation safety

Hospital/school corridor emergency power supply, maintain basic lighting

Hotel/office building safety exit indication system power supply

2. Industrial warehouse environment

Provide continuous light source in case of sudden power failure in factory workshop

Warehouse racking area emergency lighting to avoid operation interruption

Backup power supply for equipment maintenance in power distribution rooms

3. transport infrastructure

Underground platform/tunnel emergency lighting system core drive

Underground car park automatically switch light source after power failure

Power supply for emergency access lights in airport terminals

4. Public recreational venues

Stadium / theatre sudden power outage start backup lighting

Museum/exhibition hall cultural relics area security emergency power supply

Library reading area uninterrupted low-power light source support

5. Special emergency scenarios

Long-term standby power supply for disaster prevention shelters

Laboratory precision equipment sudden power failure protection

Outdoor billboard emergency lighting system drive
