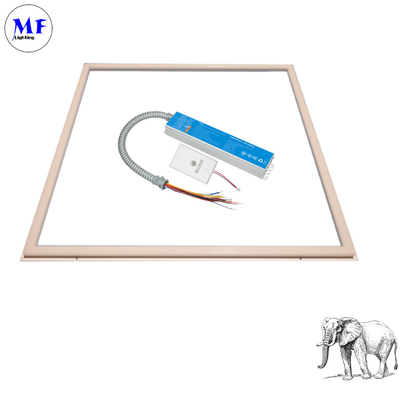

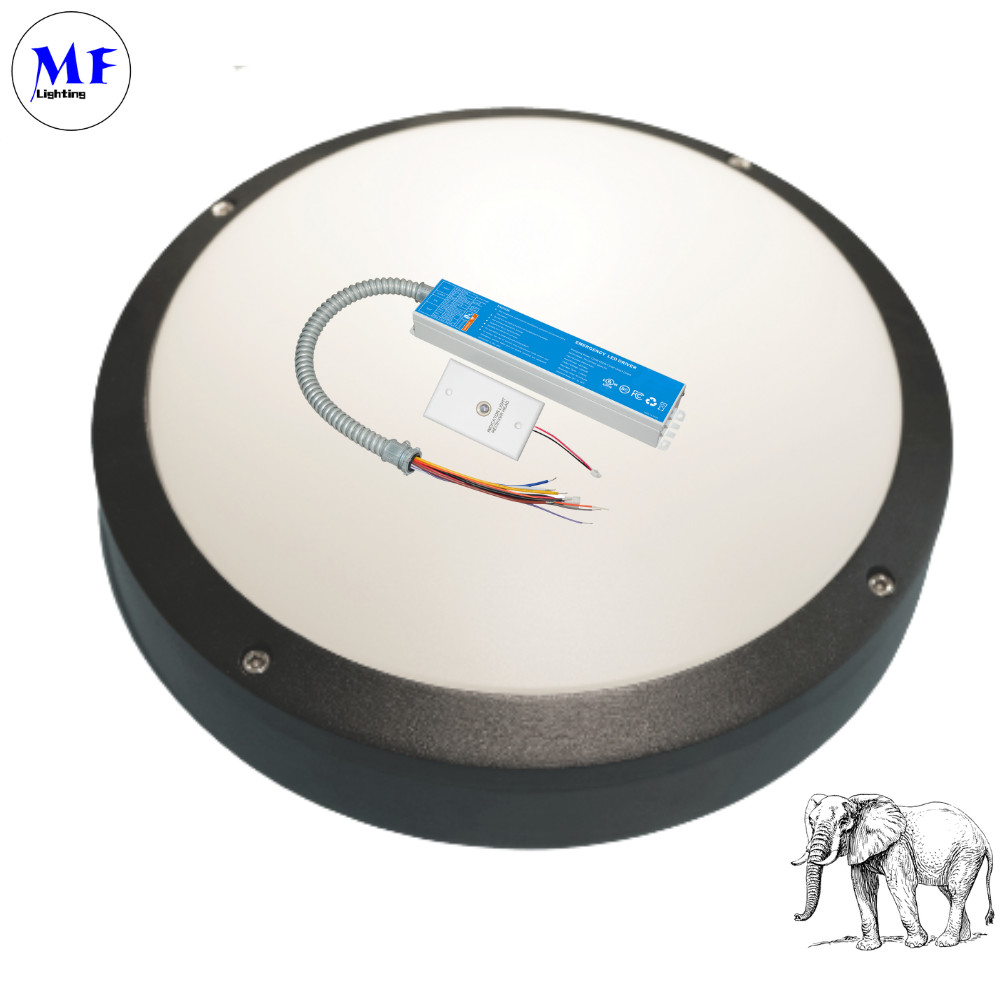

0-10V Dimmable LED Emergency Panic Driver With 90 Minute Discharge Time 5 Year Warranty For Wall Light Panel Light Pendant Light

Product Description

Factory Price UL Listed 0-10V Dimmable LED Emergency Panic Driver with 90-Minute Discharge Time 5Year Warranty for Down Light Highbay Light Tube Light

1.UL Listed for us and canada
2.Listed to UL924 and tested to CSA C22.2 NO.141Field

or factory installation
3.High voltage output
4.Low energy consumption CEC compliance
5.Constant output power

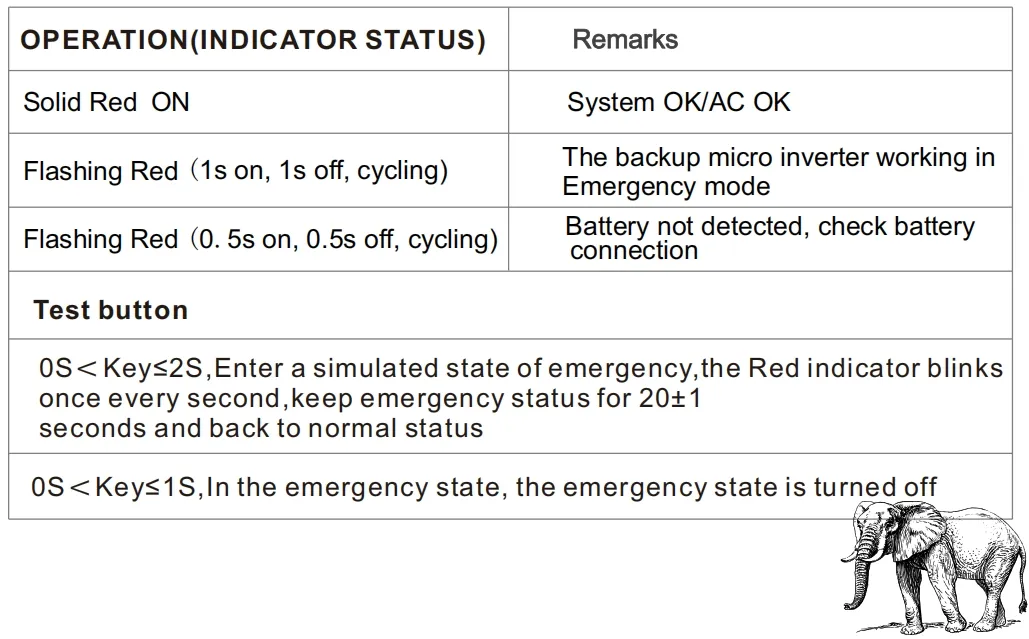

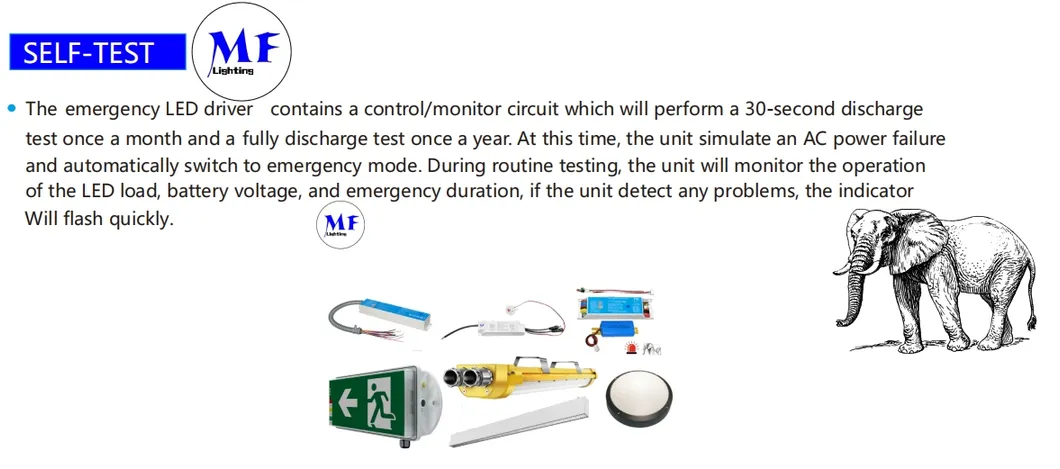

6.Self-testing
7.Battery:over temperature protection

Product Description

Technical Data

Input voltage	100-347Vac, 50/60Hz
Input current	200mAmax
Input Power rating	12W max.
Output Voltage	170Vdc
Emergency Power	15W/25W/30W/40W
Recharge Time	24Hrs
Discharge Time	90minute
Ambient Temp	32~122 F(0....+50 ºC)
Warranty	5 Years
Battery	Li-ion
Weight	:3.66 lbs(1.4kg)

Ordering Information

Emergency power	Emergency Time	Battery
8W	1.5H	Li-ion 2600mAh 7.4V
15W	1.5H	Li-ion 2500mAh-14.8V

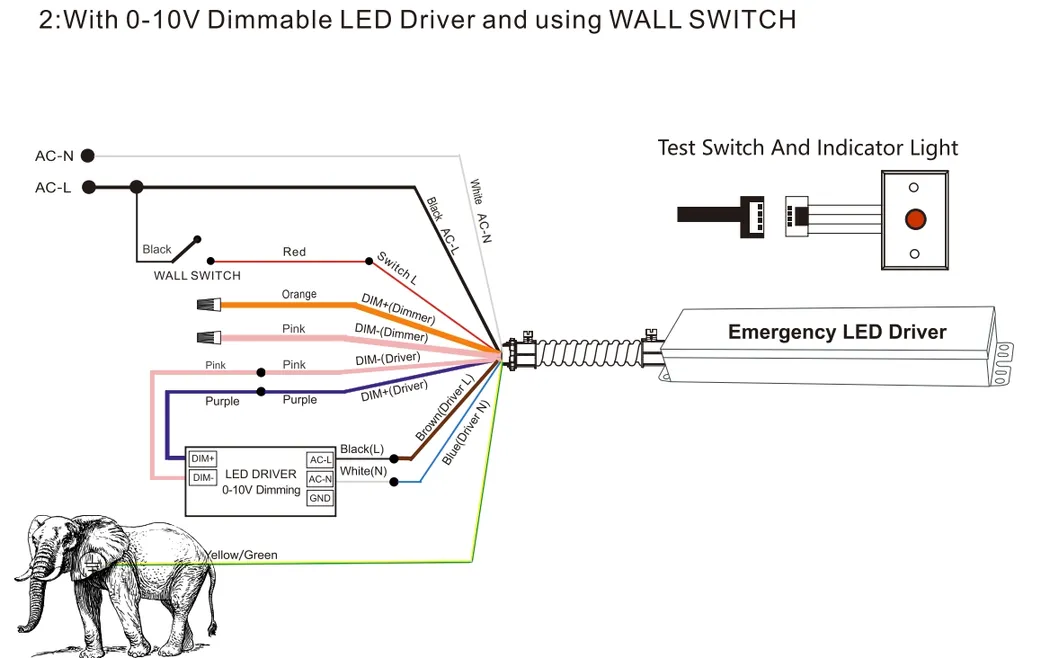

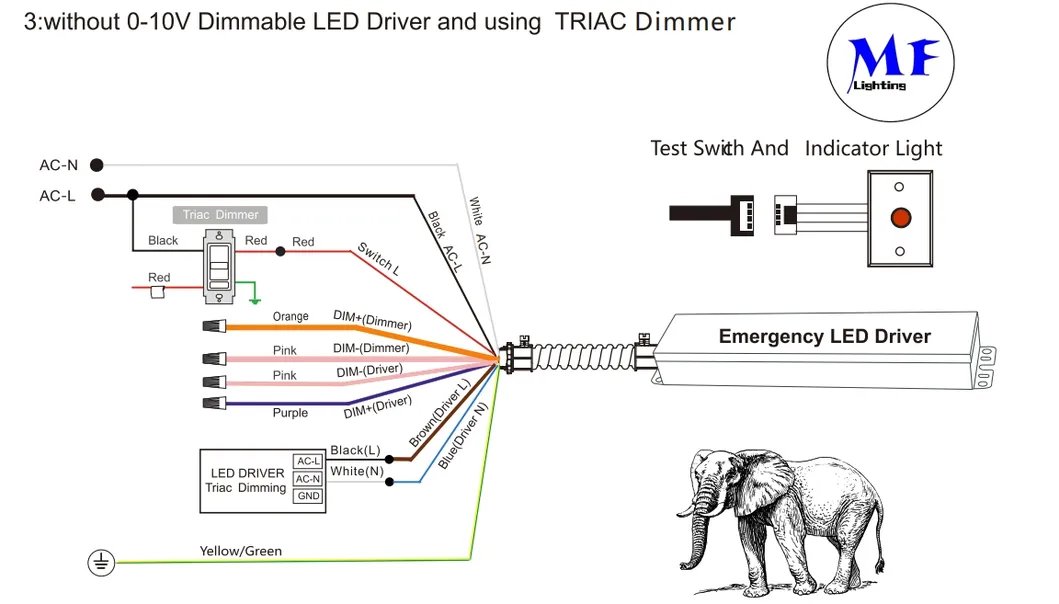

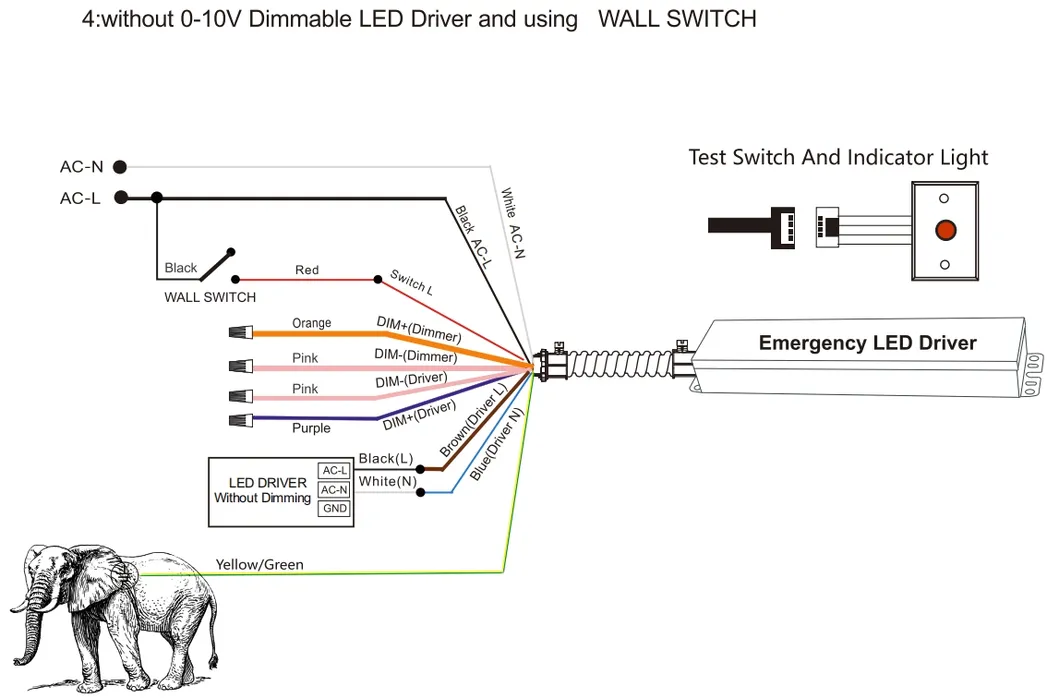

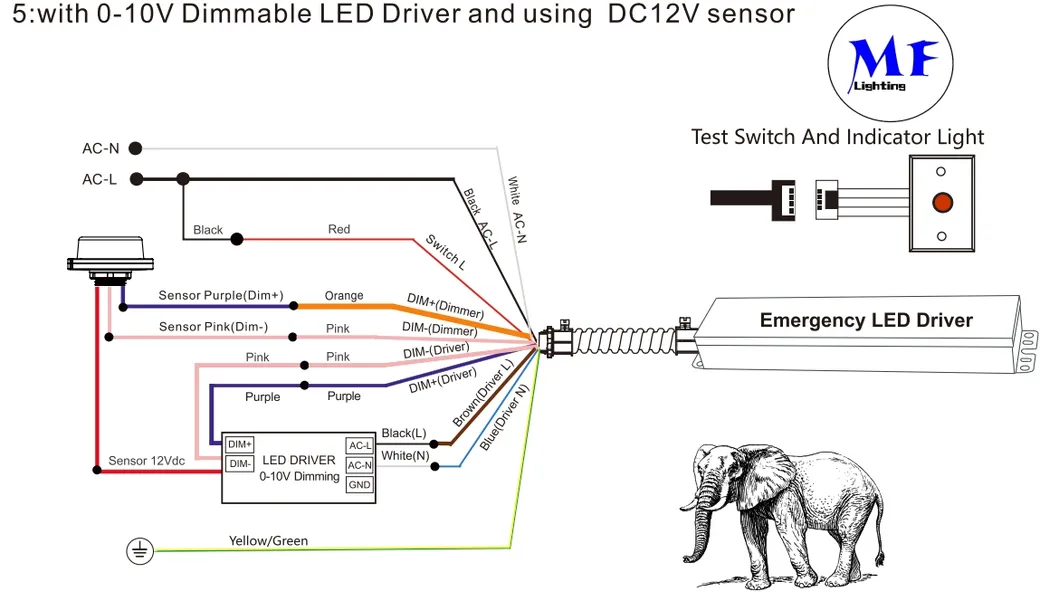

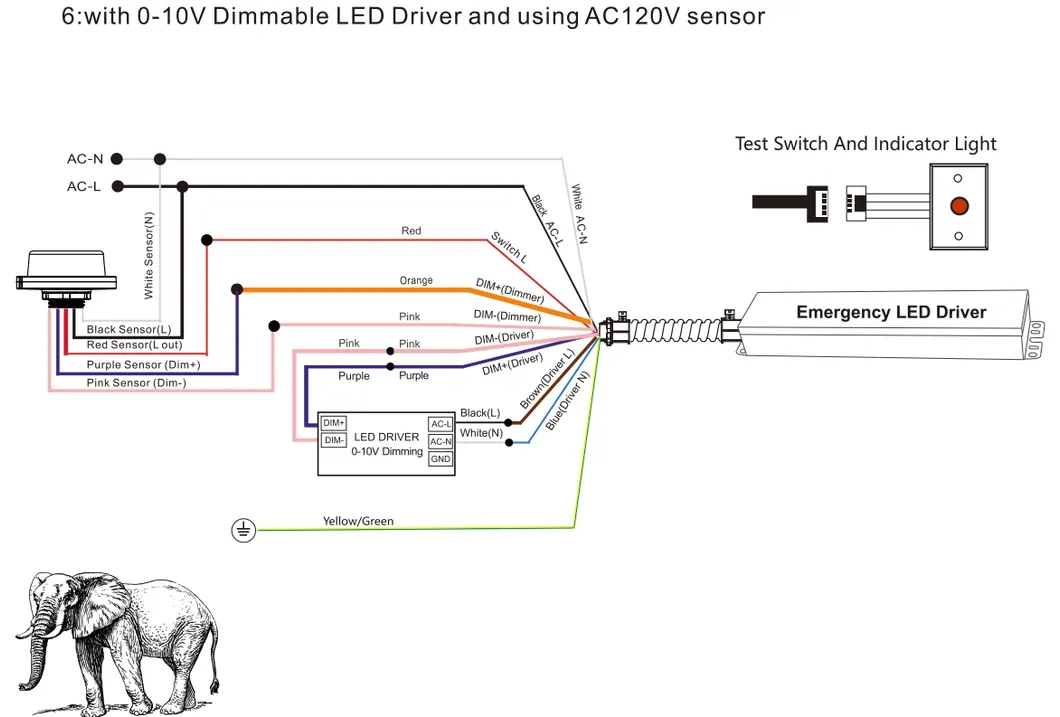

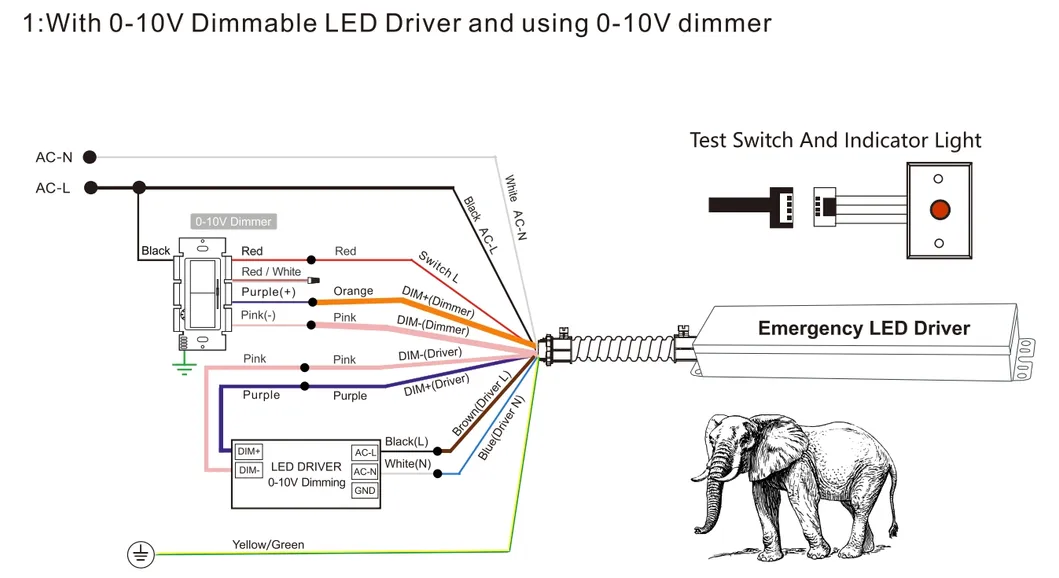

Wiring Diagram:

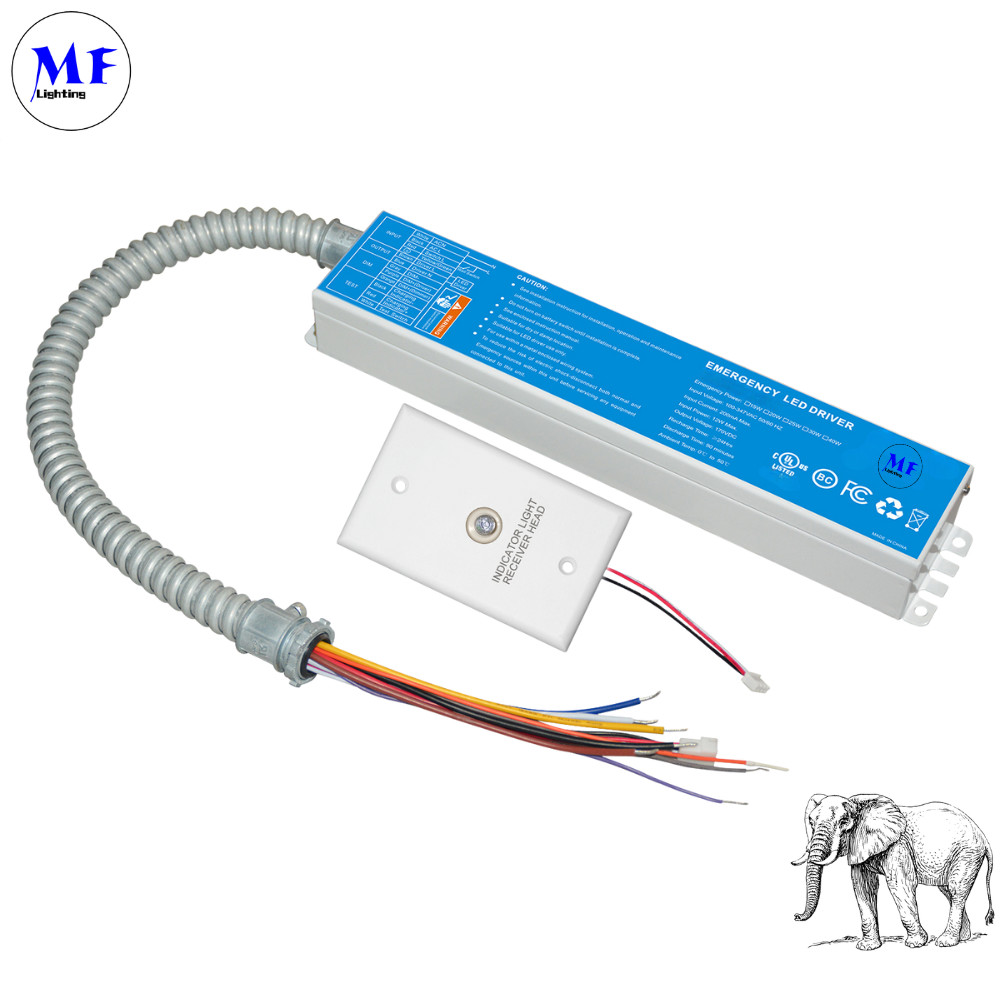

This product is a MF LED Emergency Driver MF-EM-xxW-170 with self - detection, constant - power emergency output, built - in battery and multi - protection functions. It suits for LED fitting with external LED driver. The relevant application scenarios are as follows:
Emergency Lighting for LED Fixtures: When the power is off, it can provide emergency power for LED lights. For example, in case of a power outage in buildings such as offices, homes, shops, and public facilities like schools and hospitals, the LED lights equipped with this emergency driver can still work, ensuring basic lighting needs are met.

Application Scenarios:
1.In educational institutions like schools, it ensures students and staff can safely evacuate during a power outage, especially in classrooms, corridors, and stairwells.
2.For hospitals, where continuous lighting is crucial for patient safety and medical operations, this emergency driver powers emergency lights in patient rooms, operating theaters, and emergency exits.

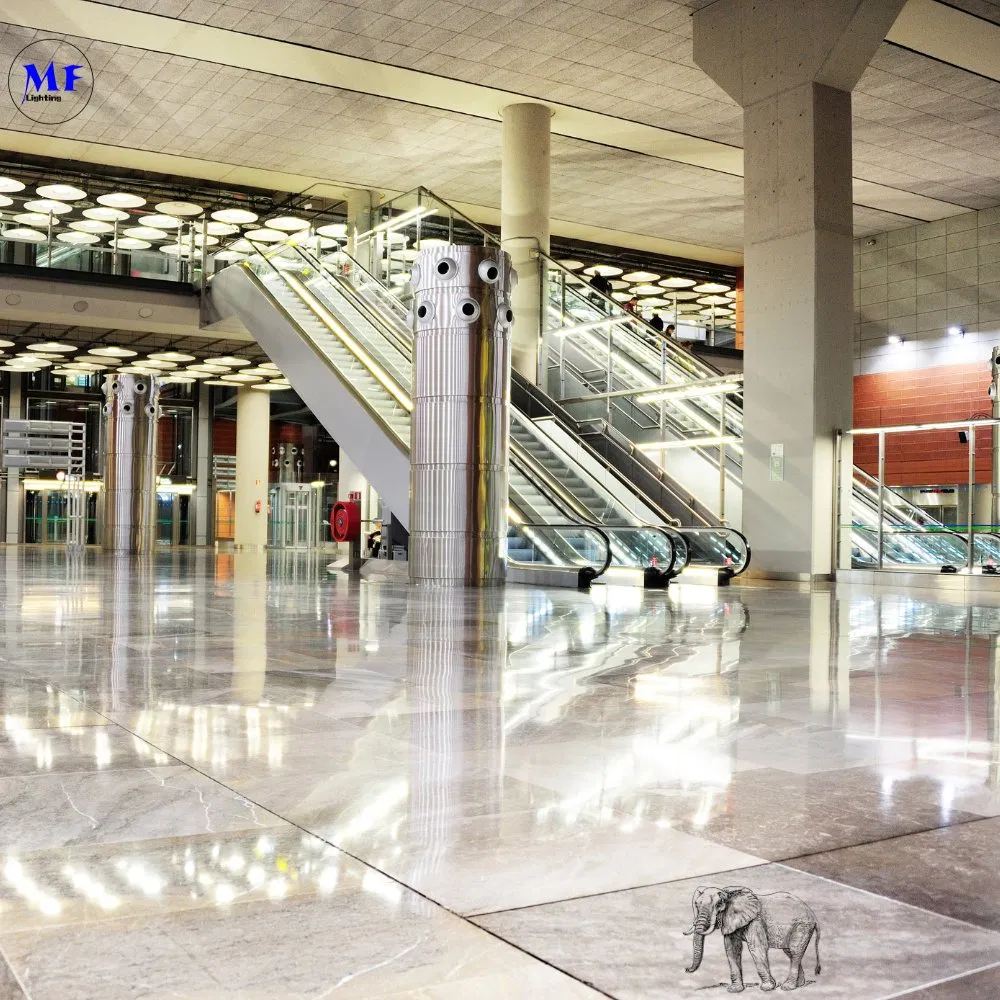

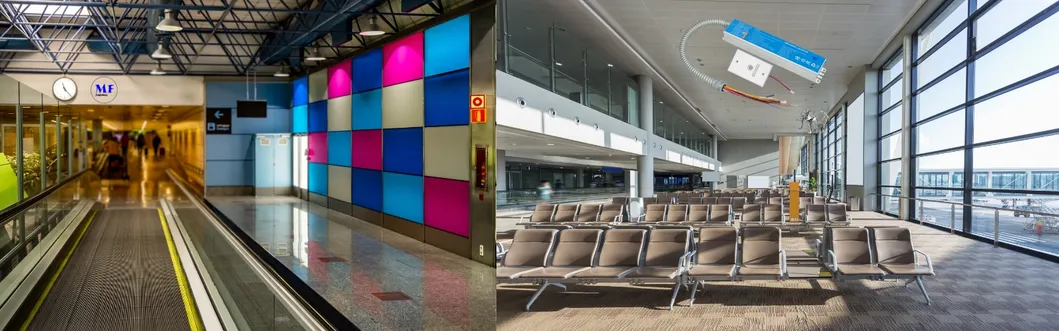

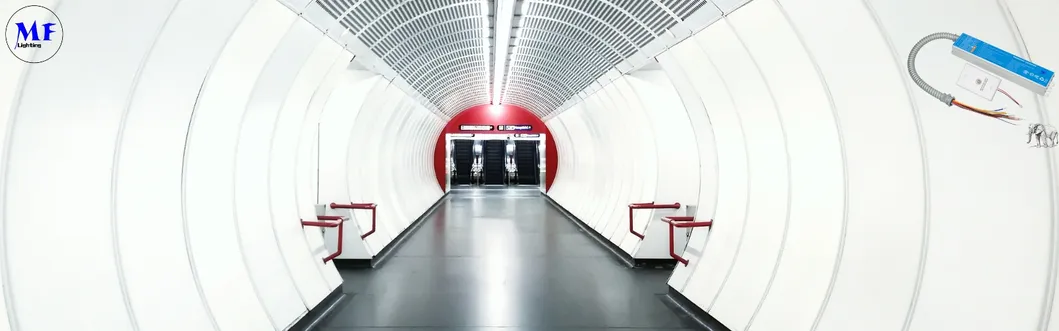

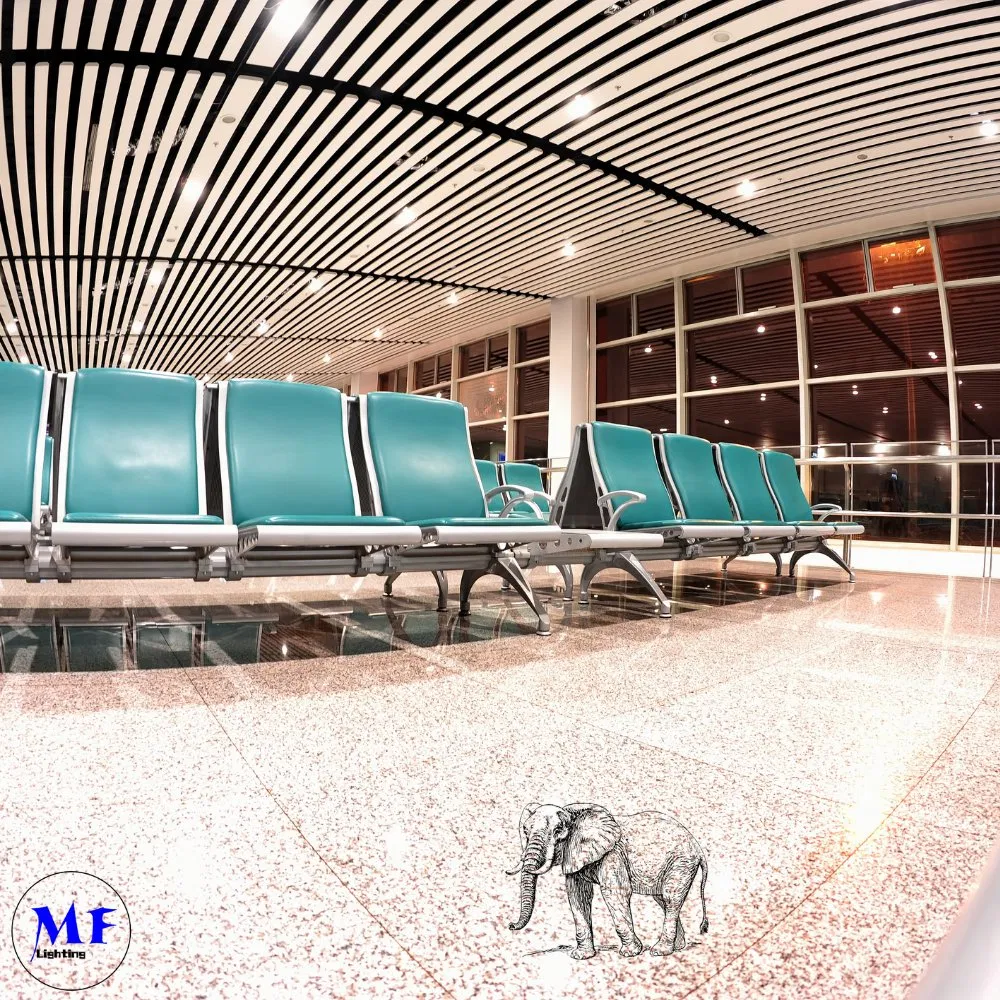

3.In transportation hubs such as subways, train stations, and airports, it lights up exit signs and provides general emergency lighting, helping passengers find their way out quickly during emergencies.
4.Shopping malls and supermarkets benefit from it as well. During power failures, it illuminates aisles, exits, and emergency exits, ensuring the safety of shoppers and employees.
5.Offices, factories, hotels, basements, and parking lots also rely on this product. In offices, it allows employees to safely leave the building; in factories, it prevents accidents during power outages; in hotels, it helps guests evacuate; and in basements and parking lots, it provides necessary lighting for people to move around safely.
6.In all public places, this emergency driver is essential for powering emergency lights, exit sign lights, and emergency exit lights. These lights include exit sign emergency lights, emergency LED lights, LED emergency lamps, as well as rechargeable emergency lights, battery backup lights, and emergency lamps.
