LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

Contact Now

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light

Minimum Order Quantity :	1pcs	Price :	USD
Packaging Details :	Carton	Delivery Time :	5-8working days
Payment Terms :	L/C, T/T, D/A, D/P, Western Union, MoneyGram	Supply Ability :	10000PCS/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-EMUFO-XXW-170

Detail Information
Universal Input Voltage:	100-277VAC/347VAC 50/60Hz	AC Input Current:	200mamax
Input Power Rating:	12W Max	Output Voltage:	170
Emergency Power:	25W/30W/40W	Recharge Time:	24hrs
Discharge Time:	90 Minute	Battery:	Li-ion
Ambient Temp:	32~122f(0~50°c)	Weight:	5.10 Lbs(2.2kg)
Highlight:	Triproof Light LED Emergency Driver , IP66 LED Emergency Driver , Ballast LED Emergency Driver

Product Description

High Bay Light LiFePO4 Battery Back Up IP65 15W-3H/20W-2H/30W-1.5H Discharge Time Self-detect LED Emergency Driver Power Supply Emergency Conversion Kit

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 0

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 1

descriptions:

self-detect
constant power emergency output
apply to constant current driver external lighting products
LiFePO4 using together
battery: over-charge/discharge protection and short circuit protection
working environment: temp.: 0 to 60°C
IP65 standard
not suitable for high risk lighting environment
Accessories: integrated waterproof button and indicator light, remote control
3years warranty

Input voltage	220-240Vac, 50/60Hz
Input current	0.003A Max. @230Vac
Charging power:	5.0W max.
Power factor	>0.5
Emergency output Voltage	DC100-260V,DC300V Max.
Emergency output Current:	58-150mA/ 75-200mA/115-300mA
Case temperature	to 60ºC Max.
IP Rating	IP 65
Warranty	3 Years
Battery Data	Li-ion 2.6Ah 7.4V
Discharging time&Power	5W 3H

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 2

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 5

LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second

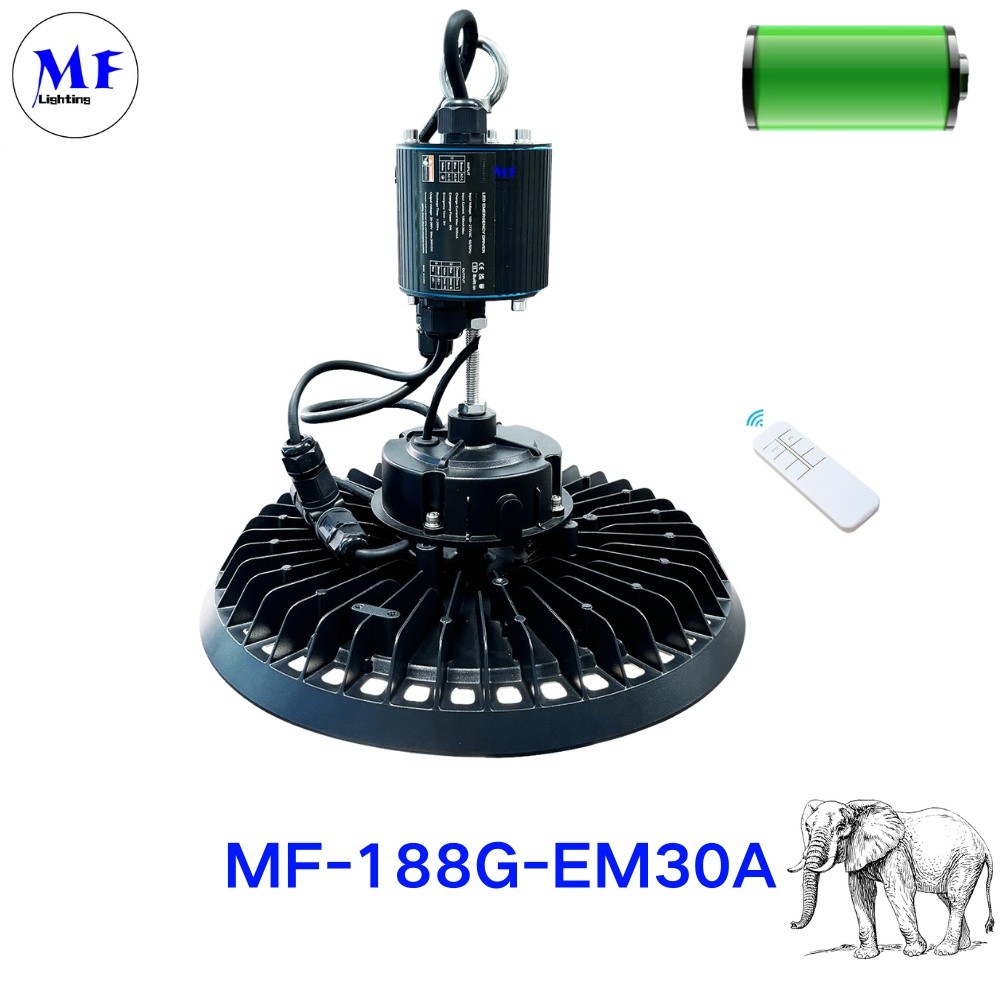

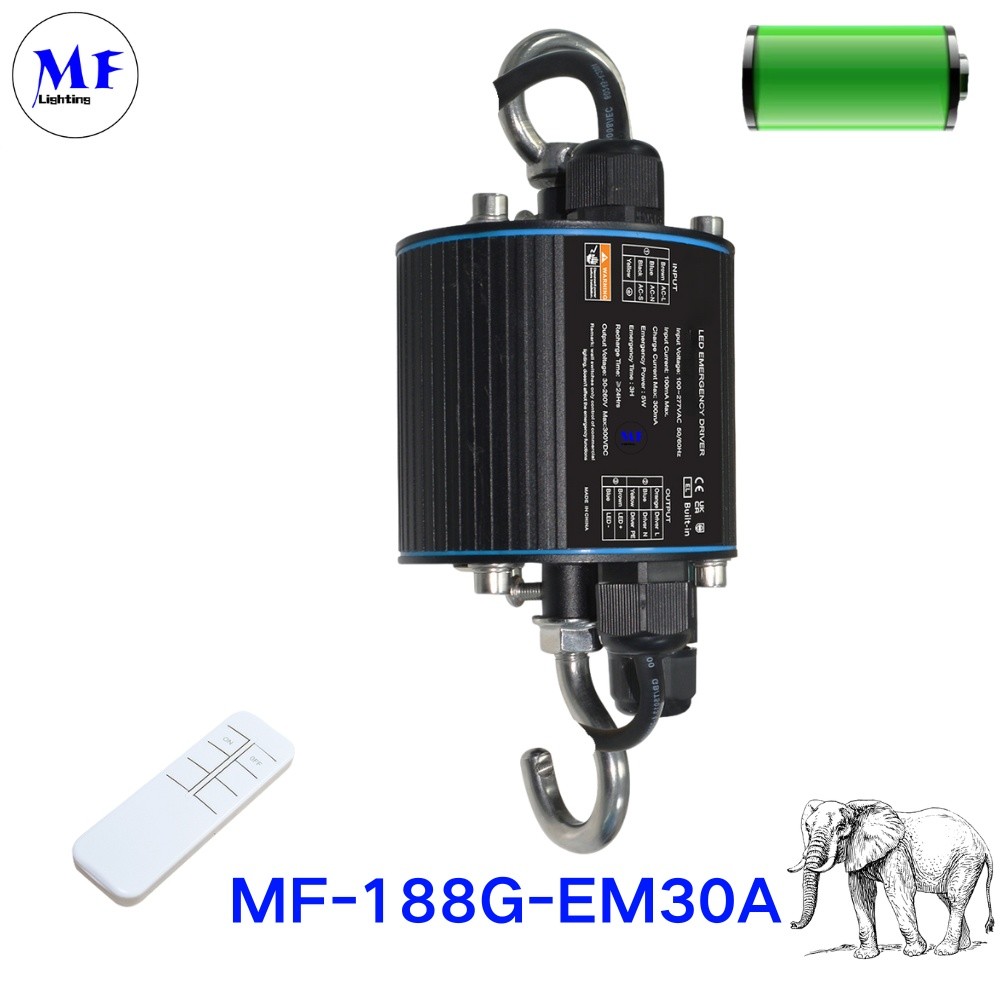

Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.

Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 6

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 8

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 9

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 11

Application:
school,hospital,subway,train station,shoppingmall,supermarket,airport,office, factory,hotel,basement,parking lot,public place

LED Emergency Driver Battery Back Up IP66 Backup Ballast for High Bay Light Triproof Light 12
