Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect

Contact Now

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect

Minimum Order Quantity :	1pcs	Price :	USD
Packaging Details :	Carton	Delivery Time :	5-8working days
Payment Terms :	L/C, T/T, D/A, D/P, Western Union, MoneyGram	Supply Ability :	10000PCS/Month

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-188G-EM30B

Detail Information
Universal Input Voltage:	100~277VAC, 50/60Hz	AC Input Current:	100mA Max.
Charging Current:	0-350mA .	IP Rating:	IP 65
Case Temperature:	To 60ºC Max.	Charging Power:	5.0W Max
Working Environment:	0 To 60ºC	Charging Time:	≥24hours
Discharging Time&Power:	5W 3h	Battery Data:	Li-ion 2.6ah 7.4V
Highlight:	IP65 LED Driver , Battery Back up LED Driver , Emergency Conversion Kit LED Driver

Product Description

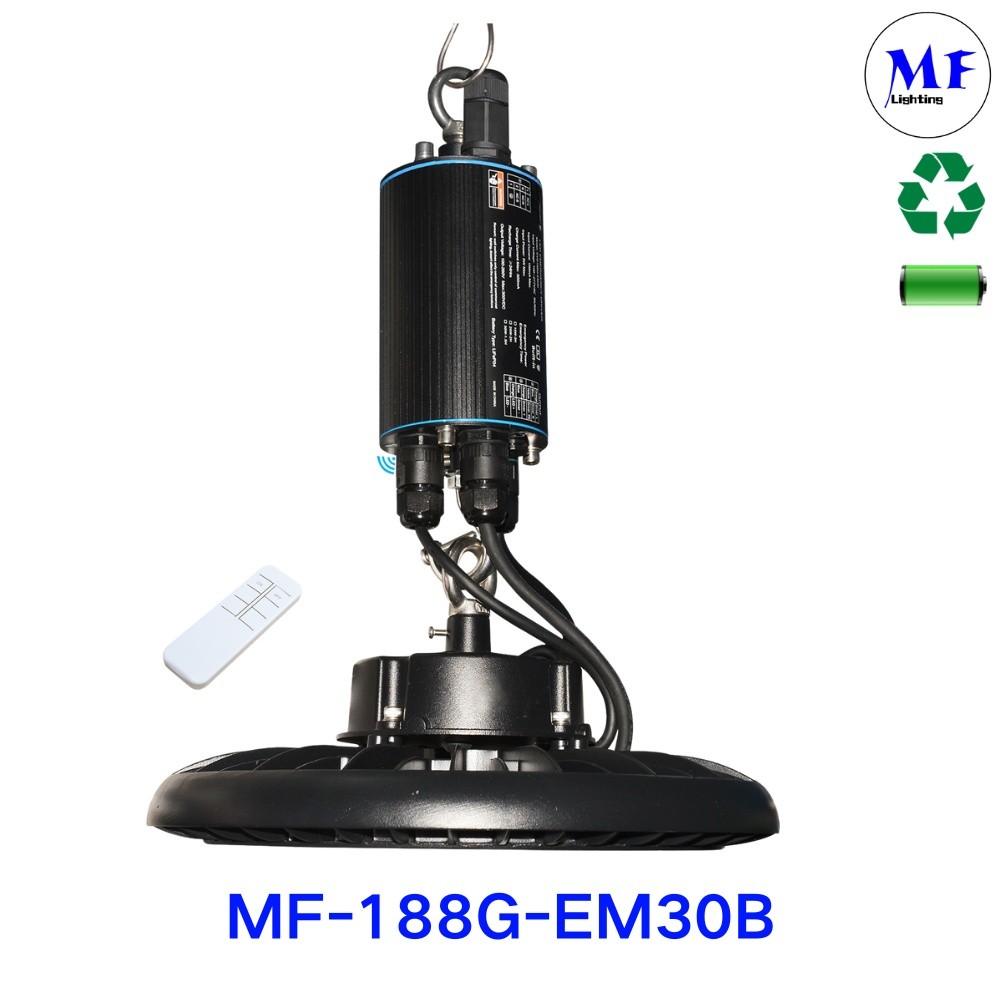

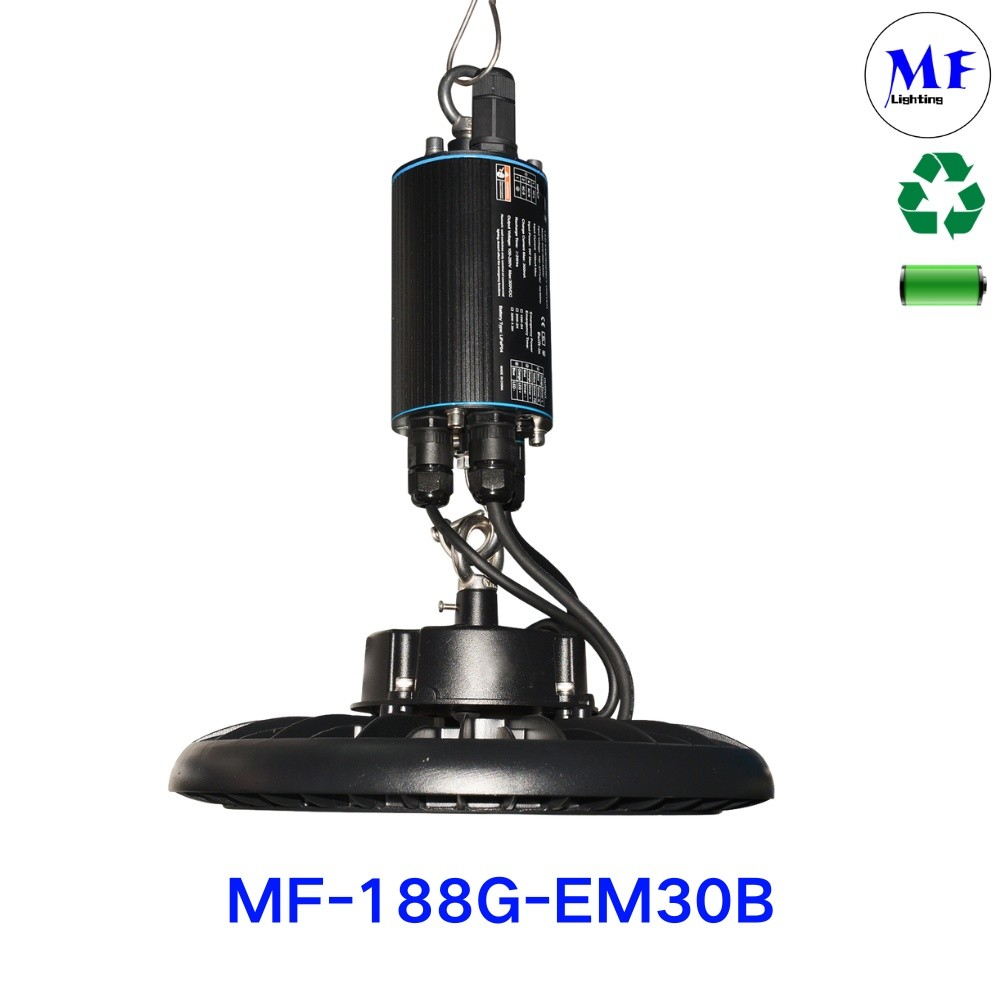

EMERGENCY LED DRIVER FOR UFO HIGH BAY LIGHT

The battery is built-in and can be matched with ternary lithium batteries or lithium iron phosphate batteries. Input: AC220-240V, 50-60Hz. Output: DC20- 260V.
It is suitable for indoor and outdoor hanging lamps such as industrial and mining lamps and UFO lamps with an external driver output current ≤ 3A (for detailed parameters.

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 0

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 1

Descriptions:

Have authorized CE certificate

With infra red wireless remote control

Constant power output

High voltage output

Charging and dis-charging protection function and over heat temp. protection

Mock-up electricity pause emergency testing function

Can be power off under emergency status Indication light: city grid electricity

Seasonal self detect function

Protection functions: over voltage, short circuit, over load and open circuit

Metallic housing, comply EMC, FCC and C-tick ordinances

IP grade: IP65

Input voltage	100-277 Vac 50/60Hz
Input current	0.003A Max.@230Vac
Input wattage	<5.0W
Power factor	≥0.5@230 Vac
Battery charging current	350mA Max.
Battery charging time	≤24h Max.
Emergency output Voltage	DC100-260V,DC300V Max.
Emergency power	30W/20W/15W
Emergency time	1.5H/2H/3H
Battery	Li-Fep04327006000mAh-9.6V
Storage Temperature	-20-40ºC
Electric Strength	3000Vac 5mA(input to output)
IP Rating	IP65
Maximum shell temperature	75ºC
Warranty	3 Years
Relevant standard	IEC61347-2-7/IEC61347-1/EN55015

Order information

Emergency power	Emergency Time	Battery
5W	1.5H	LiFeP04 1.5Ah 6.4V
8W	1.5H	Li-ion 2.5Ah 7.4V
12W	1.5H	LiFeP04 4.0Ah 6.4V
8W	3H	Li-ion 4.4Ah 7.4V
12W	3H	Li-ion 6.6Ah 7.4V

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 2

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 5

LED indicator:
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
Green flashing: Emergency status one per second

Remote control:
1: 0S < Key ON ≤1S, Enter a simulated state of emergency, the green indicator blinks once every second
2: 0S < Key OFF ≤1S, In simulated emergency situations, return to the normal charging state
3: 0S < Key OFF ≤1S, In the emergency state, the emergency state is turned off.

Self-test:
When emergency driver is on power, every 180 days ±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 6

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 8

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 9

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 10

1:If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided

2:When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.

3:Should be stored in a cool, dry environment.

4:After prolonged storage, recharge at least once every 6 months as needed.

5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 12

This product is a MF LED Emergency Driver MF - 188B with self - detection, constant - power emergency output, built - in battery and multi - protection functions. It suits for LED fitting with external LED driver.

The relevant application scenarios are as follows:
Emergency Lighting for LED Fixtures: When the power is off, it can provide emergency power for LED lights.

For example, in case of a power outage in buildings such as offices, homes, shops, and public facilities like schools and hospitals, the LED lights equipped with this emergency driver can still work, ensuring basic lighting needs are met.

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 13

Battery Back up IP65 LED Driver Inverter Power Supply Emergency Conversion Kit Li-ion 6.6ah 11.1V Chargeable Driver 20W 3h Self-Detect 16
