Product Description

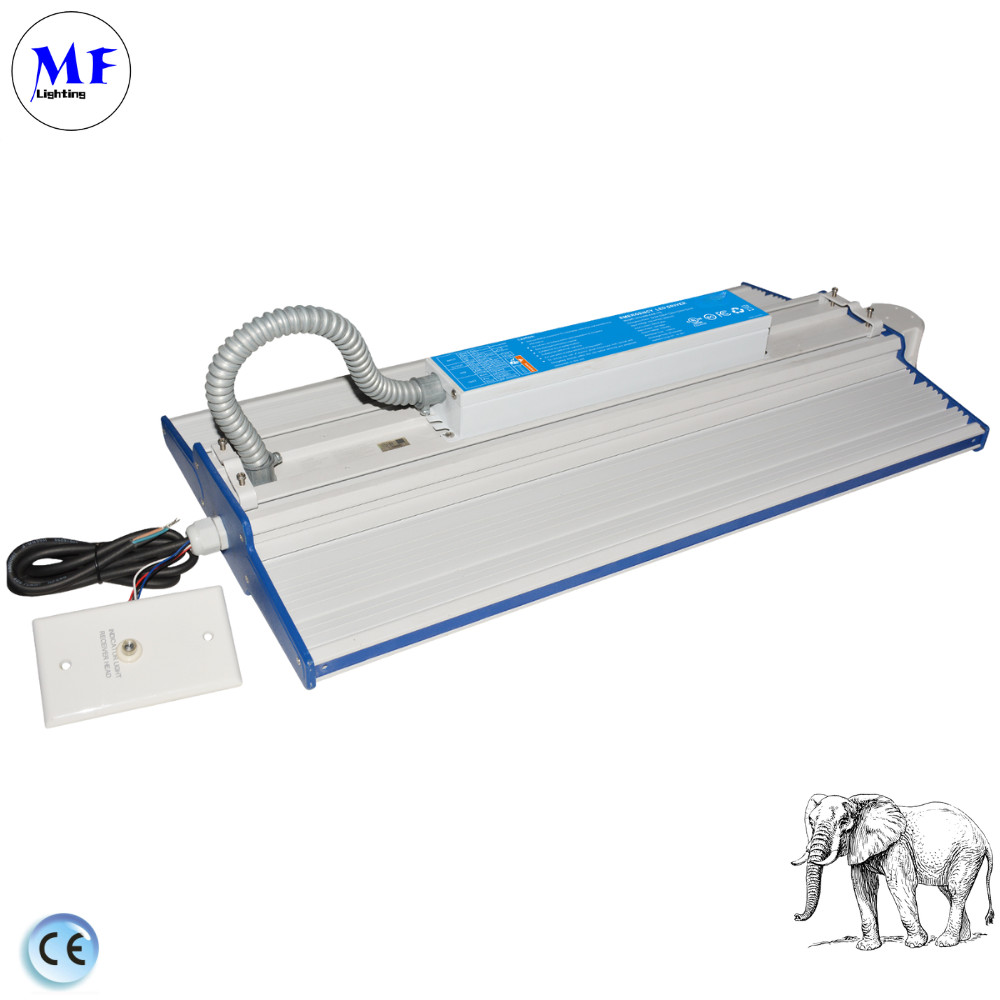

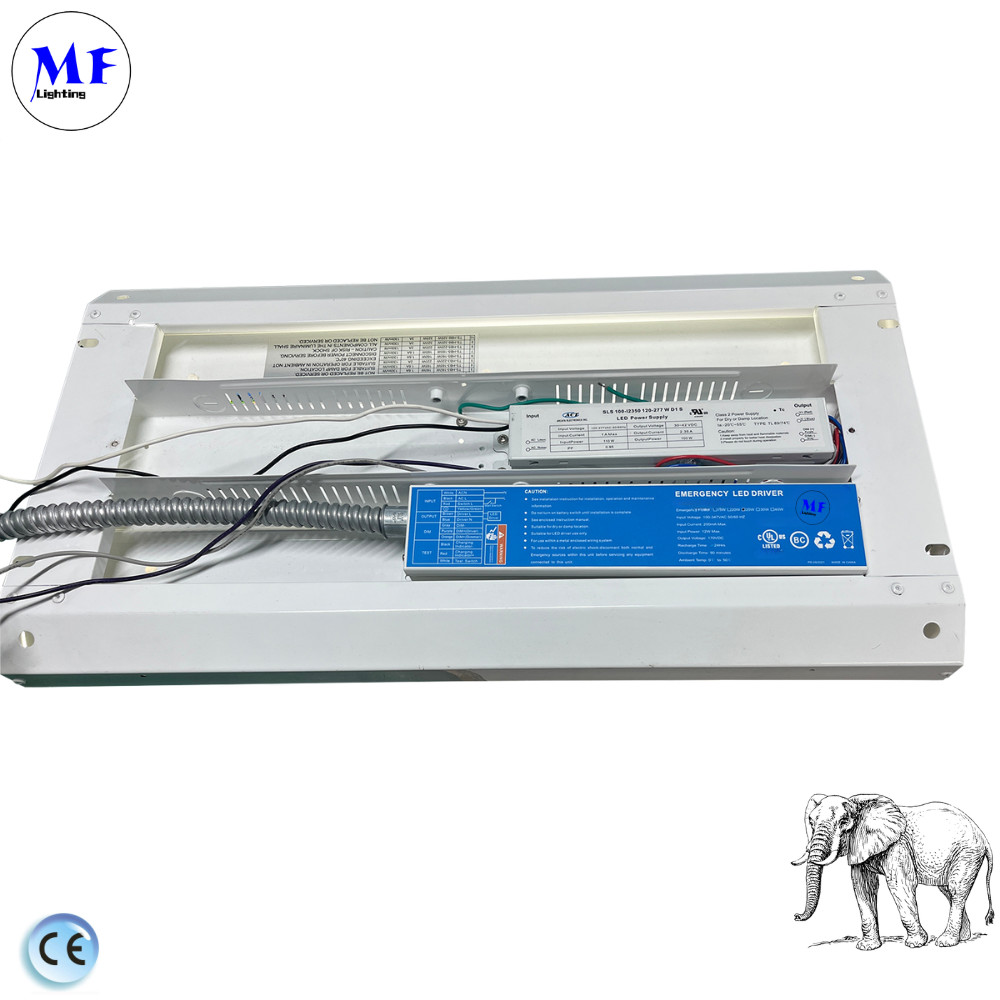

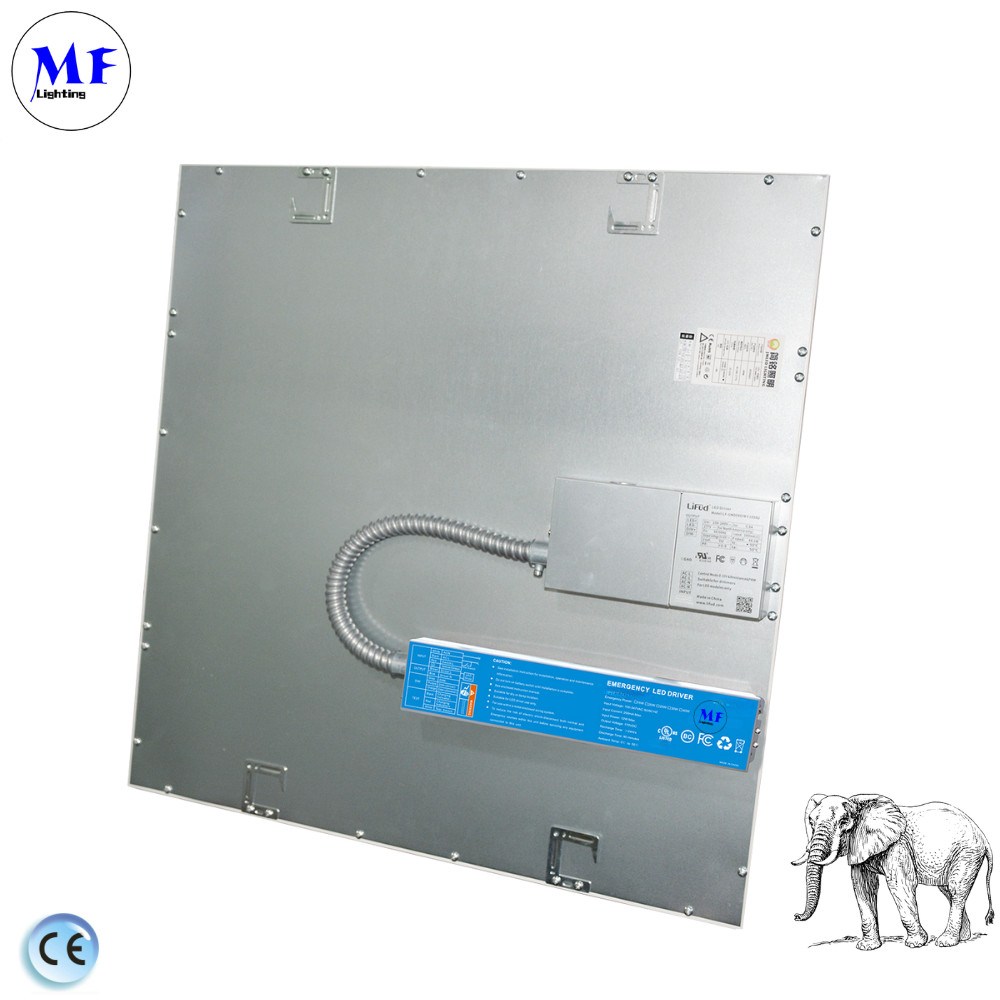

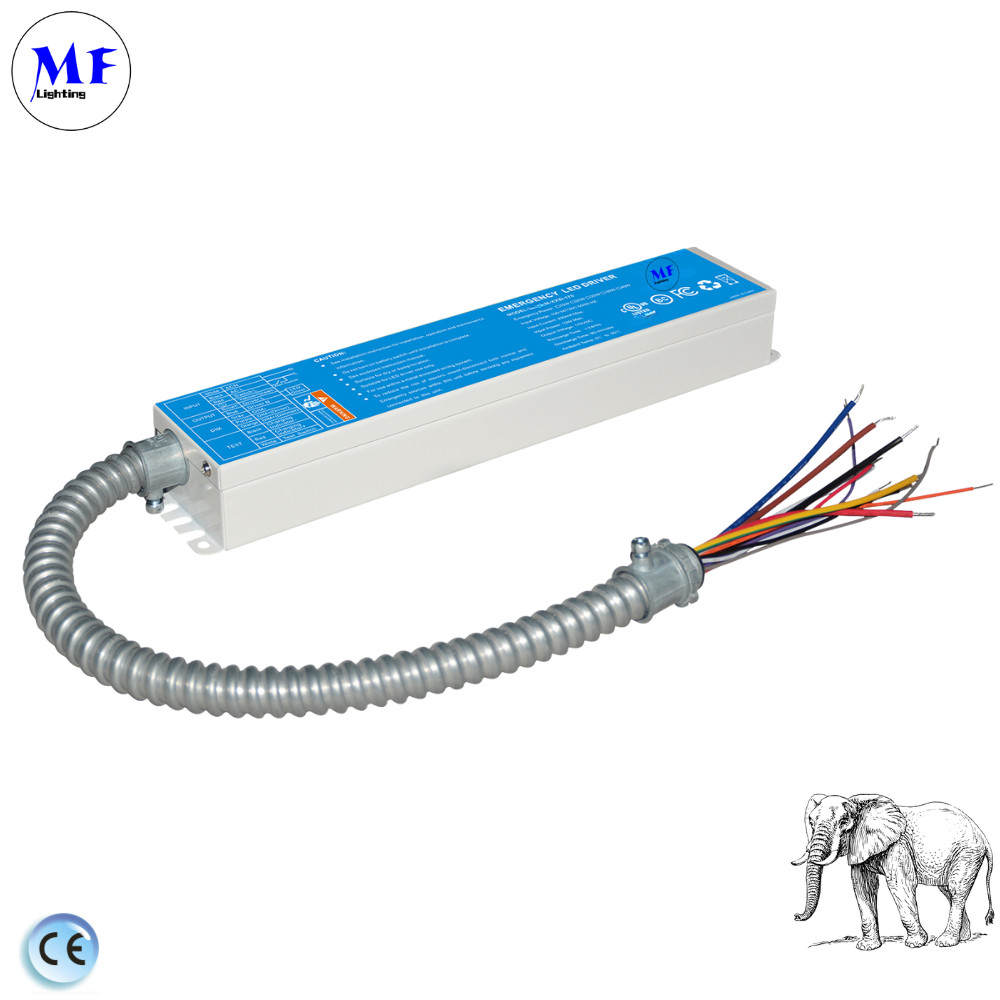

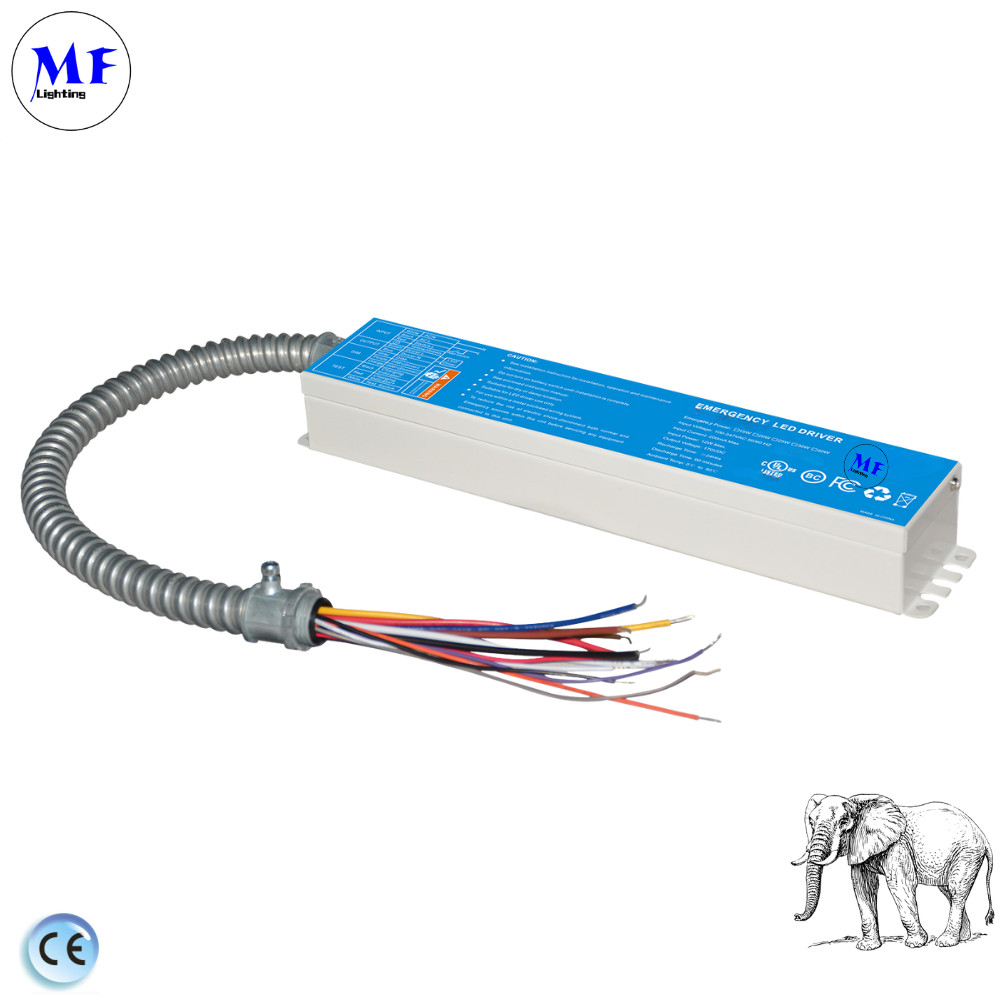

Panic Light Ballast Emergency Drivers 15W 25W 30W 40W for Triproof Light Down Light Ceiling Light Highbay Light Panel Light Wallpack
1.UL Listed for us and canada
2.Listed to UL924 and tested to CSA C22.2 NO.141
3.Field or factory installation
4.High voltage output
5.Low energy consumption CEC compliance
6.Constant output power
7.Self-testing
8.Battery:over temperature protection
| Model NO. |
MF-EM-xxW-170 |
| Input Voltage |
100~347Vac,50/60Hz |
| Input Current |
200mAmax. |
| Input Power Rating |
12W max. |
| Output Voltage |
170Vdc |
| Emergency Power |
15W/25W/30W/40W |
| Recharge Time |
24Hrs |
| Discharge Time |
90 minute |
| Battery |
Li-ion |
| Warranty |
5 Years |
| Ambient Temp |
32~122 F(0....+50 ºC) |
| Weight |
3.66 lbs(1.4kg) |
The contains a control/monitor circuit which will perform a 30-second discharge test once a month and a discharge test once a year. At this time, the unit simulate an AC power failure and automatically switch to emergency mode. During routine testing, the unit will monitor the operation of the LED load, battery voltage, and emergency duration, if the unit detect any problems, the indicator will flash quickly.
1.Listed North America UL cert.
2.Comply UL924 ordinances, CSA C22.2 No.141
3.in-site assembly
4.With 0/1-10V dimming
5.With infra red wireless remote control
6.Constant power output
7.High voltage output
8.Comply emergency saving CEC ordinance
9.Charging and dis-charging protection function
10.and over heat temp. protection
11.Mock-up electricity pause emergency testing function
12.Can be power off under emergency status
13.Indication light: city grid electricity
14.Seasonal self detect function
15.Protection functions: over voltage, short circuit, over
16.load and open circuit
17.Metallic housing, comply EMC, FCC and C-tick ordinances
18.IP grade: IP40
| Model No. |
Output Voltage |
Emergency Power |
Battery Type |
| MF-EM-15W-170 |
170Vdc |
15W |
Li-ion 2500mAh-14.8V |
| MF-EM-25W-170 |
25W |
Li-ion 4400mAh-14.8V |
| MF-EM-30W-170 |
30W |
Li-ion 5200mAh-14.8V |
| MF-EM-40W-170 |
40W |
Li-ion 5000mAh-18.5V |
| OPERATION(INDICATOR STATUS) |
Remarks |
| Solid Red ON |
System OK/AC OK |
| Flashing Red (1s on, 1s off, cycling) |
The backup micro inverter working in Emergency mode |
| Flashing Red (0.5s on, 0.5s off, cycling) |
Battery not detected, check battery connection |
| Test button |
| 0S<Key≤2S,Enter a simulated state of emergency,the Red indicator blinks once every second,keep emergency status for 20±1 seconds and back to normal status |
| 0S<Key≤1S,In the emergency state, the emergency state is turned off |
Healthcare Facilities
Critical backup lighting for hospitals and clinics where uninterrupted lighting is essential for patient care and emergency procedures.
Educational Institutions
Ensures safe evacuation paths in schools and universities during emergencies with 90 minutes of reliable backup power.
Industrial Plants & Warehouses
Rugged design withstands harsh environments while providing emergency lighting for hazardous areas and manufacturing facilities.
Retail Stores & Shopping Malls
Maintains emergency aisle lighting and exit signage to guide customers to safety during power failures.
Public Transportation Hubs
Essential for airports, subway stations and bus terminals where continuous lighting is critical for passenger safety and evacuation procedures.
Residential High-Rise Buildings
Critical for apartment complexes to illuminate stairwells and common areas during blackouts. The 90-minute runtime exceeds most building code requirements for residential emergency lighting.
When using electrical equipment, you should always follow basic safety precautions, read and follow all safety instructions, including the following:
1.Risk of fire or electric shock.Luminaire wiring and electrical parts may be damaged when drilling for installation of LED Emergency Backup Check for enclosed wiring and components.
2.Risk of fire or electric shock.This LED Emergency Backup installation requires knowledge of luminaire electrical systems.If not qualified do not attempt installation. , Contact a qualified electrician.
3.Before installing make certain the AC power to the fixture is off.
4.The electrical rating of this product is 100-277Vac/347Vac.Installer must confirm that there is 100-277Vac/347Vac
to the fixture before installation.
5.To prevent electrical shock only mate unit connector after installation is complete and before the AC power to the fixture is back on.
6.Do not use in outdoor.
7.This LED Emergency Backup unit requires an un switched AC power source of 100-347Vac 50/60Hz The AC driver must be on the same branch circuit as the LED Emergency Backup unit
8.Do not let power supply cords touch hot surfaces.
9.Do not mount near gas or electric heaters.
10.Do not connect battery pack connector until all other wiring is complete and AC power is on
11.The emergency LED driver is for use with grounded,ULlisted LED luminaires,shall be enclosed by the LED luminaire and bonded to the grounding of LED luminaire
12.Verify that all replacement lamp types marked on the installed luminaire are also identified as suitable for use with this emergency battery pack.
13.Equipment should be mounted in locations and at heights where it is not be subjected to tampering by unauthorized personnel.
14.The use of accessory equipment is not recommended by the manufacturer and may cause an unsafe condition.
