UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires

Contact Now

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires

Minimum Order Quantity :	1PCS	Packaging Details :	1853824.5mm
Delivery Time :	7 weeks days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000pcs/months

Place of Origin:	China	Brand Name:	MF
Certification:	CE, RoHS	Model Number:	MF-KM-xxW-YYY-15W

Detail Information

Highlight:

UL924 Emergency Panic Light Ballast

2500mAh Emergency Panic Light Ballast

CSA Emergency Panic Light Ballast

Product Description

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty for Indoor Luminaires

1. Safety performance

Comply with CSA C22.2 NO.141, UL924 standard.

Battery has over-charge, over-discharge and short-circuit protection.

Comply with RoHS environmental requirements.

2. Stable operation

Li-ion battery capacity 2500mAh, voltage 14.8V, cycle 500 times.

Emergency time ≥ 1.5 hours, charging time ≥ 24 hours.

Charging current 250mA.

3. Convenient operation

Indicator light is always on (AC), slow flash (emergency), fast flash (fault).

Test switch: single press for 20 seconds for emergency, double press until the battery is discharged.

Connector can only be connected after installation is complete.

Key advantages:

1. High compatibility and versatility

Support 100-277Vac/347Vac wide voltage input, suitable for many regions and scenes.

Wide range of output current and voltage, compatible with a variety of LED lamps.

5-year warranty, reducing the risk of long-term use.

2. Efficient charging and energy saving

Short charging time, charging current 250mA, quick recovery of emergency capacity.

Low power consumption design, AC input power is only 7.0W, energy efficient.

Battery capacity of 2500mAh, providing sufficient emergency time.

3. Intelligent monitoring and convenient operation

Indicator light and test switch combination, quickly determine the working status and faults.

Emergency mode can be manually switched off to avoid misuse.

All-in-one design, easy to install and reduce wiring complexity.

Universal Input Voltage	100-277Vac/347Vac 50/60Hz
AC Input Current	100mA max.
AC Input Power Rating	7.0W max.
Battery Charging Current	250mA
Charging Time	≥24 Hours
Output Current and Voltage	20-55V/60-260VDC
Emergency Time	≥1.5H
Battery	Li-ion 2500mAh-14.8V
Output Power	15W
Full Warranty	5 Years
Temperature Rating Ambient	Li-ion 0°C to 50°C (32°F to 104°F)

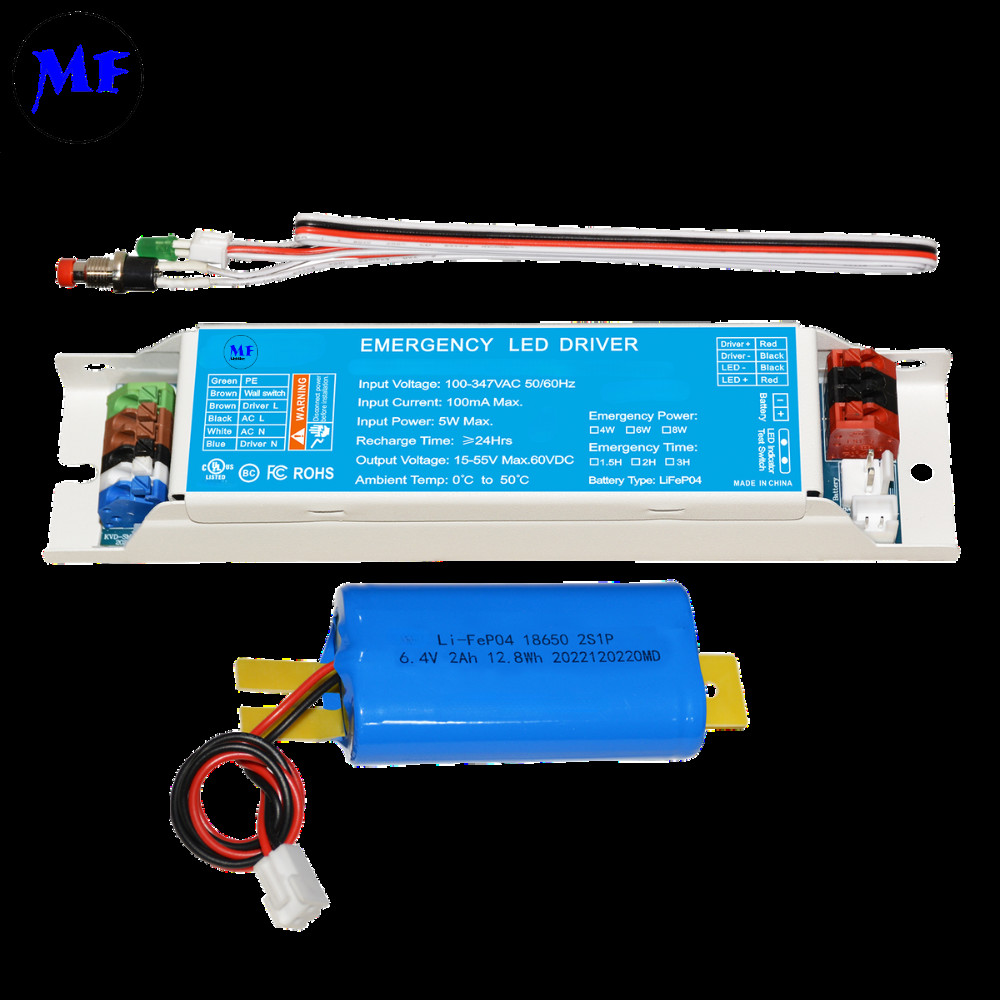

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 1

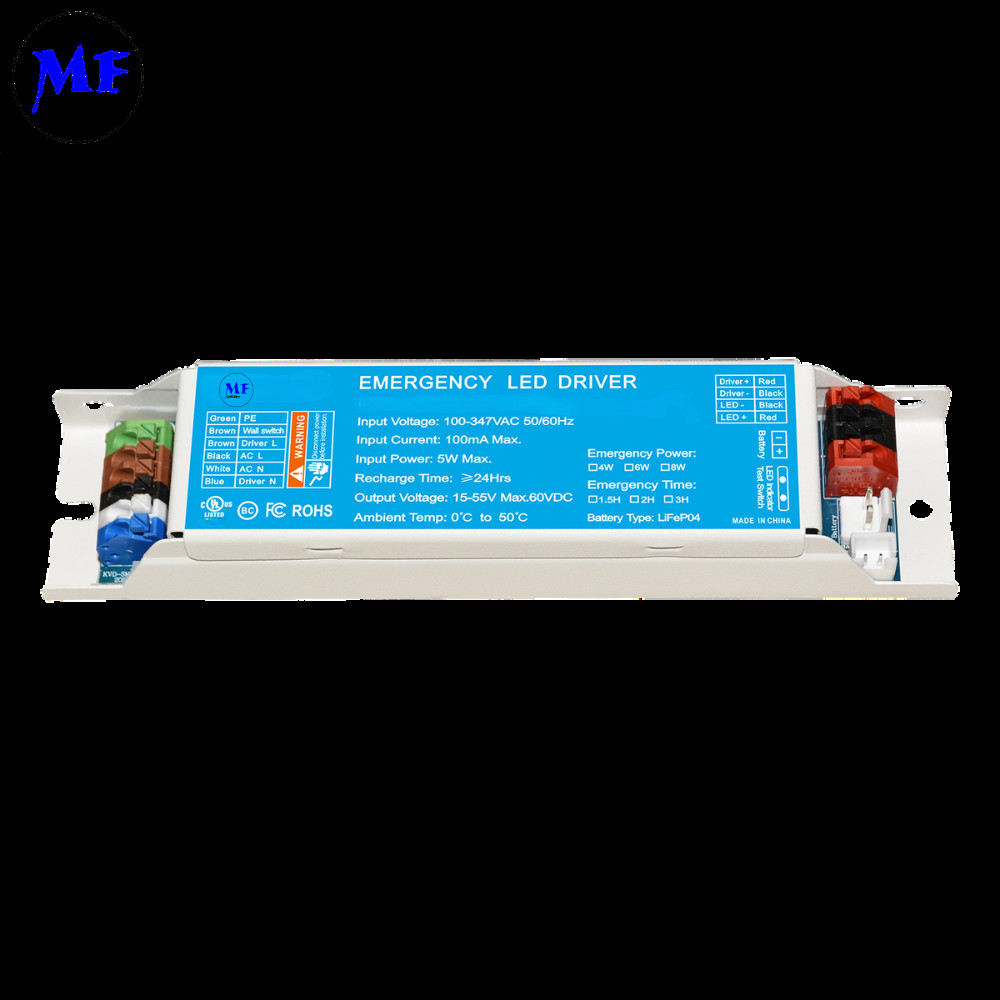

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 2

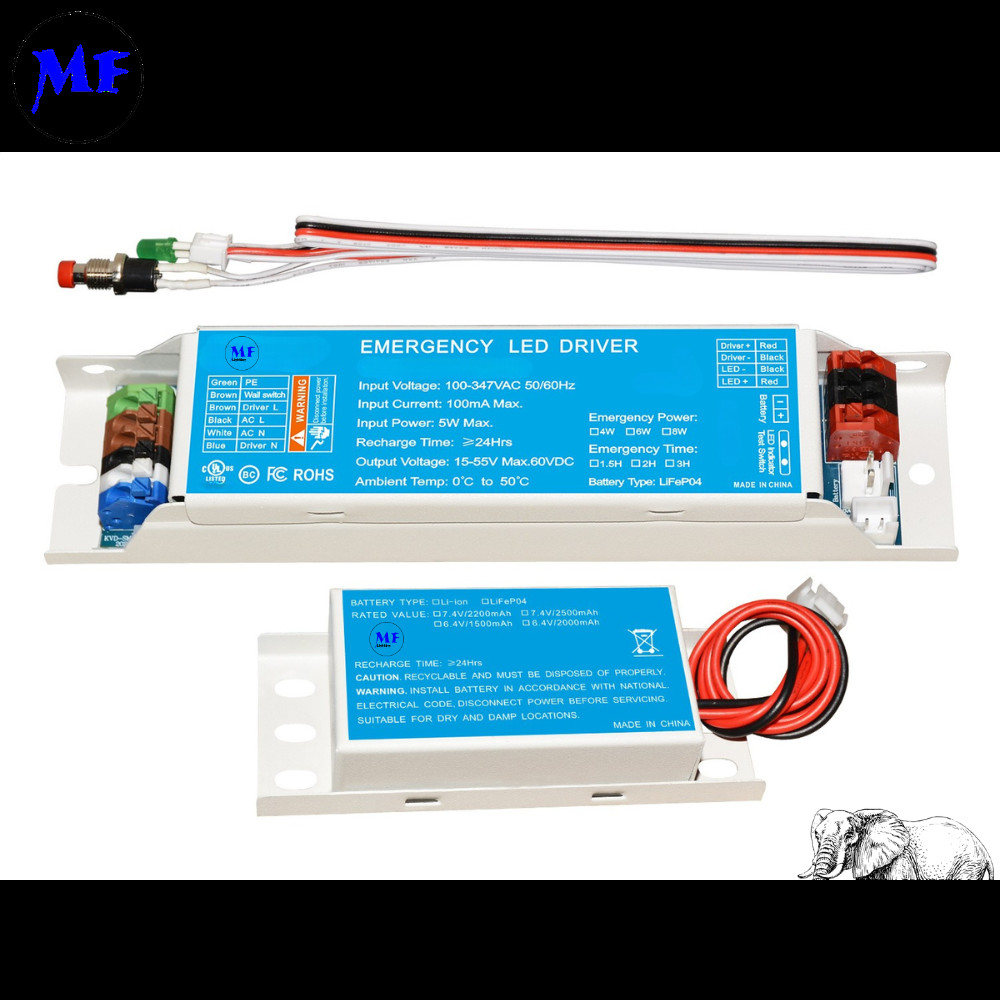

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 3

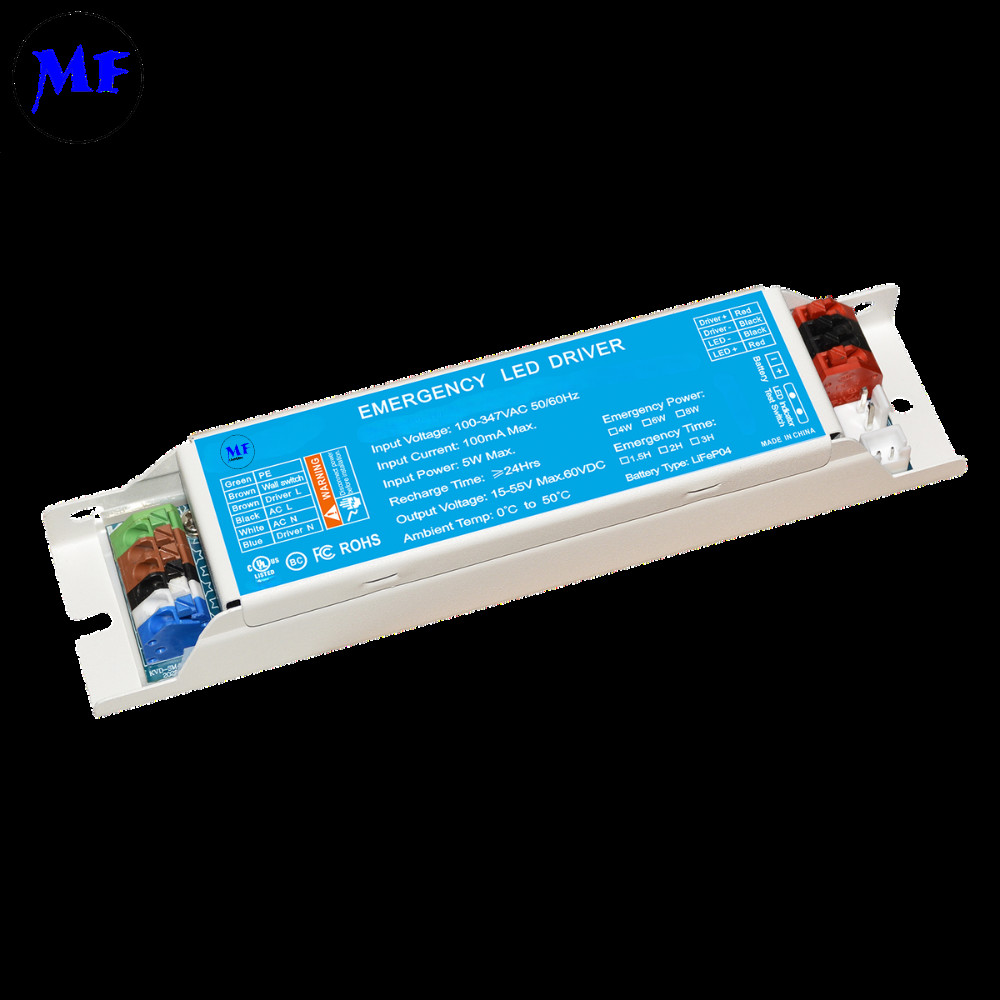

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 4

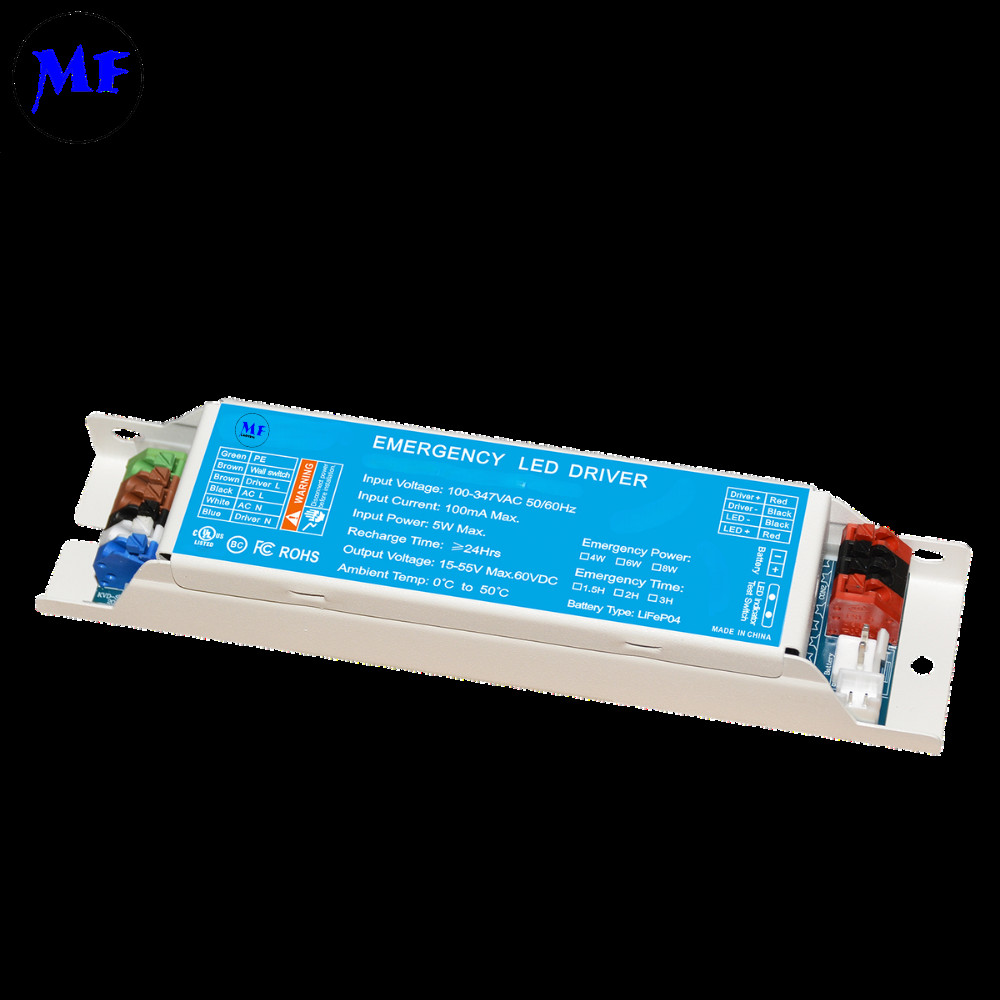

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 5

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 6

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 7

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 8

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 9

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 10

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 11

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 12

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 13

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty For Indoor Luminaires 14
