Product Description

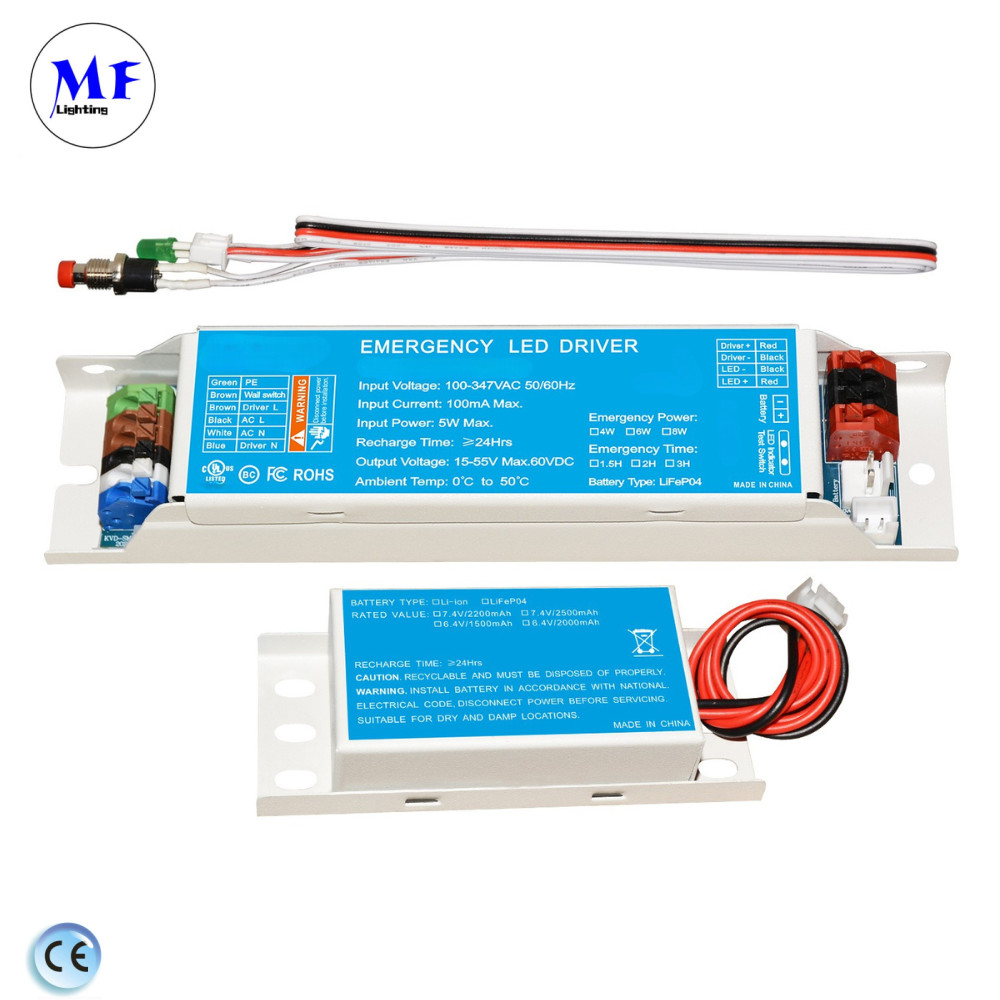

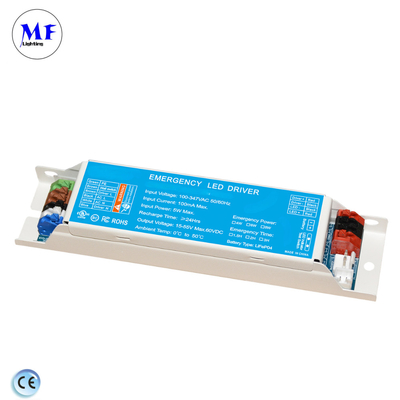

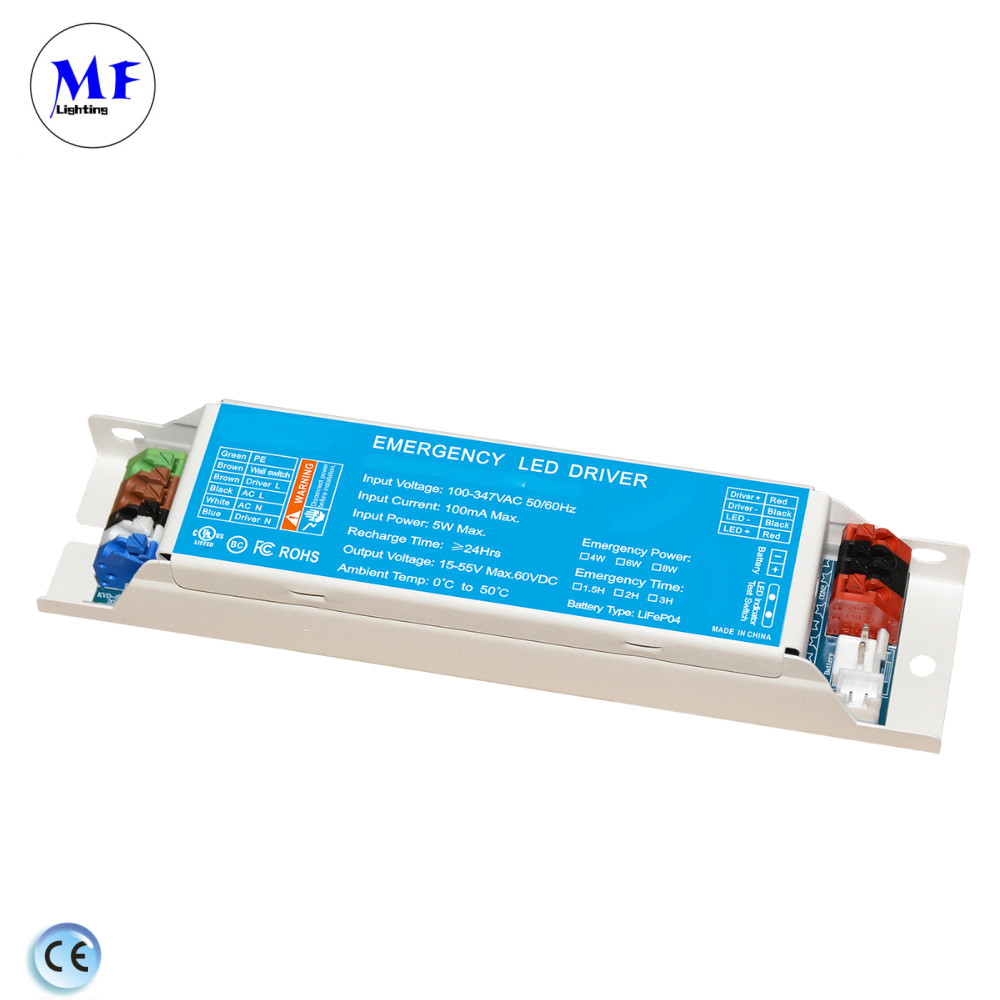

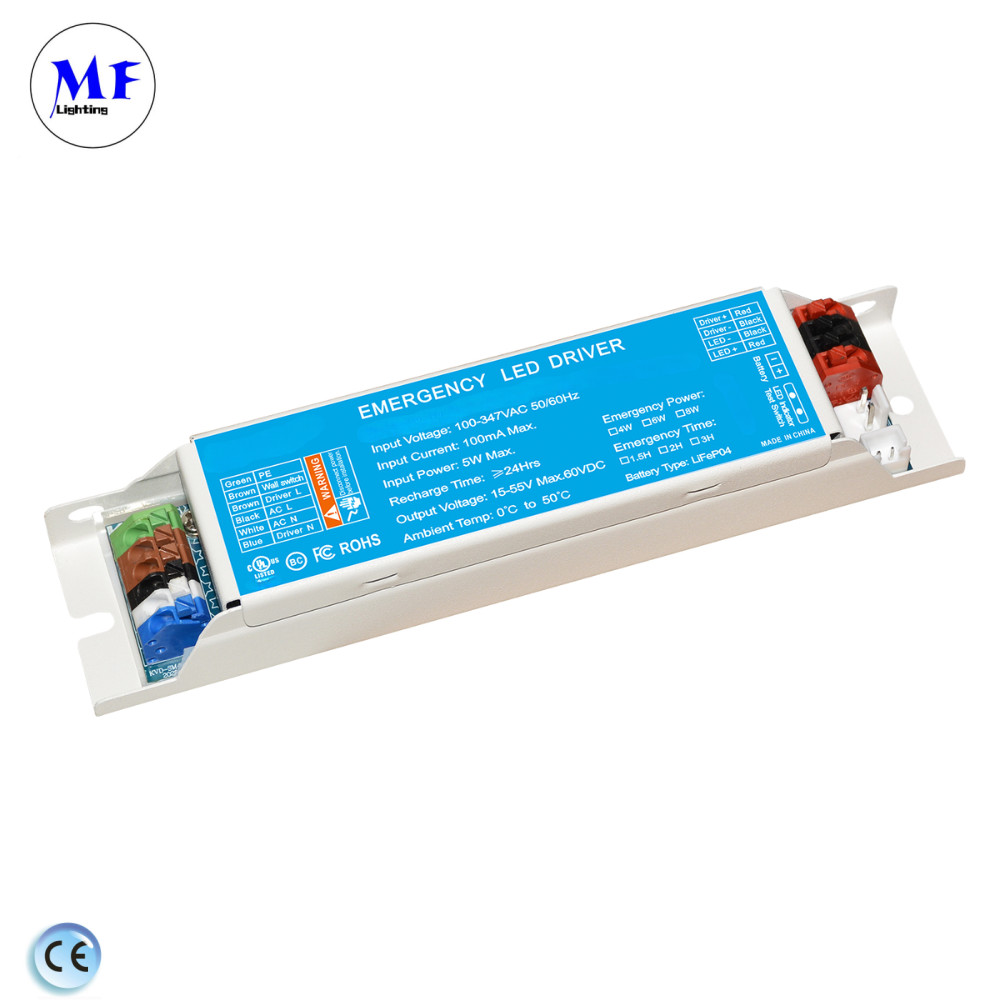

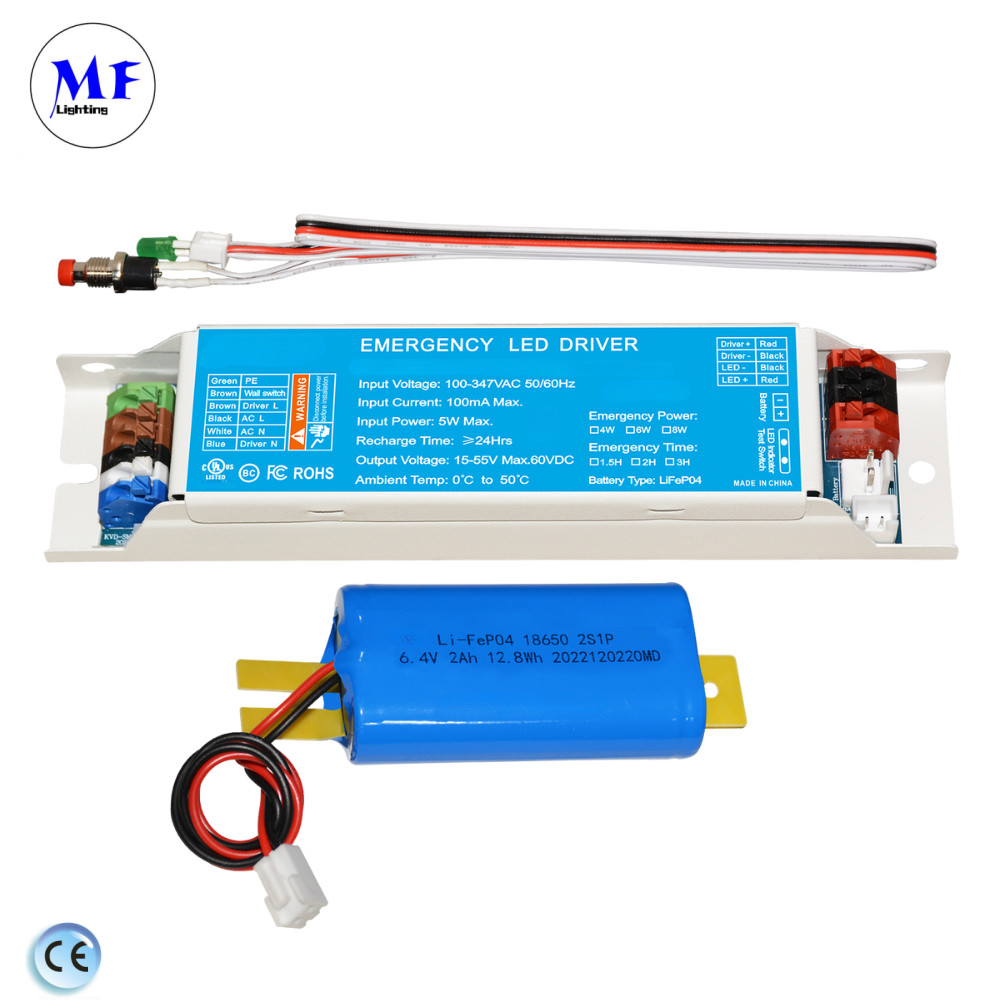

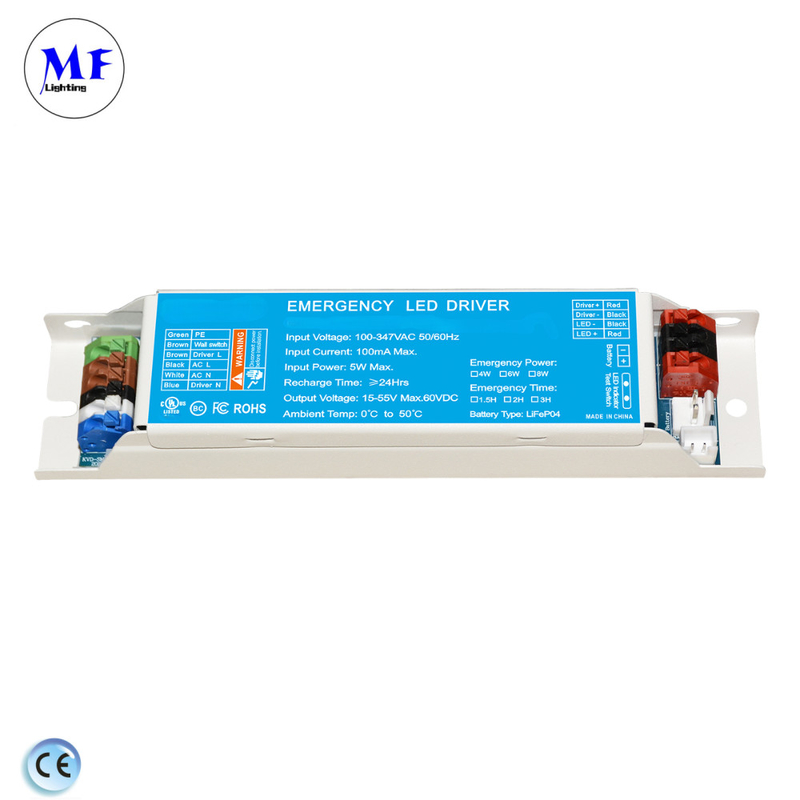

Panic Emergency Powerpack Emergency LED Driver UL924 4W 5 Years Li-FEP04 2000mAh-6.4V Battery
1.Meet most of safety standards for lighting
2.Standard CSA C22.2 NO.141 UL924
3.External lithium iron phosphate battery
4.Battery protections: over charge protection over discharge protection short circuit protection
5.Indicator shows a variety working modes
6.The batteries Meet 2000 cycles of standard CH and standard DCH
7.RoHS compliant
| Model NO. |
MF-SM-xxW |
| Input Voltage |
100~347Vac,50/60Hz |
| Input Current |
100mAmax. |
| Battery Charging Current |
250ma |
| Charging time |
≥24Hours |
| Output Current and Voltage |
15-55VDC/60-240VDC |
| Emergency Time |
≥1.5H |
| Output Power |
4W |
| Battery |
Li-Fep04 2000mAh-6.4V |
| Warranty |
5 Years |
| Ambient Temp |
0°C to 60°C |
| Trademark |
MF |
1.Listed North America UL cert.
2.Comply UL924 ordinances, CSA C22.2 No.141 in-site assembly
3.Constant power output
4.Comply emergency saving CEC ordinance
5.Charging and dis-charging protection function and over heat temp. protection
6.Mock-up electricity pause emergency testing function
7.Can be power off under emergency status
8.Indication light: city grid electricity
9.Seasonal self detect function
10.Protection functions: over voltage, short circuit, over load and open circuit
11.Metallic housing, comply EMC, FCC and C-tick ordinances
12.IP grade: IP20
Commercial Office Buildings
Provides code-compliant emergency lighting for hallways, stairwells and exit routes during power outages. Maintains illumination for safe evacuation.
Industrial Plants & Warehouses
Rugged design withstands harsh environments while providing emergency lighting for hazardous areas and manufacturing facilities.
Retail Stores & Shopping Malls
Maintains emergency aisle lighting and exit signage to guide customers to safety during power failures.
Public Transportation Hubs
Essential for airports, subway stations and bus terminals where continuous lighting is critical for passenger safety and evacuation procedures.
Residential High-Rise Buildings
Critical for apartment complexes to illuminate stairwells and common areas during blackouts. The 90-minute runtime exceeds most building code requirements for residential emergency lighting.
Installation Instructions
1:If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power
to activate the emergency power supply and charge it for 24 hours.
Please use the original emergency battery provided
2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3:Should be stored in a cool, dry environment.
4:After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.
LED and test button status:
LED INDICATOR
Green breathing pattern:charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second :Load failure during emergency mode,
open circuit/short circuit
Green flashing: Emergency status one per second
TEST BUTTON
1:0S<Key≤2S,Enter a simulated state of emergency,the green indicator blinks once every second,keep emergency status for 10±1 seconds and back to normal status
2.In simulated emergency situations,Short press once to exit and return to the normal charging state
3.0S<Key≤1S,In the emergency state, the emergency state is turned off.
QUARTERLY SELF-TEST
when emergency driver is on power,every 180 days± 1 day automatically enter the emergency state,emergency duration until the battery is discharged,then return to power-on status.
As a leading manufacturer of LED light product MING FENG LIGHTING CO.,LTD established in year 2009 and has more than 14 years experience in exporting LED lighting products. Our company established a quality management system in accordance with the ISO9001 standard. Products are CE,CB,ROHS,SAA,ETL,DLC certified. And Ming Feng has expanded its business to many countries to Europe,America,Southeast Asia and etc.
In order to provide our customers with attractive lighting fixtures,optimal energy saving and thoughtful lighting solutions,Ming Feng hired the professional,Dialux lighting designer,and providing the OEM & ODM service for all the partners around the world. Our designer and engineer always pay full attention to them in the field of high quality standard at reasonable and competitive price,fast delivery,trust and honest services etc.
Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
Q6: How do I proceed with an order for the LED Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.
Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
