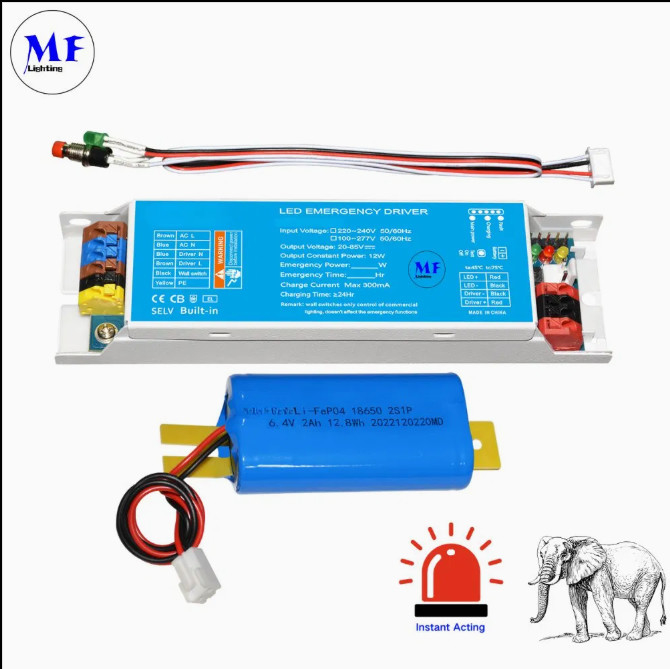

Product Description
Product Description
| Model No. |
MF-188B |
| Power |
5~12W |
| Frequency Range |
50Hz--60Hz |
| Size |
165*20*20mm, 165*22*22mm, 165*38*20mm |
| Discharge Time |
1.5h or 3h |
| Material |
LiFeP04, Li-ion, Lithium, Nickel-Cadmlum, Sealed Lead-Acid, Optional |
| Input |
AC220~240V |
| Output |
DC 20~85V |
| Certificates |
CE, ROHS, CB,MSDS, etc. |
| Output Current |
≤ 3A |
| Applicable for The Types of Lamps |
flat panel lights, panel lights, Tri- proof lights |
| Driver Standard |
EU Standard |
self-detect,
constant power emergency output,
Suits for LED fitting with external LED driver,
External battery,Li-ion/Li-FeP04/Ni-CD,
With multi-protection function;
battery overcharge protection;
battery over-discharge protection;
output overload protection;
short-circuit protection.
Accessary test switch and LED indicator
In the state of the power off,to connect with the battery, static current at the battery terminal is 0uA
Application for lights
This power supply is mainly used for emergency lighting fixtures.
But our this series of power supplies also can be used in various types of lamps, such as flat panel lights, panel lights, Tri- proof lights,
downlights, spotlights, linear lights,Explosion proof light, Wallpack, Tunnel light, Flood light, Street Light, etc., whose external drive output current is ≤3A.
Production Lights
Product Parameters
Detailed Photos
LED and TEST BUTTON STATUS
TEST BUTTON:
1: 0S<Key≤2S, Enter a simulated state of emergency, the green indicator blinks
once every second, keep emergency status for 3 seconds and back to normal status
2: 3S<Key≤5S, The green indicator flashes twice in 1 second, enters the monthly self-test,
maintains the emergency state for 30 minutes and back to normal status
3: 6S<Key, The green indicator flashes 5 times in 1 second, enters the annual self-test,
maintains the emergency state for 90 minutes and back to normal status4: In the state of monthly inspection or annual inspection,
short press once to exit and return to the normal charging state
5: 0S<Key≤1S, In the emergency state, the emergency state is turned off.
QUARTERLY SELF-TEST:
when emergency driver is on power, every 90 days± 1 day
automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status.

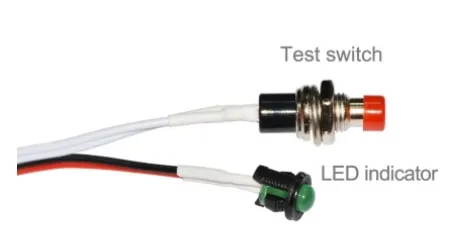

LED indicator:
Mounting hole 6.5mm dia
Test switch:
Mounting hole 7mm dia
Attention Indication
Installation and Notifications:
1: If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.
