Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge

Contact Now

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge

Minimum Order Quantity :	1PCS	Packaging Details :	254× 90× 210
Delivery Time :	7 weeks days	Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	5000pcs/months

Place of Origin:	China	Brand Name:	MF
Certification:	CCC, CE, EMC, ETL, GS, RoHS, SAA	Model Number:	MF-LI-B2-D

Detail Information
Light Source:	LED	Available Colors:	Red(Other Color Is Optional
Intensity:	≥32.5CD(Type B),Others Optional(10CD, 100CD,etc	Horizontal Output:	360
Vertical Divergence:	≥10	Flash Characteristics:	Steady-Burning/20/30/60 Adjustable
Working Mode:	Main & Stand By(Other Modes Are Optional)	LED Life:	Eration As Option. LED Life Experience(Hours) >100
Operating Voltage:	DC(48VDC) &AC(110-240VAC) Or Others	Power:	5W
Circuit Protection:	Integrated	Body Material:	Polycarbonate
Base Material:	Die-Casting Aluminum
Highlight:	UV-Resistant Aviation Obstruction Light , Adjustable Aviation Obstruction Light

Product Description

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge

Features:

1. High reliability

Automatic switching of main and backup lamps to ensure continuous marking.

Lightning protection, in accordance with IEC standard.

Integrated circuit protection against abnormalities.

2. Strong environmental adaptability

IP66 waterproof rating.

Operating temperature -40ºC to 65ºC, storage temperature -55ºC to 70ºC.

Resistant to wind speed up to 240km/h.

3. Flexible Design

Support DC48V and AC110-240V power supply.

Built-in light control, automatic switching.

Multiple mounting methods for ease of use.

Key Advantages:

1. High Reliability

Main & standby mode ensures continuous operation.

Built-in surge protection.

Long LED life (>100,000 hours).

2. Durability

IP66 waterproof rating.

UV-resistant polycarbonate cover.

Corrosion-resistant die-casting aluminum base.

3. Adaptability

Dual power supply (DC & AC).

Automatic day/night operation.

Optional GPS sync and solar power.

Light Source	LED
Available Colors	Red (Other color is optional)
Intensity (cd)	≥32.5cd (type B), others optional (10cd, 100cd, etc)
Horizontal Output (degrees)	360
Vertical Divergence (degrees)	≥10
Flash Characteristics	Steady-burning/20/30/60 adjustable
Working Mode	Main & stand by (other modes are optional)
Operation Mode	Dusk-to-dawn Automatically as standard. 24 hours operation as option.
LED Life Experience (hours)	>100,000
Operating Voltage	DC(48VDC) & AC(110-240VAC) or others

Power (W)	5
Electrostatic	IEC61000-4-2 Contact discharge 8kV
Circuit Protection	Integrated
Body Material	Polycarbonate
Base Material	Die-casting aluminum
Mounting	3/4 inch pipe thread or D140mm×M10*3
Dimension (mm)	254×90×210 or 254×165×250
Weight (kg)	1.5 or 2
Product Life Expectancy	10 years plus

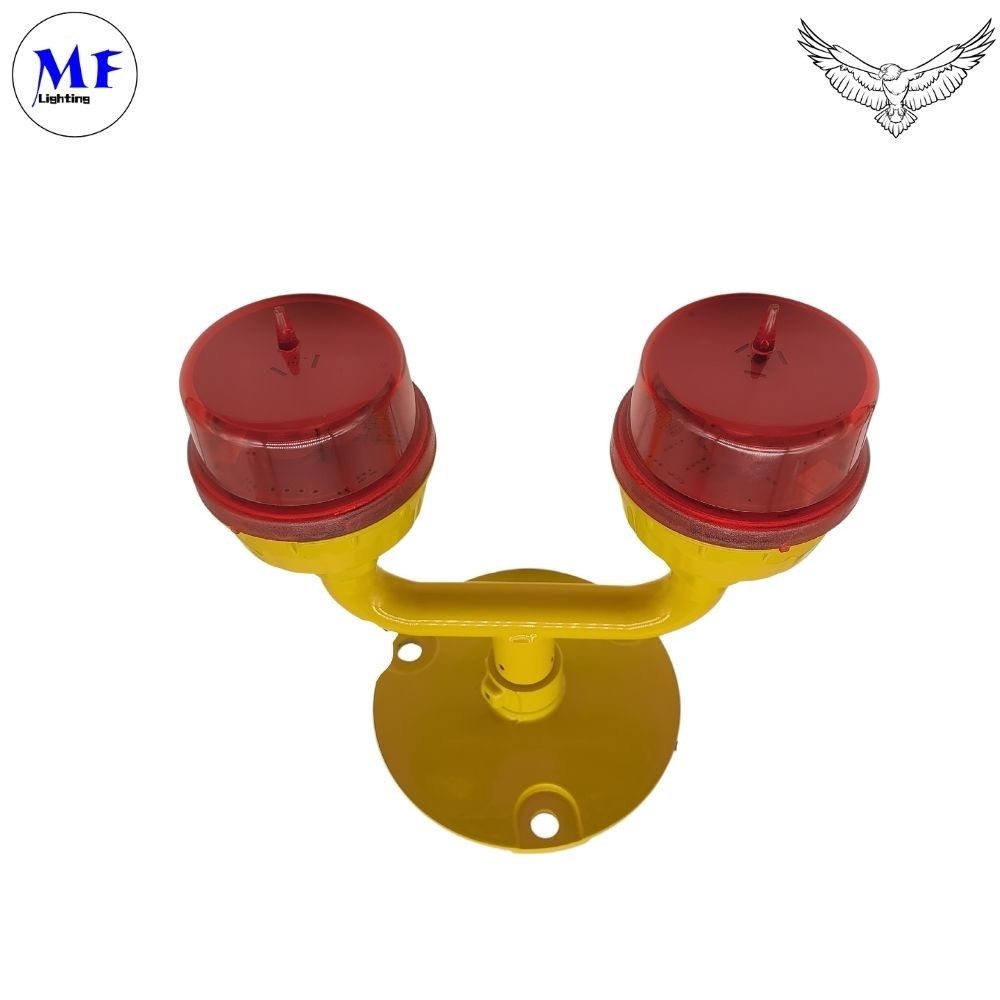

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 0

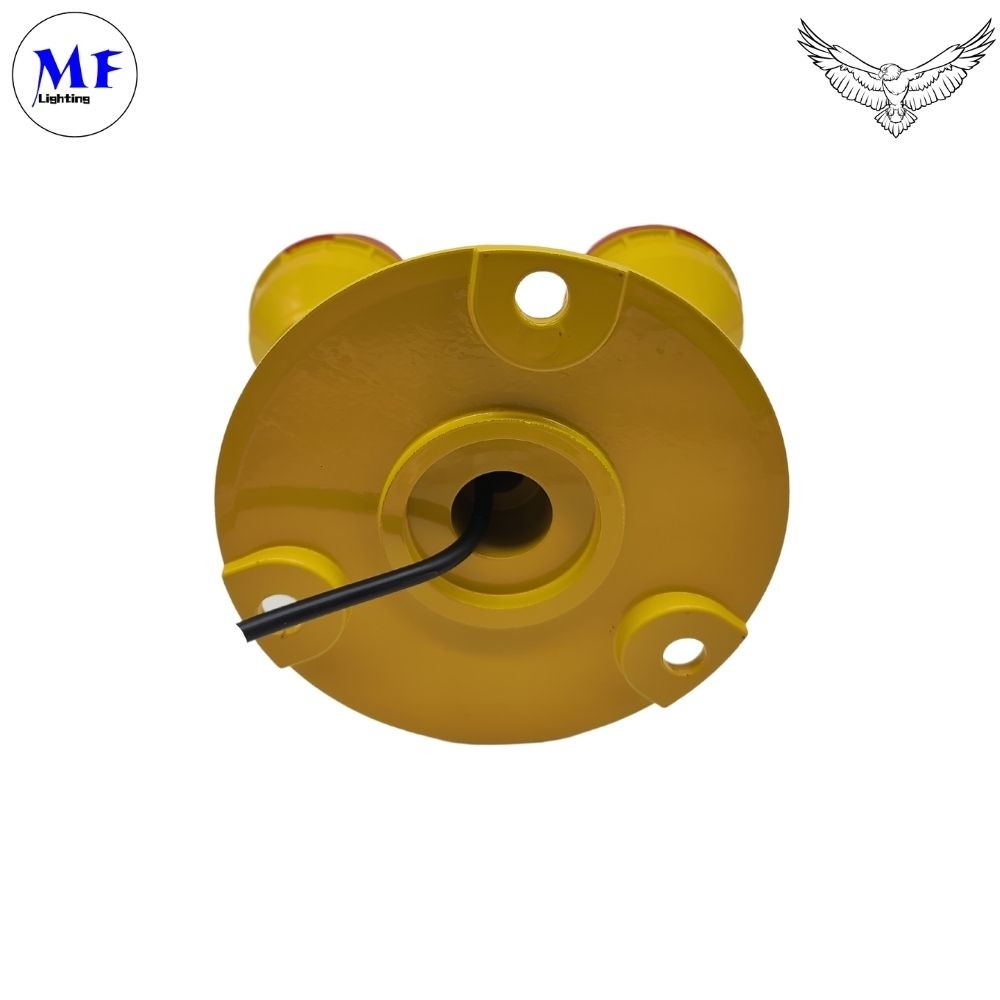

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 1

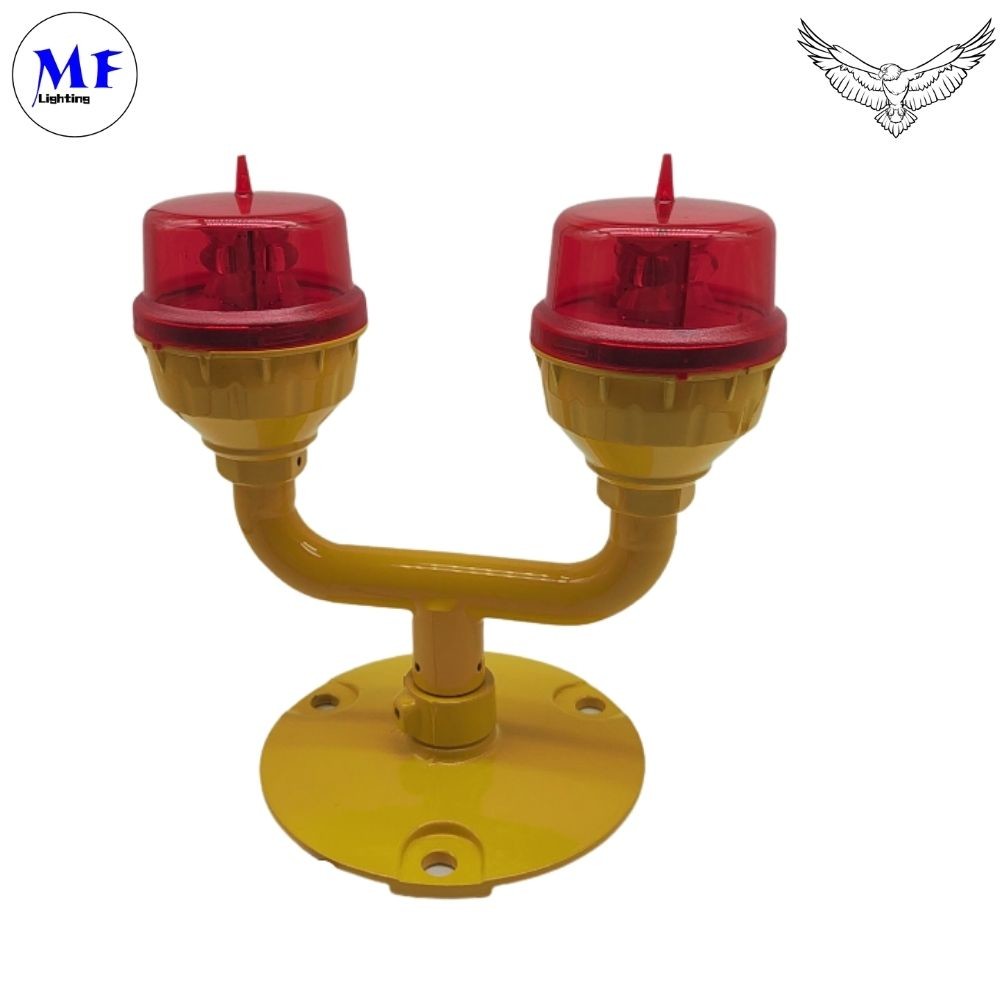

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 2

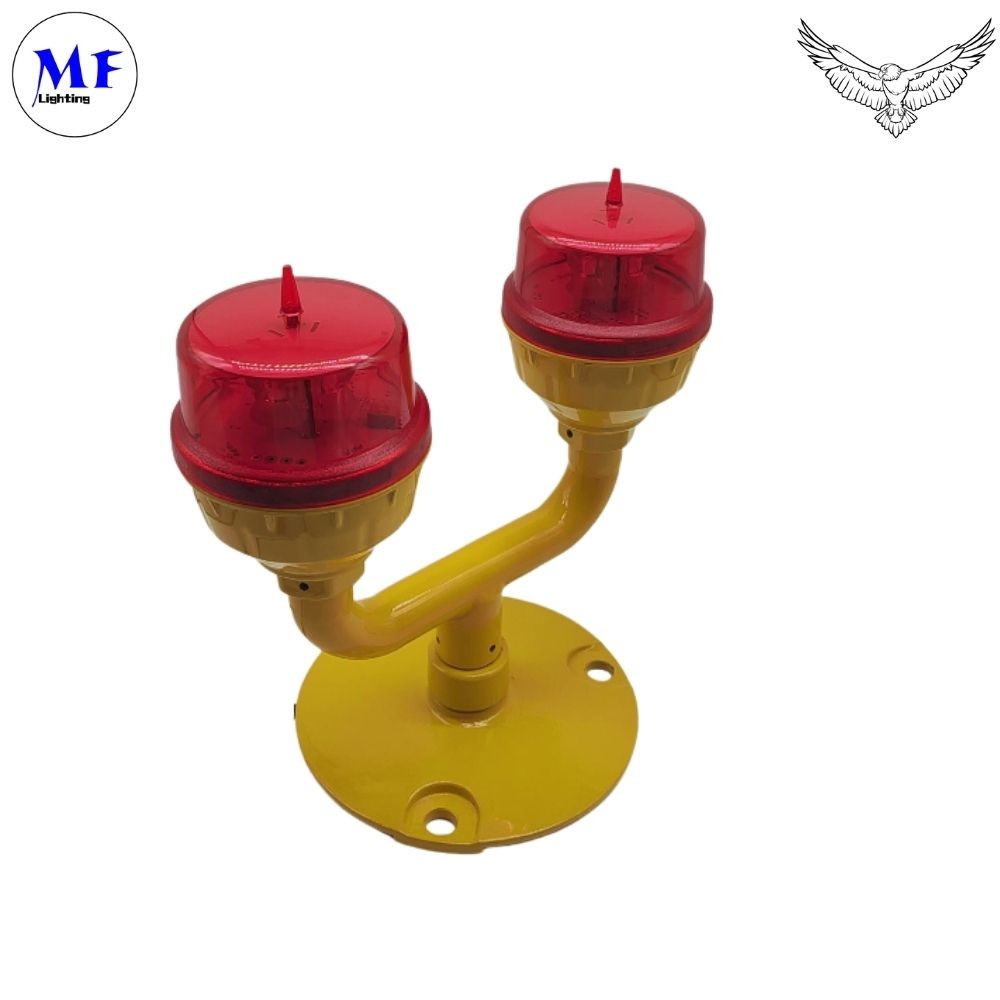

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 3

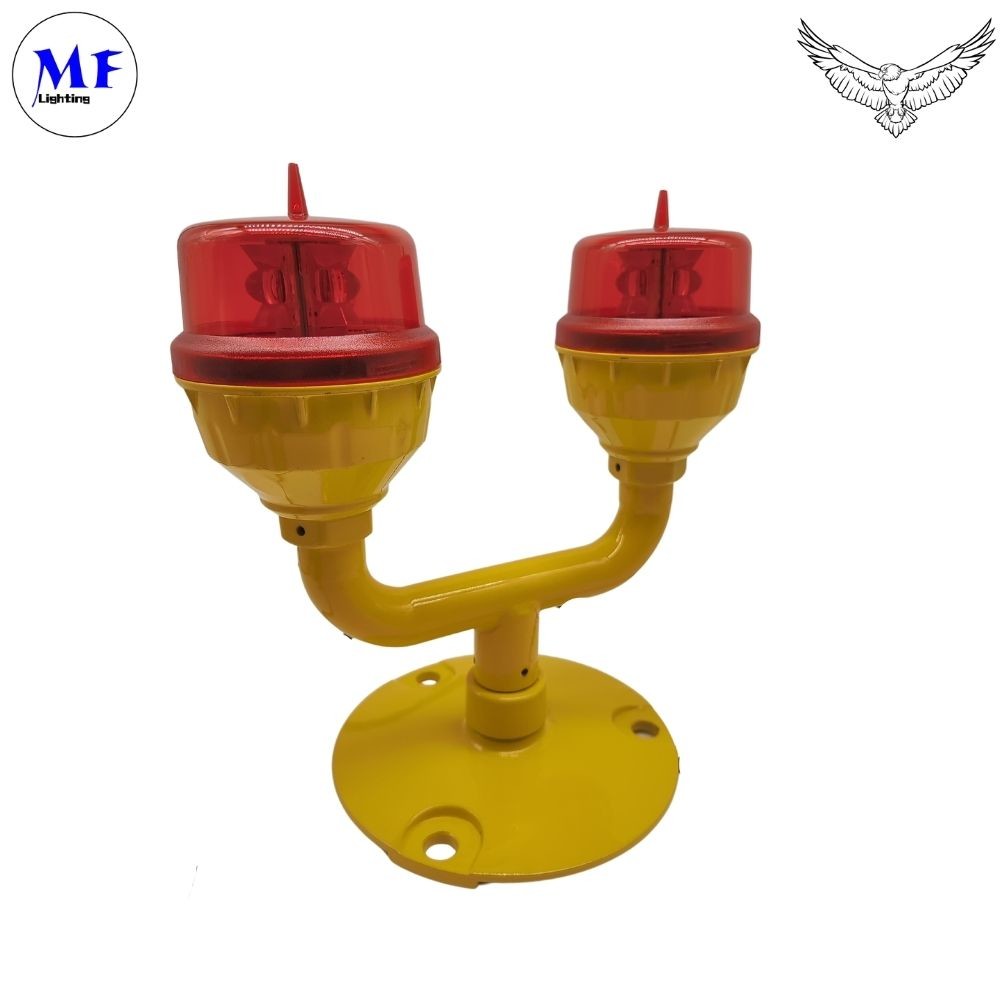

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 4

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 5

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 6

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 7

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 8
