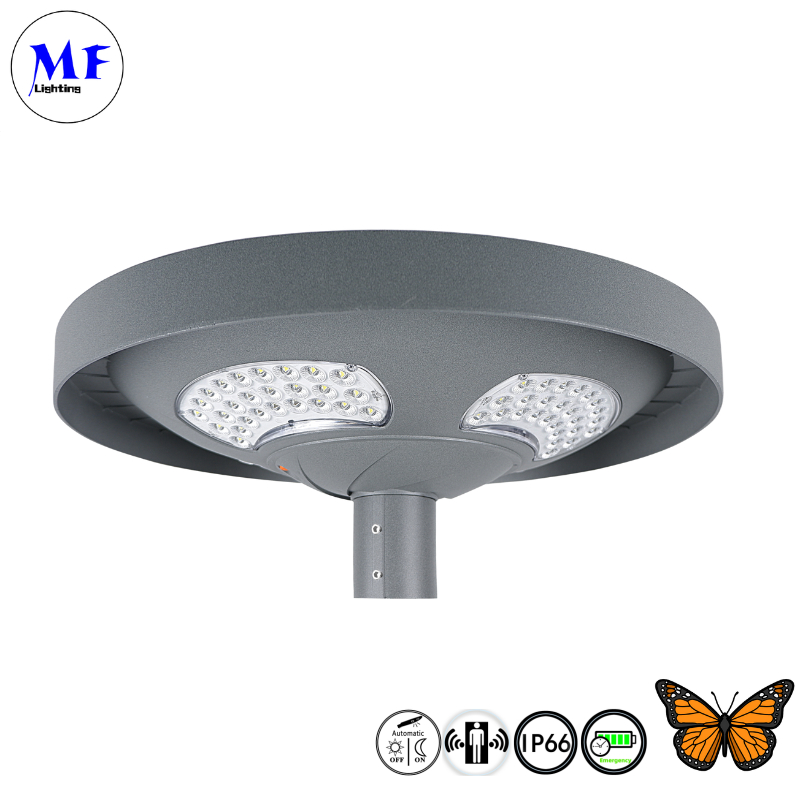

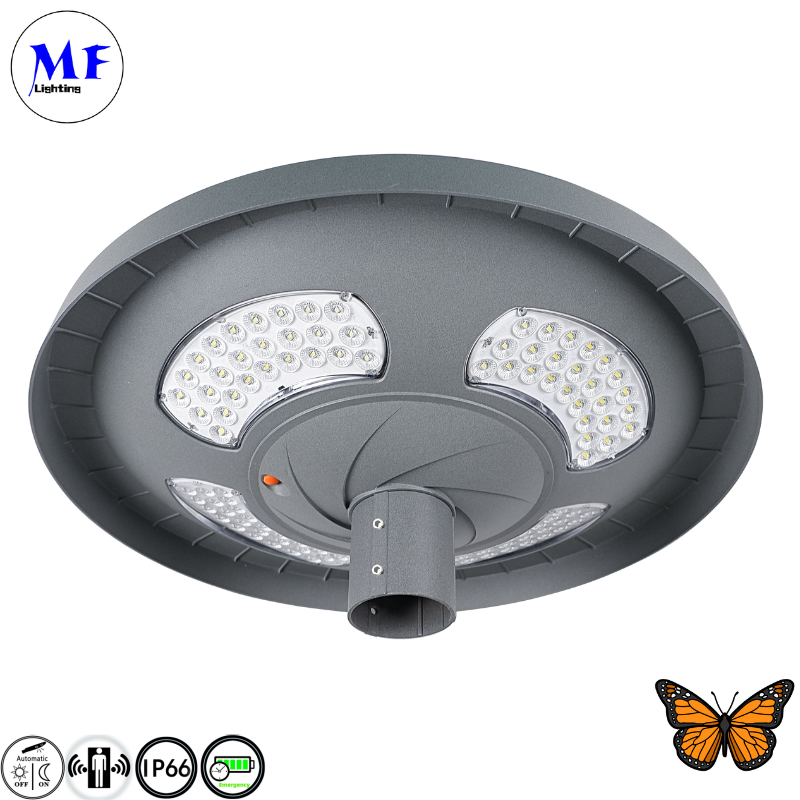

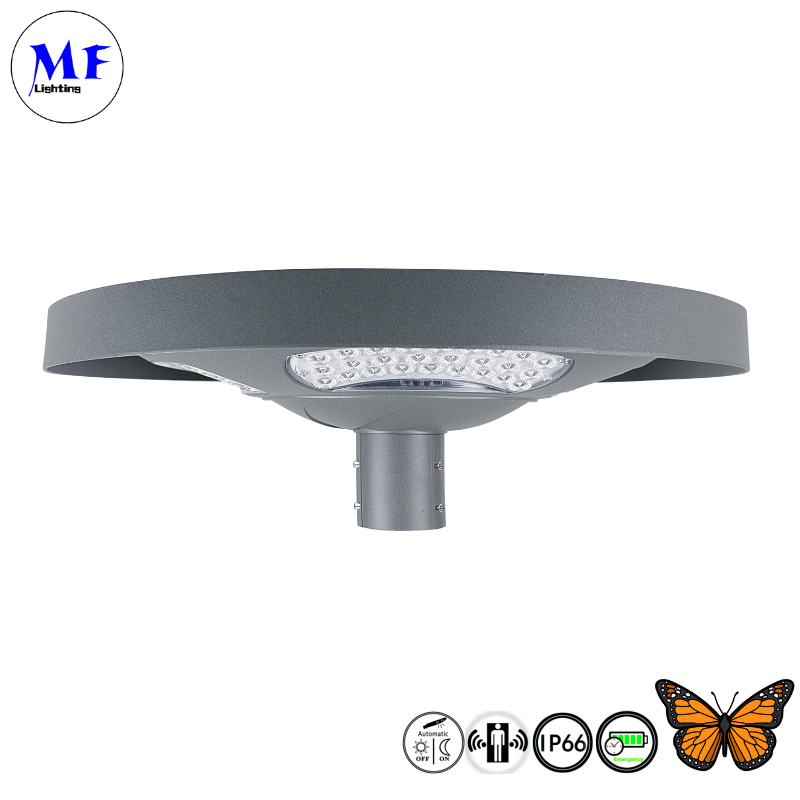

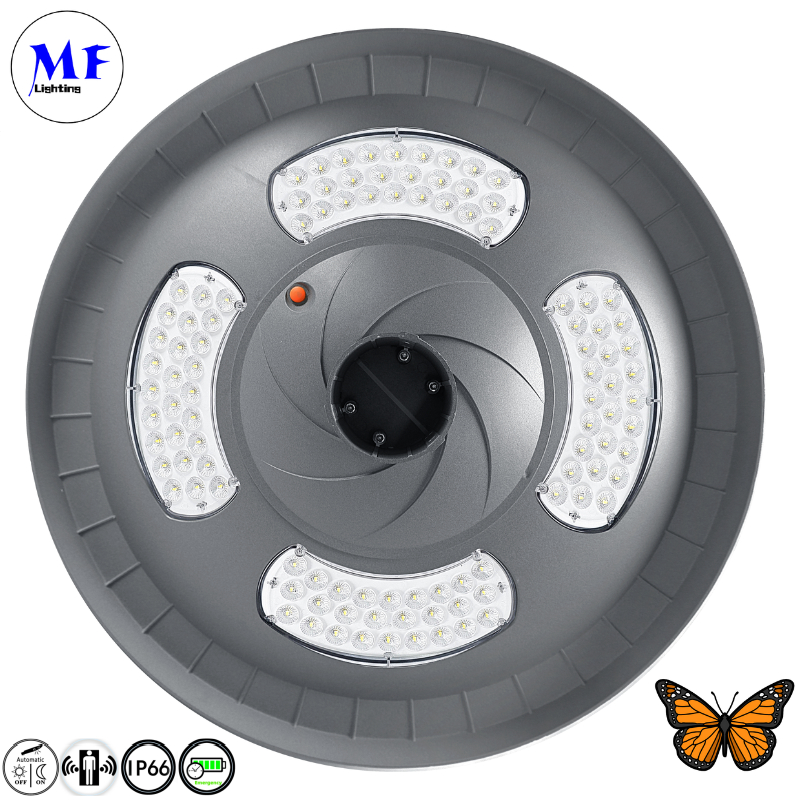

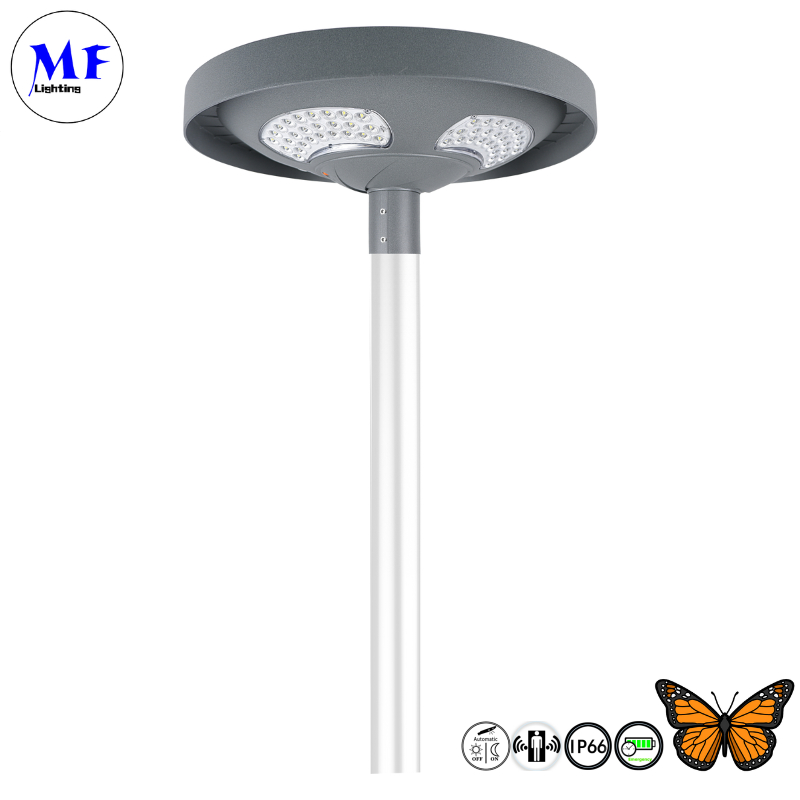

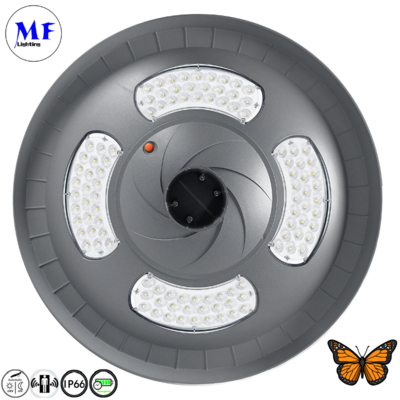

IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 515× 515× 177mm Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, L/C, Paypal Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS,SAA Model Number: MF-TYD-100W/200W

Detail Information

Battery: 5V 35W CCT: 6000-6500K
Material: Die-Cast Aluminum Power: 100W/200W
IP Rate: IP66 Luminous Efficacy: 100-110lm
CRI(Ra): Ra>70 Beam Angle: 70°-140°
Power Efficiency: 0.90 PF: >0.95
Working Time: 2-3 Rainy Days
Highlight:

Waterproof 30W Solar Garden Light

,

IP65 Solar Garden Light

,

Sensor Time Control Solar Garden Light

Product Description

IP65 Waterproof Solar Garden Light Alu Housing Street Roadway Lamp with Sensor



Elevate outdoor spaces with MF Solar Garden Light Butterfly Series - engineered for sustainable brilliance. Combining high-efficiency monocrystalline solar panels, smart radar sensing (5-6m range), and modular durability, these lights deliver 30-40W illumination with zero grid dependency. Ideal for parks, residential pathways, and commercial landscapes.



IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 0



Product Features



Energy Independence

  • Self-sustaining system: 5V high-yield solar panel charges 25,000mAh/35,000mAh Li-ion battery in 6-8 hours.

  • 110 LM/W efficacy - 30% brighter than conventional solar lights

The product uses solar energy as electric energy supply to provide illlumination,and the solar paneis used for converting solar energy into electric energy to charge a storage battery, This product usesefficient LED light source design, with high luminous intensity, accurate beam, irradiation distance,green and environmental protection, simple installation, stable and reliable work, no cable, noconsumption of conventional energy, long service life and other characteristics

IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 1IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 2IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 3

Intelligent Operation

  • Radar+Light Dual Sensors: Auto-activates at dusk, detects motion within 5-6m.

  • 4 Lighting Modes (Remote): Full/Half brightness, 3H/5H/8H smart runtime, and adaptive Auto Mode (dimming from 100% to 30%).

IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 4

Robust Build & Easy Install

  • IP65-rated against dust/rain; -15°C to 45°C operational range.

  • Tool-free assembly: Mounts on Ø76mm poles with included M8/M5 stainless hardware.

  • 1-piece carton design: Pre-assembled units reduce setup time by 70%.




Power 30W 40W
Size
515×515×177mm
515×515×177mm
materials Alu.+Glass+PC Alu.+Glass+PC
Water proof IP65 IP65
Power+% 18W±5% 28W±5%
Battery 25000mA 35000mA
Battery solar panel 5V 25W 5V 35W
AC Input Voltage DC5V DC5V
DC Output Voltage DC3.2V DC3.2V
CRI Ra>70 Ra>70
Effciency 100-110LM/W 100-110LM/W
CCT 6000-6500K 6000-6500K
LED model
SMD 3030-3V1W
SMD 3030-3V1W
LED quantity 256PCS 256PCS
Beam Angle 70°-140° 70°-140°
Installation caliber(mm) 76mm 76mm
Work temperature -15-45ºC -15-45ºC
Warranty 2 years 2 years
Pcs/Ctn 1 1
Ctn Size
535×535×160mm
535×535×160mm

Luminous intensity distribution diagram


IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 5



IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 6



Sensing distance of solar garden lights

IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 7

Product Applications



  • Residential: Driveways, garden borders, patio decor

  • Commercial: Parks, campus walkways, hotel landscapes

  • Public Infrastructure: Pedestrian streets, community squares

IP65 Waterproof 30W Solar Garden Light Alu Housing With Sensor Time Control 8



Factory Q&A



Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
