Products description
| Model No. |
MF-MI-BF |
| Power |
5 W |
| Light Color |
2 Colors, Red (Nighttime) and White (Daytime) |
| Chip |
Optional |
| Back Material |
Die-cast AL (Aluminium)+PC Cover |
| Working Temperature |
-40 - +65°C |
| Color Temperature |
Warm White(WW):2500-3500K |
| Pure White(PW):4000-4500K |
| Cool White(CW):6000-6500K |
| Certificates |
CE FC ROHS TUV CB etc. |
| Light Quality |
Intensity, Bright |
| Driver Brand |
Optional |
| Carton Dimansion |
236*236*215mm etc. |
| Warranty |
5 years |
| Life Time |
50000h |

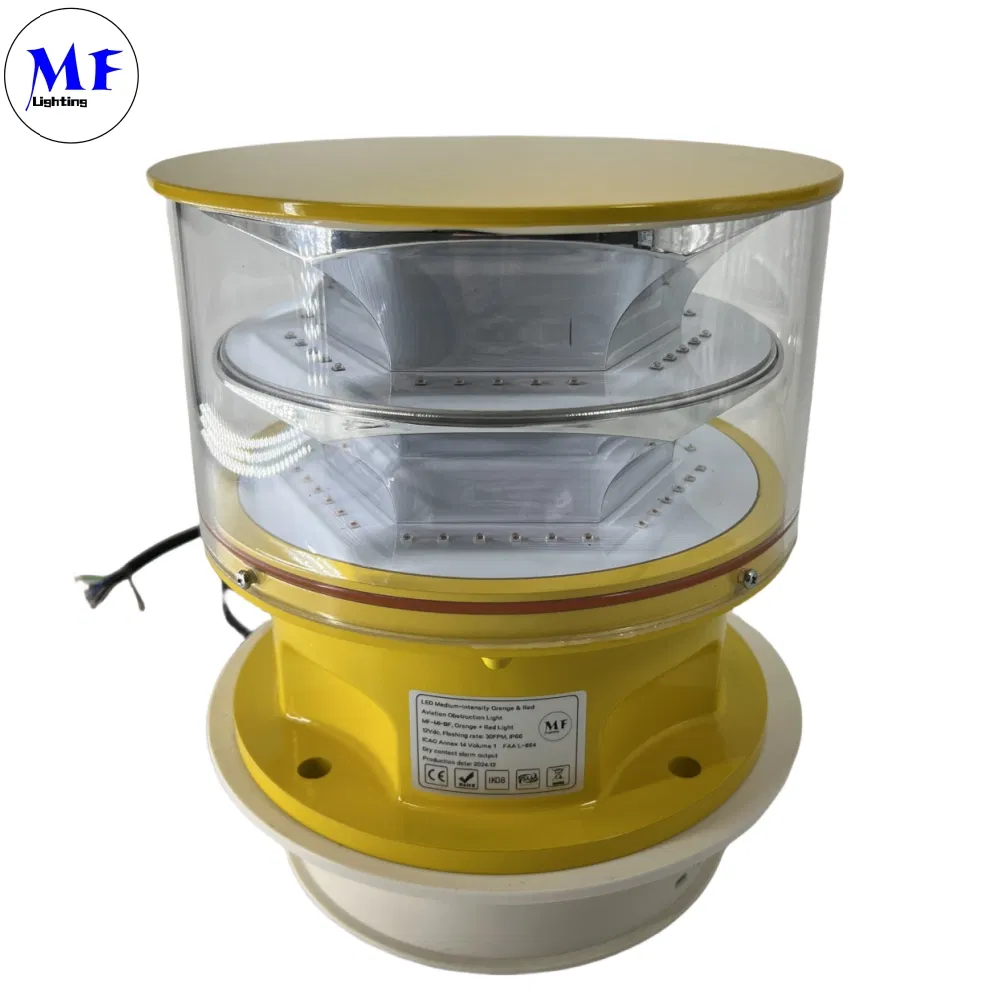

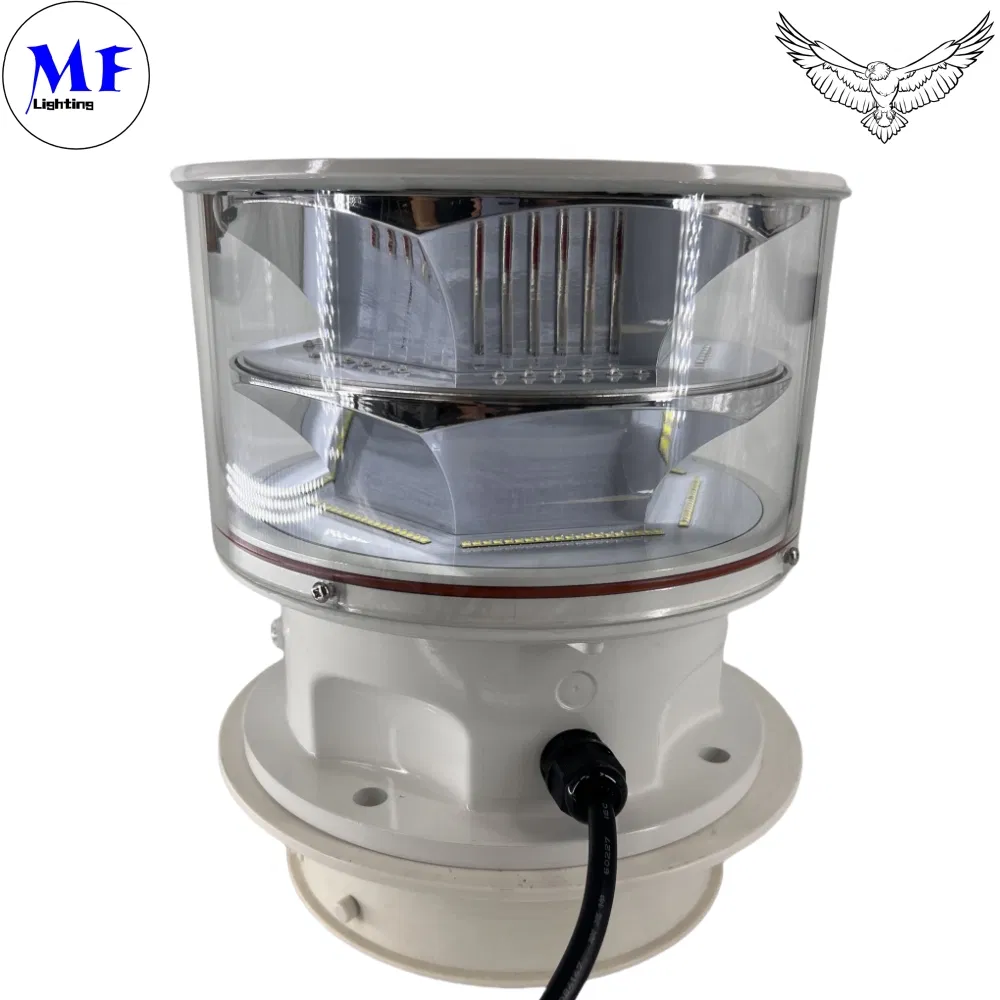

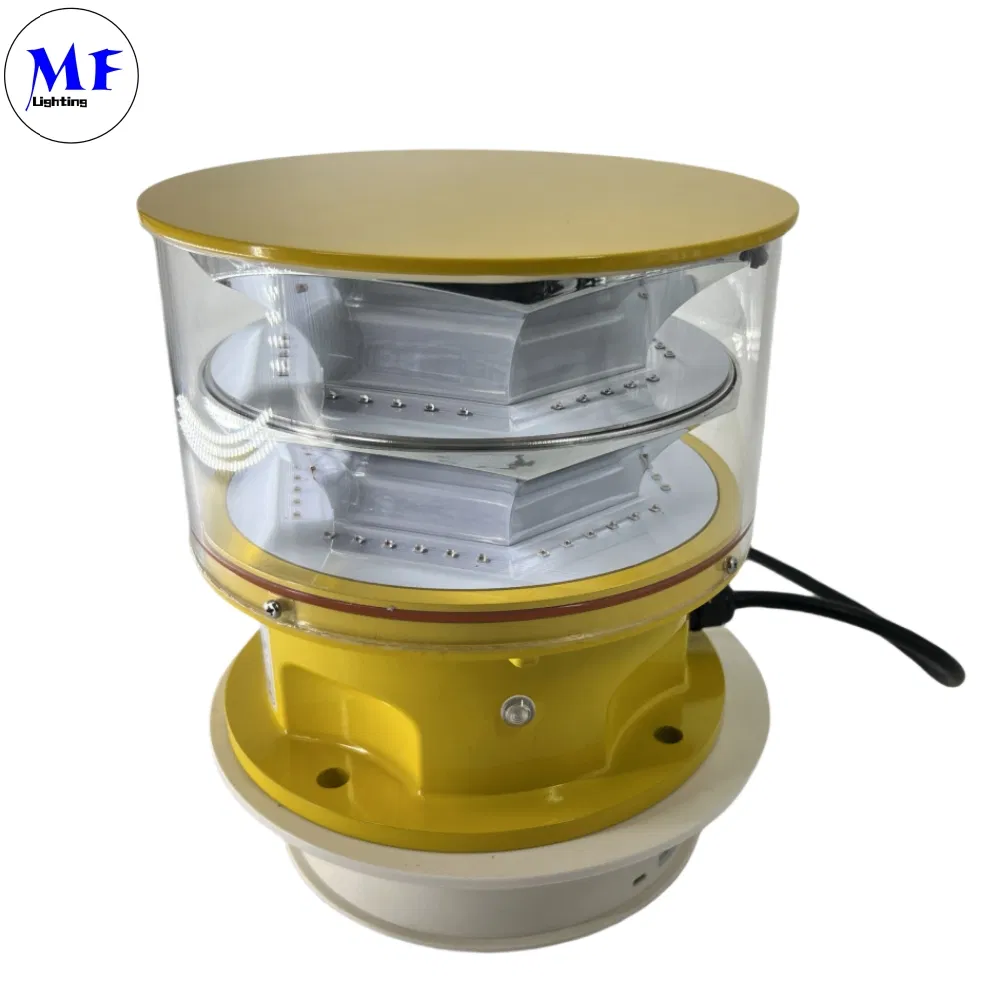

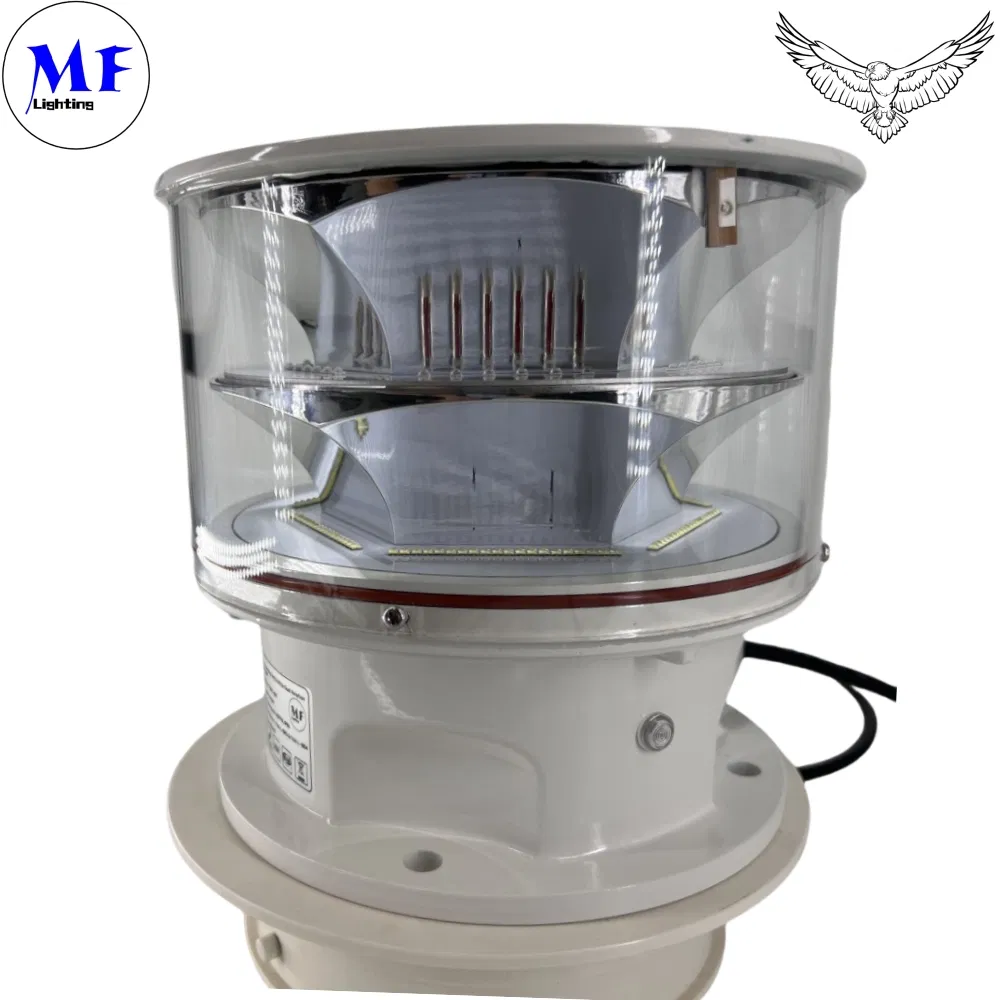

This LED Medium-intensity Red&White Dual Aviation Obstruction Light flashing white color at daytime and
red color at night. It's designed for marking top of obstacle which height is between 45-150 meters.
Ultra high intensityCREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.
Compliance:
ICAO Annex 14 Volume 1,Eight edition,2018, table 6.3 Medium Intensity Type A, Medium Intensity Type B/C Obstruction Light FAA L-865 & FAA L-864
Features:
Electrical
CRE ultra high intensity LED as light source saving power
consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V,24V,48V) or AC(110-240VAC)
Physical:
*Unique design and UV protected polycarbonate reflector for converging light
*UV protection Powder coated bright yellow color base make better visibility
*Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
*Special vent installed under base to make sure the air could go through but water is avoid, so that the whole
light temperature won't be high, to avoid the High pressure steam goes inside.
System design:
Built-in photocell for day/night operation(dusk to dawn operation) Surge and lightning protection
Optional:
Dry contact Alarm output for remote monitoring Infrared LED
for pilot using NVG GPS synchronization
|
Power input
|
110-240Vac&48V AC 12VDC 36VDC
|
|
Light source
|
LED IR
|
|
Lens color
|
Red and White, Two Colors
Clear
|
|
Photocell
|
Built-in
No
|
|
Dry contact Alarm
|
No Alarm
Alarm
|

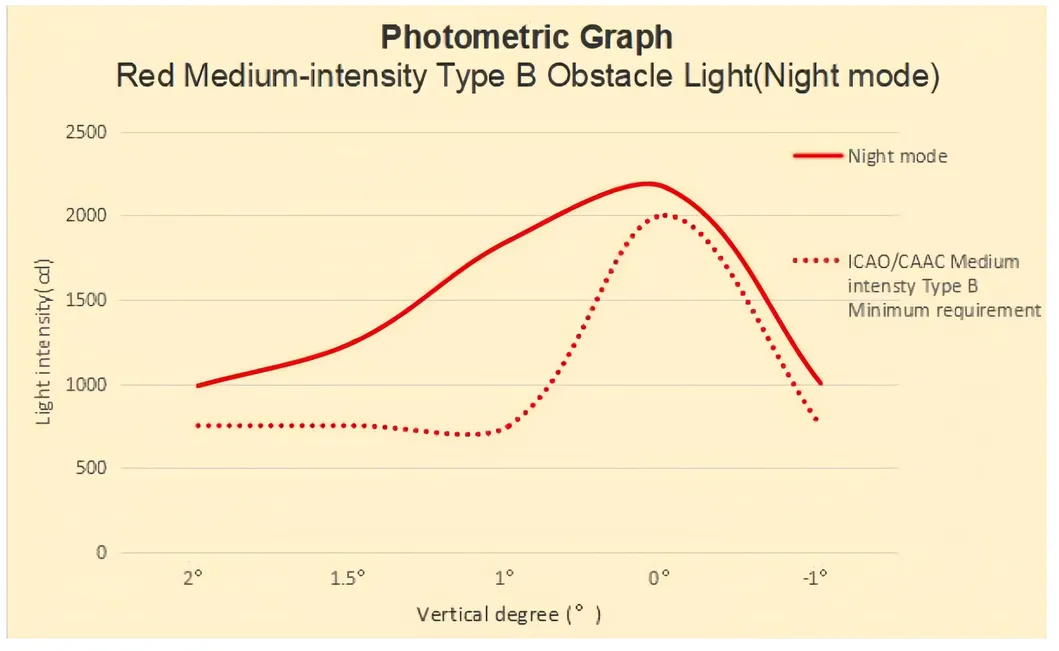

| Intensity (cd) |
20000cd+ (Daytime)
2000cd+ (Night)
|

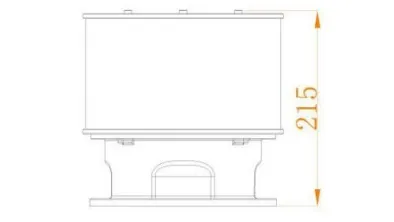

Dimension mm |
236*236*215mm |
GPS Sync Flashing |
GPS Sync/No Sync |

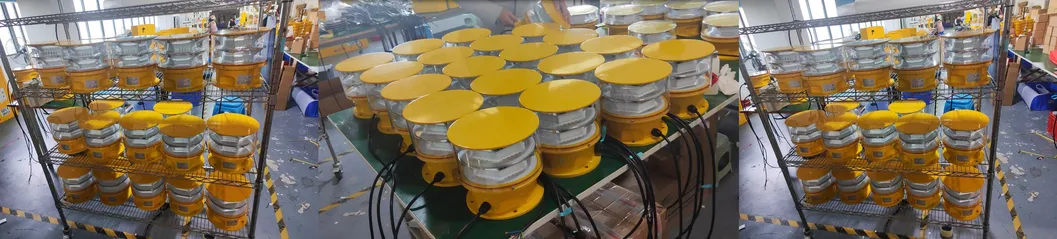

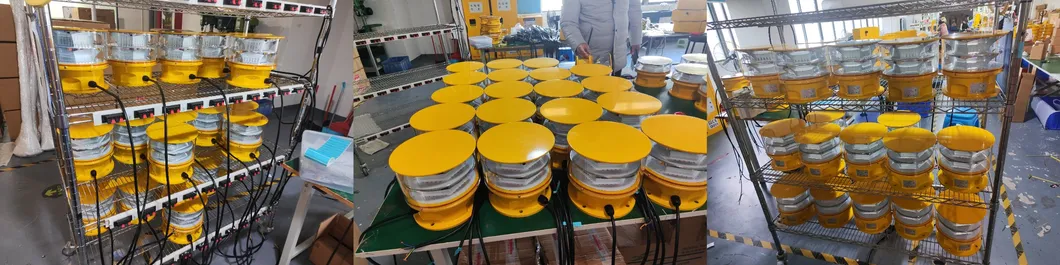

Production line

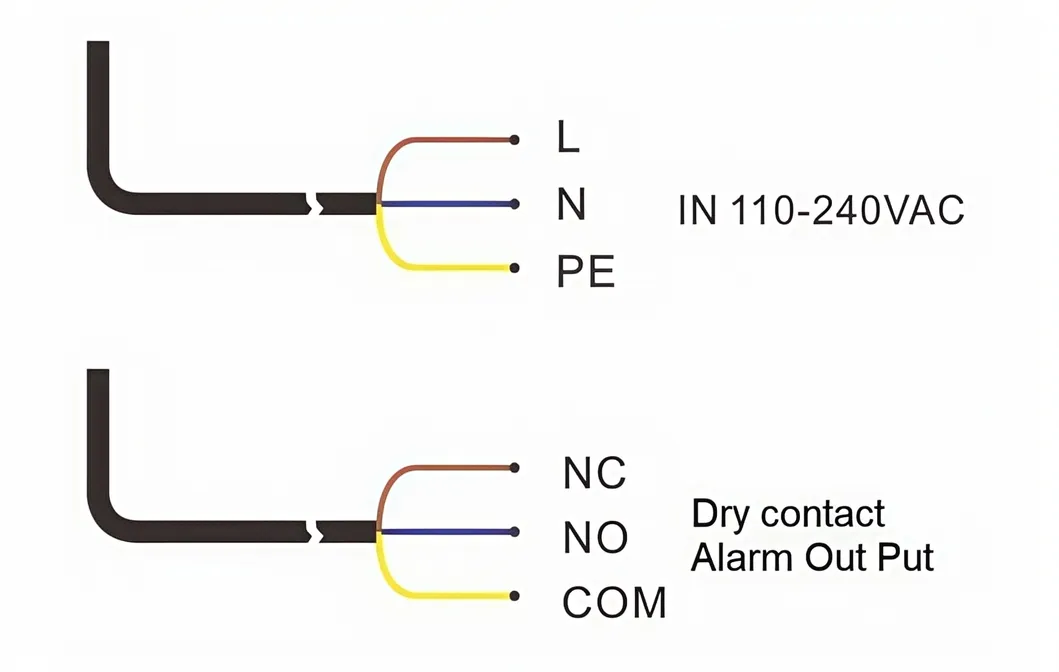

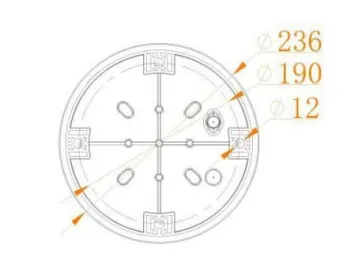

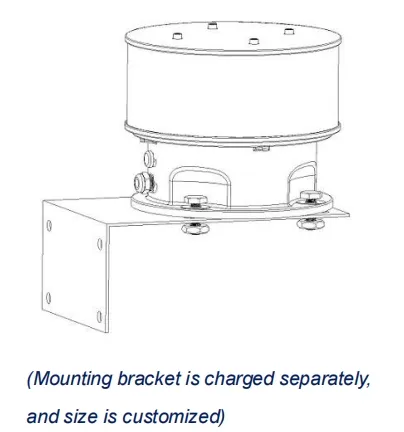

Installation Instruction

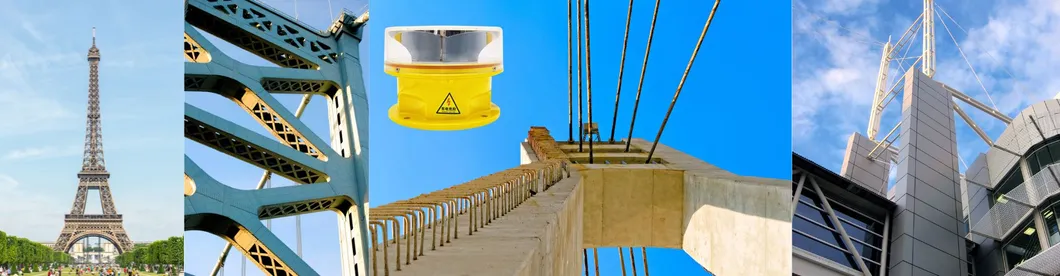

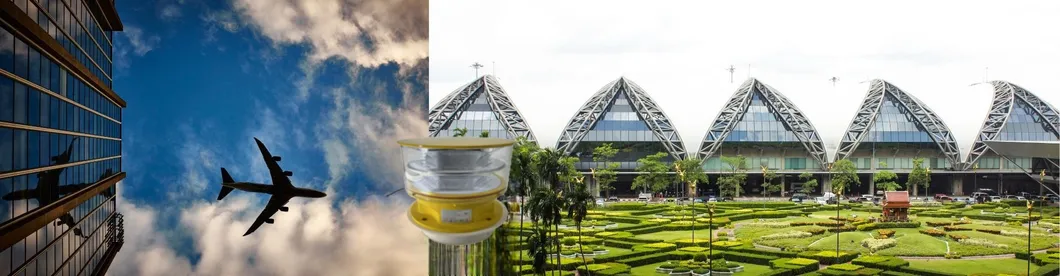

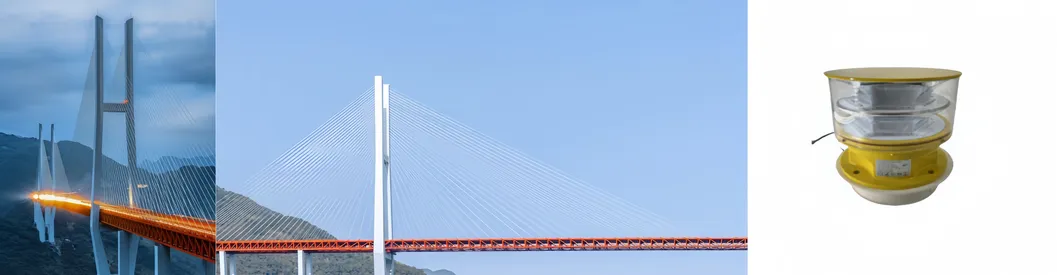

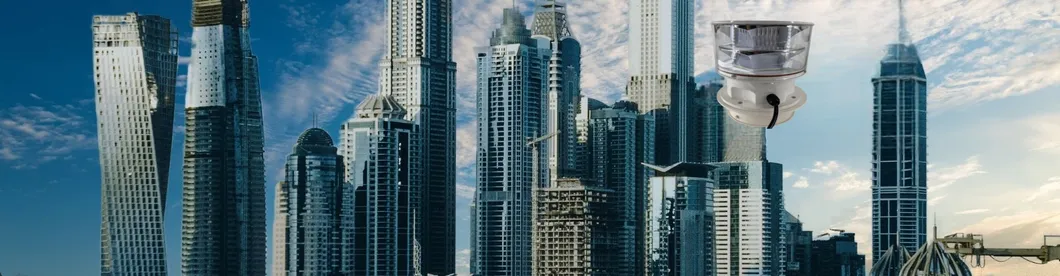

Application
MF-MI-BF medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers(Telecom,GSM, Microwave & TV),
High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is between 45-150 meters, and most time work with low intensity lights installed on the lower place
Packing & Shipping
We are supported air shipment, marine shipment also others delivery means. Our company is strategically located in Dongguan, close to Shenzhen Shekou Port, Dongguan Humen port, and Zhanjiang Haian New Port and other ports.
In addition, our company is also close to Shenzhen Airport, Guangzhou Baiyun Airport, Foshan Airport. In addition, our city and nearby cities have a very developed railway network and highway network. It is very convenient for transportation.
In terms of product packaging, we adopt a multi-layer packaging, using internal packaging and external packaging, while also laying a layer of sponge around the product. This careful packing makes the product less likely to be damaged in transit.
Company Profile
FAQ:
Q1: Are you a manufacturer?
MF: Yes, we are a manufacturer with our own factory. We have over 14 years of experience in research and development, as well as manufacturing, and we operate based on ISO quality management since 2009.
Q2: Can I order a sample of the LED Light?
MF: Yes, we welcome sample orders to test and check the quality of our products. Mixed samples are also acceptable.
Q3: What is the lead time for the LED Light?
MF: For sample orders, the lead time is 3-7 days, and for mass production orders, it is 15-25 days. The exact lead time depends on the order quantities.
Q4: How do you ship the finished products?
MF: We offer optional shipping methods such as by SEA, AIR, or Express (DHL, UPS, FedEx, TNT, etc.).
Q5: Can I print my logo on the LED Light?
MF: Yes, we provide OEM service to our customers. We can help to make the label and color box according to your requirements.
Q6: How do I proceed with an order for the LED Light?
MF: Firstly, please let us know your detailed requirements and application environment. Secondly, we will recommend some suitable products and solutions to you based on your request. Thirdly, after confirming all the details, customers will issue a purchase order and make the payment to confirm, and then we will start production and arrange shipment.
Q7: How do you handle defective products?
MF: All of our products are produced in strict quality control systems, and the defective rate is less than 0.2% according to our shipment records. We offer a 5-year warranty for this product. If there is any defect during the warranty period, please provide pictures or videos of the defective lights in working situations, and we will ship new lights to you within a few days or together with your next order.
