Photocell Sensor Garden Light LED Street Light 240W 100W 50W Pole IP66 Ik08 Waterproof Road Sidewalks Parking Light
Contact Person : Claire Li
Phone Number : 86-15999718117
WhatsApp : +8615999718117
Minimum Order Quantity : | 50pcs | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 590*395*115mm/pcs, N.W:6.8Kg G.W:8.5kg | Delivery Time : | Depends on orders |
Payment Terms : | T/T, Western Union, L/C,Paypal | Supply Ability : | 10,000pcs/Month |
Place of Origin: | China | Brand Name: | MF |
---|---|---|---|
Certification: | CE,RoHS,TUV,FCC, DLC | Model Number: | MF-P100 |
Detail Information |
|||
Item No:: | MF-P100 | Power:: | 100W |
---|---|---|---|
Input Voltage:: | AC85-305V, 50/60Hz | LED Chip:: | Cree XTE/ SAMSUNG 351B |
LED Driver:: | Meanwell | Luminous Flux(lm):: | 13000lm |
CRI:: | >80 | IP Grade:: | IP67 |
Beam Angle: | 90° , 120°, 90*120°, 85*135° | Function: | Dimmable/Photocell |
Body Color: | Grey/ Black/Silver | Lifetime: | 100,000 Hrs |
High Light: | Car parking lot lights,parking lot led lights |
Product Description
100W Aluminum Parking Lot Lighting IP65 Bracket For Square/Round Pole, wall
Description:
LED Parking Lot Lighting is the latest released product for Parking lot lighting from Ming Feng. This light is allocated with top grade LED from Cree /SAMSUNG and driver from Meanwell, which guarentees a working lifetime over 100,000h hours and a warranty of 5 years.
Our this parking lights with IP65 waterproof, 90°, 120°, 90*120°, 85*135° different beam angle, Grey/ Black/Silver body color for choose, Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.6 different kinds of bracket avaiable for pole, wall...etc installation.
Specifications: MF-P100 Parking Light Data Sheet.pdf
Item |
MF-P100 |
Input voltage |
85-305Vac 50Hz/60Hz |
LED Power |
100W |
Rated Power |
105W |
Delivered Flux(Tj80°c) |
13000lm |
IP Rating |
IP67 |
Luminous Efficiency |
130LM/W |
LED Qty: | 48pcs |
Pole Diameter(mm) | Dia60mm / Dia76mm |
Color temperature |
3000K / 4000K / 5000K |
LED Chip |
Cree XTE/ SAMSUNG 351B |
LED Driver |
Meanwell |
Color Rendering Index |
>80 |
Power Factor |
>0.98 |
Lifespan |
≥100,000hrs |
Operation Environment |
Temperature:-40°C~50°C / Humidity:10%~95% |
Material |
Aluminum Alloy |
Product Size(mm) |
343(L)*432(W)*176(H) |
Packing Size(mm) |
590(L)*395(W)*115(H)/pcs |
Weight |
N.W:6.8Kg G.W:8.5kg |
Certificate |
CE/RoHS/TUV/FCC/DLC |
Warranty Period |
5 years |
Competitive Advantage:
1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP67.
4. Beam Angle: 90°, 120°, 90*120°, 85*135°
5. Functions: Dimmable, Photocell available.
6. Warranty: Five years
7. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.
8. Body color : Grey/ Black/Silver
9. Installation angle -90~ +90 adjustable

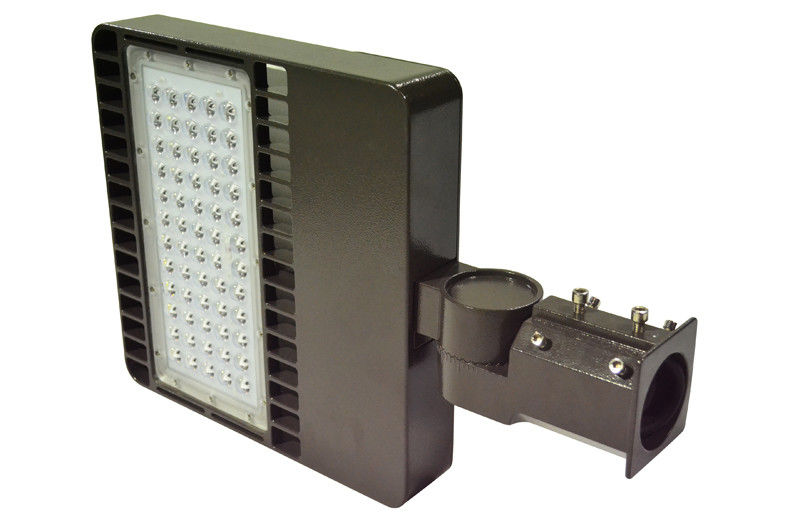

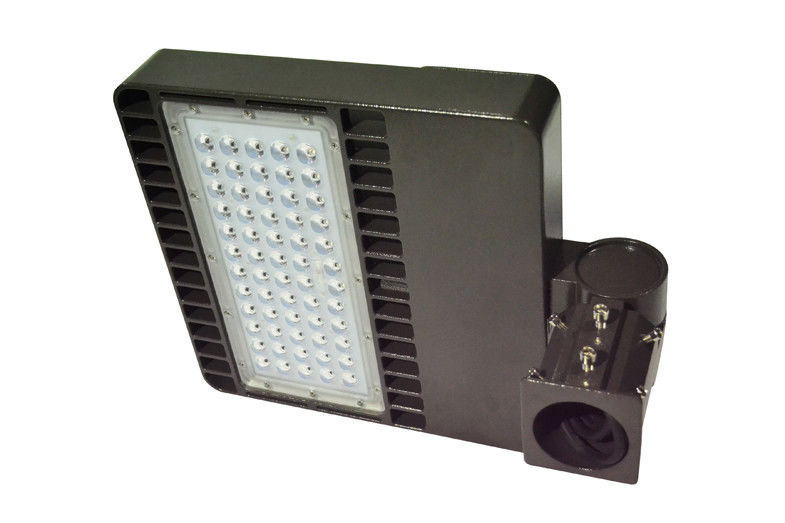

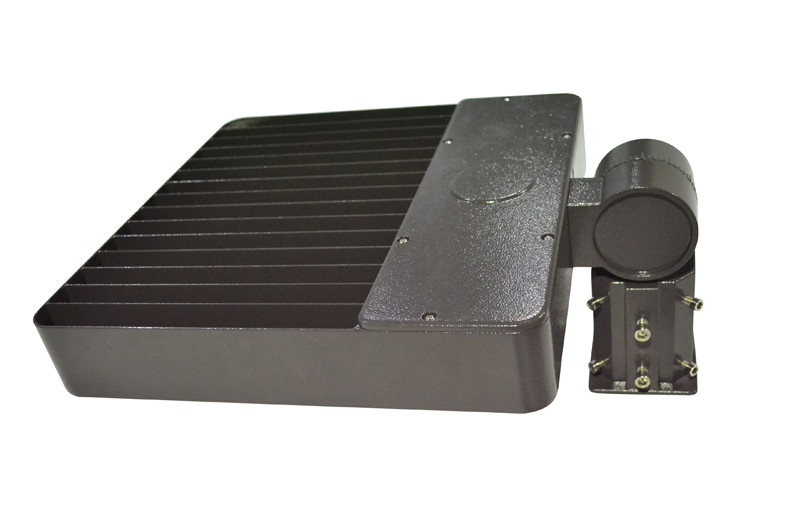

100W LED Parking Lot Lighting Show:
Application:
Parking Lot lighting, wall lighting area, street lighting...etc.
