100W LED Parking Lot Lights with Dimmable function, pole / wall mounting

Product Details:
Place of Origin: China
Brand Name: MF
Certification: CE/RoHS/TUV/FCC/DLC
Model Number: MF-P100
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: 590*395*115mm/pcs, N.W:6.8Kg G.W:8.5kg
Delivery Time: Depends on orders
Payment Terms: T/T, Western Union, L/C,Paypal
Supply Ability: 10,000pcs/Month

Detail Information

Item No:: MF-P100 Power:: 100W
Input Voltage:: AC85-305V LED Chip:: Cree / SAMSUNG
LED Driver:: Meanwell Efficiency: 130lm/w
CRI:: >80 IP Grade:: IP67
Warranty: 5 Years Certifcated: CE/RoHS/TUV/FCC/DLC
High Light:

led parking lot light

,

Car parking lot lights

Product Description

100W LED Parking Lot Lights with Dimmable function, pole / wall mounting


Description:

LED Parking Lot Lighting is the latest released product for Parking lot lighting from Ming Feng in 2014. This light is allocated with top grade LED from Cree / SAMSUNG and driver from Meanwell, which guarentees a working lifetime over 50,000h hours and a warranty of 5 years. Ming Feng LED Parking Lot Lighting could be adjustable bracket for installtion, With Module lens design make the lamp with well suited lighting distribution, the hollow out heat sink design make the lamp weight lighter and have good heat dissipation, 5 kinds of installation brackets. this LED light could be easily installed and operated and suits different demands for various car park.

Our this led parking lot lighting benefits are Hollow out heat sink design make the lamp lighter and good heat dissipation; Built-in Meanwell driver, meet IEC standard; Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%. CE, TUV, ROHS, FCC, DLC approved; Dimmable, Photocell sensor available.this LED light could be easily installed and operated and suits different demands for various car park.


Specifications: MF-P100 Parking Light Data Sheet.pdf


Item

MF-P100

Input voltage

85-305Vac  50Hz/60Hz

LED Power

100W

Rated Power

105W

Delivered Flux(Tj80°c)

13000lm

IP Rating

IP67

Luminous Efficiency

130LM/W

LED Qty:48pcs
Pole Diameter(mm)Dia60mm / Dia76mm

Color temperature

3000K / 4000K / 5000K

LED Chip

Cree/Samsung

LED Driver

Meanwell

Color Rendering Index

>80

Power Factor

>0.98

Lifespan

≥100,000hrs

Operation Environment

Temperature:-40°C~50°C / Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

343(L)*432(W)*176(H)

Packing Size(mm)

590(L)*395(W)*115(H)/pcs

Net Weight

6.8Kg

Certificate

CE/RoHS/TUV/FCC/DLC

Warranty Period

5 years



Competitive Advantage:

1. We are use 110-120LM/W Cree/samsung chip.
2. Module lens design make the lamp with well suited lighting distributing for LED Parking lot lighting.
3. Hollow out heat sink design make the lamp weight lighter and have good heat dissipation.
4. Installation angle -90~ +90 adjustable
5. Goo-looking appearance reaches 130 lm/w
6. Warranty:5 years
7. . Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.
8. Functions: Dimmable, Photocell available

100W Product Dimension:

100W LED Parking Lot Lights with Dimmable function, pole / wall mounting 0

Product shows:

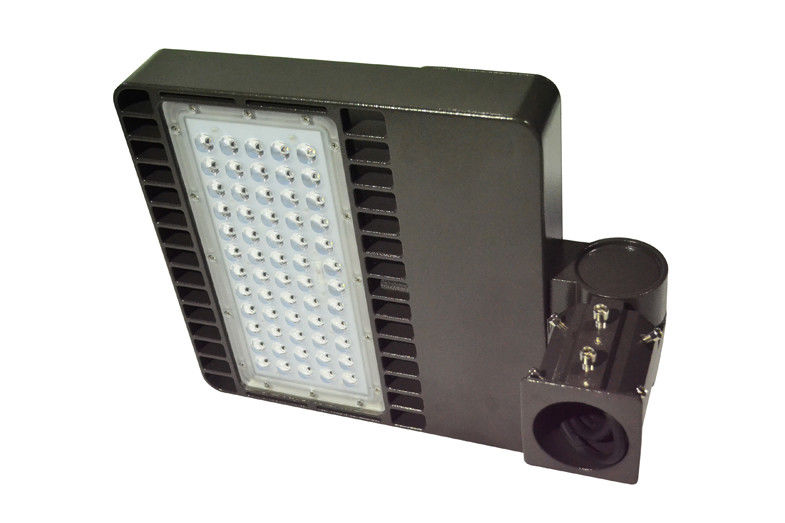

100W LED Parking Lot Lights with Dimmable function, pole / wall mounting 1

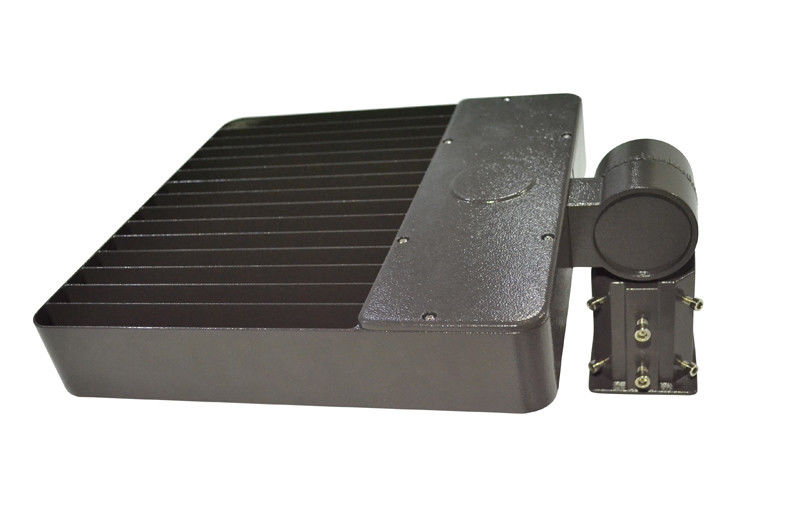

100W LED Parking Lot Lights with Dimmable function, pole / wall mounting 2

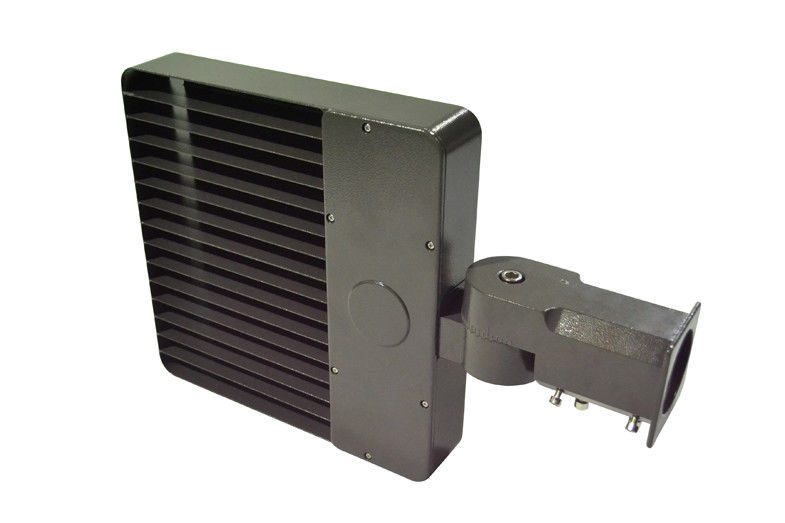

100W LED Parking Lot Lights with Dimmable function, pole / wall mounting 3


Light Distribution Curve:

100W LED Parking Lot Lights with Dimmable function, pole / wall mounting 4
