Waterproof IP66 Led Street Lamp 200W, CRI>80, the poler dia 60mm

Minimum Order Quantity : 100PCS Price : Negotiable
Packaging Details : 78*36.5*18.5cm/1pcs, G.W:10.5 Kg Delivery Time : Depends on orders
Payment Terms : T/T, Western Union, Paypal,L/C Supply Ability : 5,000pcs/Month
Place of Origin: China Brand Name: MF
Certification: CE, RoHS, DLC Model Number: MF-ST180

Detail Information

Power: 220W LED Chip: SAMSUNG/
LED Driver: Meanwell LLumious Efficiency: 130LM/W
IP: 66 Material: Die-casting Aluminium
CRI: 80 Warranty: 5 Years
High Light:

exterior led lighting

,

led road light

Product Description

Waterproof IP66 Led Street Lamp 200W, CRI>80, the poler dia 60mm




Description:

Module dimmable LED Roadway lights embrace typical European and American style solid and slender , flexible current driving range , thermal and optical integrated modular system , the light distribution of multiple choice , free tool for installation and maintenance, complete solutions , widely applicable installation transition from the old and the various control methods.


The Module led street lights source use 120M/W SAMSUNG/ , the luminaire reach 110LM/W, High efficiency driver system from Meanwell, Power box free tool to open, easy installation and maintenance, photocell function for optional, adjustable juction available, DLC, CE, GS ,Rohs certificated, provide 5 years warranty. Wildly use for Free way, Main road, Secondary main road and so on.


Specifications:

Item

MF-ST180

Input voltage

85-265Vac  50Hz/60Hz

LED Power

220W

Rated Power

220±7W

Delivered Flux(Tj80°c)

28600 lm

IP Rating

IP66

LED QTY

120 pcs

Color temperature

3000K-6500K

LED Chip

SAMSUNG/

LED Driver

Meanwell

Color Rendering Index

Ra>80

Power Factor

>0.9

Lifespan

≥50,000hrs

Operation Environment

Temperature : -40°C~50°C / Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

694(L)*298(W)*79(H)

Net Weight

7.5Kg

Certificate

CE/RoHS/DLC

Warranty Period

5 years




Competitive Advantage:

1. Modular design, the light efficient reach 130lm/W
2. The light source use 140M/W SAMSUNG/, the luminaire reach 130M/W
3. Non-image optics system, improves lumen output ratio
4. High efficiency driver system from Meanwell
5. Power box free tool to open, easy installation and maintenance
6. Elegant appearance, open air ventilation design, good heat dissipation function
7. “Tool free” locking design to open and close the driver compartment simply, easy installation and maintenance
8. Photocell and 0-90degree ajustable bracket available.
9. Dimmable version optional



Product Pictures:

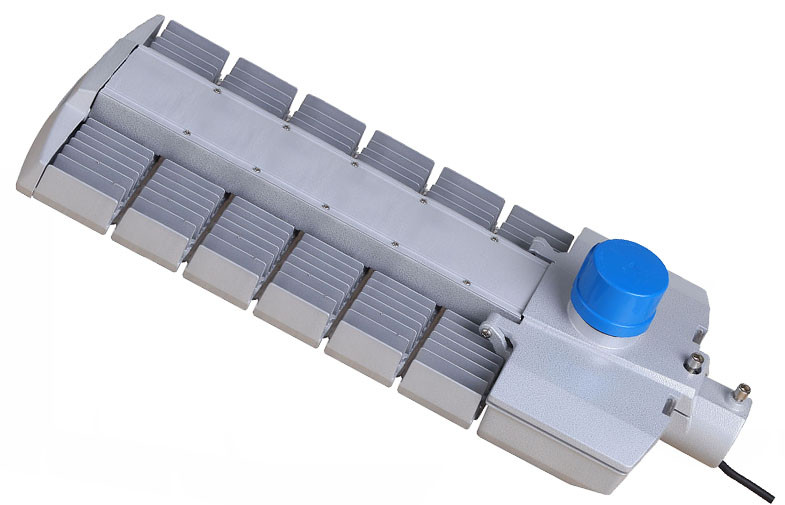

Waterproof IP66 Led Street Lamp 200W, CRI>80,  the poler dia 60mm 0

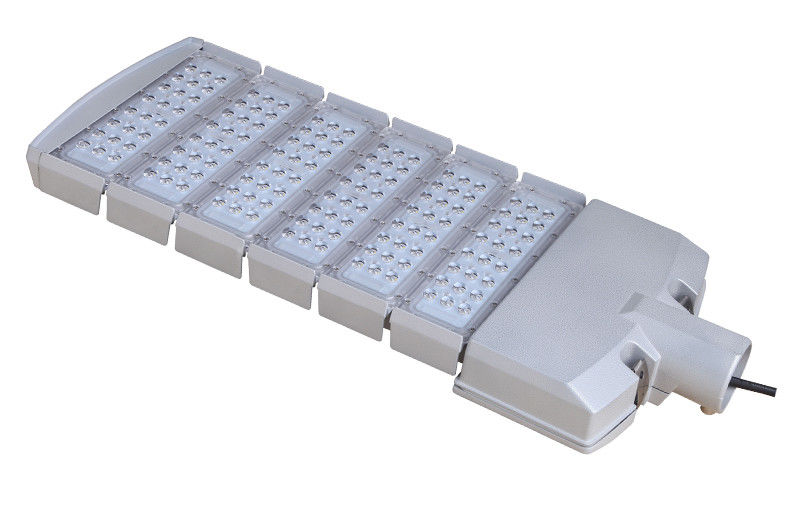

 Waterproof IP66 Led Street Lamp 200W, CRI>80,  the poler dia 60mm 1



Packing:

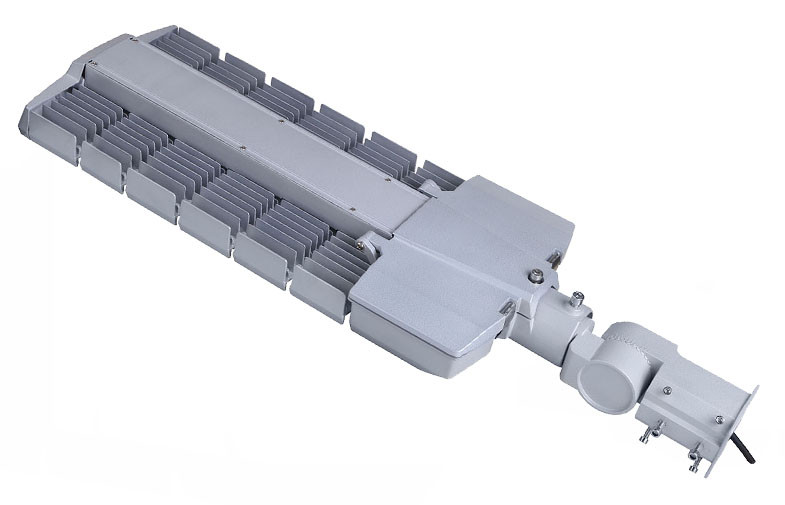

Waterproof IP66 Led Street Lamp 200W, CRI>80,  the poler dia 60mm 2




Applications:

Wildly use on free way, Main road, Secondary main road etc.
 Waterproof IP66 Led Street Lamp 200W, CRI>80,  the poler dia 60mm 3
